Garland  |  SKU: UTBG60-AR60

Garland UTBG60-AR60 Gas Charbroilers

$8,712.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Charbroilers & Grills Gas Charbroilers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

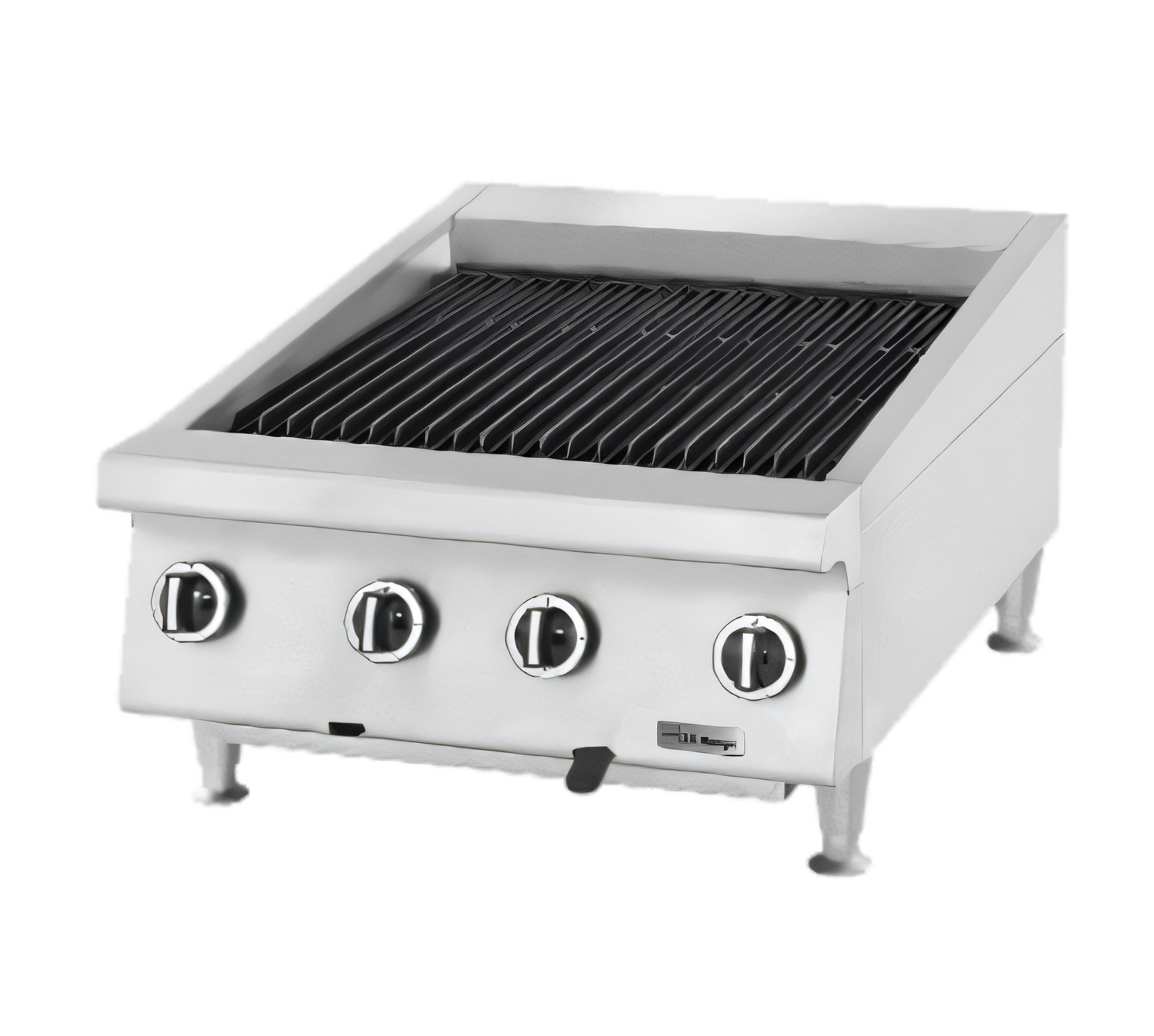

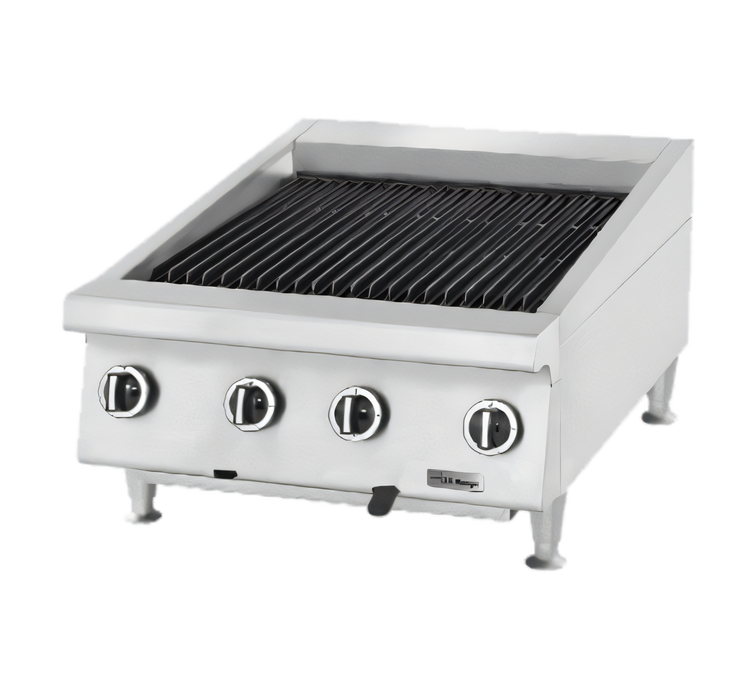

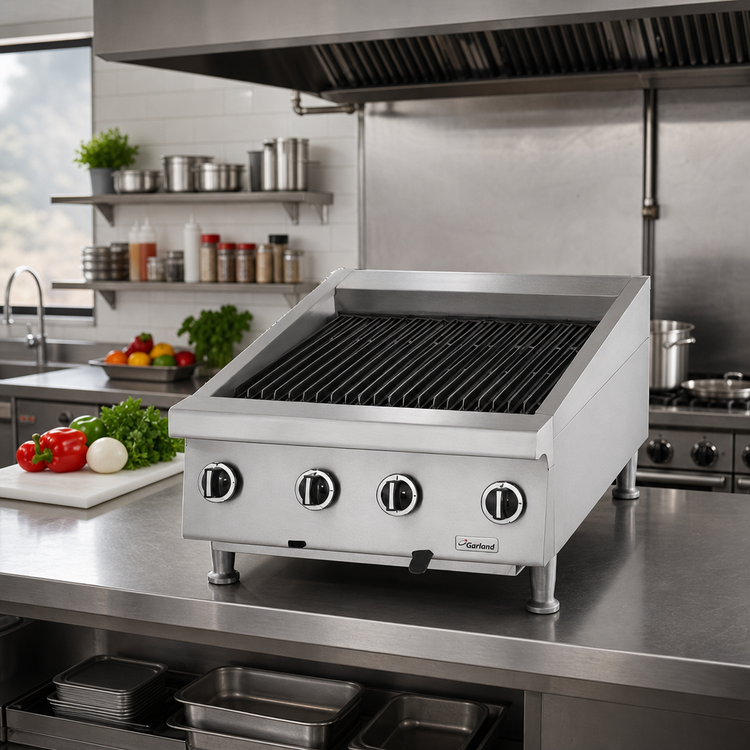

Garland UTBG60-AR60 Heavy-Duty Gas Radiant Charbroiler – 60"

Countertop | 180,000 BTU | Adjustable Grates | CSA & NSF Certified

Turn out beautifully branded steaks, burgers and vegetables shift after shift with the Garland UTBG60-AR60. Delivering a massive 180,000 BTU across nearly five feet of cast-iron cooking surface, this heavy-duty countertop charbroiler pairs uncompromising power with Garland’s legendary durability for high-volume kitchens that refuse to compromise.

Key Features

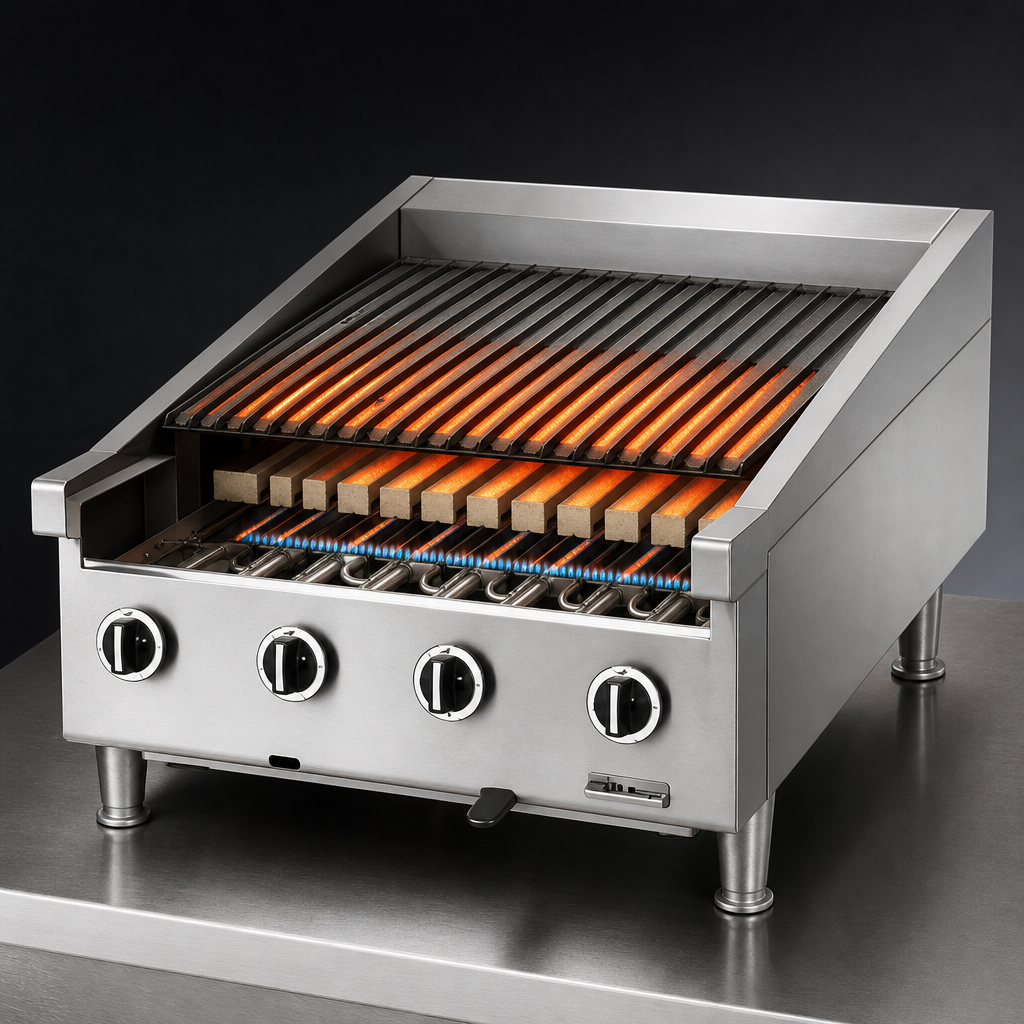

  • 59-1/16" wide broiler powered by ten 18,000 BTU stainless steel burners

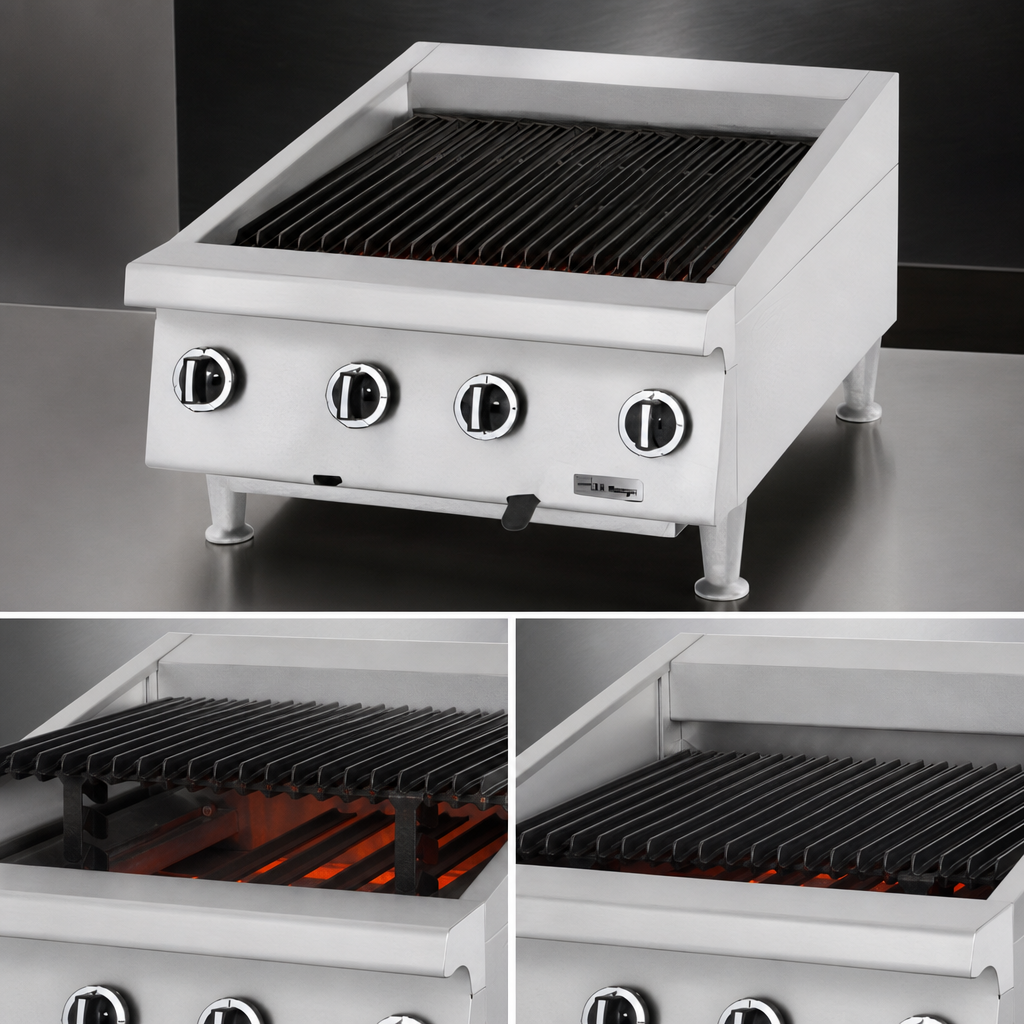

  • Adjustable, reversible cast-iron grates in 3" sections – flat side or 1/8" & 3/16" branding marks
  • Extra-deep 21-3/16" broiling grid accommodates oversized cuts and pans
  • Individual hi/lo valve for every 6" section to create multiple temperature zones
  • All-stainless front, sides, back and 3-1/2" deep front rail resist corrosion and simplify cleaning
  • Large slide-out crumb tray captures grease and debris for quick end-of-day cleanup
  • 4" adjustable stainless legs let you level the unit on any counter
  • 3/4" NPT rear gas connection with regulator and “T” manifold for straight-through or flush installs

Specifications

Model UTBG60-AR60
Type Countertop Gas Radiant Charbroiler (Adjustable Grates)
Total Input 180,000 BTU/hr (10 × 18,000 BTU)
Cooking Surface 59-1/16" W × 21-3/16" D
Overall Dimensions 59-1/16" W × 32" D × 13" H (without legs)
Front Rail Stainless steel, 3-1/2" deep (4" overall)
Grate Positions 2 (high / low)
Gas Connection 3/4" NPT rear, regulator included
Manifold Pressure 4.5" WC Natural  |  10" WC Propane
Operating Pressure 7" WC Natural  |  11" WC Propane
Shipping Weight 635 lb / 288 kg
Certifications CSA, NSF

Popular Options & Accessories

  • Stainless skirt for flush counter mounting (reduces height by 1-3/4")
  • Stainless steel spatter-guard with removable wire shelf (24" & 36" models)
  • 9" fajita broiling grate – replaces three standard grate sections
  • Broiler grate cleaning tool
  • Heavy-duty stainless equipment stand with shelves, adjustable feet or locking casters
  • Removable stainless condiment rail with 1/9 or 1/3 pan cut-outs
Commercial use only: Garland/U.S. Range products are engineered for professional kitchens and are not approved for residential installation.

Features & Specs

Manufacturer

Garland

Certifications

NSF, CSA

Height

13.0in

Width

59.06in

Depth

32.0in

Shipping Weight

635.0lbs

Heating Source

radiant

Control Type

manual controls

Width (side - side) OA

55 - 60"

Specifications

Charbroiler, countertop, gas, 59-1/16" W, heavy-duty, adjustable cast iron grates, 21-3/16” D broiling grid, (1) variable hi/lo valve per burner, manual controls, crumb tray, reversible cast iron broiler racks in 3” W sections, stainless steel front, sides, back & 3-1/2" front rail, 4" adjustable legs, 180,000 BTU (US Range), CSA, NSF
