Garland  |  SKU: UTBG48-AR48

Garland UTBG48-AR48 Gas Charbroilers

$6,833.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Charbroilers & Grills Gas Charbroilers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

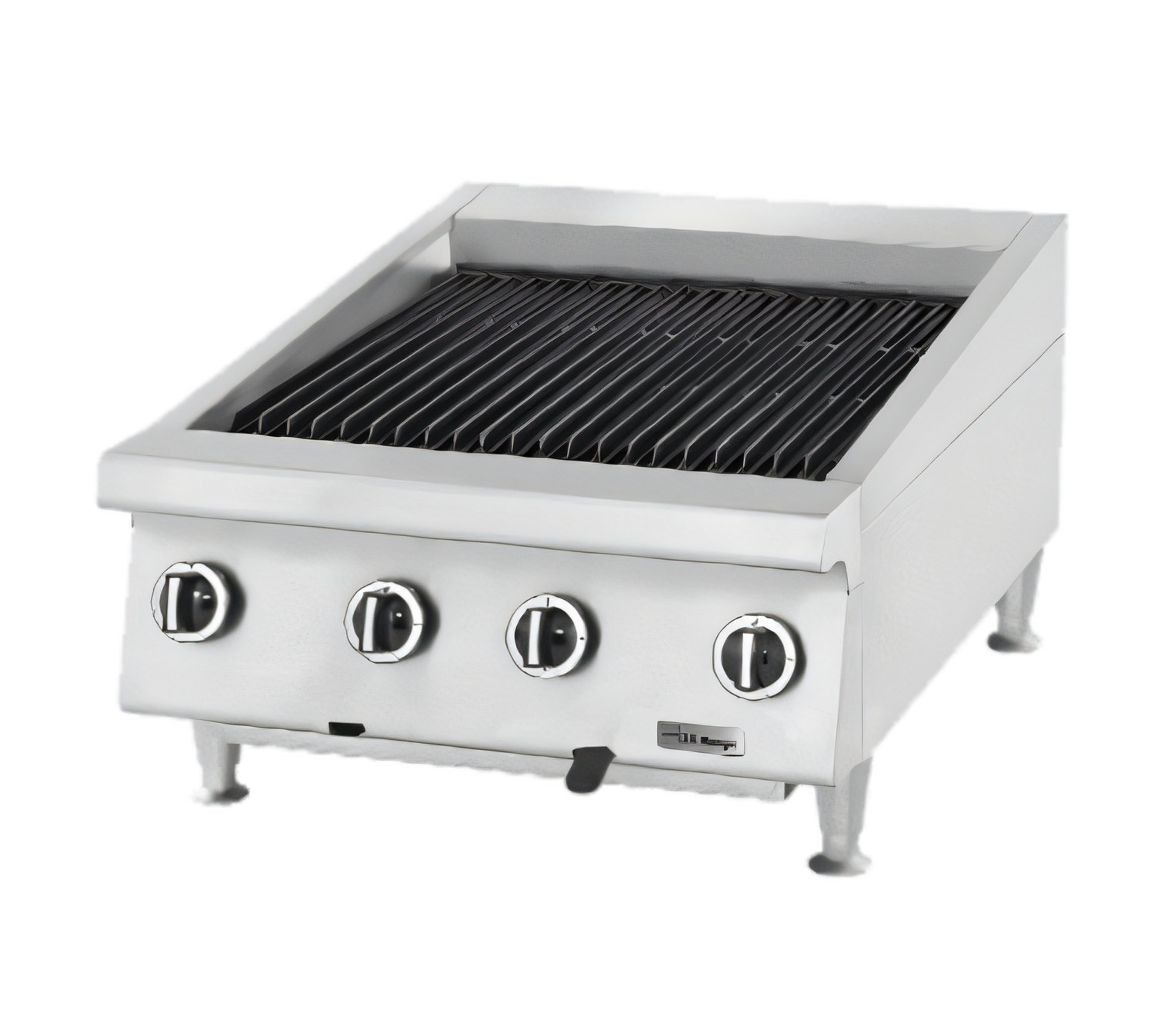

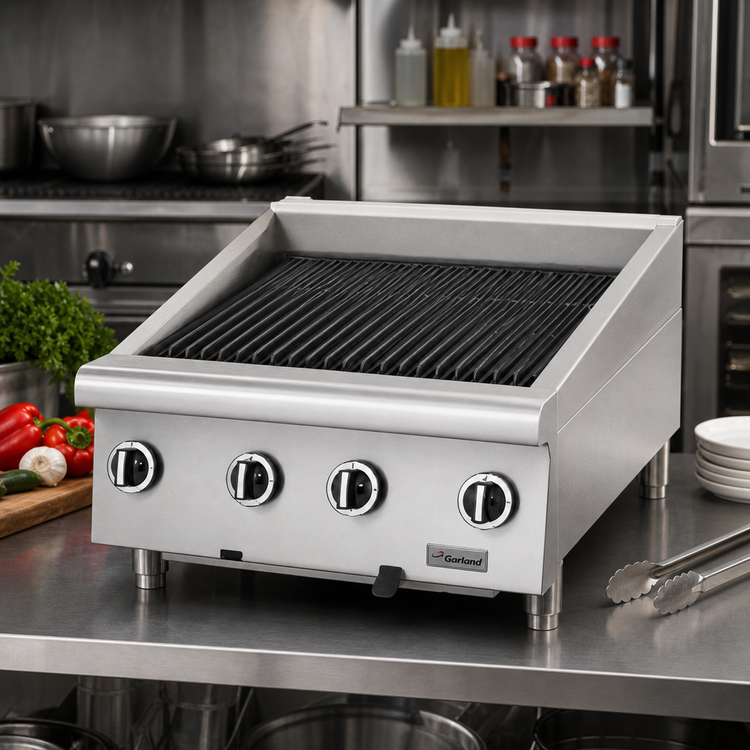

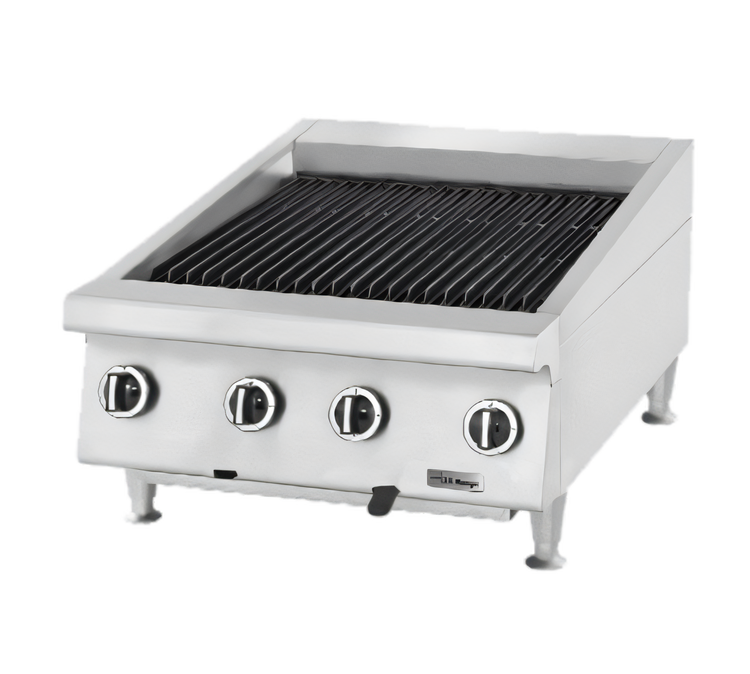

Garland UTBG48-AR48 Heavy-Duty Gas Radiant Charbroiler

47-1/4" Countertop | 144,000 BTU | Adjustable Cast-Iron Grates

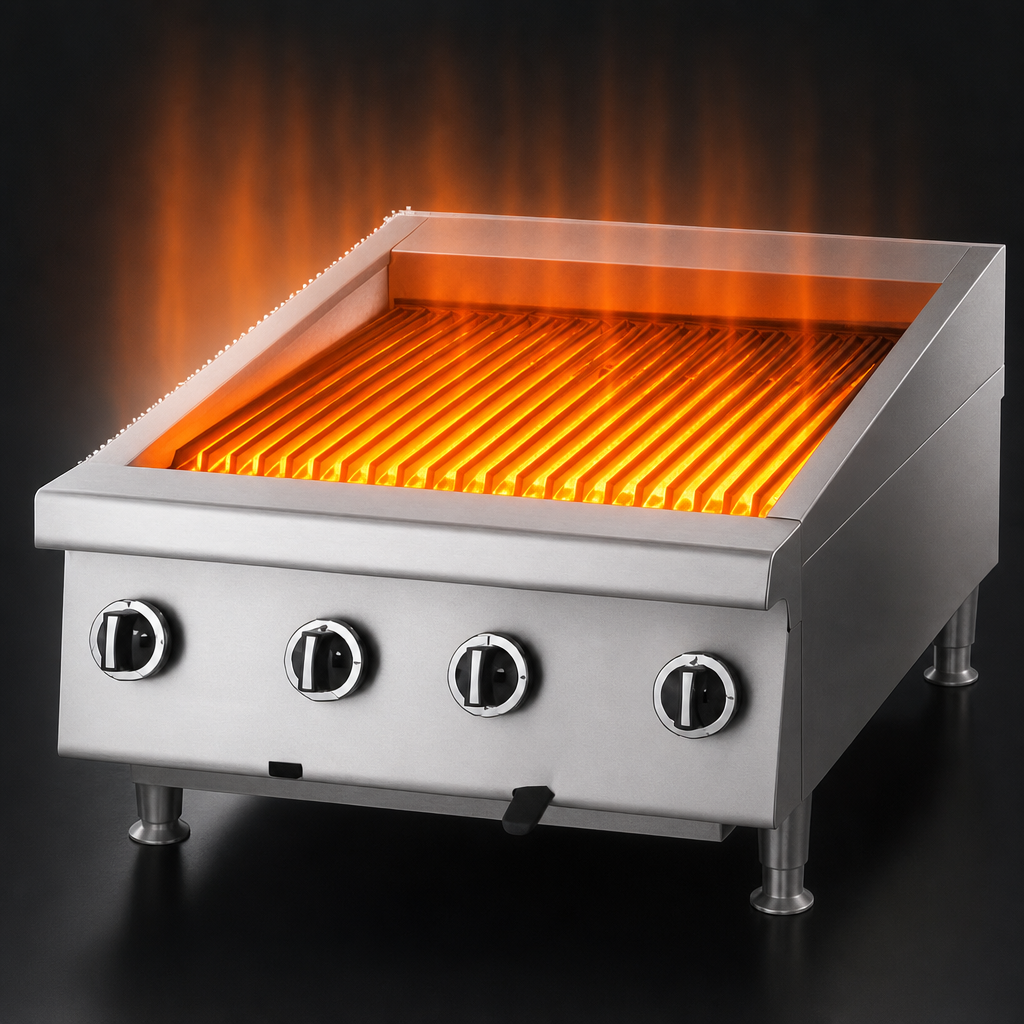

Bring steakhouse power to your cookline with the Garland UTBG48-AR48. This 4-ft, high-output charbroiler couples cast-iron radiants with precision hi/lo controls, delivering the intense, even heat you need for perfect grill marks service after service.

Key Features
  • Total output: 144,000 BTU/hr from eight 18,000 BTU stainless burners.
  • Reversible cast-iron grates in 3" sections with 1/8" and 3/16" brand marks.

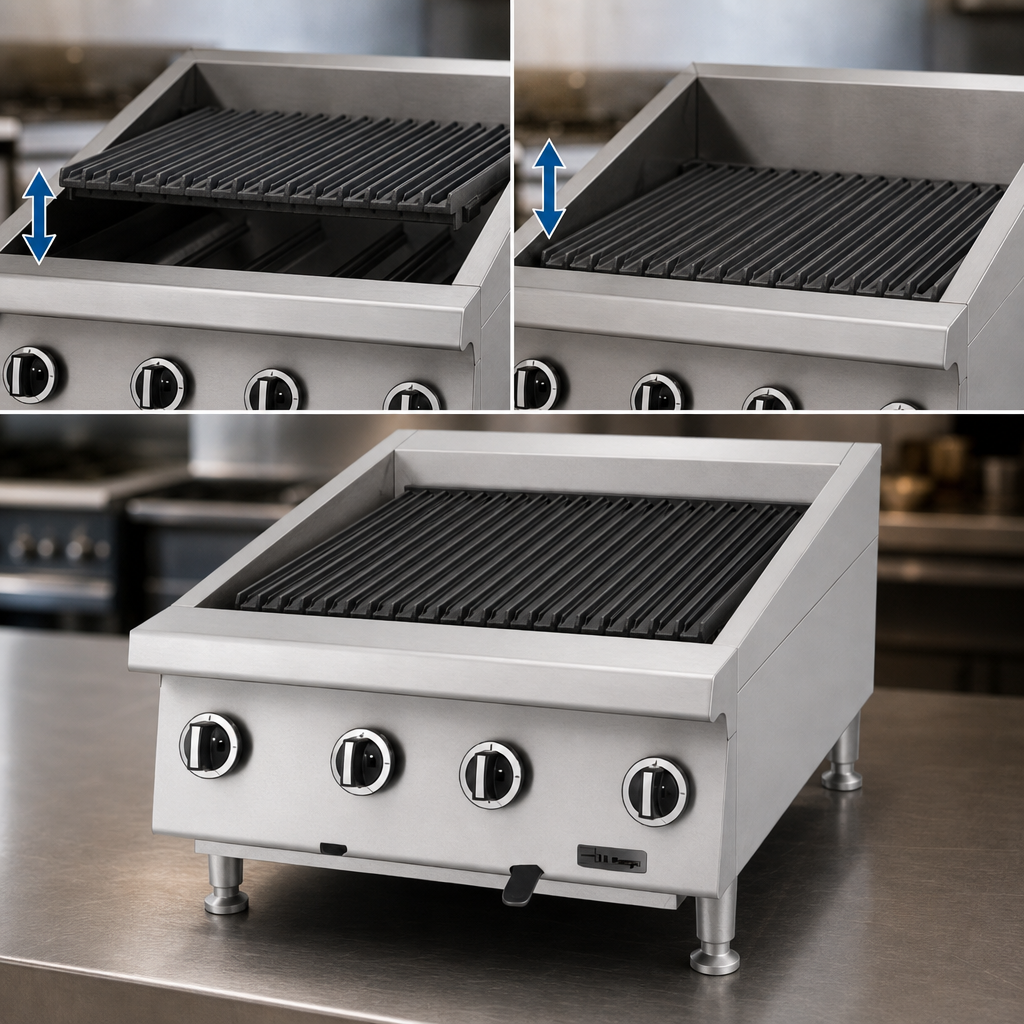

  • Two-position adjustable grate design lets you switch between high-heat searing and gentler cooking.
  • Individual hi/lo manual valves for every 6" zone—dial in exact temperatures across the width.
  • Spacious 21-3/16" deep broiling grid—over 1,000 in² of usable cooking area.
  • Full-width stainless steel crumb tray for quick clean-up.
  • Durable stainless front, sides, back and 3-1/2" bull-nose rail for plating or resting utensils.
  • 4" adjustable stainless legs level the unit on any countertop.
  • 3/4" NPT rear gas connection with regulator and “T” manifold for straight-through or flush installs.
  • Commercial-grade construction—CSA & NSF certified.
Specifications
Model UTBG48-AR48
Cooking Surface (W × D) 47-1/4" × 21-3/16" (1200 mm × 538 mm)
Overall Dimensions (W × D × H) 47-1/4" × 32" × 13" (1200 mm × 814 mm × 330 mm) (height with 4" legs)
Total BTU 144,000 BTU/hr (42.2 kW)
Burners 8 × 18,000 BTU cast-iron radiant burners
Gas Connection 3/4" NPT rear, regulator included
Operating Pressure Natural 7" W.C. | Propane 11" W.C.
Manifold Pressure Natural 4.5" W.C. | Propane 10" W.C.
Certifications CSA, NSF
Shipping Weight 514 lb / 233 kg
Clearance 0" in non-combustible surroundings
Popular Accessories (sold separately)
  • Stainless steel spatter guard
  • Fajita broiling grate (9" wide)
  • Broiler grate cleaning tool
  • Stainless equipment stand (feet or locking caster styles)
  • Removable condiment rail for 1/9 or 1/3 pans

For commercial use only. Specify gas type (natural or propane) and installation altitude when ordering.

Features & Specs

Manufacturer

Garland

Certifications

NSF, CSA

Height

13.0in

Width

47.25in

Depth

32.0in

Shipping Weight

514.0lbs

Heating Source

radiant

Control Type

manual controls

Width (side - side) OA

43 - 48"

Specifications

Charbroiler, countertop, gas, 47-1/4" W, heavy-duty, adjustable cast iron grates, 21-3/16” D broiling grid, (1) variable hi/lo valve per burner, manual controls, crumb tray, reversible cast iron broiler racks in 3” W sections, stainless steel front, sides, back & 3-1/2" front rail, 4" adjustable legs, 144,000 BTU (US Range), CSA, NSF
