Garland  |  SKU: UTBG48-AB48

Garland UTBG48-AB48 Gas Charbroilers

$7,000.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Charbroilers & Grills Gas Charbroilers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Garland UTBG48-AB48 Heavy-Duty Gas Charbroiler – 48" Countertop

120,000 BTU ceramic briquette broiler with adjustable cast-iron grates

Built for continuous, high-volume service, the Garland UTBG48-AB48 delivers authentic charbroiled flavor, rock-solid durability, and precision zone control—all in a space-saving 48-inch footprint.

Key Features
  • 48" (1200 mm) wide cooking surface powered by four 30,000 BTU cast-iron burners—120,000 BTU total.
  • Ceramic, pre-formed briquettes distribute heat evenly and minimize flare-ups.

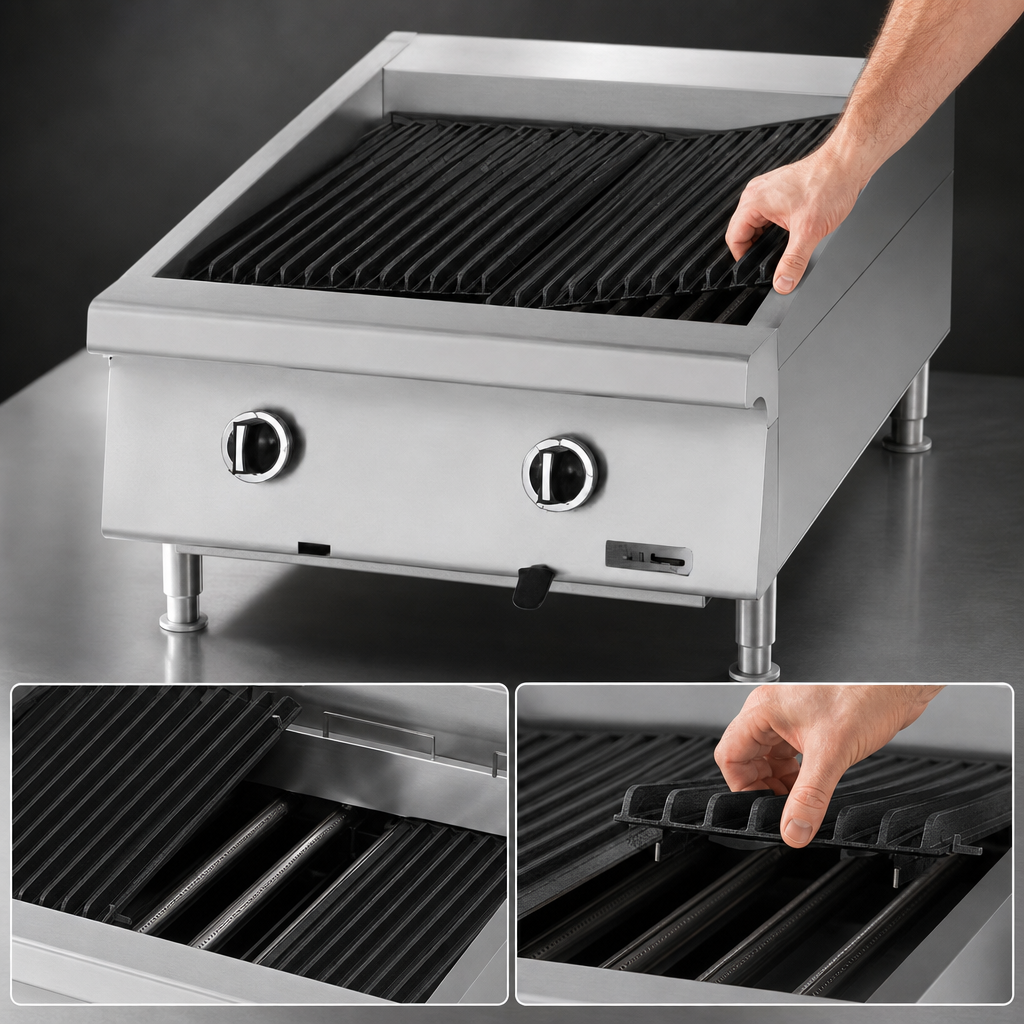

  • Reversible 3" wide cast-iron broiler racks with 1/8" & 3/16" brand marks.
  • Two-position grate height for aggressive searing or gentle finishing.
  • Individual hi/lo manual valve for each burner—cook multiple menu items simultaneously.
  • Generous 21-3/16" (538 mm) broiling grid depth maximizes production capacity.
  • Stainless steel front, sides, back and 3-1/2" deep rail resist corrosion and wipe clean fast.
  • Full-width, large-capacity crumb tray simplifies end-of-shift cleanup.
  • 4" stainless steel adjustable legs for perfect leveling on any countertop.
  • Factory-installed 3/4" NPT regulator with “T” manifold for straight or flush rear gas connection.

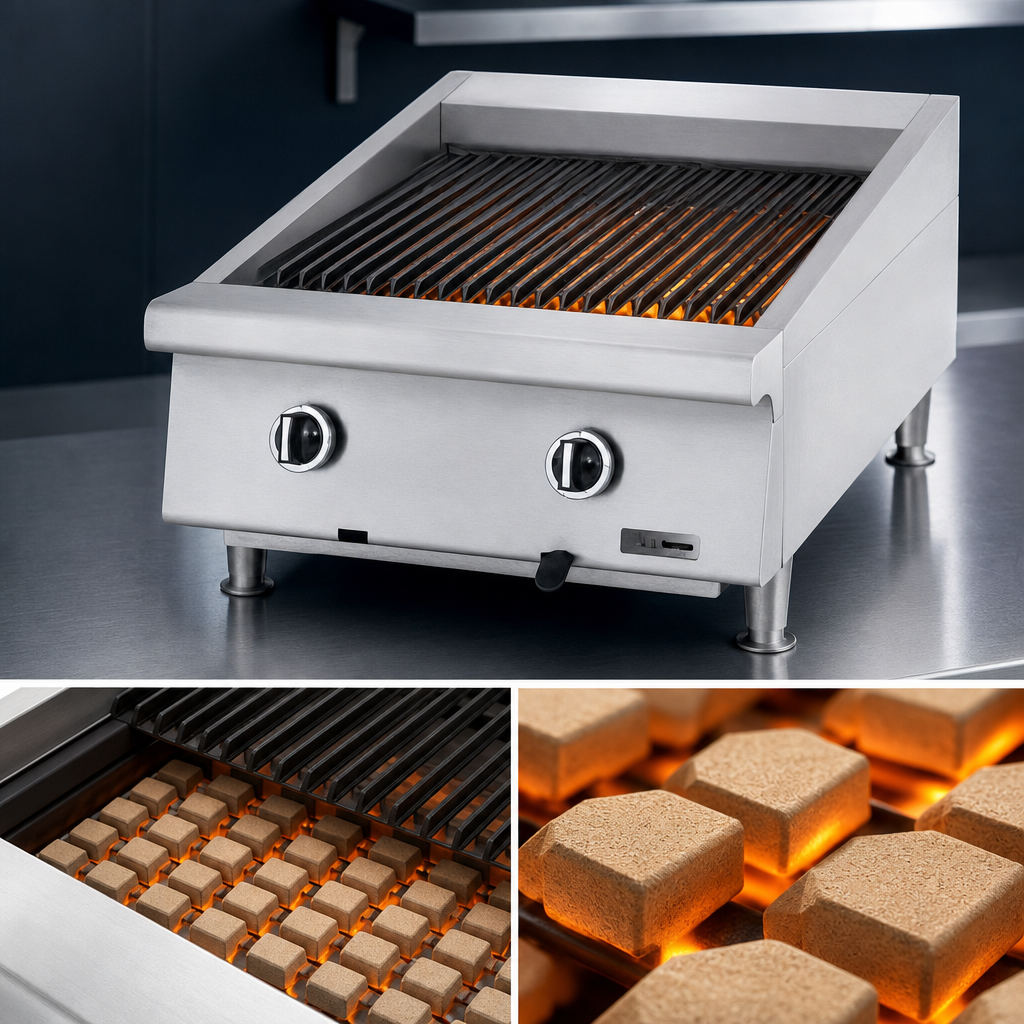

Why Ceramic Briquettes?
  • Even, radiant heat with fewer hot and cold spots.
  • Vaporize drippings to enhance flavor while protecting burners.
  • Cleaner and longer-lasting than traditional lava rock.
  • Quick to replace—no tools required.
Specifications
Model UTBG48-AB48
Cooking Width 48" / 1200 mm
Cooking Depth 21-3/16" / 538 mm
Overall Dimensions (W × D × H) 47-1/4" × 32" × 13"
(1200 mm × 814 mm × 330 mm) with 4" legs
Total Input 120,000 BTU/hr (Natural or Propane)
Burners 4 × 30,000 BTU cast-iron with individual hi/lo valves
Gas Connection 3/4" NPT rear manifold (straight or flush)
Operating Pressure Nat 4.5" WC  |  LP 10" WC
Clearances 0" sides & back in non-combustible surroundings
Certifications CSA, NSF
Shipping Weight Approx. 514 lb / 233 kg

Need a stand, spatter guard, or fajita grate? Garland offers a full range of accessories to customize your UTBG48-AB48.

Gas notice: Unit ships for the gas type selected at checkout. For installations above 2,000 ft (610 m) elevation, please specify when ordering.

Features & Specs

Manufacturer

Garland

Certifications

NSF, CSA

Height

13.0in

Width

47.25in

Depth

32.0in

Shipping Weight

514.0lbs

Width (side - side) OA

43 - 48"

Control Type

manual controls

Heating Source

ceramic

Specifications

Charbroiler, countertop, gas, 48" W, heavy-duty, ceramic briquette, adjustable cast iron grates, 21-3/16” D broiling grid, (1) variable hi/lo valve per burner, manual controls, crumb tray, reversible cast iron broiler racks in 3” W sections, stainless steel front, sides, back & 3-1/2" front rail, 4" adjustable legs, 120,000 BTU (US Range), CSA, NSF
