Garland UTBG36-NR36 Gas Charbroilers
Description
Garland UTBG36-NR36 Heavy-Duty Gas Radiant Char-Broiler
36" Countertop | Non-Adjustable Cast-Iron Grates | 108,000 BTUEngineered for relentless commercial duty, the Garland UTBG36-NR36 delivers the high heat, rugged construction and day-long reliability serious kitchens demand. Six powerful 18,000 BTU burners team up with cast-iron radiants and a 21-3/16" deep broiling grid to turn out perfect grill marks—without the constant babysitting common char-broilers require.
Standard Features
- 36" (35-7/16") wide countertop design—fits most cooklines.

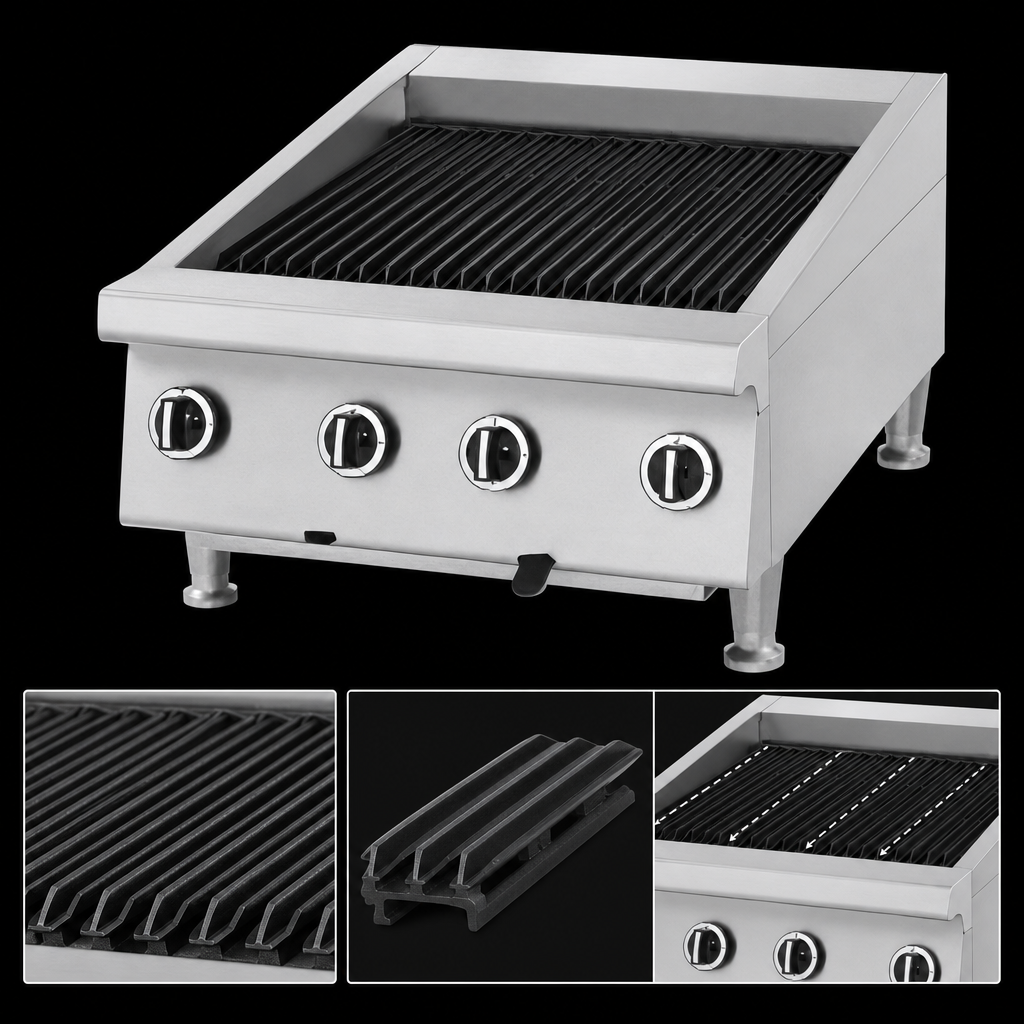

- Heavy-duty, non-adjustable cast-iron cooking grates in 3" wide, reversible sections with 1/8" or 3/16" branding surfaces.
- Six 18,000 BTU stainless steel burners (one per 6") with individual variable Hi/Lo manual valves.

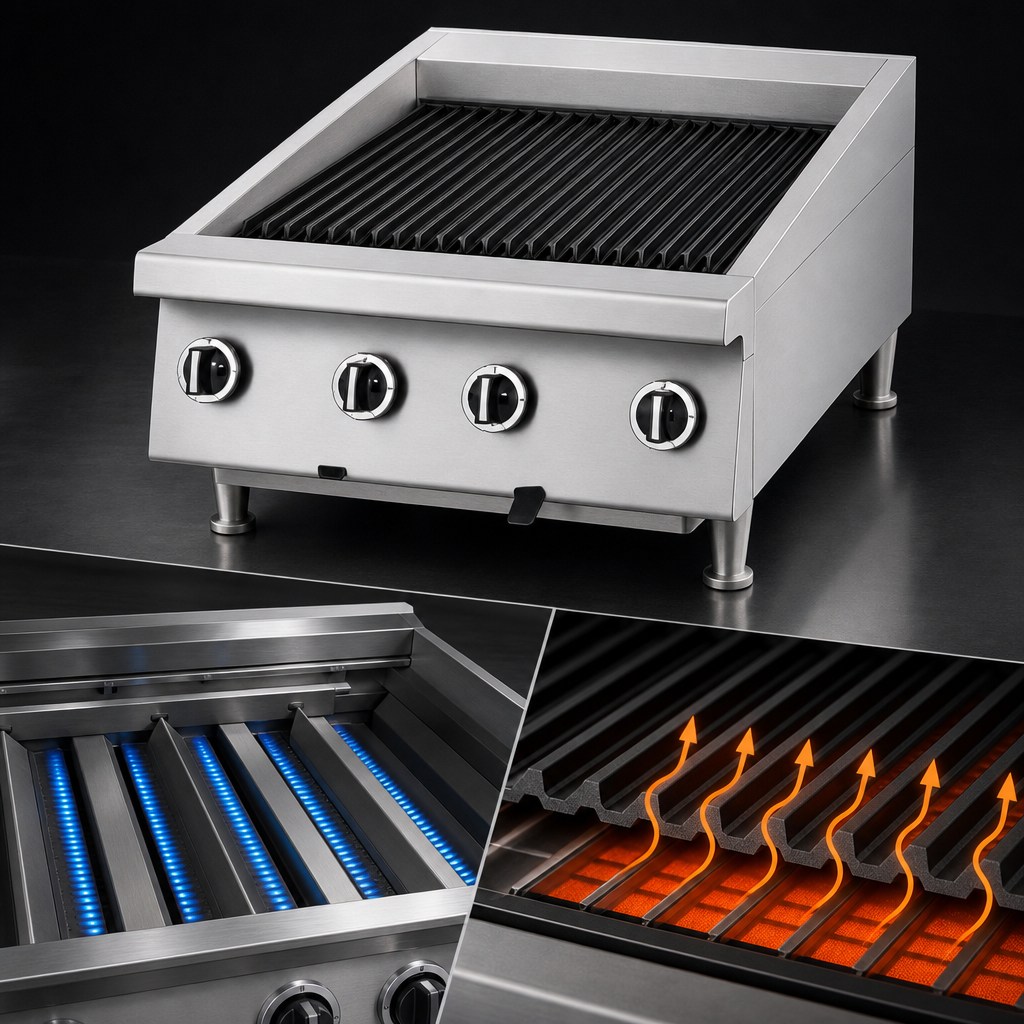

- Cast-iron radiants over each burner promote even, radiant heat and reduce flare-ups.
- 21-3/16" (538 mm) broiling grid depth provides generous cooking real estate.
- Large, easy-remove stainless steel crumb/grease tray streamlines cleanup.
- Stainless steel front, sides, back and 3-1/2" deep front rail withstand daily abuse.
- 4" stainless steel adjustable legs level the unit on any work surface.
- Factory-installed 3/4" NPT regulator with “T” manifold—straight-through or flush rear gas connection.
- Certified CSA & NSF for commercial applications.
Technical Specifications
| Model | UTBG36-NR36 |
|---|---|
| Overall Dimensions (W × D × H) | 35-7/16" × 32" × 13" (900 × 814 × 330 mm, with standard 4" legs) |
| Cooking Surface | 21-3/16" deep x 36" wide (538 × 914 mm) |
| Grate Style | Non-adjustable, reversible cast-iron; 3" sections |
| Total Heat Input | 108,000 BTU/h (31.6 kW) |
| Burners / Controls | 6 burners | 6 independent Hi/Lo valves |
| Gas Connection | 3/4" NPT rear, supplied regulator (Natural or Propane – specify) |
| Manifold Pressure | 4.5" WC Natural | 10" WC Propane |
| Operating Pressure | 7" WC Natural | 11" WC Propane |
| Shipping Weight | 391 lb (178 kg) |
| Certifications | CSA, NSF |
Popular Options & Accessories (sold separately)
- Stainless steel splash or spatter guard kits.
- Stainless steel equipment stand—solid top with shelves, optional casters.
- Broiler grate cleaning tool.
- Fajita broiling grate (9" wide) – replaces 3 standard sections.
- Stainless steel condiment rail with 1/9 & 1/3 pan cut-outs.
Welbilt © reserves the right to modify specifications without notice. Please verify gas type and altitude requirements when ordering.
