Garland UTBG36-AR36 Gas Charbroilers
Description
Garland UTBG36-AR36 Heavy-Duty Gas Radiant Charbroiler
36" countertop model • 108,000 BTU • Adjustable cast-iron gratesBring steak-house performance to your cookline with the Garland UTBG36-AR36. This 35-7/16" wide countertop charbroiler marries six powerful 18,000 BTU burners with rugged, adjustable cast-iron grates—giving you the high-heat searing, precise zone control, and long-term durability today’s busiest kitchens demand.
Key Performance Features
- 108,000 BTU total output from six 18,000 BTU stainless steel burners.
- Cast-iron radiants over each burner distribute heat evenly and minimize flare-ups.

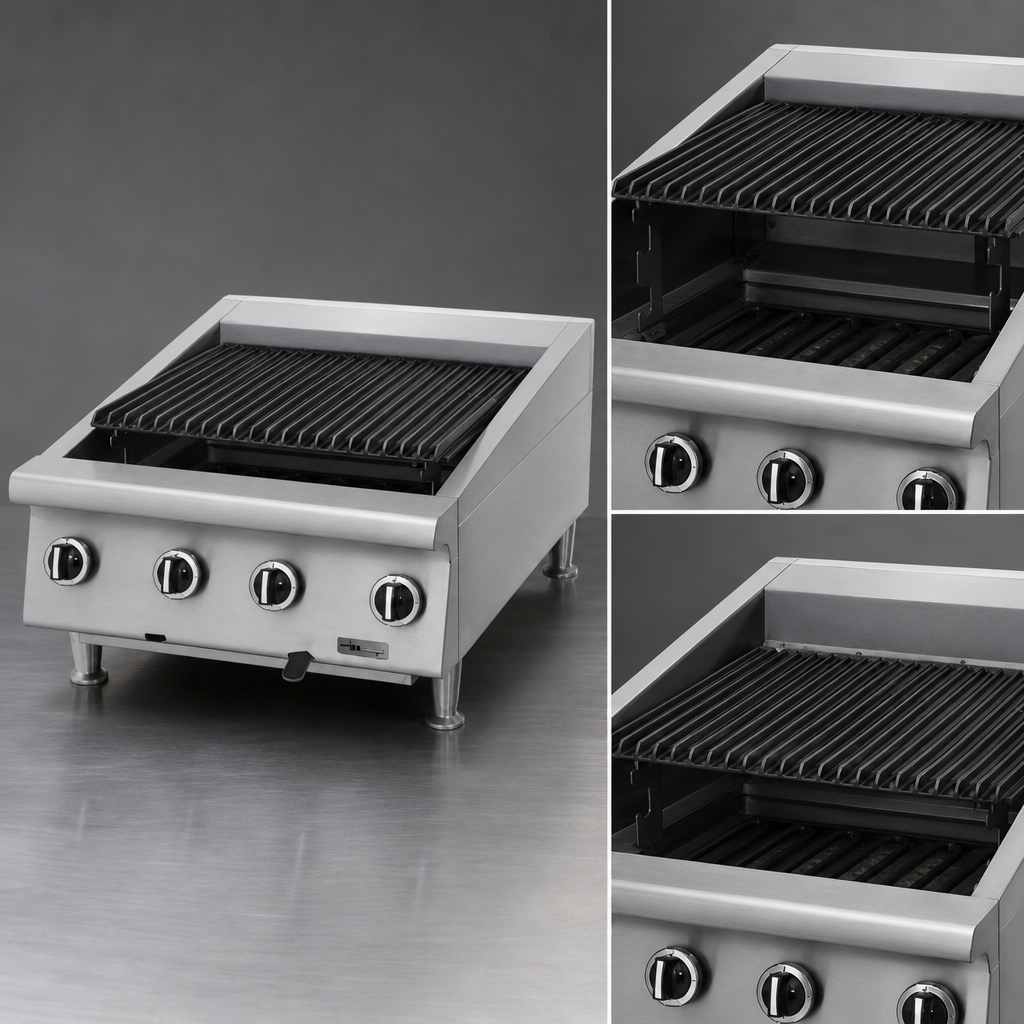

- Two-position adjustable grate system for quick height changes between intense searing and gentle finishing.
- Reversible 3" wide cast-iron grate sections with 1/8" or 3/16" brand marks—just flip to suit the menu.
- Deep 21-3/16" (538 mm) broiling grid maximizes production without adding footprint.

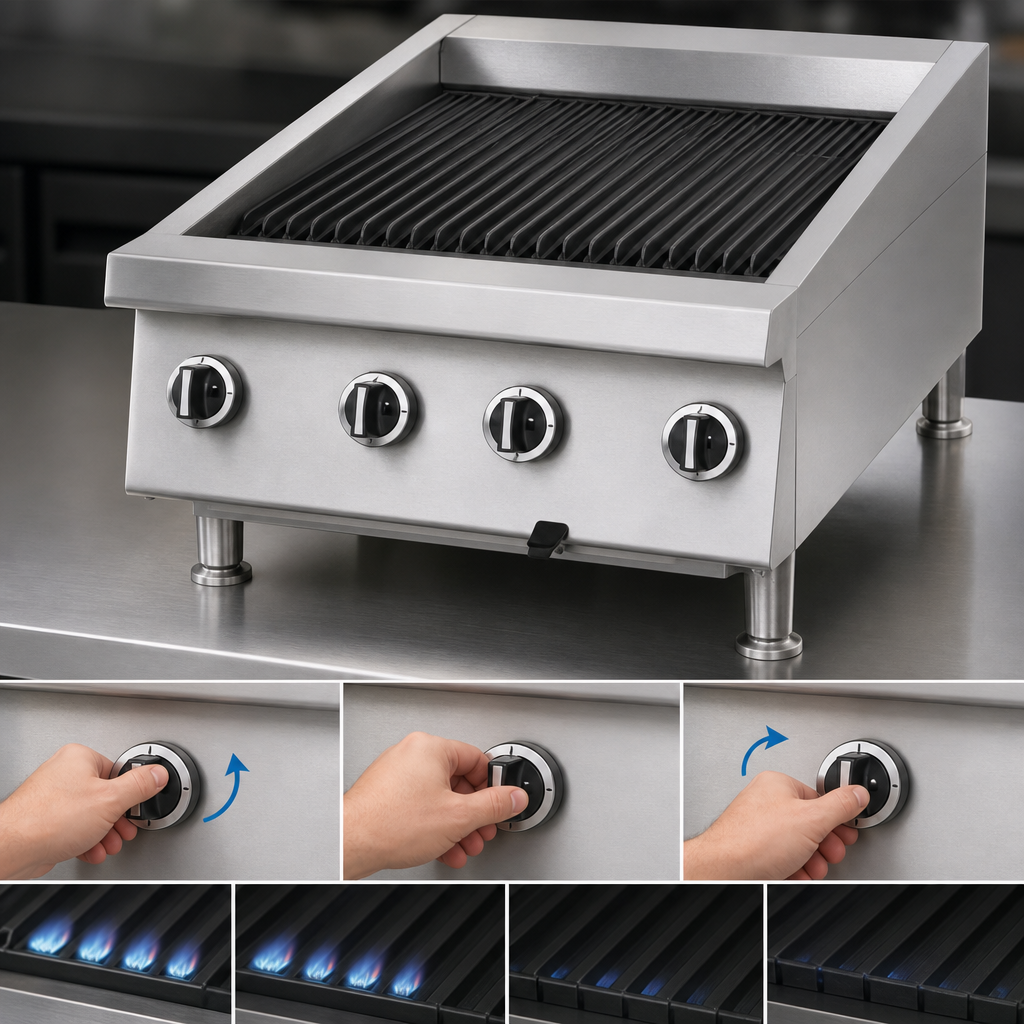

- Individual hi/lo manual valve on every burner for true left-to-right zone control.
- Stainless steel front, sides, back and 3-1/2" front rail stand up to daily abuse.
- Full-width, removable stainless steel crumb tray speeds end-of-shift clean-up.
- 4" stainless steel adjustable legs level the unit on any countertop.
- Factory-installed 3/4" NPT regulator with “T” manifold for straight-through or flush rear gas connection.
- Certified to CSA and NSF standards for commercial kitchens.
At-a-Glance Specifications
| Model | UTBG36-AR36 |
|---|---|
| Grate Type | Adjustable, reversible cast-iron (3" sections) |
| Overall Width | 35-7/16" (900 mm) |
| Overall Depth | 32" (814 mm) |
| Overall Height | 13" (330 mm) with 4" legs |
| Cooking Area | 21-3/16" D × 35-7/16" W |
| Total BTU Input | 108,000 BTU/hr |
| Burners | 6 × 18,000 BTU stainless steel tube burners |
| Control Type | Manual hi/lo valves (1 per burner) |
| Gas Connection | 3/4" NPT (rear) • regulator included |
| Operating Pressure | Natural gas: 7" WC • Propane: 11" WC |
| Shipping Weight | 391 lb (178 kg) |
| Certifications | CSA, NSF |
Optional Accessories (sold separately)
- Stainless steel spatter guard
- Broiler grate cleaning tool
- 9" fajita broiling grate (replaces three standard sections; limit one per unit)
- Reversible cast-iron rack set with four brand marks per 3" section
- Stainless steel condiment rail with 1/9 and 1/3 pan cut-outs
- Counter skirt kit (reduces height by 1-3/4")
- Heavy-duty stainless steel equipment stand (feet or locking casters)
Need help selecting the right charbroiler or accessories? Reach out to our product specialists any time.
