Garland UTBG24-AR24 Gas Charbroilers
Description

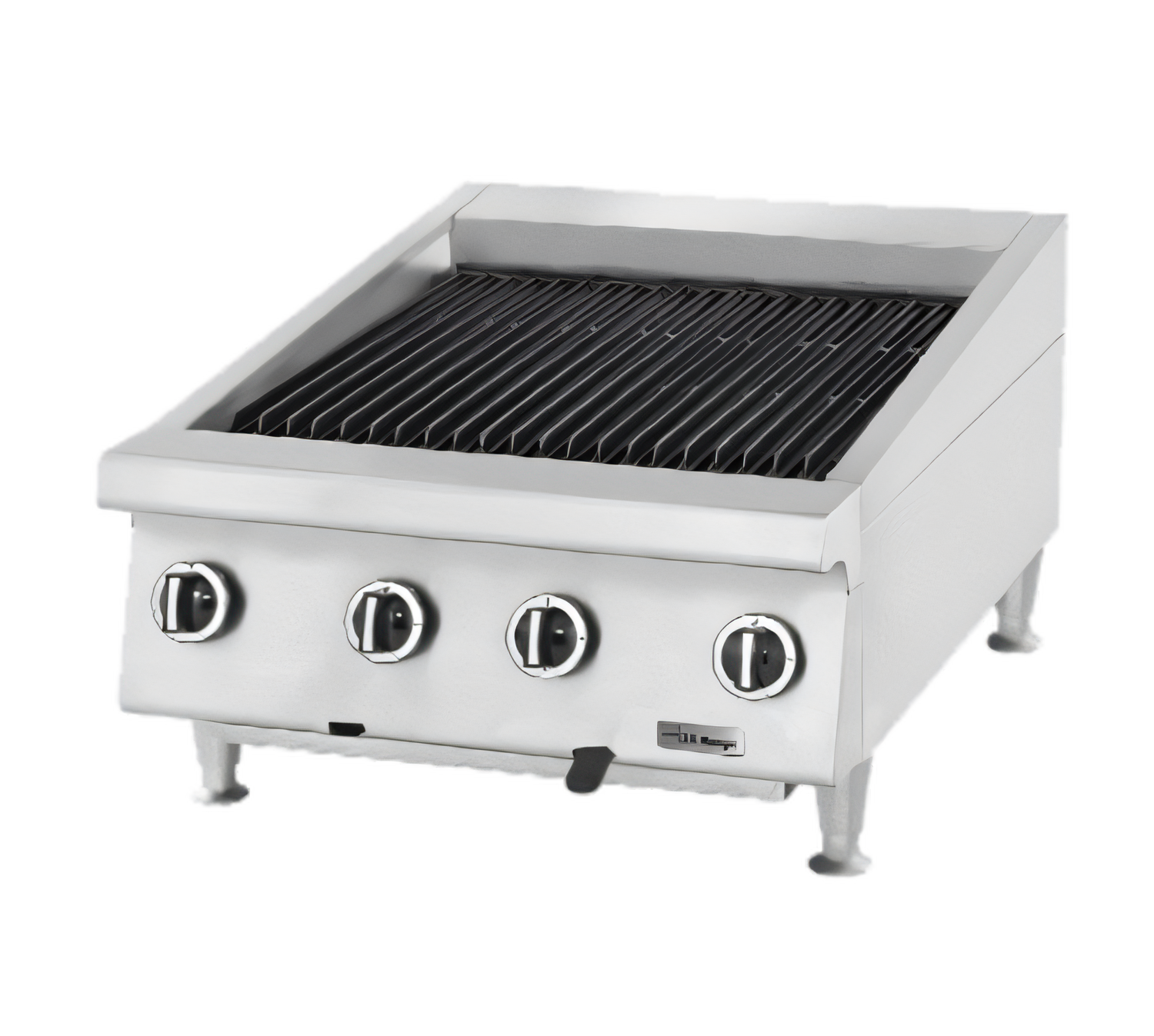

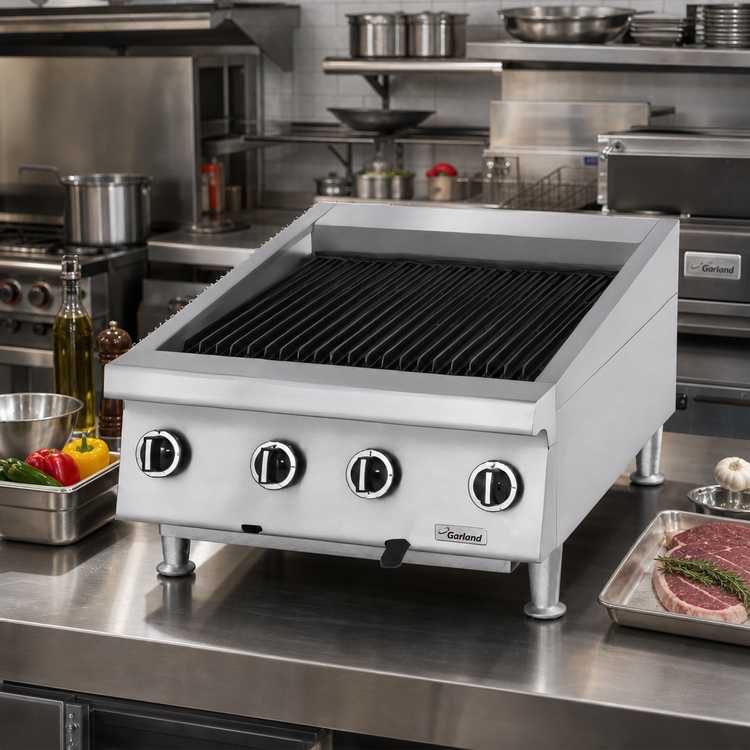

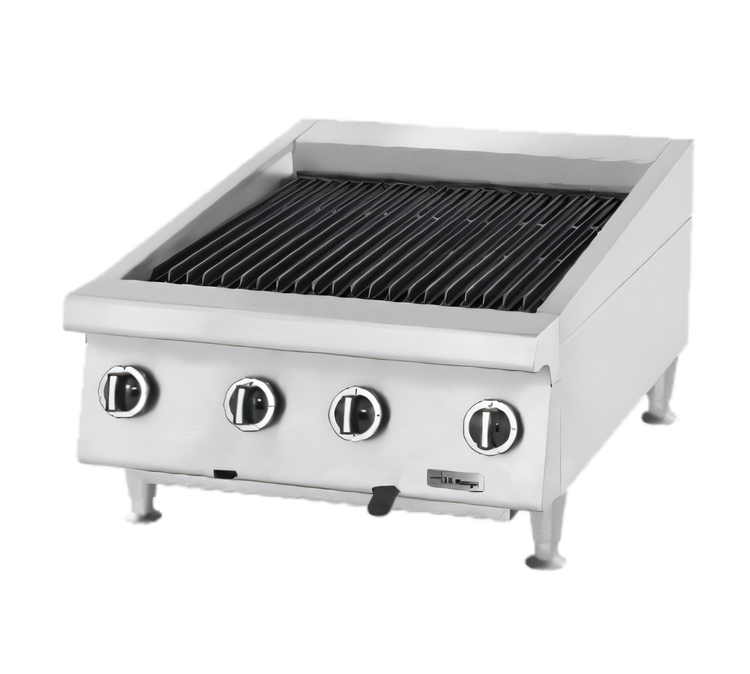

Garland UTBG24-AR24 Heavy-Duty Gas Radiant Charbroiler – 24"
Compact countertop power with 72,000 BTU and adjustable cast-iron gratesEngineered for demanding commercial kitchens, the Garland U.S. Range UTBG24-AR24 delivers steak-house searing performance in a space-saving 23 ⅝" footprint. Four independently controlled burners, heavy cast-iron radiants and a deep 21 ³⁄₁₆" cooking grid give you consistent, edge-to-edge heat for flawless grill marks shift after shift.
Why you’ll love it

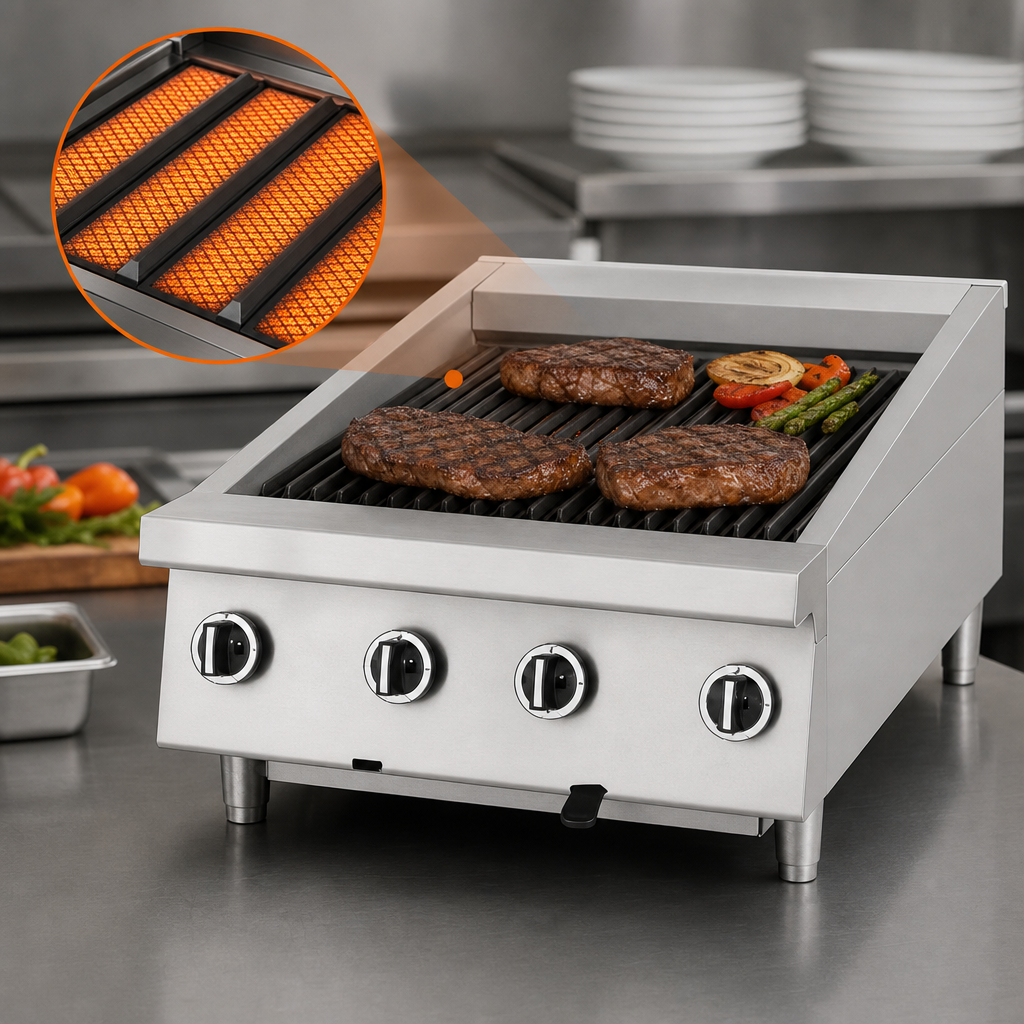

- Fire-power in a small package — 4 × 18,000 BTU burners (72,000 BTU total) under cast-iron radiants for rapid recovery and even heat.

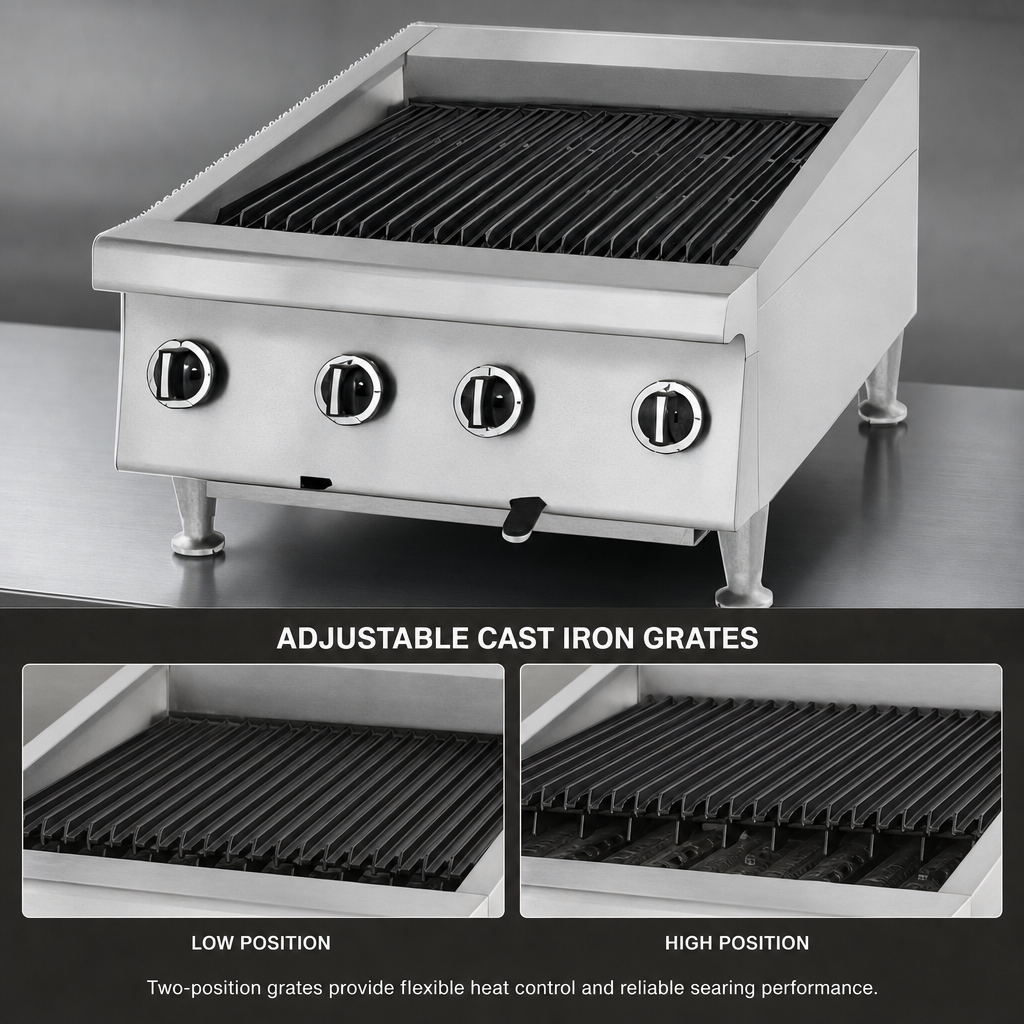

- Two-position adjustable grates let you tune the cooking surface for fast searing or gentle finishing.
- Reversible 3" cast-iron rack sections with 1⁄8" & 3⁄16" brand-mark edges extend grate life and add signature grill lines.
- Generous 21 ³⁄₁₆" grid depth maximises cook zone without enlarging the footprint.
- Individual hi/lo valves deliver precise flame control on every burner.
- Stainless steel construction (front, sides, back & 3 ½" rail) stands up to daily abuse and cleans fast.
- Full-width crumb tray slides out for quick, mess-free maintenance.
- 4" adjustable SS legs keep the broiler level on uneven counters.
- Versatile gas hookup – factory ¾" NPT regulator with “T” manifold for straight-through or flush rear connection.
- Certified to CSA & NSF standards for commercial foodservice.
Technical specifications
| Model | UTBG24-AR24 |
|---|---|
| Gas type | Natural or Propane |
| Total input | 72,000 BTU/hr (4 × 18,000 BTU burners) |
| Cooking surface | 23 ⅝" W × 21 ³⁄₁₆" D adjustable, reversible cast-iron grates |
| Overall dimensions | 23 ⅝" W × 32" D × 13" H (with 4" adjustable legs) |
| Gas connection | ¾" NPT rear manifold with factory regulator |
| Shipping weight | ≈ 283 lb / 129 kg |
| Certifications | CSA, NSF |
Popular accessories (sold separately)
- Stainless steel skirt for drop-in counter mounting
- Stainless spatter guard & removable holding shelf
- Broiler grate cleaning tool
- Fajita broiling grate (9" wide)
- Stainless stand with solid top, shelves & optional casters
Need a different width or fixed-position grate? Browse the full Garland UTBG series for 24"–72" models.
