Garland UTBG24-AB24 Gas Charbroilers
Description

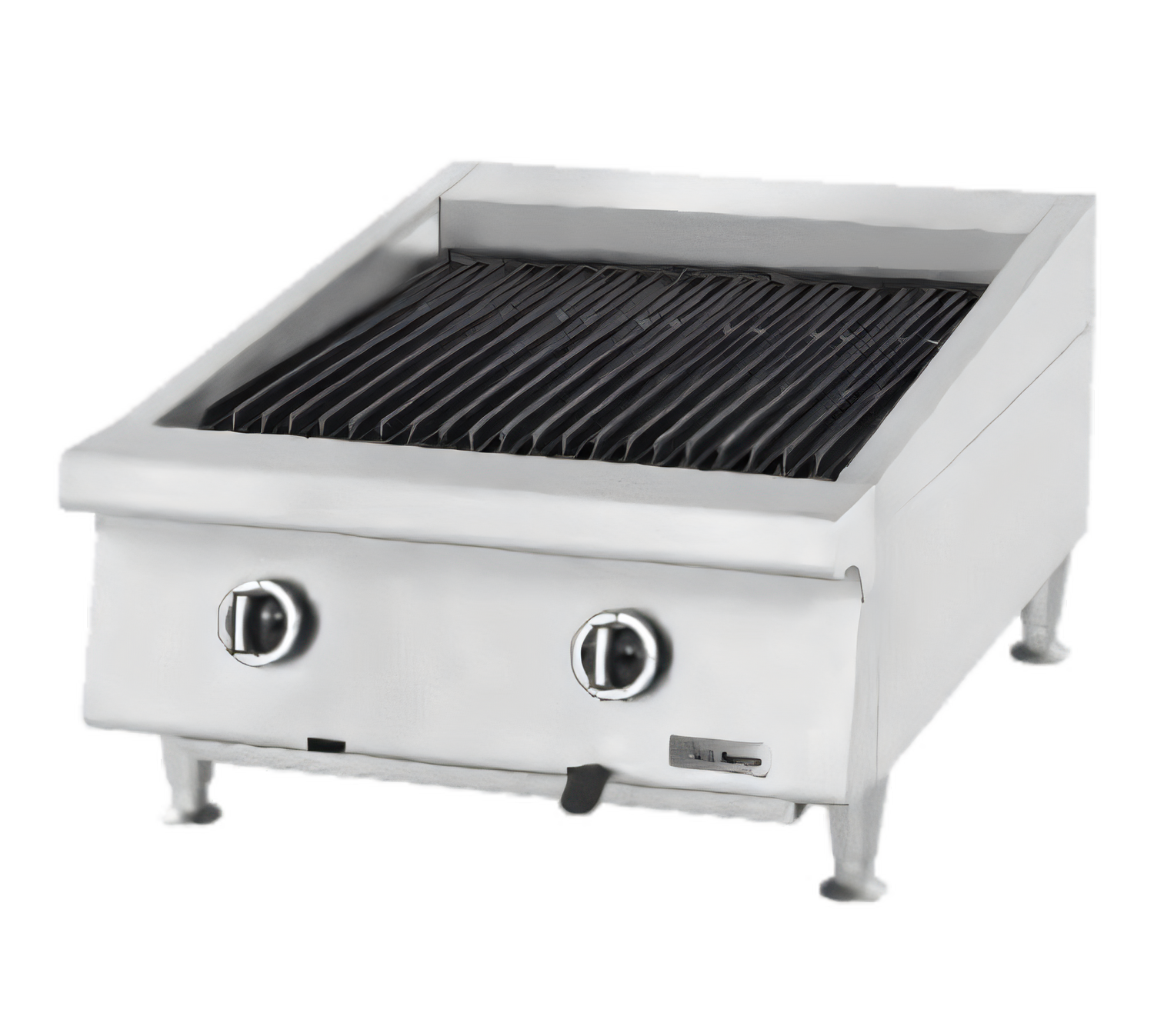

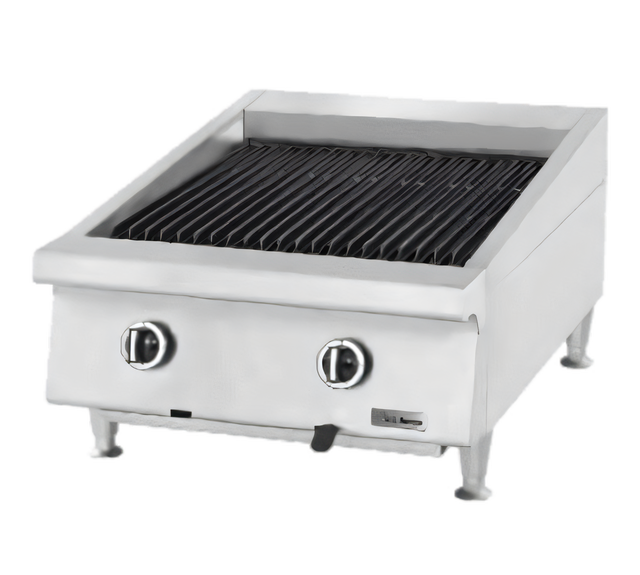

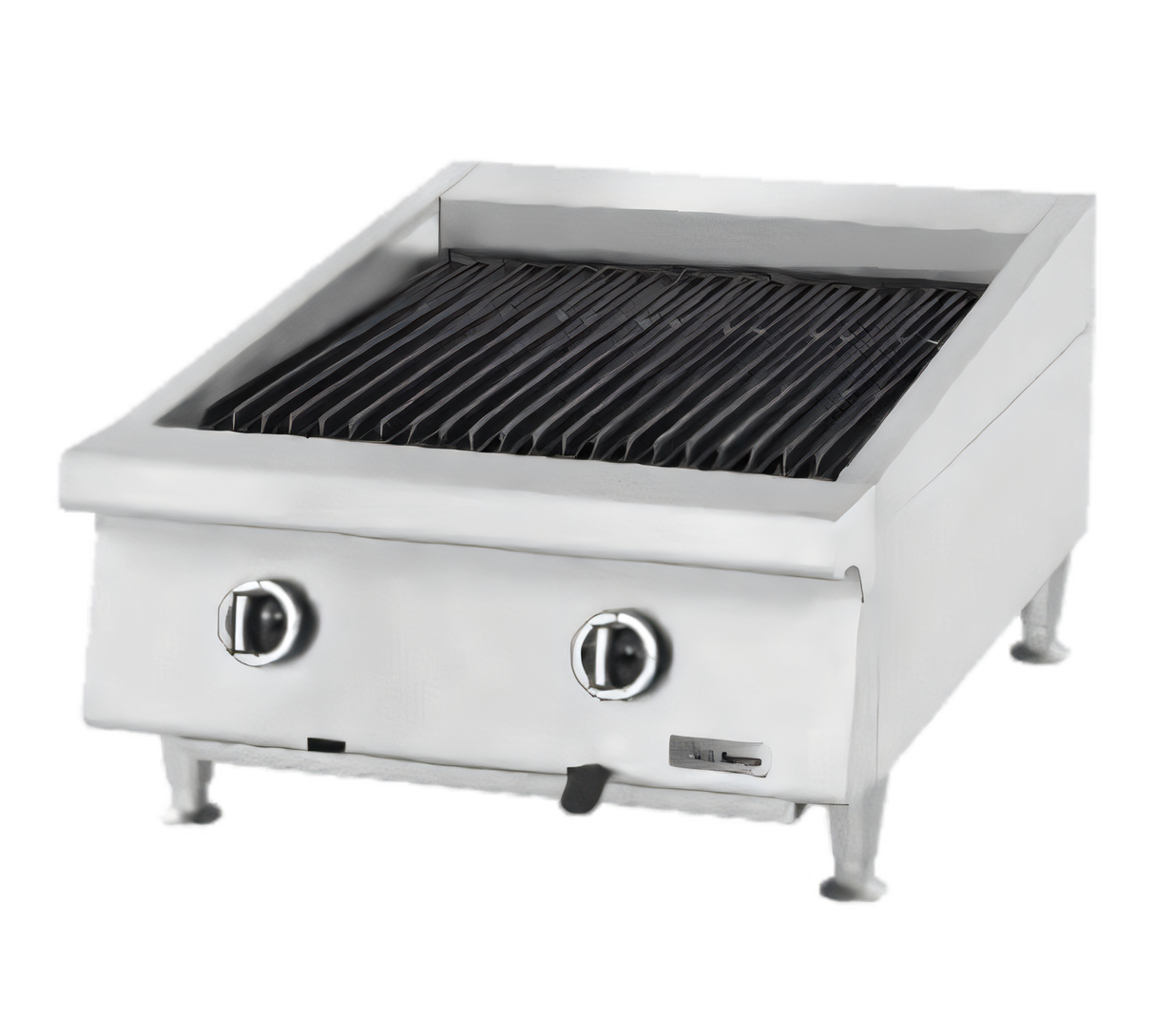

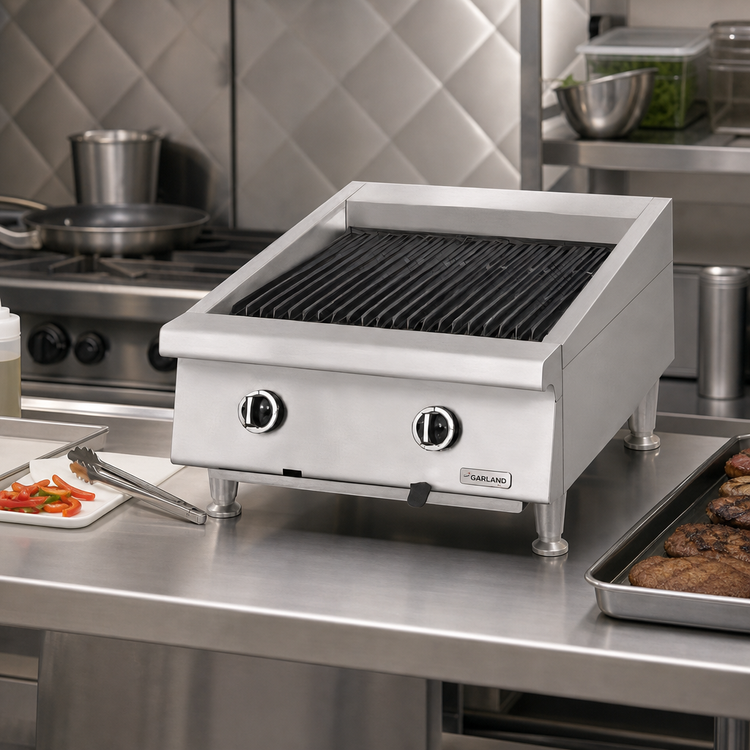

Garland UTBG24-AB24 Heavy-Duty Gas Ceramic Briquette Charbroiler – 24" Countertop
60,000 BTU total output • Adjustable cast-iron grates • CSA & NSF certifiedThe Garland UTBG24-AB24 gives chefs the power and consistency of a full-sized broiler in a compact 24-inch footprint. With ceramic briquettes for even heat distribution and two 30,000 BTU cast-iron burners, it delivers steak-house quality marks and flavor—right from your countertop.
Key Features
- Two 30,000 BTU cast-iron burners (one every 12") with individual variable hi/lo valves

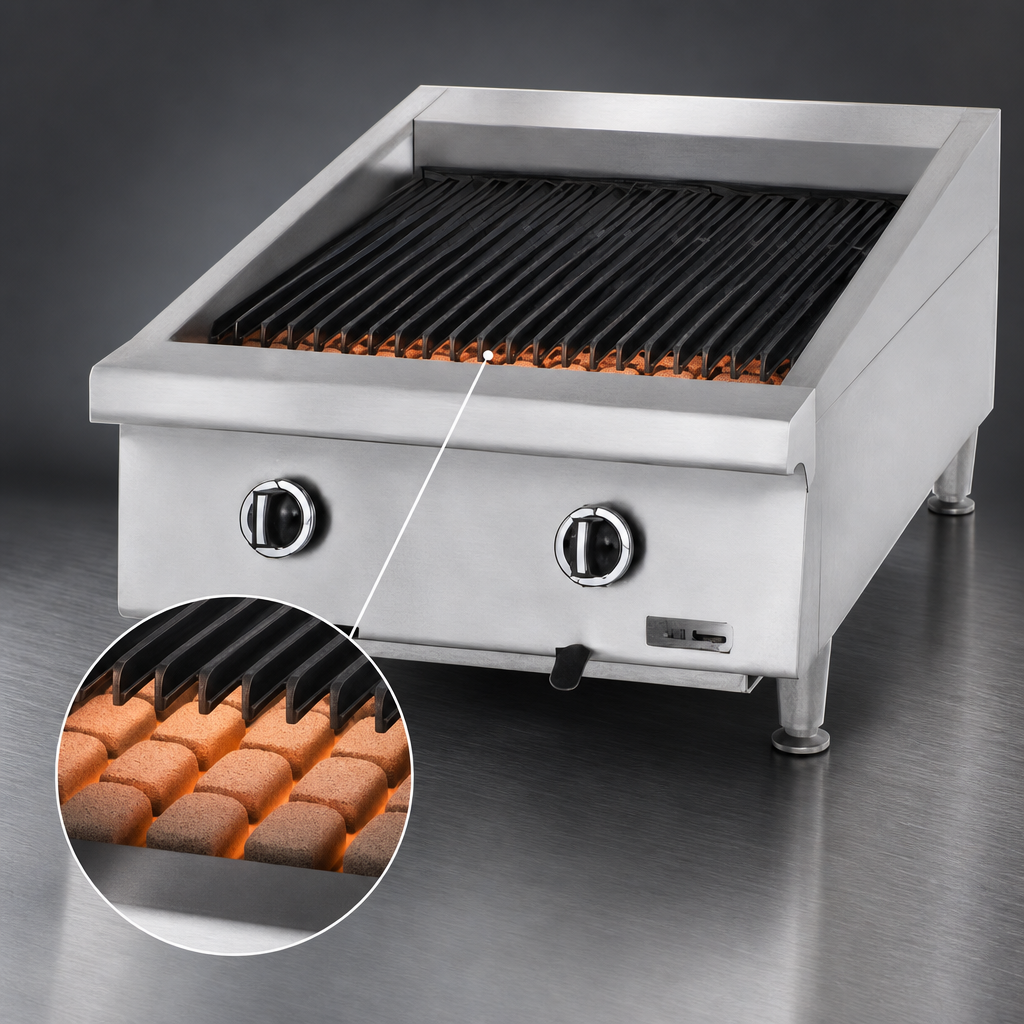

- Ceramic, pre-formed briquette bed for radiant, even heat and reduced flare-ups

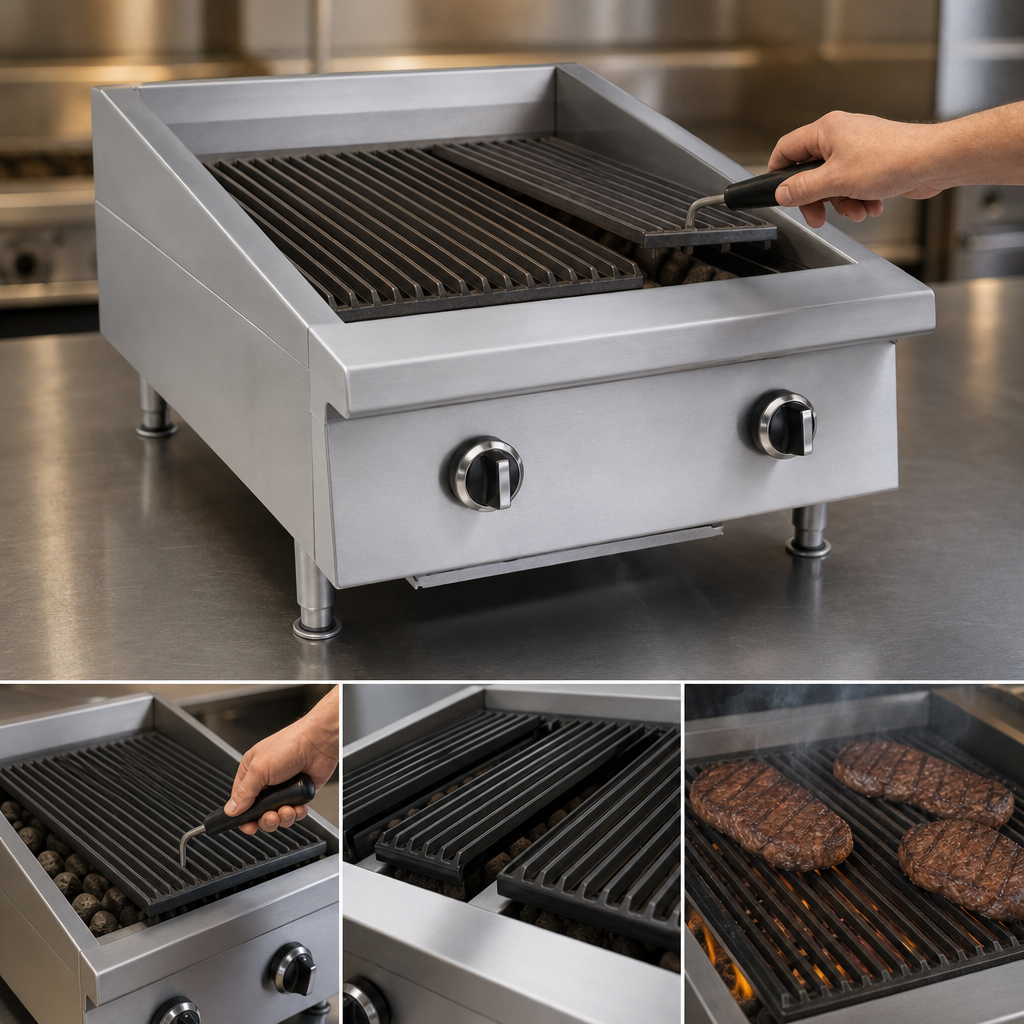

- Adjustable broiling grate – 2 height positions for perfect sear control
- Reversible cast-iron broiler racks in 3" sections with 1/8" & 3/16" brand marks
- Generous 21-3/16" deep cooking surface handles large volumes without crowding
- Oversized stainless-steel crumb tray for quick clean-up
- Durable stainless front, sides, back & 3-1/2" deep front rail
- 4" stainless-steel adjustable legs for leveling on any counter
- 3/4" NPT gas regulator with “T” manifold—choose straight-through or flush-rear connection
- Certified for commercial use: CSA • NSF
Specifications
| Model | UTBG24-AB24 |
|---|---|
| Construction | Stainless steel front, sides & back; cast-iron burners & grates |
| Overall Dimensions (WxDxH) | 23-5/8" x 32" x 13" (600 mm x 814 mm x 330 mm) |
| Cooking Area | 21-3/16" deep broiling grid, 24" wide |
| Total Input | 60,000 BTU/hr (Natural or Propane) |
| Gas Pressure (manifold) | 4.5" WC Natural • 10" WC Propane |
| Shipping Weight | 283 lb / 129 kg |
| Certifications | CSA, NSF |
| Clearances | 0" – for installation in non-combustible surroundings only |
Popular Accessories (sold separately)
- Stainless-steel skirt for counter flush-mounting (reduces height by 1-3/4")
- Stainless spatter-guard & removable holding shelf (24" size)
- Broiler grate cleaning tool
- Fajita broiling grate – 9" wide, replaces 3 standard grate sections
- Stainless equipment stand with adjustable feet or casters
Garland/U.S. Range products are engineered for commercial kitchens and are not approved for residential use. For installations above 2,000 ft (610 m) please specify altitude and gas type when ordering.
