Garland UN17R90 Polar Cuisine Undercounter & Worktop Refrigeration
Description

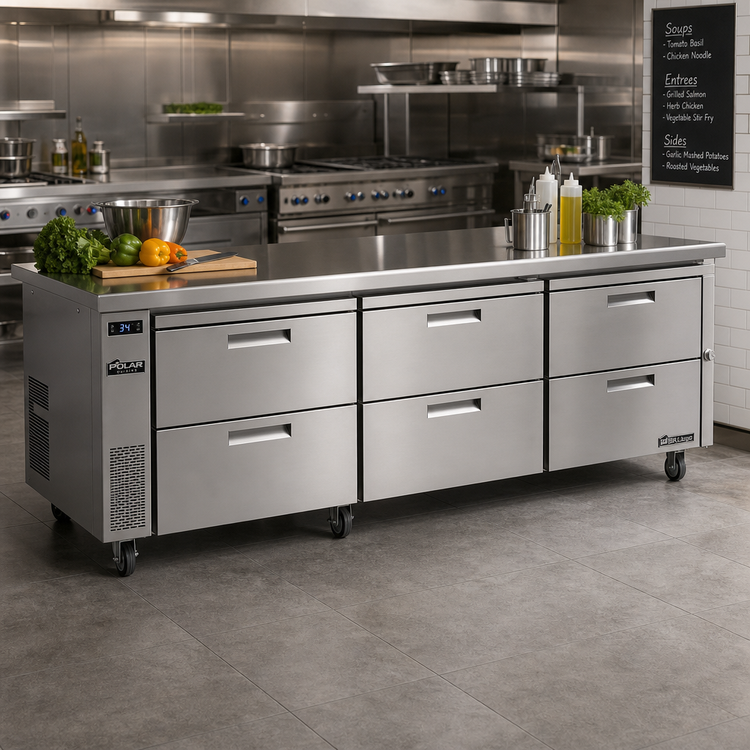

Polar Cuisine™ Remote Refrigerated Base – 90 in.
Garland | Model UN17R90 | 3-Section, 6 DrawersAdd high-capacity cold storage exactly where your cooks need it. Designed to live directly under Garland Cuisine-Series modular cooktops, the 90 inch Polar Cuisine remote base keeps ingredients chilled and within arm’s reach while saving valuable line space.
Why you’ll love it
- Six heavy-duty drawers (2 × 19" & 4 × 32") glide on stainless slides with bearing rollers and carry a 10-year parts warranty.
- Holds up to 10 full-size (12" × 20") × 4" deep hotel pans—no adapter bars required.

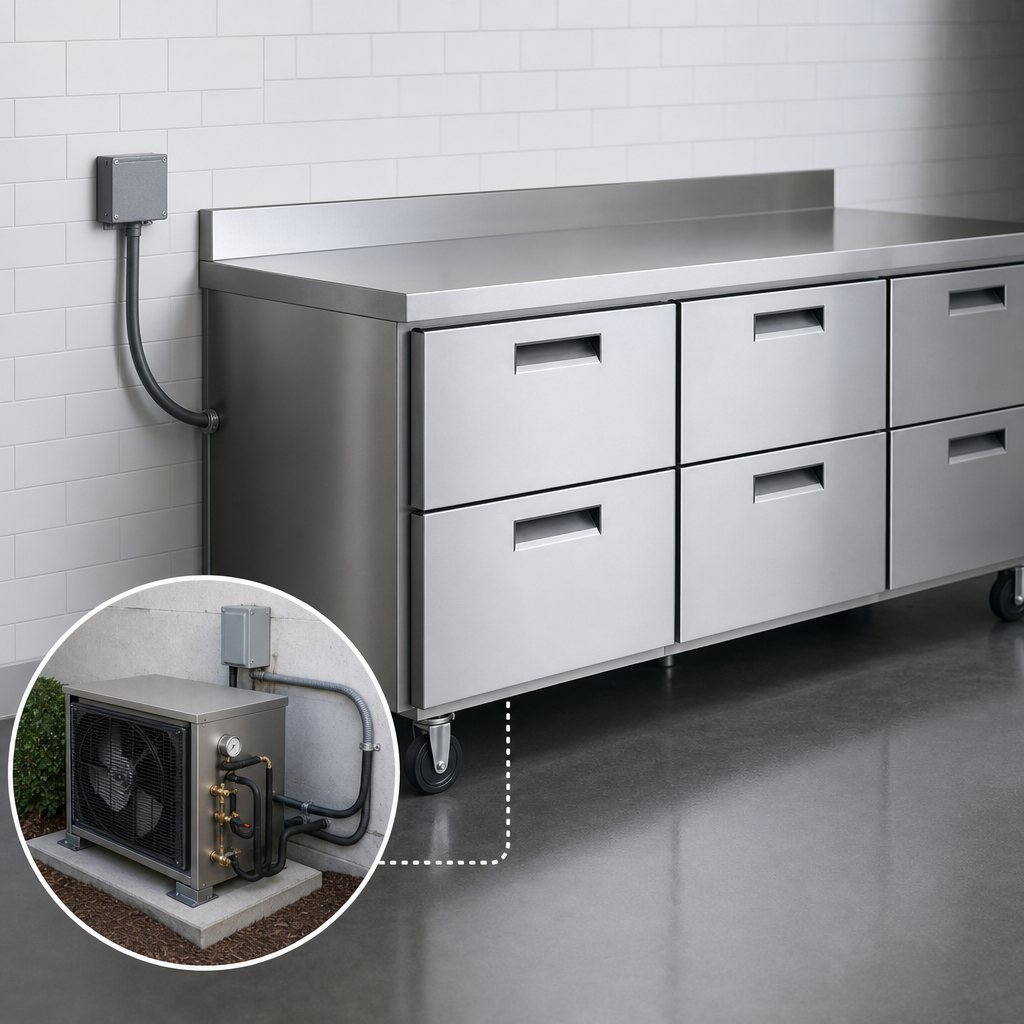

- Remote refrigeration keeps heat and noise out of the kitchen while maintaining a steady 33-38 °F cabinet temperature.
- Electronic control with digital read-out for fast, accurate temperature checks.
- All-stainless exterior & legs plus ABS/stainless interior for long-term durability and easy sanitation.
- Low-profile 26 in. body height tucks neatly beneath Garland Cuisine Series tops to create a seamless cookline.
- Eco-conscious, zero-ODP polyurethane insulation and R452A refrigerant line set (field supplied).
- UL & NSF listed for commercial kitchens.
At-a-glance specs
| Cabinet width | 90 in. (2286 mm) |
|---|---|
| Depth | 32 7⁄8 in. (836 mm) |
| Body height | 26 3⁄16 in. (665 mm) + 6 in. adjustable stainless legs |
| Sections / drawers | 3 sections | 6 drawers (2 × 19", 4 × 32") |
| Pan capacity | 10 full-size 12" × 20" × 4" hotel pans |
| Refrigeration | Remote – R452A, vertically mounted blower coil |
| Electrical | 115 V / 60 Hz / 1 φ, 1.5 A, cord & NEMA 5-15P plug |
| Construction | Stainless front, sides & legs; ABS interior sides; stainless top/rear/bottom; galvanized underside |
| Approvals | UL, cUL, NSF |
| Warranty | 1-year parts & labor; 10-year drawer track parts |
Designed for Garland Cuisine-Series tops
For a unified cook suite, simply specify your Garland Cuisine-Series modular griddle, range or charbroiler top to mount directly on this 90" base. Together they deliver a streamlined, high-performance cooking station with refrigerated mise-en-place storage right below the action.
Popular factory options
- Extra-deep drawers (without mullion) for 6" deep pans
- Tray racks & doors for 18" × 26" sheet pans (not available on 32" drawers)
- 6" heavy-duty casters with front brakes
- Left-side mechanical housing
- °C / °F switchable display
Garland equipment is engineered for commercial use only and is not covered for residential applications.
