Garland  |  Polar Cuisine  |  SKU: UN17R84

Garland UN17R84 Polar Cuisine Undercounter & Worktop Refrigeration

$19,951.25
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet
Related Searches
Commercial Work Tables Equipment Stands Kitchen Equipment Tables Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

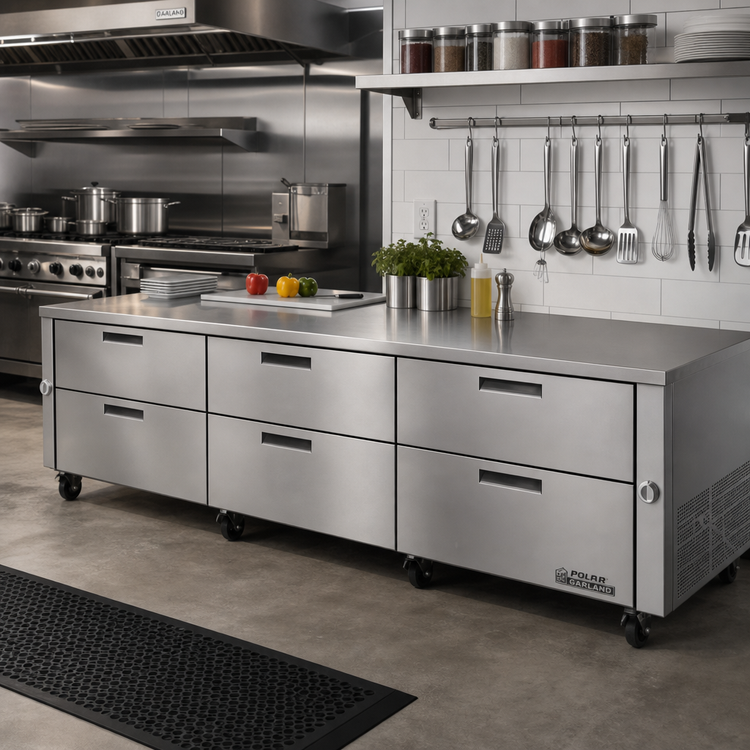

Polar Cuisine 84" Remote Refrigerated Base

Model UN17R84  •  3-section  •  (2) 19" + (2) 27" + (2) 32" drawers

Designed to sit directly beneath Garland Cuisine Series modular cook tops, the UN17R84 keeps pre-portioned proteins, sauces and mise en place at safe temperatures while freeing up valuable floor space. Six self-closing drawers—backed by Garland’s legendary 10-year roller warranty—deliver the rugged durability high-volume kitchens demand, all in a sleek 26-⅛" (665 mm) low-profile chassis.

Why You’ll Love It

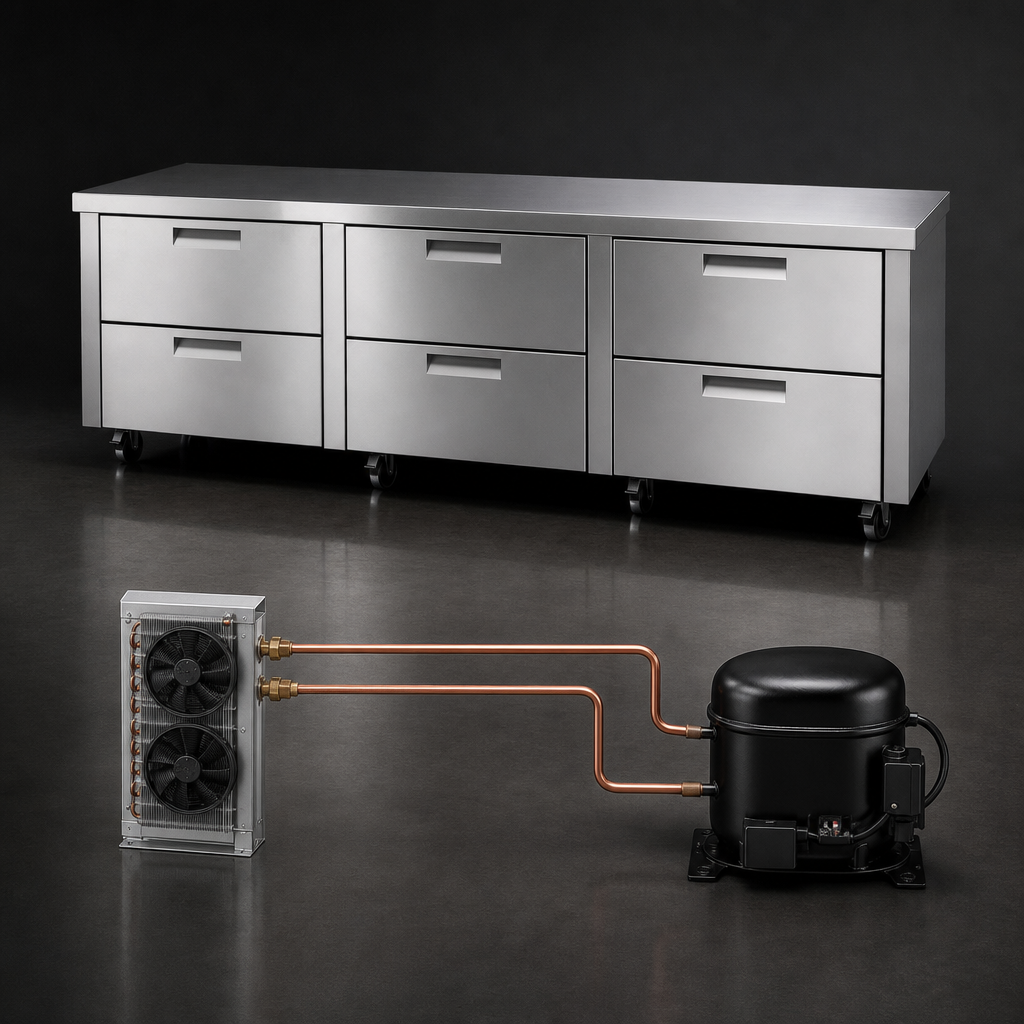

  • Remote refrigeration—pair with a separate condenser (by others) to isolate heat & noise from the cook line.
  • 2,850 BTU evaporator coil (R452A) sized for 23 °F / -5 °C cabinet temperature in 100 °F (38 °C) ambient.
  • Six heavy-duty drawers hold up to 10 full-size 12" × 20" × 4" hotel pans; perfect for high-turnover stations.
  • Stainless steel exterior, interior top/rear/bottom, and drawer slides for maximum corrosion resistance.
  • Snap-in Santoprene gaskets and foamed-in-place, zero-ODP polyurethane insulation boost efficiency.
  • Intuitive electronic controller with bright digital read-out—set-point accuracy at a glance.
  • 6" (152 mm) adjustable stainless steel legs standard; optional 6" casters available.
  • Removable drawer track assemblies with 10-year parts warranty simplify cleaning & maintenance.

At-a-Glance Specs

Overall width 84" (2134 mm)
Depth × Height 32-¾" × 26-3/16" (832 mm × 665 mm)
Sections / Drawers 3 sections  •  6 drawers
(2) 19" left, (2) 27" centre, (2) 32" right
Pan capacity Up to 10 full-size 12" × 20" × 4" hotel pans
Refrigeration Remote, R452A refrigerant  •  2,850 BTU @ 23 °F evap.
Electrical 115 V / 60 Hz / 1-ph, 1.5 A (evaporator fans & controls)
Refrigerant lines ¹⁄₄" liquid line, 5⁄16" suction line (field supplied)
Shipping weight 570 lb (268 kg)
Certifications cULus, NSF

What’s Included

  • Polar Cuisine UN17R84 refrigerated base with 6" adjustable legs
  • Built-in digital temperature controller
  • Factory-installed evaporator coil & expansion valve
  • Installation & operation manual

Popular Factory Options

  • 6" locking swivel casters (must be used with an approved restraining device)
  • Extra-deep drawers (no mullion) for 6"-deep hotel pans
  • Tray racks & doors for sheet-pan storage (not available on 32" drawers)
  • Celsius temperature read-out
  • Mechanical housing on left side
Important: This low-height base is only available when ordered with Garland Cuisine Series modular cook tops. A remote condenser/compressor (by others) and all interconnecting refrigerant & electrical work must be supplied and installed on site by a qualified technician. Garland equipment is intended for commercial use only and is not approved for residential applications.

Features & Specs

Manufacturer

Garland

Brand_name

Polar Cuisine

Height

26.19in

Width

84.0in

Depth

32.75in

Shipping Weight

570.0lbs

Width

73" - 84" wide

Drawer Qty

6 drawers

Top Finish

stainless steel top

Refrigeration

remote (refrigeration not included)

Exterior Finish

all stainless steel exterior

Specifications

Polar Cuisine Refrigerated Base, remote refrigeration, 84" W, three-section, (2) 19", (2) 27" & (2) 32" drawers, stainless steel exterior, 6" stainless steel legs (available only when ordered with Cuisine Series modular cook tops) 115v/60/1-ph, 1.5 amps (U S Range)
