Garland UN17R66 Polar Cuisine Undercounter & Worktop Refrigeration
Description

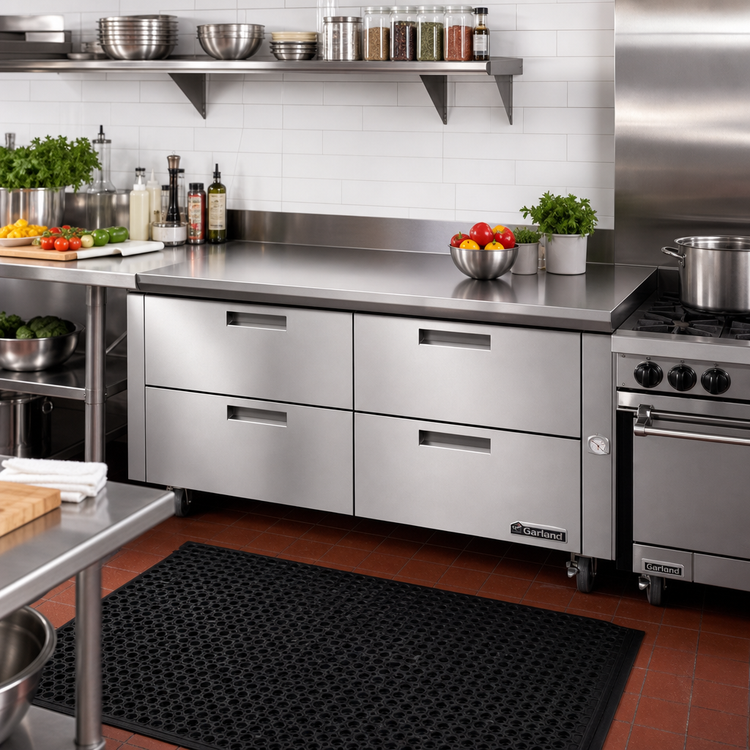

Garland Polar Cuisine 66" Remote Refrigerated Base
Model UN17R66 • 4-Drawer chef base for Garland Cuisine Series cooktopsKeep mise en place chilled and within arm’s reach of the cooking surface. The Polar Cuisine remote refrigerated base slides neatly under any 66" Garland Cuisine Series modular cooktop, providing rock-solid cold storage without adding compressor heat or noise to the line.
Key benefits
- Low-profile 26 in cabinet height (31 in working height with included 6" legs) keeps cooking equipment at an ergonomic level.
- Remote refrigeration removes heat and recovers faster, perfect for high-volume lines.*
- Four heavy-duty drawers—(2) 27" & (2) 32"—hold up to 8 full-size 4"-deep hotel pans.
- Stainless steel exterior plus stainless interior top, rear & bottom stand up to daily abuse.
- Electronic control with easy-read digital thermometer for precise holding at 36-38 °F (2-3 °C).
- Santoprene™ one-piece magnetic gaskets snap out for fast cleaning—no tools required.
Built for the long haul
- 10-year parts warranty on the removable stainless roller drawer assemblies.
- Heavy-duty stainless slides & sealed bearings rated for continuous commercial use.
- Non-ODP / non-GWP foamed-in-place polyurethane insulation.
- Vertically mounted blower coil delivers even air circulation to every drawer.
- 6" adjustable stainless legs included; 6" locking casters available.
- NSF & UL Listed for commercial kitchens.
Specifications
| Overall width | 66" / 1676 mm |
|---|---|
| Overall depth | 32 3/4" / 832 mm |
| Cabinet height | 26 3/16" / 665 mm |
| Working height (with legs) | 30 9/16" / 777 mm |
| Sections | 2 |
| Drawer configuration | (2) 27" & (2) 32" drawers |
| Pan capacity | 8 × 12" × 20" × 4" hotel pans (with mullions) |
| Refrigeration | Remote evaporator, R452A (compressor/condensing unit by others) |
| Electrical | 115 V / 60 Hz / 1-phase, 1.5 A, hard-wired |
| Construction | Stainless steel exterior front & sides; ABS interior sides; stainless interior top, rear & bottom |
| Legs | 6" adjustable stainless (casters optional) |
Ideal for
- Open-kitchen theatres needing silent, heat-free refrigeration on the line.
- High-volume hotels & banquet operations staging proteins and sauces under the grill.
- Any operation using Garland Cuisine Series modular cooktops that wants to reclaim floor space.
Need deeper drawers? Ask about 6"-deep, mullion-free drawer kits, sheet-pan racks, or casters.
