Garland UN17R60 Polar Cuisine Undercounter & Worktop Refrigeration
Description
Garland Polar Cuisine 60″ Remote Refrigerated Base – 4 Drawer (Model UN17R60)
Purpose-built to sit beneath Garland Cuisine Series heavy-duty modular cook topsKeep high-volume ingredients ice-cold and right where the chef needs them. The Polar Cuisine UN17R60 is a low-profile, remote-refrigerated base that pairs seamlessly with 60″ Garland Cuisine Series cook tops, delivering dependable cold storage without sacrificing precious line space.
Why you’ll love it
- Two-section design with four 27″ drawers – each accommodates (2) 12″ × 20″ × 4″ hotel pans (total 8 pans).

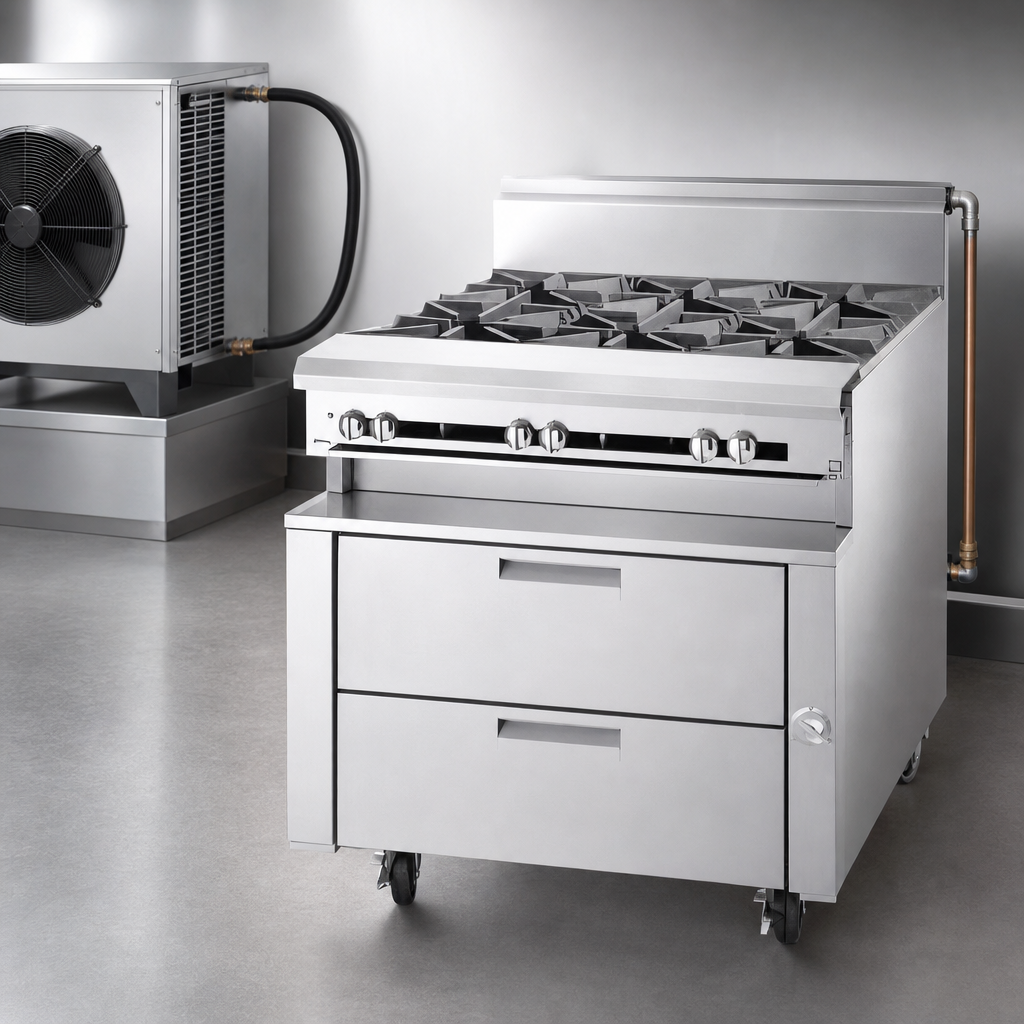

- Remote refrigeration keeps compressor heat & noise out of the kitchen while reducing maintenance costs.
- Durable stainless steel exterior (front & sides) with stainless interior top, rear & bottom.
- ABS interior sides resist dents and corrosion.
- Heavy-duty drawer slides with stainless-steel bearings are backed by a 10-year parts warranty.
- Digitally-controlled temperature with easy-to-read LED display (°F or optional °C).
- Eco-friendly R452A refrigerant & CFC-free, foamed-in-place insulation.
- 6″ adjustable stainless steel legs standard; optional casters available.
Drawer capacity at a glance
- Drawer width: 27″ (686 mm)
- Hotel pans per drawer: 2 × (12″ × 20″ × 4″)
- Total hotel pans: 8
Technical Specifications
| Model | UN17R60 (Polar Cuisine Remote Refrigerator Base) |
|---|---|
| Overall width | 60″ / 1524 mm |
| Depth | 32-3/4″ / 832 mm |
| Height (without top) | 26-3/16″ / 665 mm |
| Sections / drawers | 2 sections / 4 drawers (27″ each) |
| Refrigeration type | Remote, R452A refrigerant |
| Evaporator capacity | 1,425 BTU/h @ 23 °F (-5 °C) ET |
| Electrical | 115 V / 60 Hz / 1-ph, 1.5 A (blower coil & controls) |
| Refrigerant line connections | ¼″ liquid, 5⁄16″ suction |
| Condensate drain | ½″ CPVC (field connection) |
| Legs / casters | 6″ stainless steel legs (adjustable) – optional 6″ casters |
| Shipping weight | Approx. 361 lb / 164 kg |
| Listings | cULus, NSF |
Popular factory options
- Extra-deep drawers (no mullion) for 6″-deep hotel pans.
- 6″ heavy-duty casters with front brakes.
- Left-hand mechanical section (refrigeration hook-ups on left).
- Celsius temperature read-out.
- Doors & pan racks for sheet-pan storage (not available with 32″ drawers).
- This base must be ordered and installed in conjunction with a Garland Cuisine Series modular cook top.
- Remote condensing unit is supplied & installed by others; unit requires field hard-wiring by a qualified technician.
- Garland products are intended for commercial use only and are not approved for residential applications.
Need a different size or drawer configuration? Explore the full Polar Cuisine line or chat with our equipment specialists today.
