Garland  |  Polar Cuisine  |  SKU: UN17R54

Garland UN17R54 Polar Cuisine Undercounter & Worktop Refrigeration

$15,035.90
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

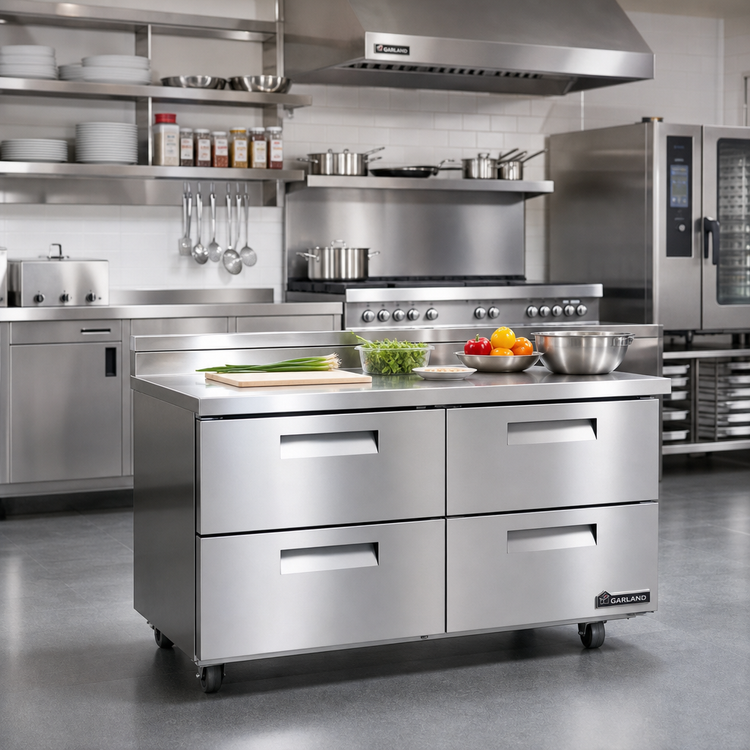

Garland Polar Cuisine 54" Remote Refrigerated Base – 4-Drawer

Model UN17R54 | (2) 19" & (2) 27" Drawers

Turn wasted under-counter space into high-capacity cold storage without crowding the cook line. Designed to sit directly beneath Garland Cuisine Series modular cook tops, the Polar Cuisine UN17R54 keeps as many as six full-size hotel pans perfectly chilled – right where your chefs need them most.

Key Features
  • Remote refrigeration – keeps heat, noise and service away from the line.
  • Two heavy-duty sections, each with dual stainless drawers:
    (2) 19" wide & (2) 27" wide drawer boxes.
  • Holds up to 6 × 12" × 20" × 4" hotel pans (pans not included).
  • Stainless steel exterior front & sides; stainless interior top, rear & bottom.
  • Removable stainless roller assemblies with self-lubricating bearings – 10-year parts warranty.
  • Santoprene magnetic gaskets snap in for tool-free replacement.
  • Micro-processor control with large digital temperature read-out (°F/°C selectable).
  • Vertically-mounted blower coil uses environmentally responsible R452A refrigerant.
  • 6" adjustable stainless steel legs for easy cleaning beneath the unit.
  • NSF & cULus listed; built for continuous commercial duty.
Technical Specifications
Overall width 54" (1372 mm)
Depth 32 3⁄4" (832 mm)
Body height 26 3⁄16" (665 mm)
Leg height 6" (152 mm) stainless, adjustable
Sections / Drawers 2 sections / 4 drawers
(2 × 19", 2 × 27")
Pan capacity 6 full-size 12" × 20" × 4" hotel pans
Required condensing unit 1,425 BTU/h @ 23°F suction (supplied/installed by others)
Refrigerant R452A (remote system)
Refrigeration lines 1/4" liquid / 5/16" suction
Electrical 115 V / 60 Hz / 1-ph, 1.5 A (evaporator fan & controls)
Shipping weight ≈ 355 lb (161 kg)
Certifications NSF, cULus
Factory Options & Accessories
  • 6" swivel casters with front locks
  • Extra-deep drawers (no mullion) for 6"-deep hotel pans
  • Tray racks & doors for sheet-pan storage (not available on 32" drawers)
  • Celsius-only temperature display
  • Left-hand mechanical section
Important: Polar Cuisine refrigerated bases are only available when ordered simultaneously with compatible Garland Cuisine Series modular cook tops. Installation must be performed by a qualified refrigeration technician and is intended for commercial use only.

Features & Specs

Manufacturer

Garland

Brand_name

Polar Cuisine

Height

26.19in

Width

54.0in

Depth

32.75in

Shipping Weight

355.0lbs

Drawer Qty

4 drawers

Width

49" - 60" wide

Exterior Finish

all stainless steel exterior

Refrigeration

remote (refrigeration not included)

Specifications

Polar Cuisine Refrigerated Base, remote refrigeration, 54" W, two-section, (2) 19" & (2) 27" drawers, stainless steel exterior, 6" stainless steel legs (available only when ordered with Cuisine Series modular cook tops) 115v/60/1-ph, 1.5 amps (U S Range)
