Garland UN17R120 Polar Cuisine Undercounter & Worktop Refrigeration

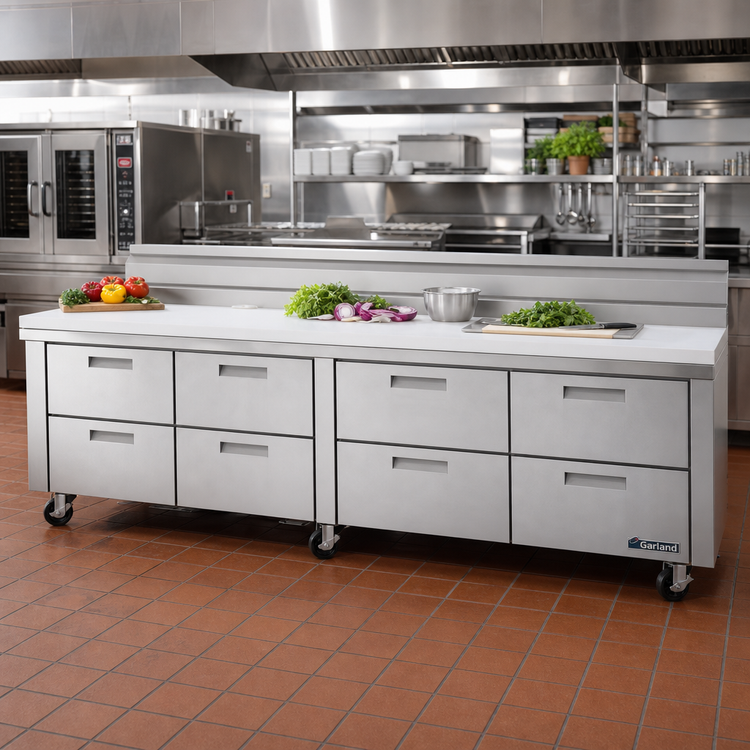

Polar Cuisine 120" Remote Refrigerated Chef Base

Built to live under Garland Cuisine Series modular cooktops, the Polar Cuisine UN17R120 delivers ice-cold ingredient storage right where the chef needs it. At 120 inches wide and only 26 inches high (work-surface), this low-profile base packs serious capacity—holding up to 16 full-size 12" × 20" × 4" hotel pans—without stealing valuable line-of-sight on a busy cookline.

Key features

• Remote refrigeration coil (R452A) keeps compressor heat & noise outside the kitchen.
• Four refrigerated sections, each with two 27" heavy-duty drawers on stainless slides & bearings (10-year parts warranty).
• Stainless steel exterior front & sides; stainless interior top/rear/bottom for maximum durability & easy sanitation.
• ABS interior drawer fronts and cabinet sides reduce weight without sacrificing strength.
• Santoprene magnetic gaskets provide a tight seal and pop out for tool-free cleaning.
• Digital micro-processor control with LED temperature read-out (°F/°C selectable).
• Vertically mounted blower coil ensures even 360° airflow to every drawer.
• Factory-installed electric condensate evaporator—no floor drains required.
• 6" (152 mm) adjustable stainless steel legs standard; all-swivel locking casters optional.
• Environmentally conscious, high-density polyurethane insulation (CFC-free, zero GWP/ODP).
• NSF, cULus listed for commercial kitchens.

Drawer & pan capacity

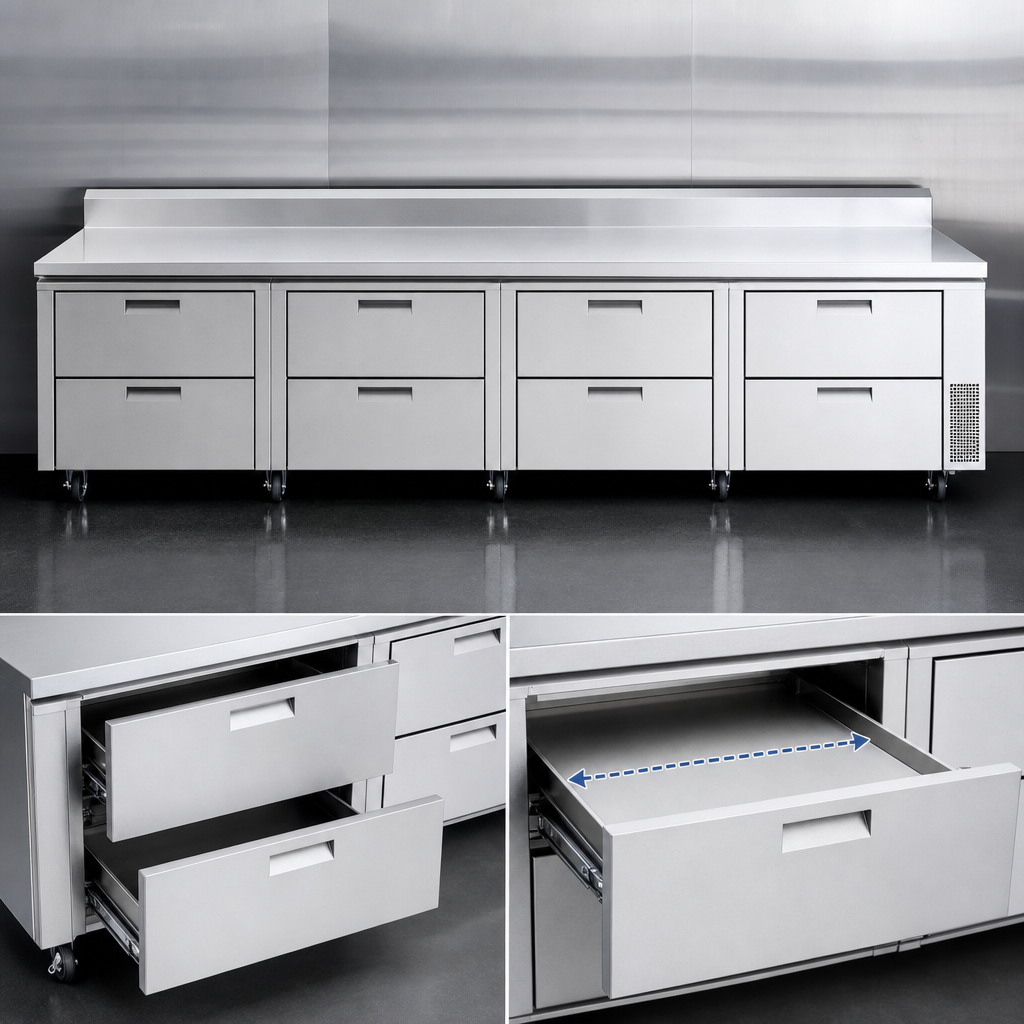

• 8 drawers total – 27" wide x 20" deep (2 per section)
• Holds 16 full-size 12" × 20" × 4" hotel pans (pans not included)

Technical specifications

Garland products are engineered exclusively for commercial applications and are not approved for residential use.
