Description

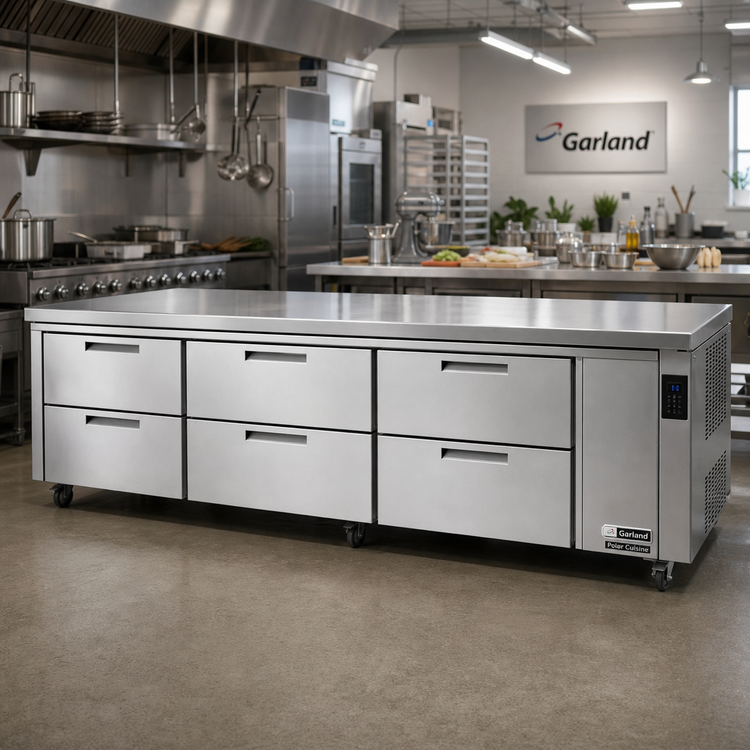

Garland Polar Cuisine 114" Remote Refrigerated Base
Model UN17R114 – four-section / eight 27" drawersBuilt to live directly under your Garland Cuisine Series modular cook tops, the Polar Cuisine 114" remote refrigerated base gives you pan-ready, low-height cold storage exactly where your cooks need it. A stainless exterior, heavy-duty drawer system and digital temperature control combine to keep up with the longest service shifts while saving precious floor space on the hot line.
Why you’ll love it
- Remote refrigeration keeps heat and noise out of the kitchen; 115 V, 3 A is all that’s required at the base.

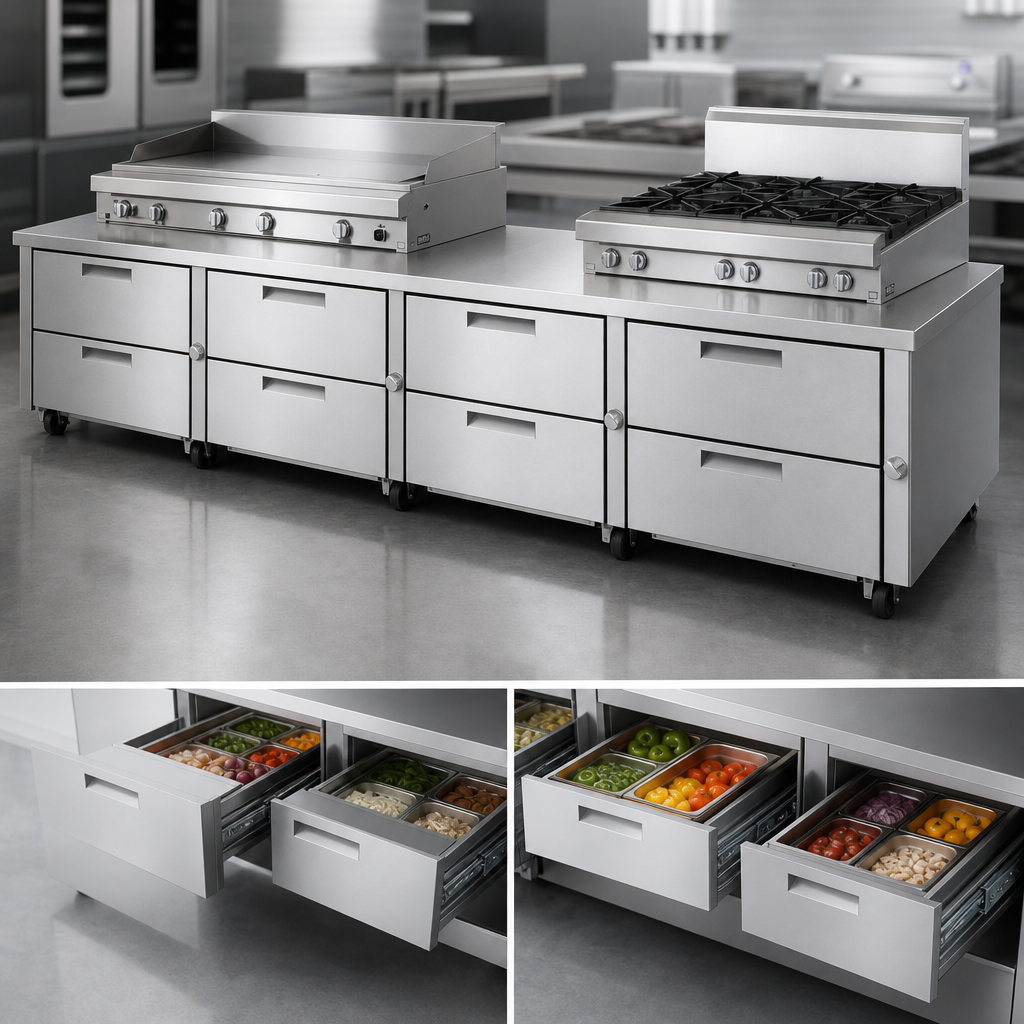

- Eight 27" drawers (two per section) hold up to 16 full-size 12" × 20" × 4" hotel pans.
- Stainless steel exterior front & sides with stainless interior top, rear and bottom for maximum durability.
- ABS interior drawer fronts and cabinet sides resist dents and are easy to clean.
- Heavy-duty stainless steel drawer slides with roller bearings – 10-year parts warranty on the track assemblies.
- One-piece Santoprene magnetic gaskets pop out for quick sanitation and replacement.
- Foamed-in-place, non-ODP/non-GWP polyurethane insulation locks the cold in and energy costs down.
- Electronic control with bright digital temperature read-out (°F standard, °C optional).
- 6" (152 mm) adjustable stainless steel legs included; field-install casters are optional.
- Field-reversible mechanical section can be ordered on the left to match any line-up.
Key specifications
| Overall width | 114 in / 2896 mm |
|---|---|
| Depth | 32-3/4 in / 832 mm |
| Height (on 6" legs) | 26-3/16 in / 665 mm |
| Sections / drawers | 4 sections / 8 drawers (27" wide, 2 high) |
| Pan capacity | 16 × 12" × 20" × 4" hotel pans |
| Electrical | 115 V / 60 Hz / 1-ph, 3 A, power cord included (controls & fans) |
| Refrigerant circuit | Remote – R452A, 1/4" liquid line & 5/16" suction line (condensing unit by others) |
| Construction | Stainless steel exterior; stainless & ABS interior; polyurethane insulation |
| Certifications | UL, cUL, NSF |
| Warranty | 1-year parts & labor; 10-year parts on drawer track assemblies |
Popular options (factory-installed)
- Extra-deep drawers (no mullion) for 6" deep hotel pans.
- Heavy-duty 6" casters with front brakes (requires restraining device).
- Door & tray rack kit for full sheet pans (not available on 32" drawer sections).
- Mechanical section on left side.
- °C temperature read-out.
Need a different length, drawer configuration or a self-contained model? Reach out via the contact form and we’ll configure the perfect Polar Cuisine base for your line-up.
