Garland UN17FR72 Polar Cuisine Undercounter & Worktop Refrigeration
Garland UN17FR72 Polar Cuisine Undercounter & Worktop Refrigeration is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Garland UN17FR72 Polar Cuisine Undercounter & Worktop Refrigera...
Description

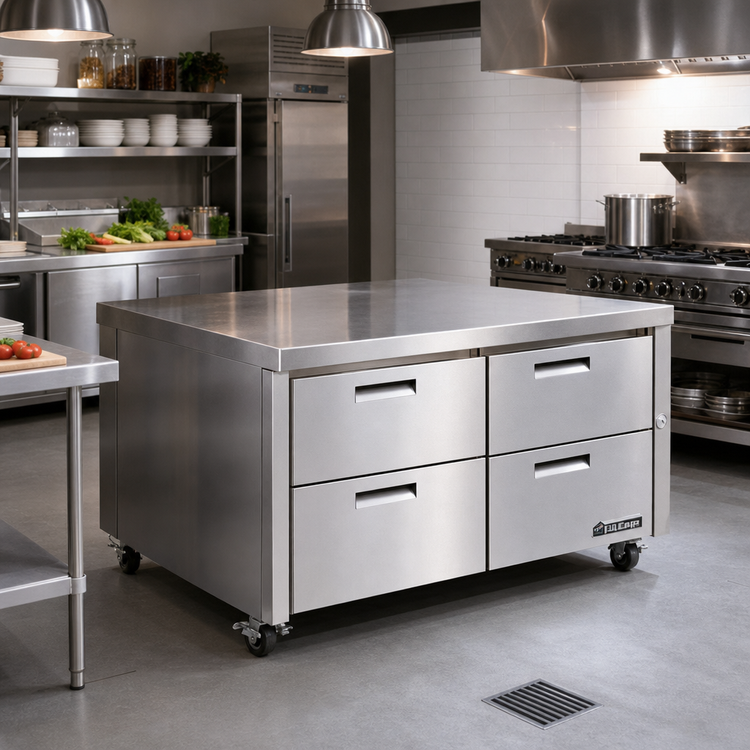

Polar Cuisine 72" Remote Freezer Base
2-Section • (2) 27" & (2) 32" Drawers • Stainless SteelKeep high-volume ingredients frozen right where the action happens. Designed to sit directly beneath Garland Cuisine Series modular cook tops, the 72" Polar Cuisine remote freezer base delivers rock-solid, low-temperature storage without adding heat or noise to the cook line.
Top Features
- Remote refrigeration keeps compressor heat & sound out of the kitchen.
- Low-profile 26-3/16" working height fits perfectly under Garland Cuisine Series equipment.
- (4) heavy-duty drawers – (2) 27" & (2) 32" – accept 12" × 20" × 8" full-size hotel pans.
- All-stainless exterior front & sides for maximum durability and easy cleanup.
- Removable stainless roller drawer tracks with self-lubricating bearings – 10-year parts warranty.
- Vertically mounted blower coil uses eco-friendly R452A refrigerant for fast pull-down temps.
- Electronic controller with bright digital temperature readout.
- 6" (152 mm) adjustable stainless steel legs for easy leveling & floor access.
- CFC-free foamed-in-place polyurethane insulation boosts energy efficiency.
- UL & NSF listed for commercial kitchens.
Key Specifications
| Model | Polar Cuisine Remote Freezer Base — 72" (two-section) |
|---|---|
| Overall width | 72" / 1 829 mm |
| Depth | 32-3/4" / 832 mm |
| Height (on 6" legs) | 26-3/16" / 665 mm |
| Drawer configuration | (2) 27" & (2) 32" drawers, stainless steel fronts |
| Pan capacity | Up to 8 full-size 12" × 20" × 8" hotel pans |
| Refrigerant | R452A (remote condenser supplied & installed by others) |
| Evaporator capacity | 3 200 BTU/hr @ –23 °F (–32 °C) evap. temp. |
| Electrical | 115 V / 60 Hz / 1-ph, 1.5 A, hard-wire connection |
| Remote connections | ¼" liquid line • 5⁄16" suction line • ½" CPVC condensate drain |
| Warranty | 1 year parts & labor • 10 years drawer track parts |
Factory Options
- Extra-deep drawers (no mullion) to hold 6" deep hotel pans.
- Set of four 6" heavy-duty locking casters.
- Tray-rack doors for sheet pans (not available on 32" drawers).
- Left-hand mechanical housing.
- Celsius temperature display.
Garland Commercial Ranges Ltd. reserves the right to modify design or specifications without notice.
