Description

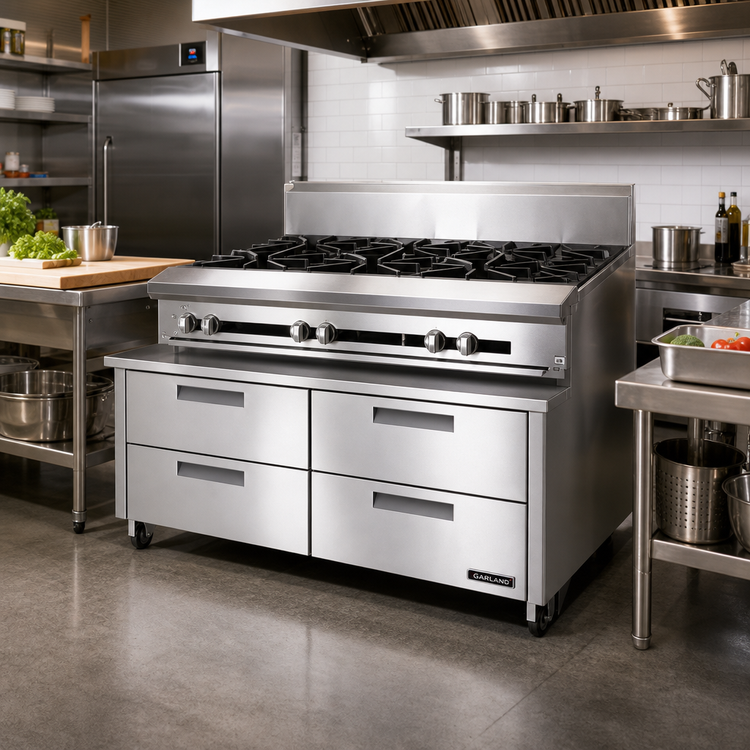

Polar Cuisine Remote Freezer Base – 66" W, 4-Drawer

Garland | Model UN17FR66 • Fits Garland Cuisine Series Modular Cooktops

Keep frozen ingredients right where the action is. The 66-inch Polar Cuisine remote freezer base slides neatly under any Garland Cuisine Series modular top, giving chefs low-profile, high-capacity frozen storage without adding heat or noise to the cookline.

Key Features
  • Remote refrigeration — compressor/condensing unit supplied & installed by others for a cooler, quieter kitchen.
  • Four heavy-duty 27" drawers (two per section) on stainless steel roller slides with self-lubricating bearings.
  • Drawers include mullions and accept full-size 12" × 20" × 8" hotel pans for bulk frozen storage right at the range.
  • Durable stainless steel exterior front & sides; galvanized bottom & back for corrosion resistance.
  • ABS interior drawer fronts & cabinet sides with stainless steel interior top, rear & bottom for easy sanitation.
  • Santoprene magnetic drawer gaskets snap in/out for quick replacement and a positive frost-free seal.
  • Electronic control with easy-read digital temperature display.
  • 6" (152 mm) adjustable stainless steel legs — match the working height of Garland Cuisine cooktops.
  • CFC-free, non-ODP/non-GWP polyurethane foam insulation keeps temperatures steady & energy use low.
  • Vertically mounted blower coil for even, forced-air circulation throughout the drawer cavities.
Specifications
Cabinet type Remote low-height freezer base
Overall width 66" (1676 mm)
Depth 32-3/4" (832 mm)
Height (with 6" legs) 26-3/16" (665 mm)
Sections / drawers 2 sections / 4 drawers (27" W each)
Pan capacity Full-size 12" × 20" × 8" hotel pans (with drawer mullions)
Remote connections 1/4" liquid line  •  5/16" suction line  •  ½" CPVC condensate drain
Refrigerant R452A (field supplied & charged)
Electrical 115 V / 60 Hz / 1-ph, 1.5 A (hard-wired)
Certifications UL, NSF
Warranty 10-yr drawer track parts  •  1-yr parts & labor on cabinet
Options & Accessories
  • Extra-deep drawers (no mullion) for 6"-deep hotel pans.
  • 6" casters with front brakes.
  • Door & tray-rack kit for sheet-pan storage (not available on 32" drawers).
  • Mechanical housing on left side.
  • Celsius temperature readout.
Important: Polar Cuisine bases may only be ordered in conjunction with Garland Cuisine Series modular cooktops. Remote condensing unit, refrigerant, interconnecting lines and final electrical connections must be supplied and installed by qualified personnel.

Garland equipment is engineered exclusively for commercial food-service use and is not approved for residential installation.

Features & Specs

Manufacturer

Garland

Brand_name

Polar Cuisine

Height

26.19in

Width

66.0in

Depth

32.75in

Shipping Weight

431.0lbs

Width

61" - 66" wide

Exterior Finish

all stainless steel exterior

Drawer Qty

4 drawers

Refrigeration

remote (refrigeration not included)

Specifications

Polar Cuisine Freezer Base, remote refrigeration, 66" W, two-section, (4) 27" drawers, stainless steel exterior, 6" stainless steel legs (available only when ordered with Cuisine Series modular cook tops) 115v/60/1-ph, 1.5 amps, (U S Range)
