Garland UN17FR54 Polar Cuisine Undercounter & Worktop Refrigeration
Garland UN17FR54 Polar Cuisine Undercounter & Worktop Refrigeration is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Garland UN17FR54 Polar Cuisine Undercounter & Worktop Refrigera...
Description
Polar Cuisine™ 54" Remote Freezer Base – 4-Drawer / 2-Section
Garland Model UN17FR54 | Compatible with Cuisine Series modular cook topsGive your Garland Cuisine Series line the frozen storage it deserves. The Polar Cuisine UN17FR54 is a low-profile, two-section freezer base that tucks neatly beneath a 54 inch cook top while keeping up to four full-size hotel pans safely below 0 °F. Remote refrigeration, heavy-gauge stainless construction and a 10-year drawer track warranty make it a rugged, no-compromise foundation for any high-volume kitchen.
Key advantages

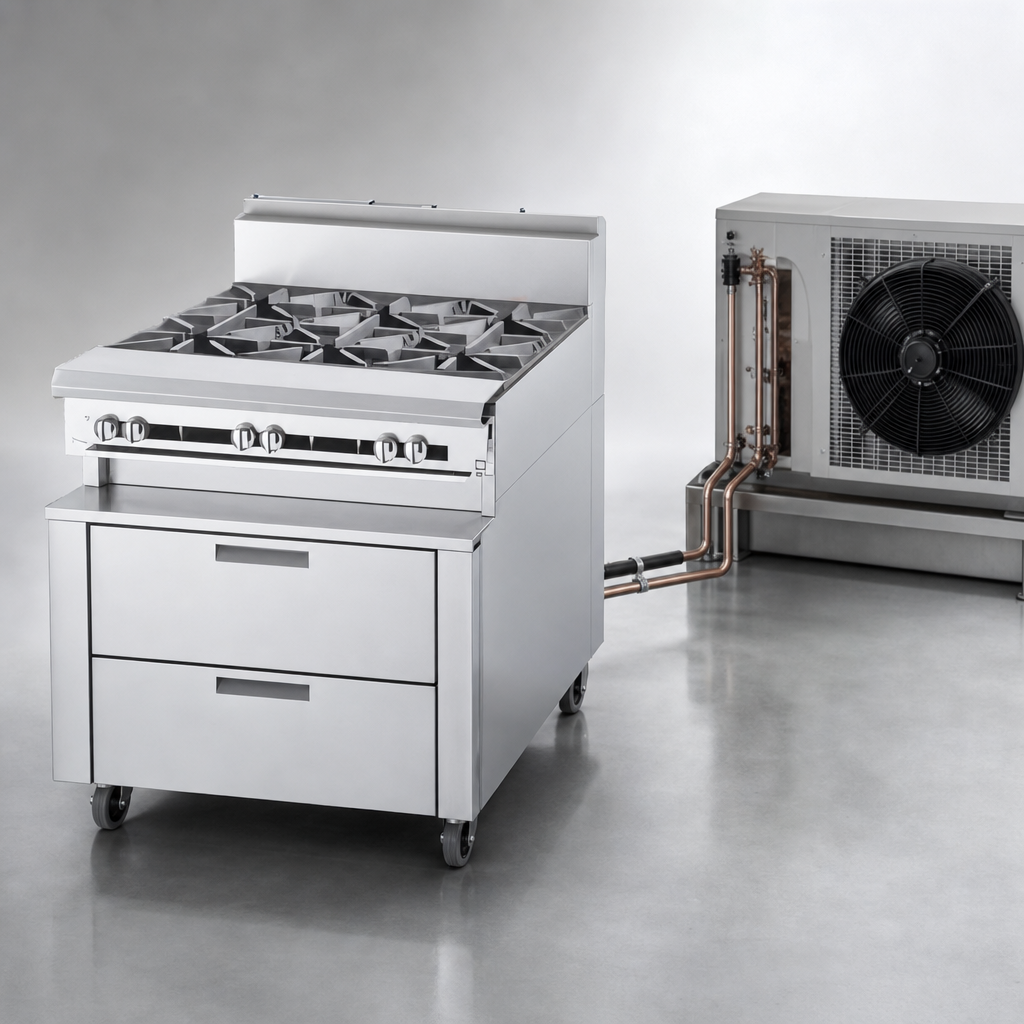

- Remote refrigeration — reduces kitchen heat & noise; 1/4" liquid & 5/16" suction line supplied
- (4) 19" low-profile drawers (2 per section) on stainless-steel roller slides with 10-year warranty
- Each drawer holds one full-size 12" × 20" × 8" hotel pan (pans not included)
- All-stainless exterior front & sides; stainless interior top, rear & bottom
- ABS interior sides and drawer fronts for weight reduction without sacrificing strength
- Foamed-in-place, non-ODP / non-GWP polyurethane insulation
- Digital control & thermometer for precise temperature monitoring
- Santoprene magnetic gaskets—snap in/out for quick replacement
- Factory-installed 6" stainless-steel adjustable legs; optional 6" casters available
- UL, cUL & NSF listed for commercial kitchens
Specs at a glance
| Overall width | 54 in (1372 mm) |
|---|---|
| Depth | 32-3/4 in (832 mm) |
| Height (on legs) | 26-3/16 in (665 mm) |
| Sections | 2 |
| Drawers | 4 × 19 in (two per section) |
| Pan capacity | 4 × 12" × 20" × 8" hotel pans |
| Refrigerant | R452A (remote condenser, supplied by others) |
| Electrical (evaporator) | 115 V / 60 Hz / 1-phase, 1.5 A, cord & NEMA 5-15P plug |
| Drain | ½" CPVC condensate line (freezer bases) |
| Required with | Garland Cuisine Series modular cook tops (ordered separately) |
Perfect for
- High-volume restaurants looking to maximise line efficiency
- Hotels, casinos & resorts that need below-counter frozen storage
- Any cook-line using Garland Cuisine Series griddles, ranges or Char-Broilers
Popular options (factory-installed)
- 6" heavy-duty swivel casters with locks
- Extra-deep drawers (no mullion) for double-stack 6" pans
- Left-hand mechanical housing
- Celsius temperature readout
- Door & tray-rack kit for 18" × 26" sheet pans (not available on 32" drawers)
