Garland  |  Polar Cuisine  |  SKU: UN17FR48

Garland UN17FR48 Polar Cuisine Undercounter & Worktop Refrigeration

$15,278.45
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet
Related Searches
Commercial Work Tables Equipment Stands Kitchen Equipment Tables Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

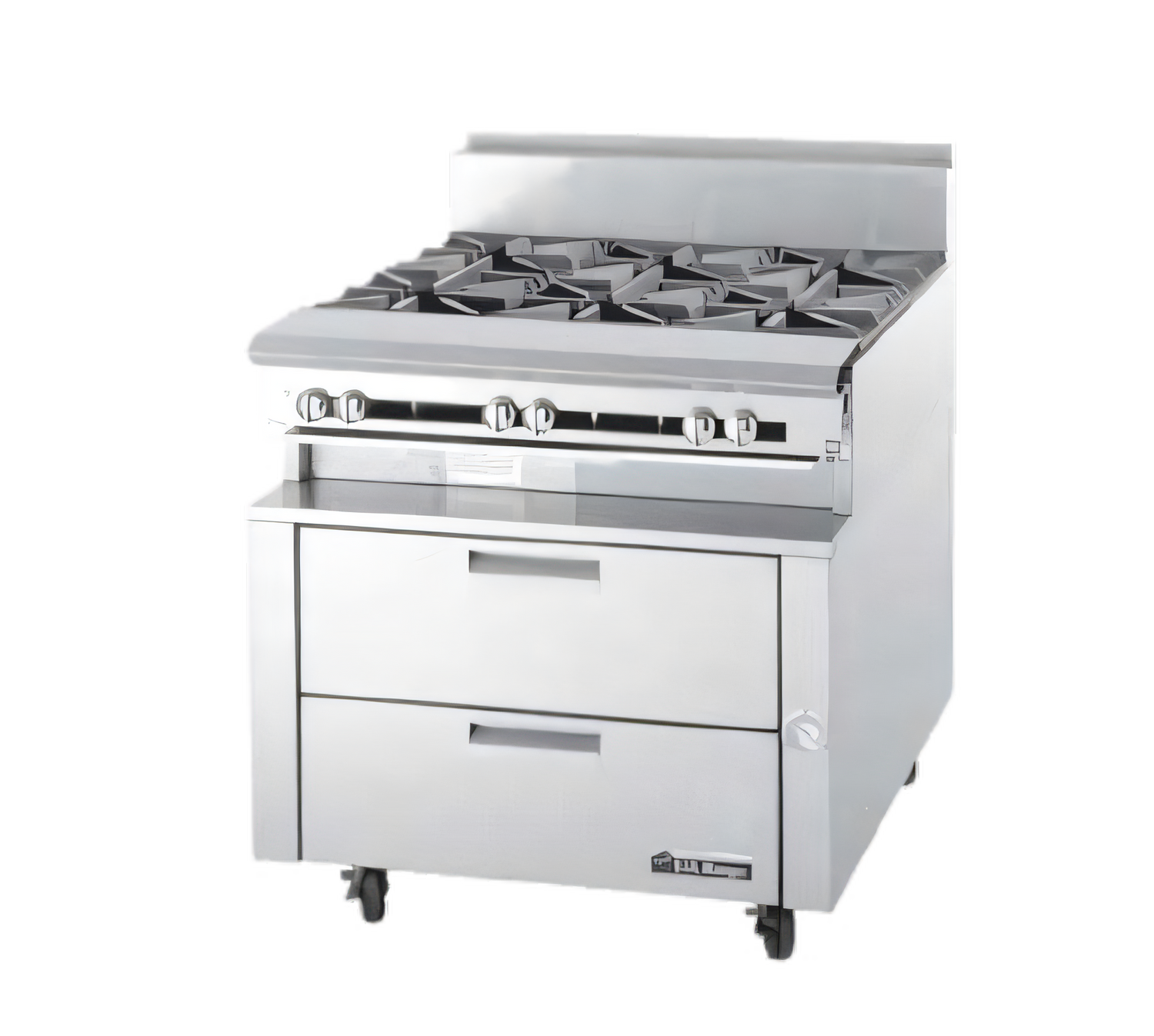

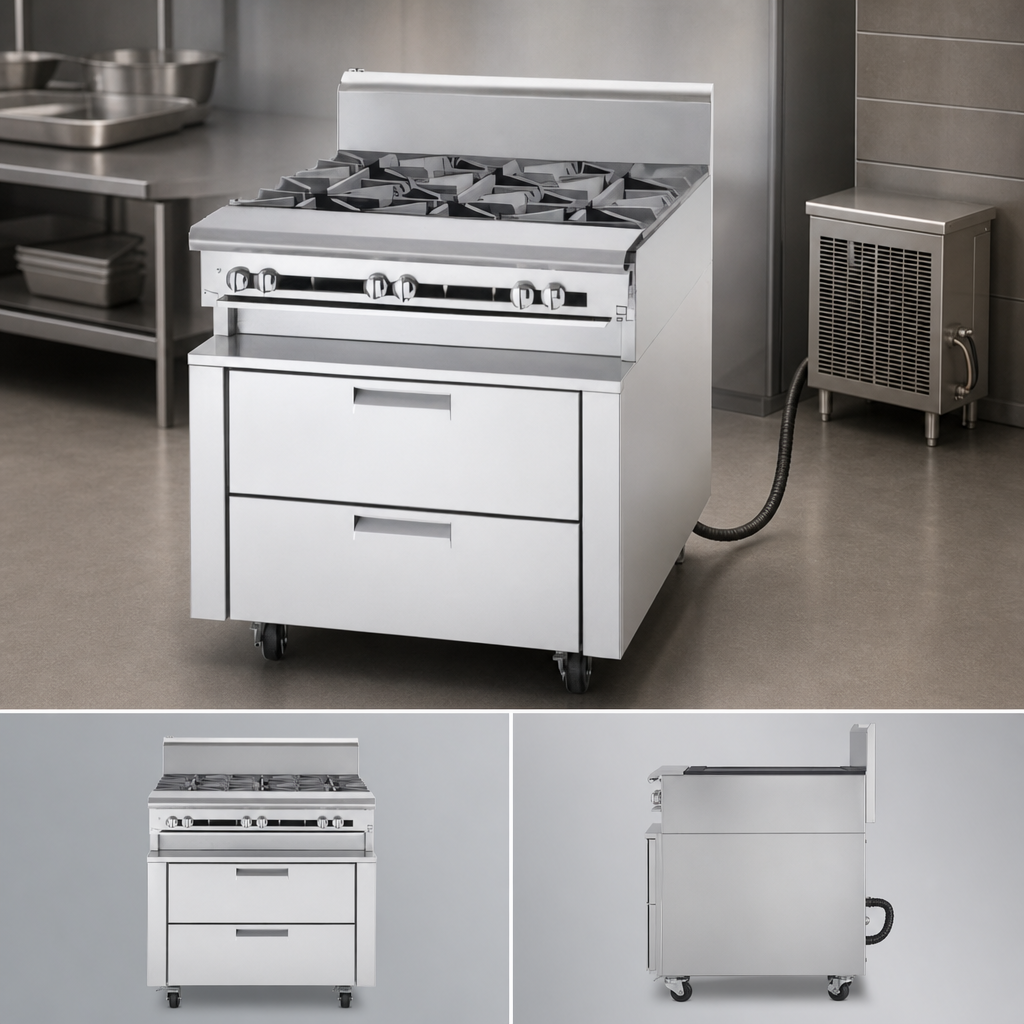

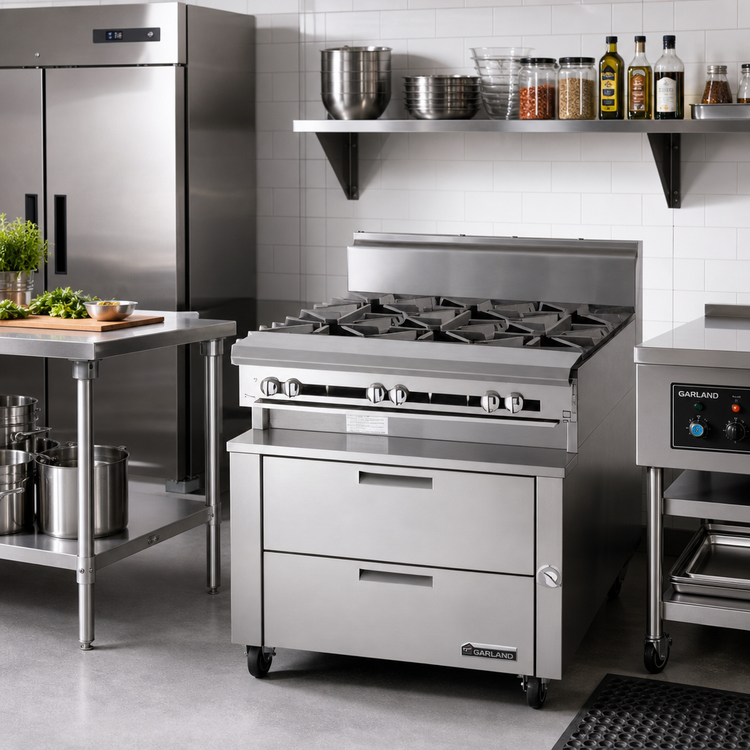

Polar Cuisine Remote Freezer Base – 48" One-Section

Model UN17FR48 | Garland U.S. Range

Bring frozen ingredients to arm’s reach without adding heat or noise to the cook line. The Garland Polar Cuisine remote freezer base slips under your 48" Cuisine Series modular cooktop, delivering rugged, low-profile cold storage exactly where chefs need it.

Key advantages
  • Remote refrigeration removes the compressor from the kitchen for a cooler, quieter workspace.
  • Stainless steel exterior and drawer fronts resist corrosion and daily abuse.
  • (2) 32" drawers ride on self-lubricating stainless slides backed by a 10-year parts warranty.
  • Santoprene magnetic gaskets snap out for fast cleaning and tight sealing at sub-zero temps.
  • Drawers accept full-size 12"×20"×8" hotel pans (pans not included).
  • Micro-processor control with LED read-out provides precise, worry-free temperature monitoring.
  • 6" adjustable stainless legs level the unit; field-installed casters optional.
  • CFC-free, high-density polyurethane insulation plus eco-friendly R452A refrigerant lines.
  • UL, UL Sanitation & NSF listed for commercial kitchens.
Quick specs
Width 48" / 1219 mm
Depth 32 3/4" / 832 mm
Height (on legs) 26 3/16" / 665 mm
Sections 1
Drawer configuration (2) 32" freezer drawers with mullion
Pan capacity 12"×20"×8" full-size hotel pans
Refrigeration type Remote, R452A refrigerant, vertically mounted blower coil
Refrigerant line sizes 1/4" liquid  |  5/16" suction
Condensate drain 1/2" CPVC (freezer bases)
Electrical 115 V / 60 Hz / 1-ph, 0.73 A (field-wired)
Legs 6" stainless steel, adjustable
Drawer slide warranty 10 years (parts)
Made for the Cuisine Series
  • Low-height frame aligns flush with Garland Cuisine Series griddles, charbroilers, fry stations and more.
  • Factory-drilled top surface simplifies mounting of the matching 48" modular cooktop.
  • Available only when ordered together with a Garland Cuisine Series modular top.
Installation note: This unit ships without a condensing unit. A compatible remote compressor, refrigerant piping and professional start-up are required and are not included. Not approved for residential use.

Garland reserves the right to change specifications without notice.

Features & Specs

Manufacturer

Garland

Brand_name

Polar Cuisine

Height

26.19in

Width

48.0in

Depth

32.75in

Shipping Weight

322.0lbs

Width

42" - 48" wide

Drawer Qty

2 drawers

Exterior Finish

all stainless steel exterior

Refrigeration

remote (refrigeration not included)

Specifications

Polar Cuisine Freezer Base, remote refrigeration, 48" W, one-section, (2) 32" drawers, stainless steel exterior, 6" stainless steel legs (available only when ordered with Cuisine Series modular cook tops) 115v/60/1-ph, 0.73 amps, (U S Range)
