Description

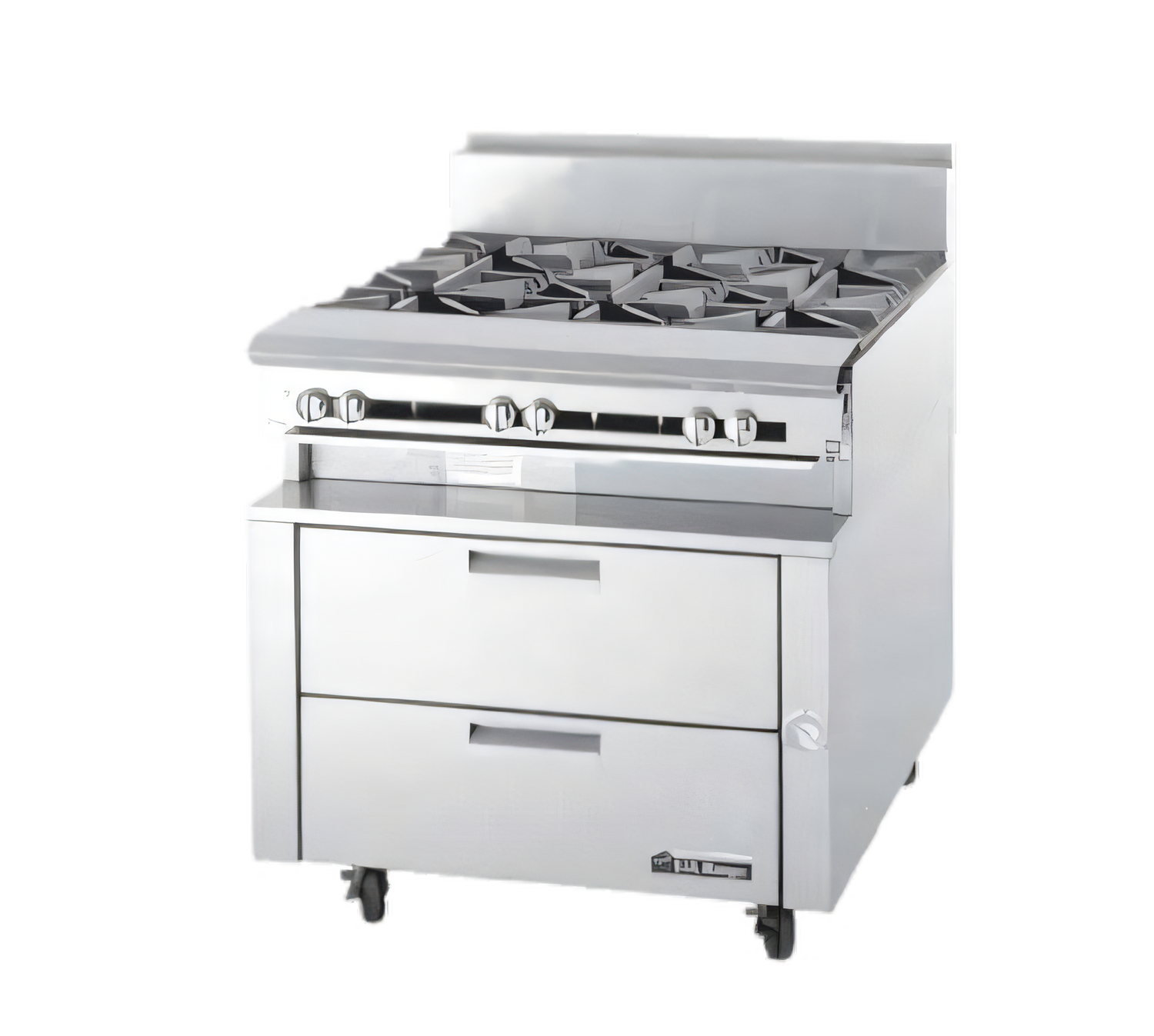

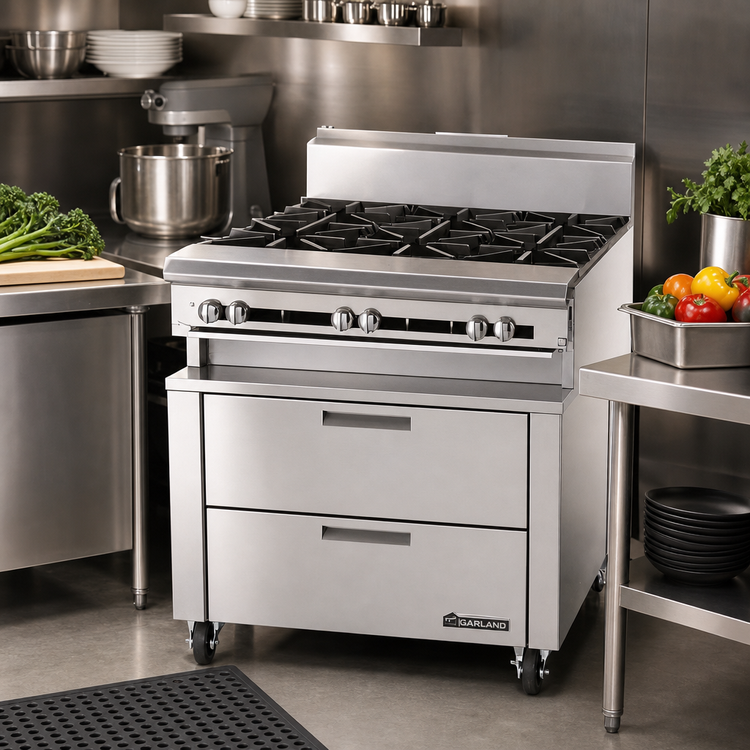

Garland Polar Cuisine 36" Remote Freezer Base

Model UN17FR36 – 2 x 19" Drawers

Keep frozen product right where the cooking happens. The low-profile Polar Cuisine remote freezer base slides perfectly beneath Garland Cuisine Series modular cooktops, giving chefs instant access to ingredients while preserving valuable line space.

Key Benefits

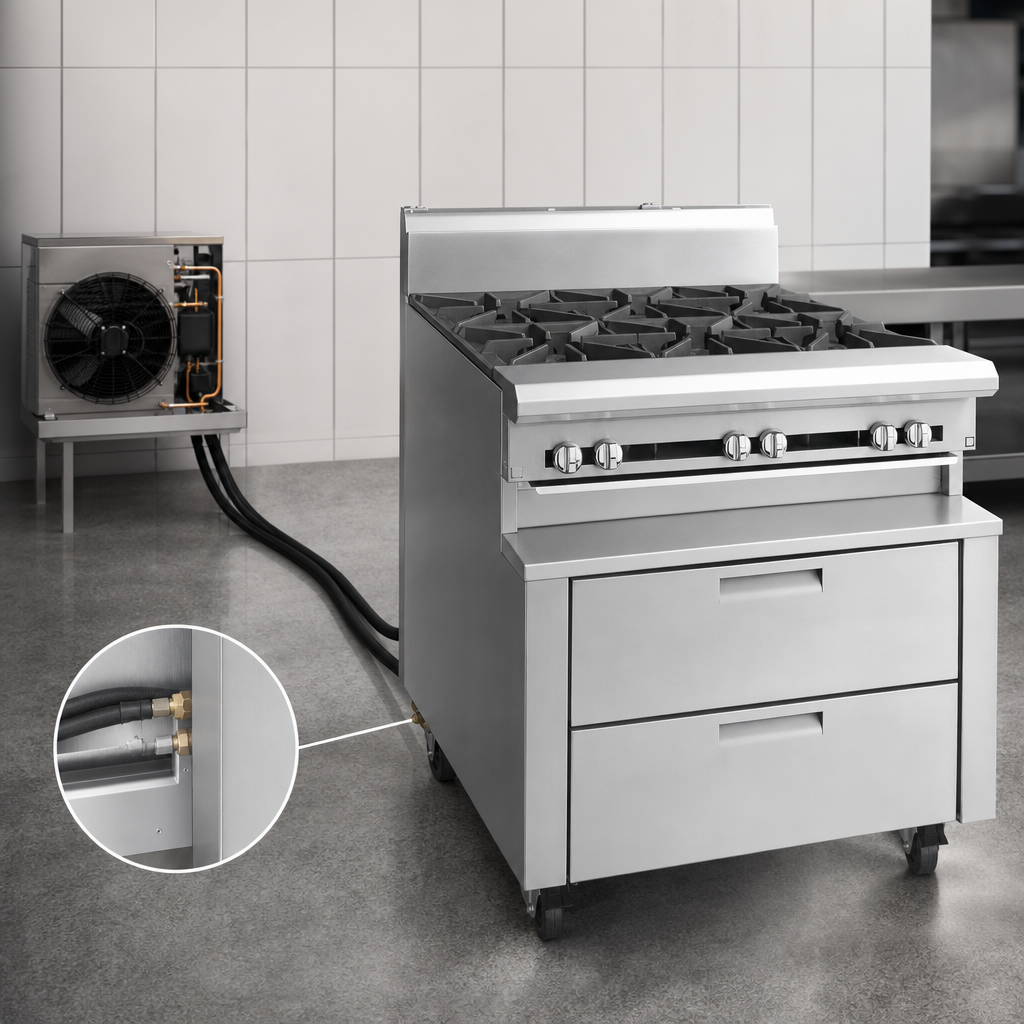

  • Remote refrigeration design removes heat and noise from the kitchen — ideal for hot lines.
  • Two 19" drawers each fit one full-size 12" × 20" × 8" hotel pan for efficient mise en place.
  • Durable all-stainless exterior plus ABS/stainless interior cleans quickly and resists corrosion.
  • Heavy-duty drawer slides with stainless steel bearings are backed by a 10-year parts warranty.
  • Electronic control with bright digital temperature display for at-a-glance monitoring.
  • Foamed-in-place, zero-ODP polyurethane insulation and Santoprene magnetic gaskets lock in cold air.
  • 6" adjustable stainless steel legs level the unit and align with surrounding equipment.
  • Uses eco-forward R452A refrigerant (compressor/condenser supplied by others).

At-a-Glance Specifications

Exterior width 36" / 914 mm
Exterior depth 32-3/4" / 832 mm
Exterior height (with 6" legs) 26-3/16" / 665 mm
Configuration 1 section  |  2 × 19" drawers
Pan capacity 1 × 12" × 20" × 8" hotel pan
Refrigeration Remote, R452A
Evaporator BTU capacity 3,200 BTU @ –23 °F / –32 °C
Electrical 115 V | 60 Hz | 1-ph  |  0.73 A (hard-wire)
Refrigerant lines ¼" liquid  |  5/16" suction
Condensate drain ½" CPVC
Legs 6" stainless steel, adjustable
Warranty 1 yr parts & labor · 5 yr compressor parts · 10 yr drawer tracks
Certifications cULus, NSF

Popular Options

  • Extra-deep drawers (no mullion) for 6" deep hotel pans
  • 6" locking casters
  • Door & tray-rack kit for full sheet pans (not available with 19" drawers)
  • °C temperature readout
  • Left-side mechanical housing
Important: Polar Cuisine remote bases are sold only with Garland Cuisine Series modular cooktops and require a field-supplied compressor/condenser package.

Garland equipment is intended for commercial kitchens and is not approved for residential use.

Features & Specs

Manufacturer

Garland

Brand_name

Polar Cuisine

Height

26.19in

Width

36.0in

Depth

32.75in

Shipping Weight

247.0lbs

Exterior Finish

all stainless steel exterior

Drawer Qty

2 drawers

Refrigeration

remote (refrigeration not included)

Width

31" - 36" wide

Specifications

Polar Cuisine Freezer Base, remote refrigeration, 36" W, one-section, (2) 19" drawers, stainless steel exterior, 6" stainless steel legs (available only when ordered with Cuisine Series modular cook tops) 115v/60/1-ph, 0.73 amps, (U S Range)
