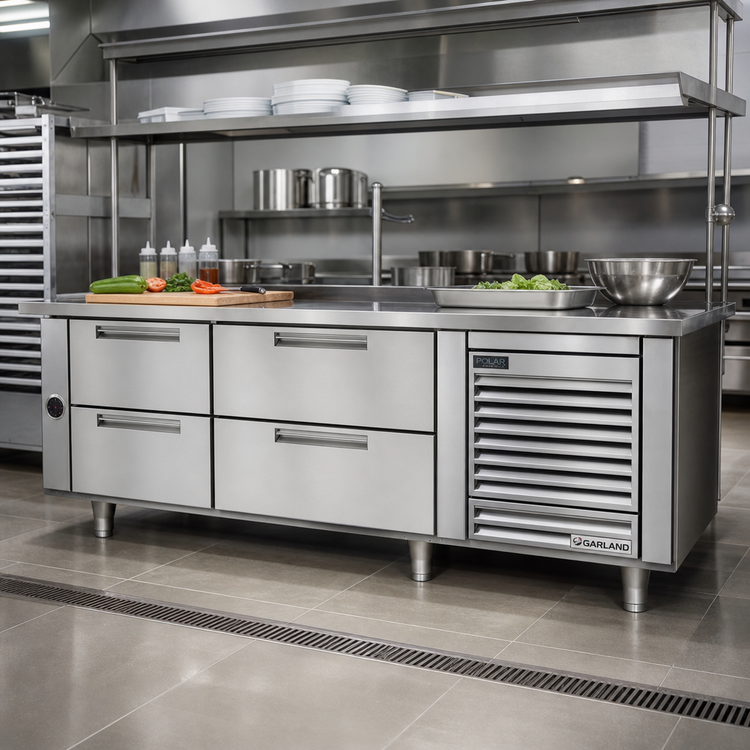

Garland Polar Cuisine Self-Contained Freezer Base, 90-Inch Wide, 4-Drawer, Stainless Steel, 115V

90-Inch Wide, 115V/60Hz/1-Phase, Low-Height Base

Built for modular cooktop installations, this 90-inch freezer base delivers self-contained cold storage in a durable stainless steel cabinet with four drawers.

  • Self-contained freezer base designed for use under Garland Cuisine Heavy-Duty Series modular tops
  • 90-inch wide, low-height cabinet with four drawers for organized frozen storage
  • Stainless steel exterior front and sides for durability and easy cleaning
  • Standard drawers accommodate 12 x 20 x 4-inch hotel pans
  • Electronic controls with digital readout and a self-contained freezer defrost timer
  • R-290 refrigerant and a tropicalized compressor support reliable commercial operation
  • 6-inch adjustable legs and an 8-foot cord with NEMA 5-15P plug are standard

Overall Dimensions:

90.0"W x 32.75"D x 26.19"H

Product Weight:

655.0 lb

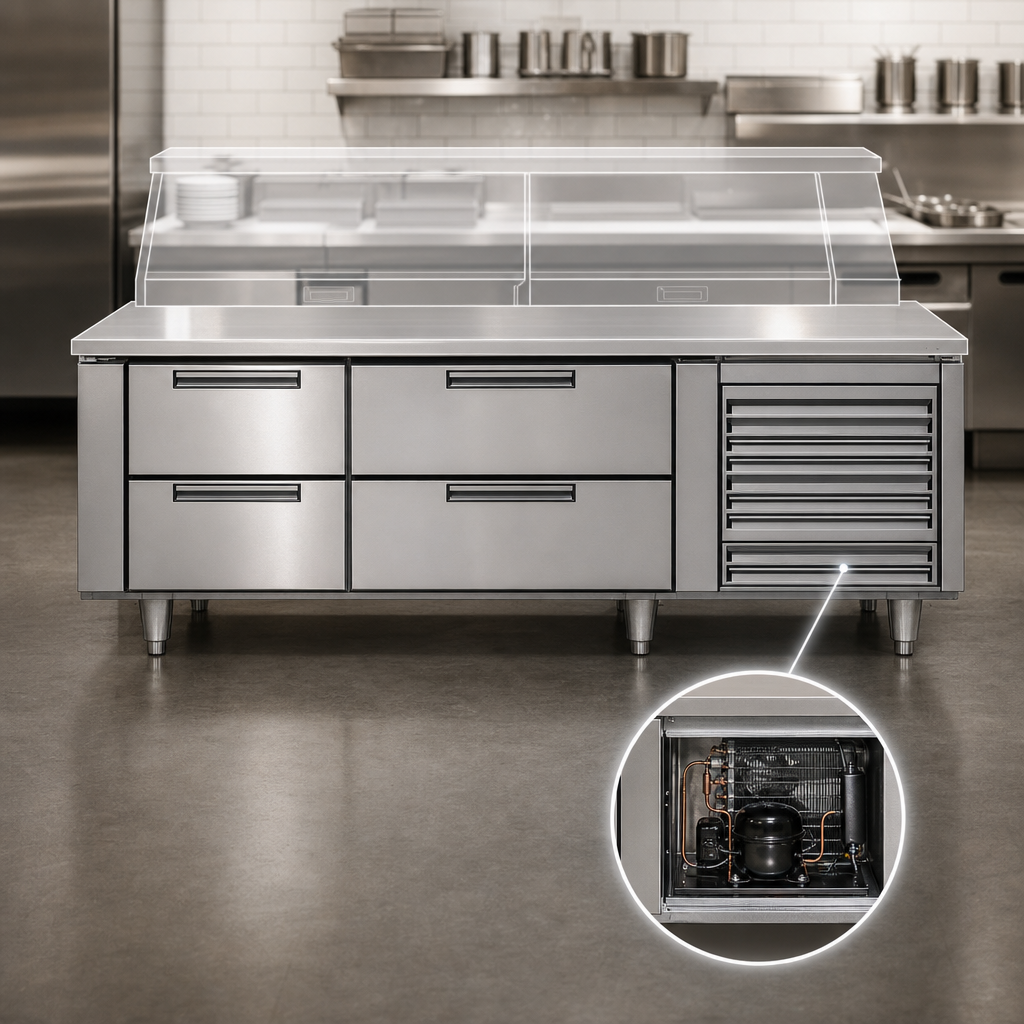

Self-Contained Refrigeration

Built-in refrigeration is housed in the base, simplifying installation under compatible modular tops.

Stainless Steel Exterior

Stainless steel front and side panels provide a durable, easy-to-clean commercial finish.

Four-Drawer Storage

The drawer layout keeps frozen ingredients organized and accessible during service.

Hotel Pan Compatibility

Standard drawers accommodate 12 x 20 x 4-inch hotel pans.

Electronic Digital Controls

Electronic control with digital readout makes temperature monitoring straightforward.

Eco-Friendly R-290 Refrigerant

Uses R-290 refrigerant and includes a defrost timer on freezer units.

Right-Side Compressor Housing

Compressor housing is located on the right end as standard, with a left-side compressor option available.

Service-Friendly Utility

Includes 6-inch adjustable legs and an 8-foot cord with a NEMA 5-15P plug for standard North American power.

Type Freezer Base
Style Self-Contained
Installation Type Undercounter
Material Stainless Steel
Interior Finish ABS and Stainless Steel
Refrigeration Type Self-Contained
Refrigerant Type R-290
Voltage 115 Volts
Amps 7.6 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Pan Size 12 x 20 x 4 Inches
Pan Capacity 4 Full-Size Hotel Pans
Shipping Width 90 Inches
Shipping Depth 33 Inches
Shipping Height 27 Inches
Shipping Weight 655 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

5-year replacement parts compressor warranty; first year parts and labor.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download

Frequently Asked Questions

It is intended to be used exclusively under Garland Cuisine Heavy-Duty Series modular tops.
This model has four drawers.
Standard drawers accommodate 12 x 20 x 4-inch hotel pans.
It operates on 115 Volts, 60 Hz, single-phase power and includes a NEMA 5-15P plug with an 8-foot cord.
Yes. It is a self-contained freezer base that uses R-290 refrigerant and includes a defrost timer.
Yes. Available options include extra-deep drawers without mullion, four 6-inch casters, doors and tray racks for sheet pans, a left-side compressor, and a Celsius readout.
