Description

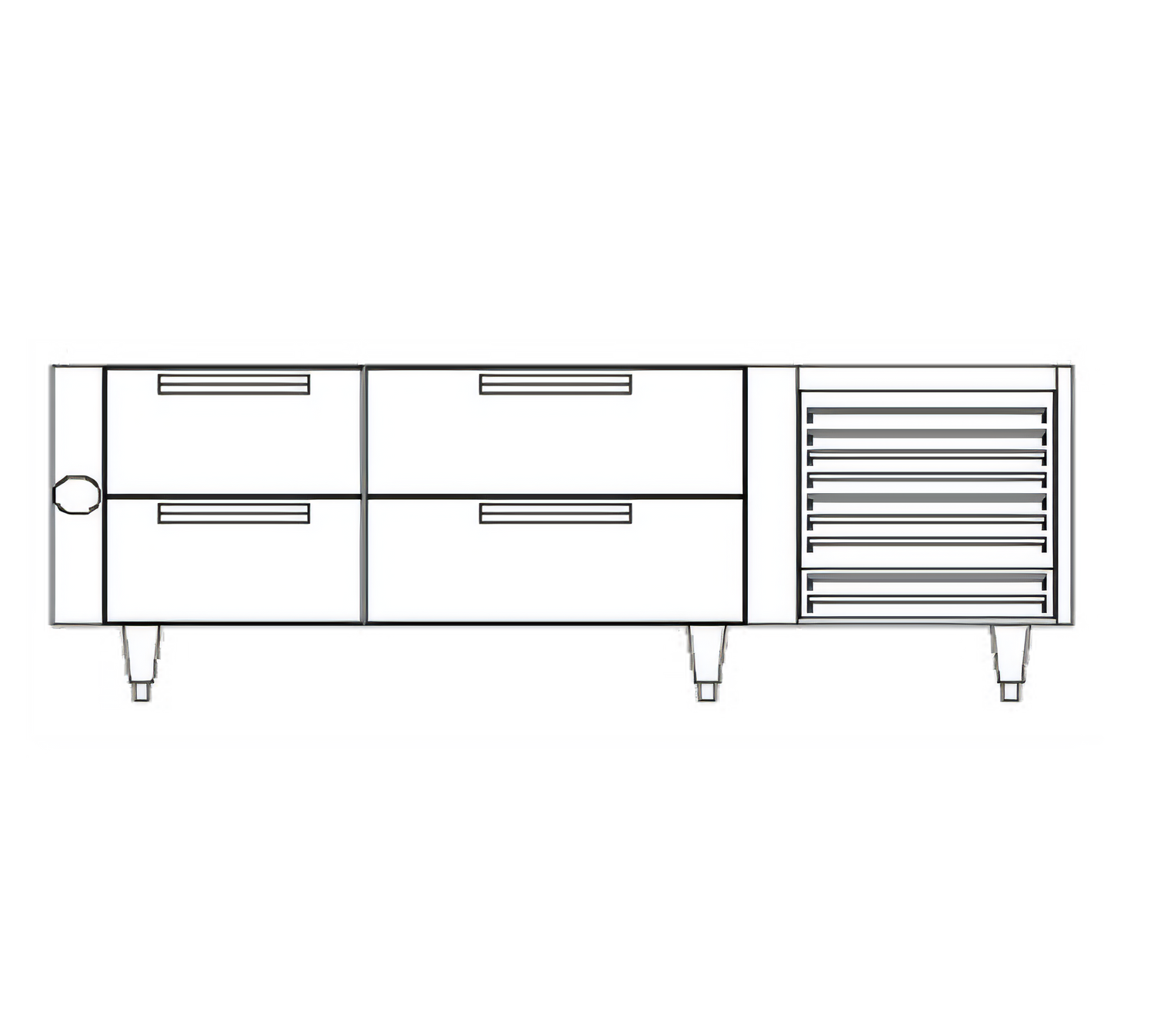

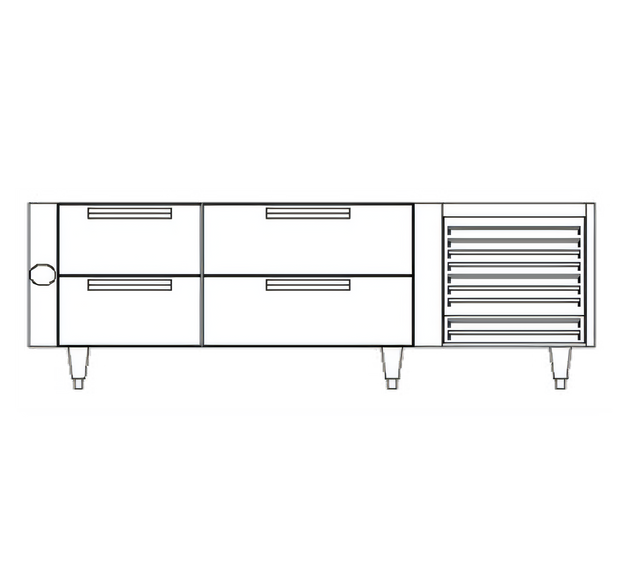

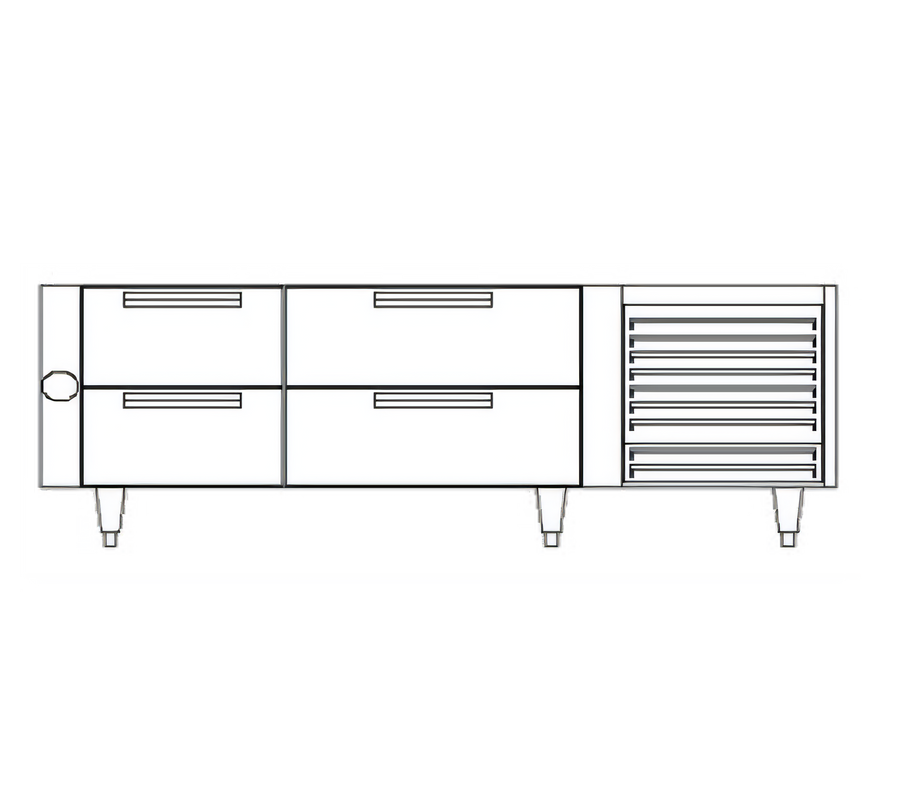

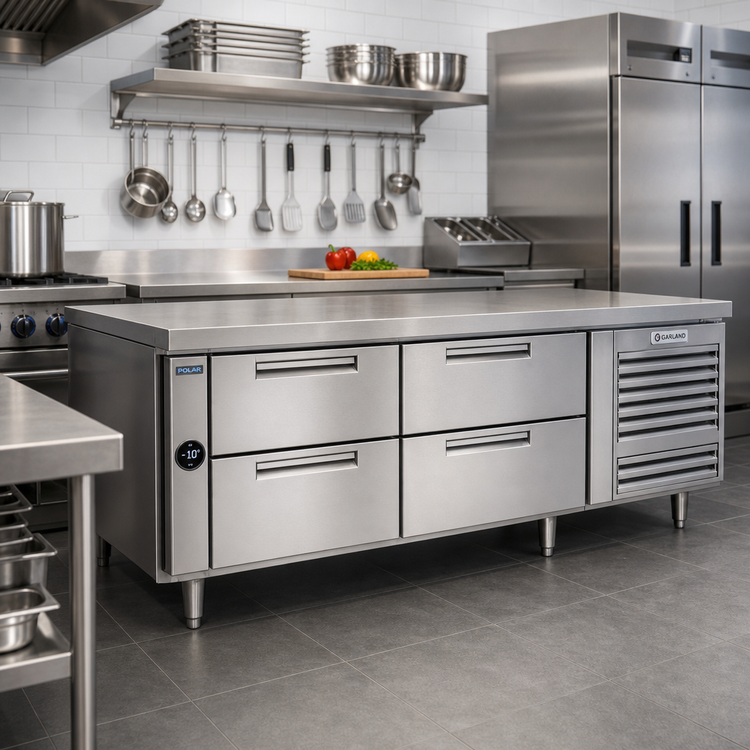

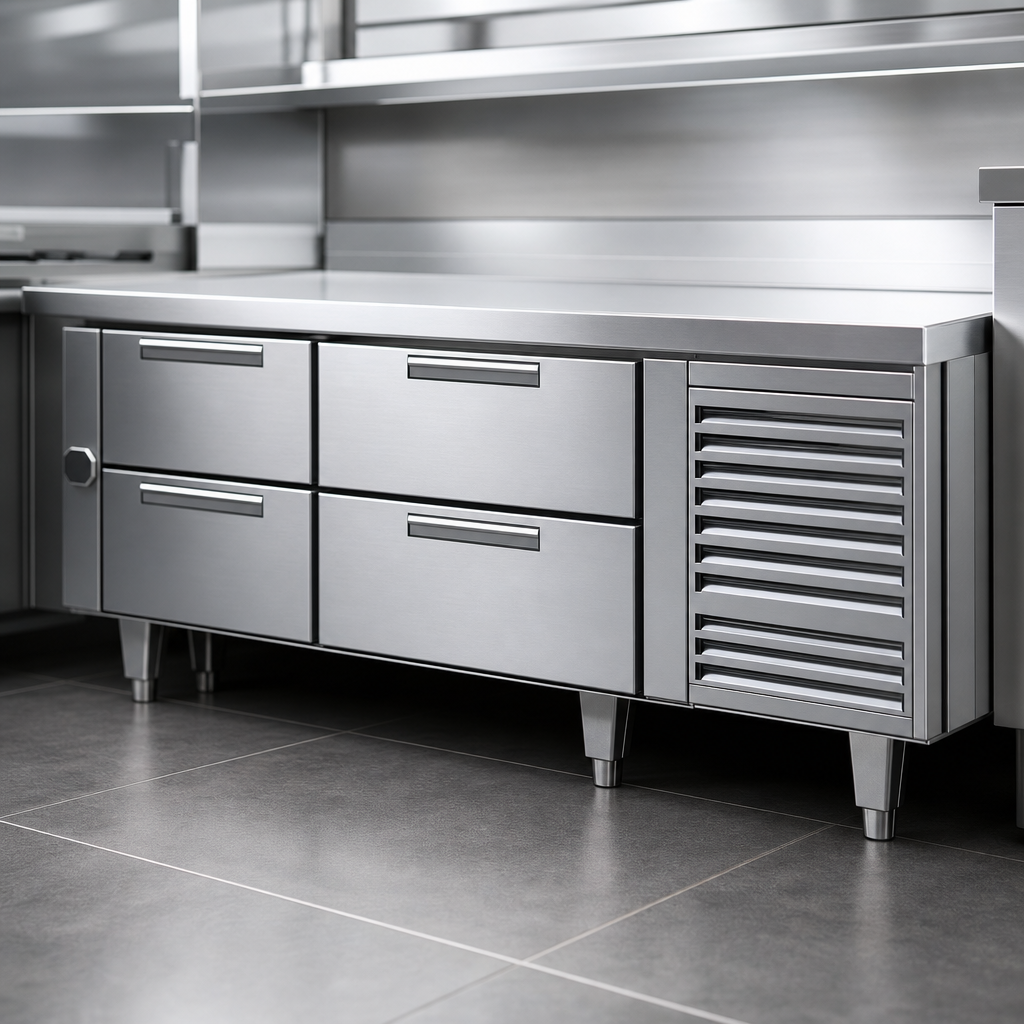

Polar Cuisine™ Self-Contained Freezer Base – 66" (Model UN17FC66)
4-drawer, low-height base for Garland Cuisine Series modular cooktopsGive your Garland Cuisine Series line a rock-solid, ice-cold foundation. The 66-inch Polar Cuisine™ self-contained freezer base tucks perfectly beneath your modular cooktops, keeping frozen ingredients within arm’s reach while saving valuable floor space. Built for the punishing pace of commercial kitchens, it delivers dependable -10 °F to 10 °F storage in a heavy-gauge stainless steel cabinet that stands just 26 ⅜" high.
Why You’ll Love It
- Four 19" drawers on stainless steel roller slides – each holds one 12" × 20" × 4" hotel pan.
- Factory-balanced, R-290 eco-friendly refrigerant system with automatic defrost timer.
- Digital controller with easy-read LED for precise temperature monitoring.
- 6" (152 mm) stainless steel adjustable legs standard; optional locking casters available.
- Compressor tropicalized to 100 °F (38 °C) and housed on the right for easy service access.
- Snap-in magnetic gaskets and CFC-free foamed-in-place insulation for maximum efficiency.
- Heavy-duty drawer slides with stainless bearings – backed by a 10-year parts warranty.
- Ships with an 8' cord and NEMA 5-15P plug – no remote refrigeration required.
Technical Specifications
| Model | UN17FC66 (U.S. Range by Garland) |
|---|---|
| Configuration | Two-section base, 4 drawers (2 drawers per section) |
| Exterior Dimensions | 66" W × 32 ¾" D × 26 3⁄16" H (1676 × 832 × 665 mm) |
| Interior Temperature | -10 °F to 10 °F (-23 °C to -12 °C) |
| Refrigerant / HP | R-290 / ⅓ HP self-contained |
| Electrical | 115 V / 60 Hz / 1-phase, 8.9 A, NEMA 5-15P |
| Pan Capacity | 4 × 12" × 20" × 4" full-size hotel pans (one per drawer) |
| Construction | Stainless steel exterior front & sides; ABS interior sides; stainless interior top, rear & bottom |
| Legs | 6" (152 mm) stainless adjustable (casters optional) |
| Warranty | 1-year parts & labor • 5-year compressor parts • 10-year drawer track parts |
| Shipping Weight | ≈ 434 lb (197 kg) |
Popular Options (sold separately)
- Set of four 6" heavy-duty casters (two locking).
- Extra-deep drawers without mullion for 6" hotel pans.
- Compressor mounted on the left (factory order).
- °C temperature display.
Garland/Welbilt reserves the right to modify specifications or design without prior notice.
