Garland

Garland Polar Cuisine 90-Inch Self-Contained Refrigerated Drawer Base

SKU: UN17C90
$18,815.85
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Work Tables Equipment Stands Garland Kitchen Equipment Tables New Arrivals Restaurant Equipment Undercounter & Worktop Refrigeration

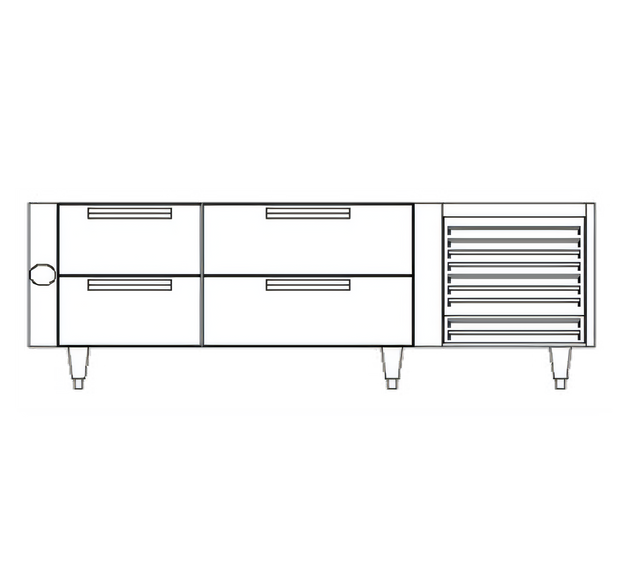

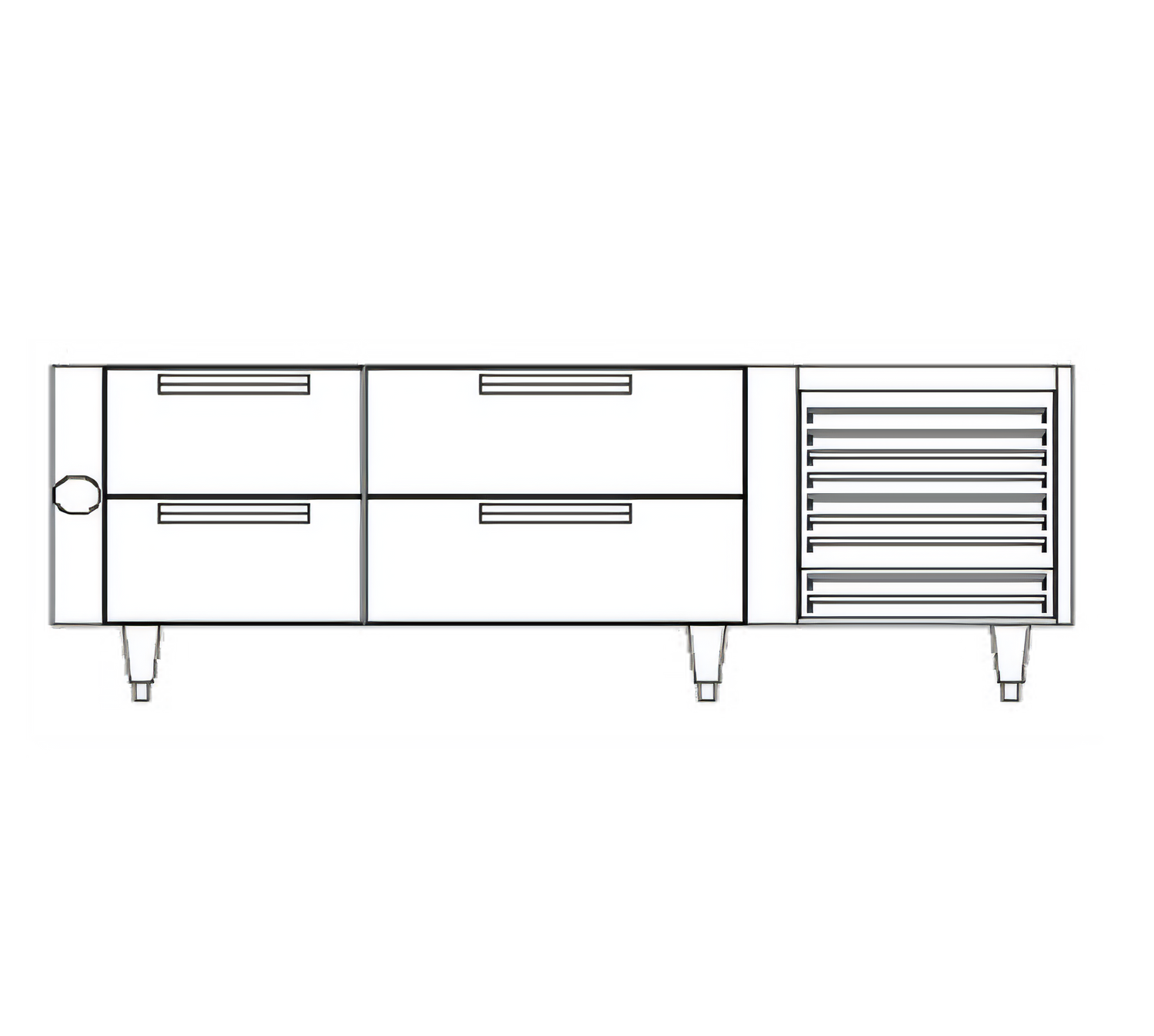

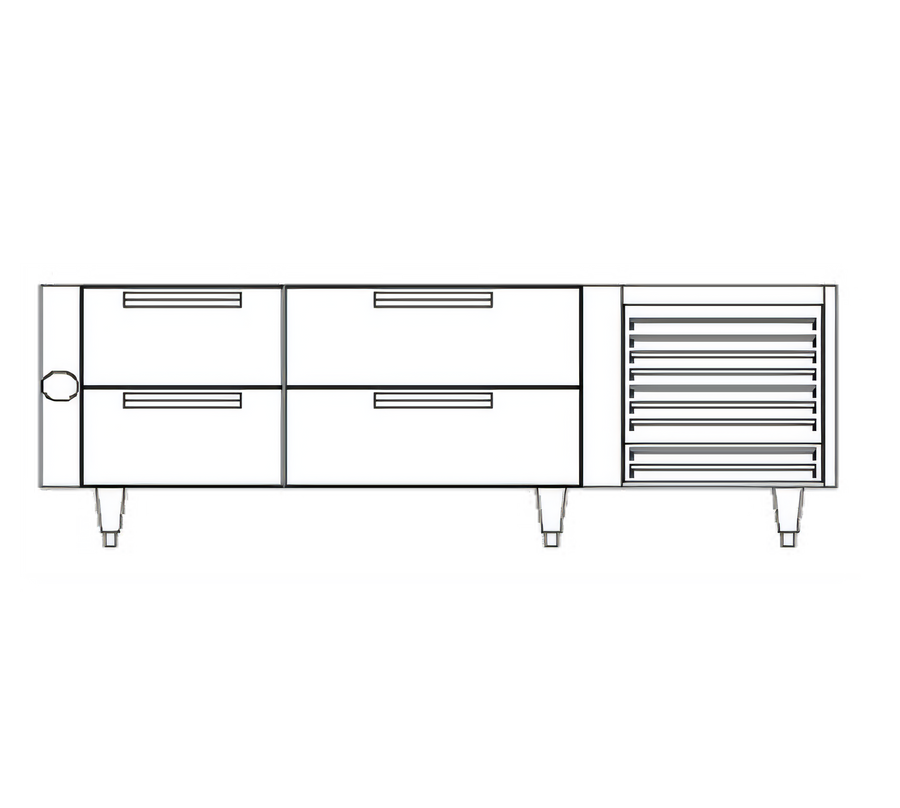

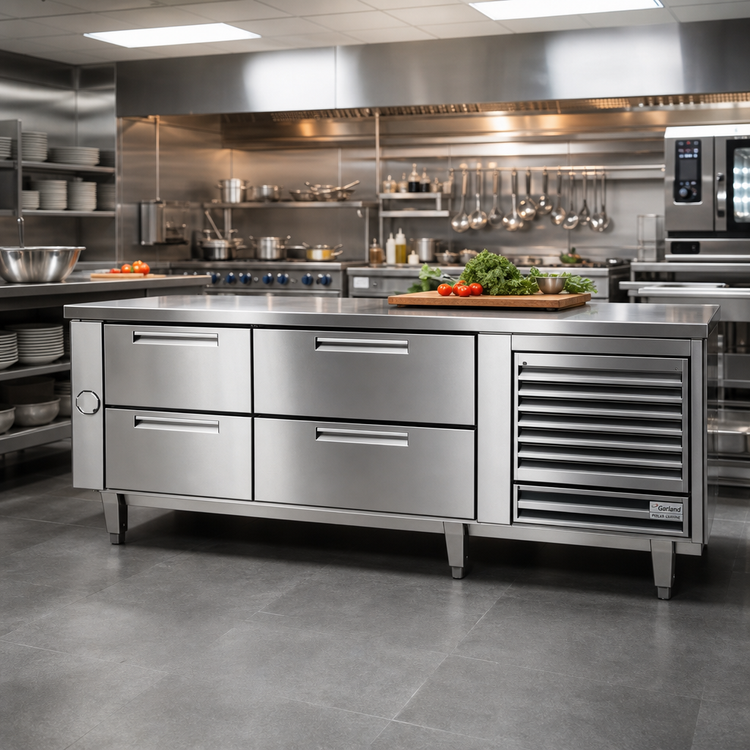

Garland Polar Cuisine 90-Inch Self-Contained Refrigerated Drawer Base

Three-Section, Six-Drawer, Stainless Steel Exterior, 115V/1-Phase

A space-saving refrigerated drawer base that keeps ingredients close at hand while fitting neatly under a modular cooktop.

  • Self-contained refrigerated base designed for use under Garland Cuisine modular tops.
  • Six-drawer, three-section layout provides organized cold storage at the cookline.
  • Stainless steel exterior with ABS/stainless interior construction for durability and easy cleaning.
  • Standard drawers hold 12" x 20" x 4" deep hotel pans; extra-deep drawer options are available.
  • Electronic controls, digital readout, and R-290 refrigerant support reliable operation.
  • 6-inch adjustable legs and an 8-foot cord with NEMA 5-15P plug come standard.

Overall Dimensions:

90.0"W x 32.75"D x 26.19"H

Product Weight:

655.0 lb

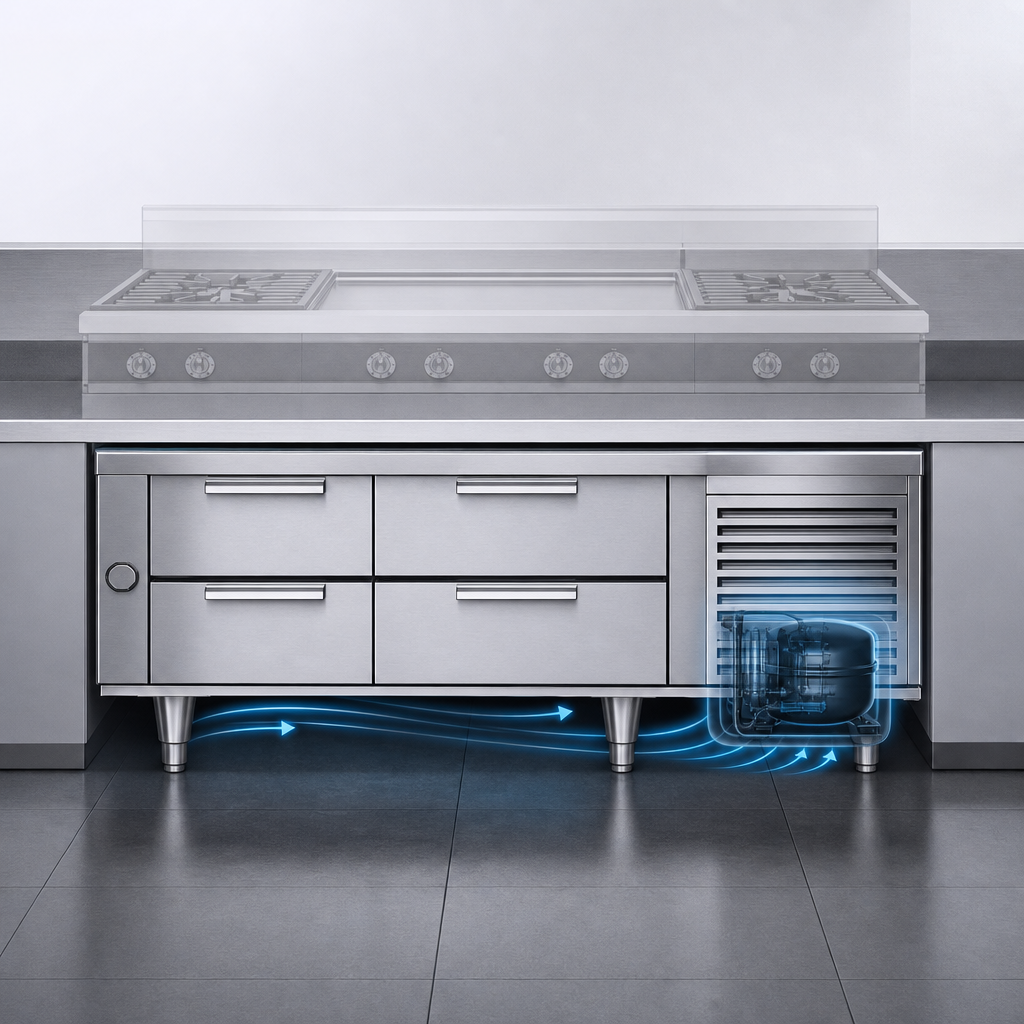

Self-Contained Refrigeration

Built-in refrigeration system operates independently beneath a modular cooktop.

Stainless Steel Exterior

Stainless steel front and sides provide durability and a clean professional appearance.

Mixed-Material Interior

ABS door fronts and cabinet sides with stainless steel top, rear, and bottom.

Right-End Compressor Housing

Compressor housing is located on the right end of the unit as standard.

Heavy-Duty Drawer Hardware

Stainless steel drawer slides and bearings with removable track assemblies and self-lubricating rollers.

Electronic Digital Control

Electronic control with digital readout and digital thermometer for straightforward temperature monitoring.

Pan-Compatible Drawers

Standard drawers accommodate 12" x 20" x 4" deep hotel pans.

R-290 Refrigerant

Uses environmentally friendly R-290 refrigerant.

Tropicalized Compressor

Compressor is tropicalized to 100°F (38°C) for warmer kitchen environments.

Adjustable Legs

6-inch adjustable legs are standard for leveling and installation.

Type Refrigerated Base
Style Drawer Base
Installation Type Floor Model (With Legs)
Refrigeration Type Self-Contained
Compressor HP 1/5 HP
Material Stainless Steel
Interior Finish ABS and Stainless Steel
Finish Stainless Steel
Controls Electronic
Pan Capacity 10 Full-Size Hotel Pans
Pan Size 12 x 20 x 4 Inches Deep
Compartments 3
Refrigerant Type R-290
Voltage 115 Volts
Amps 3.8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Shipping Width 90 Inches
Shipping Depth 33 Inches
Shipping Height 27 Inches
Shipping Weight 655 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

5-year replacement parts compressor warranty; 1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download

Frequently Asked Questions

It is intended to be used exclusively under Garland Cuisine Heavy-Duty Series modular tops.
Standard drawers accommodate 12" x 20" x 4" deep hotel pans.
The unit uses 115 Volts, 60 Hz, 1-Phase power with a NEMA 5-15P plug.
It uses environmentally friendly R-290 refrigerant.
The compressor includes a 5-year replacement parts warranty, with the first year covering parts and labor; removable track assembly drawers carry a 10-year parts warranty.
