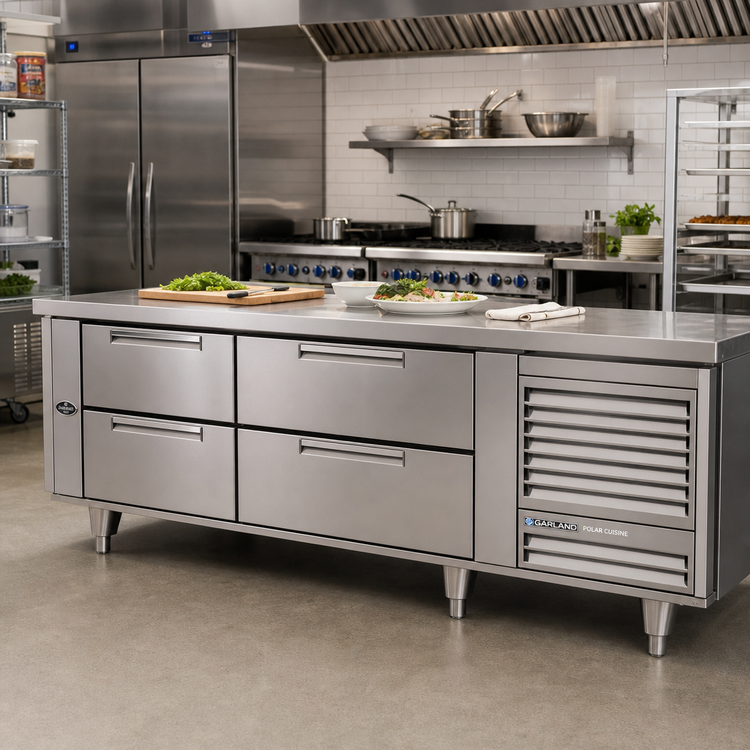

Garland Polar Cuisine 78-Inch Self-Contained Refrigerated Drawer Base, 2-Section, 4 Drawers

Stainless Steel Exterior, Right-Side Compressor, 115V

Keep ingredients cold and within reach while preserving valuable cook line space with a rugged refrigerated base built for modular cook tops.

  • 78-inch, two-section refrigerated drawer base with four total drawers
  • Self-contained refrigeration with a 1/5 HP compressor and R-290 refrigerant
  • Standard drawer layout includes (2) 19-inch drawers and (2) 27-inch drawers
  • Drawers accommodate 12" x 20" x 4" hotel pans and use heavy-duty stainless steel slides
  • Stainless steel exterior with electronic digital readout and 6-inch adjustable legs
  • Designed for use under Garland Cuisine Heavy-Duty Series modular tops

Overall Dimensions:

78.0"W x 32.75"D x 26.19"H

Product Weight:

570.0 lb

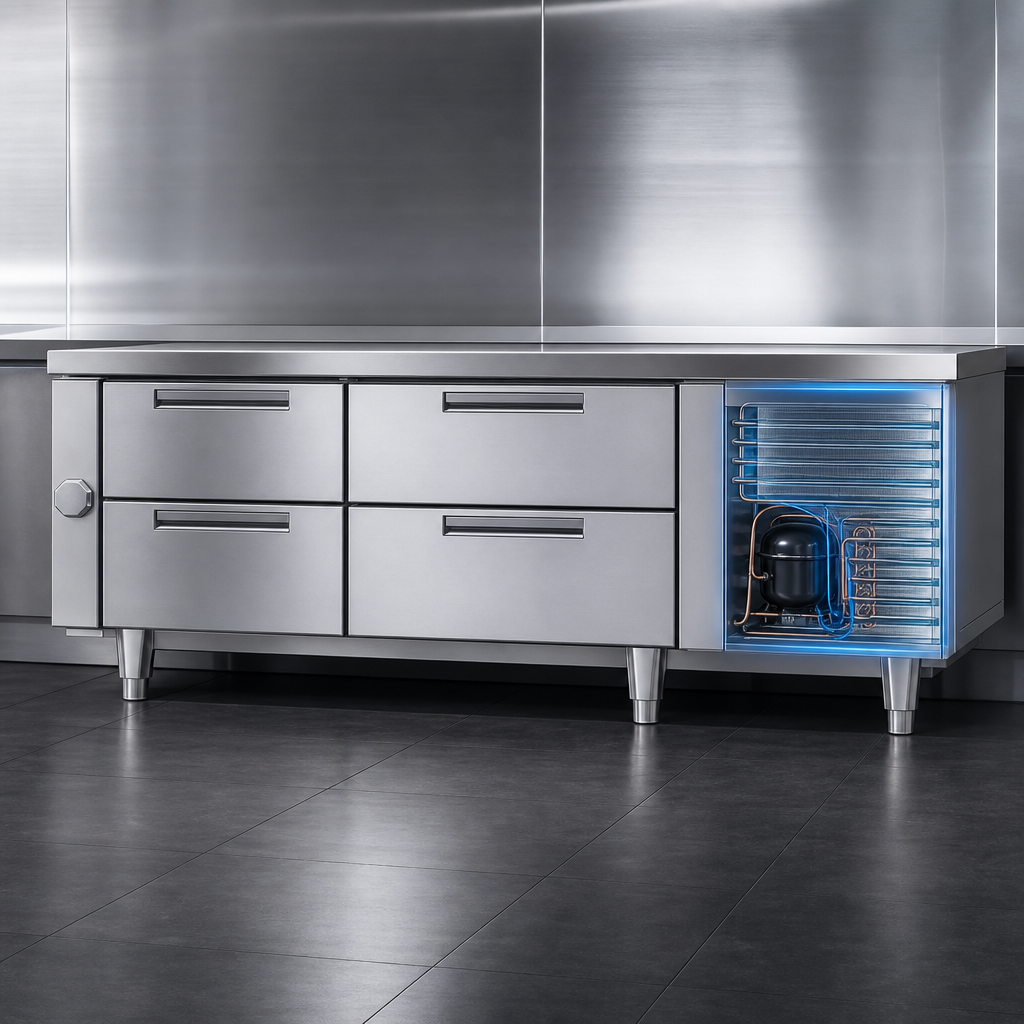

Self-Contained Refrigeration

Built-in refrigeration system with the compressor housed on the right end of the unit.

Four-Drawer Layout

Includes (2) 19-inch drawers and (2) 27-inch drawers for flexible cold storage.

Hotel Pan Compatibility

Standard drawers accommodate 12" x 20" x 4" deep hotel pans.

Stainless Steel Exterior

Durable stainless steel front and side construction for busy commercial kitchens.

Electronic Digital Controls

Electronic control with digital readout makes temperature monitoring straightforward.

R-290 Refrigerant

Uses environmentally friendly R-290 refrigerant.

Heavy-Duty Drawer Hardware

Removable stainless steel roller drawer assembly with self-lubricating rollers and stainless steel bearings.

Tropicalized Compressor

Compressor is tropicalized to 100°F (38°C) for dependable performance in warmer kitchen environments.

Commercial Top Compatibility

Designed to be used exclusively under Garland Cuisine Heavy-Duty Series modular tops.

Standard Utility Package

Comes with 6-inch adjustable legs and an 8-foot cord with North American NEMA 5-15P plug.

Type Refrigerated Base
Style Drawer Base
Installation Type Floor Model
Refrigeration Type Self-Contained
Refrigerant Type R-290
Compartments 2
Capacity 8 Full-Size Hotel Pans
Material Stainless Steel
Compressor Horsepower 1/5 HP
Voltage 115 Volts
Amps 3.8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Shipping Width 78 Inches
Shipping Depth 33 Inches
Shipping Height 27 Inches
Shipping Weight 570 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

5-year compressor replacement parts warranty; first year parts and labor.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download

Frequently Asked Questions

It has four drawers total, arranged as two 19-inch drawers and two 27-inch drawers.
Standard drawers accommodate 12" x 20" x 4" deep hotel pans.
Yes. The unit has self-contained refrigeration with the compressor located on the right end of the base.
The unit requires 115 Volts, 60 Hz, single-phase power and comes with a NEMA 5-15P plug and 8-foot cord.
The compressor includes a 5-year replacement parts warranty with the first year covering parts and labor, and the removable track assembly drawers carry a 10-year parts warranty.
It is designed to be used exclusively under Garland Cuisine Heavy-Duty Series modular tops.
