Garland Polar Cuisine UN17C72 Self-Contained Refrigerated Drawer Base, 72 Inch, 4 Drawers, Stainless Steel, 115V

SKU: UN17C72
$15,971.40
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Work Tables Equipment Stands Garland Kitchen Equipment Tables New Arrivals Restaurant Equipment Undercounter & Worktop Refrigeration

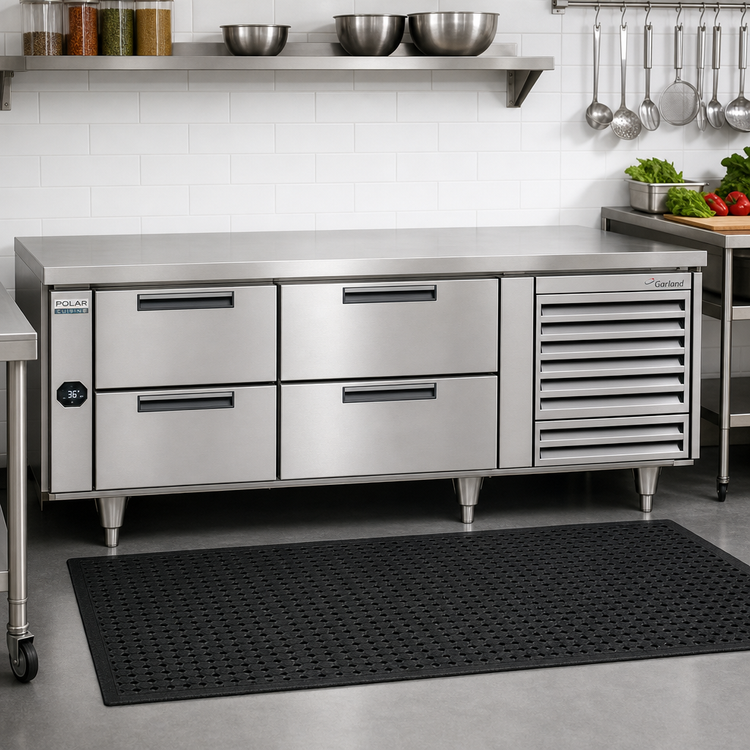

Garland Polar Cuisine UN17C72 Self-Contained Refrigerated Drawer Base, 72 Inch, 4 Drawers, Stainless Steel, 115V

Two-section base with side-mounted refrigeration and 27-inch drawers

Keep cold ingredients organized and within easy reach with a heavy-duty refrigerated drawer base built for modular cooktop applications.

  • Self-contained refrigeration system is built into the base for flexible installation.
  • Four 27-inch drawers provide organized cold storage across two sections.
  • Stainless steel exterior and heavy-duty drawer hardware support daily commercial use.
  • Standard drawers accept 12 x 20 x 4-inch hotel pans.
  • Electronic digital control helps simplify temperature monitoring.
  • Designed for use under Garland Cuisine Heavy-Duty Series modular tops.

Overall Dimensions:

72.0"W x 32.75"D x 26.19"H

Product Weight:

476.0 lb

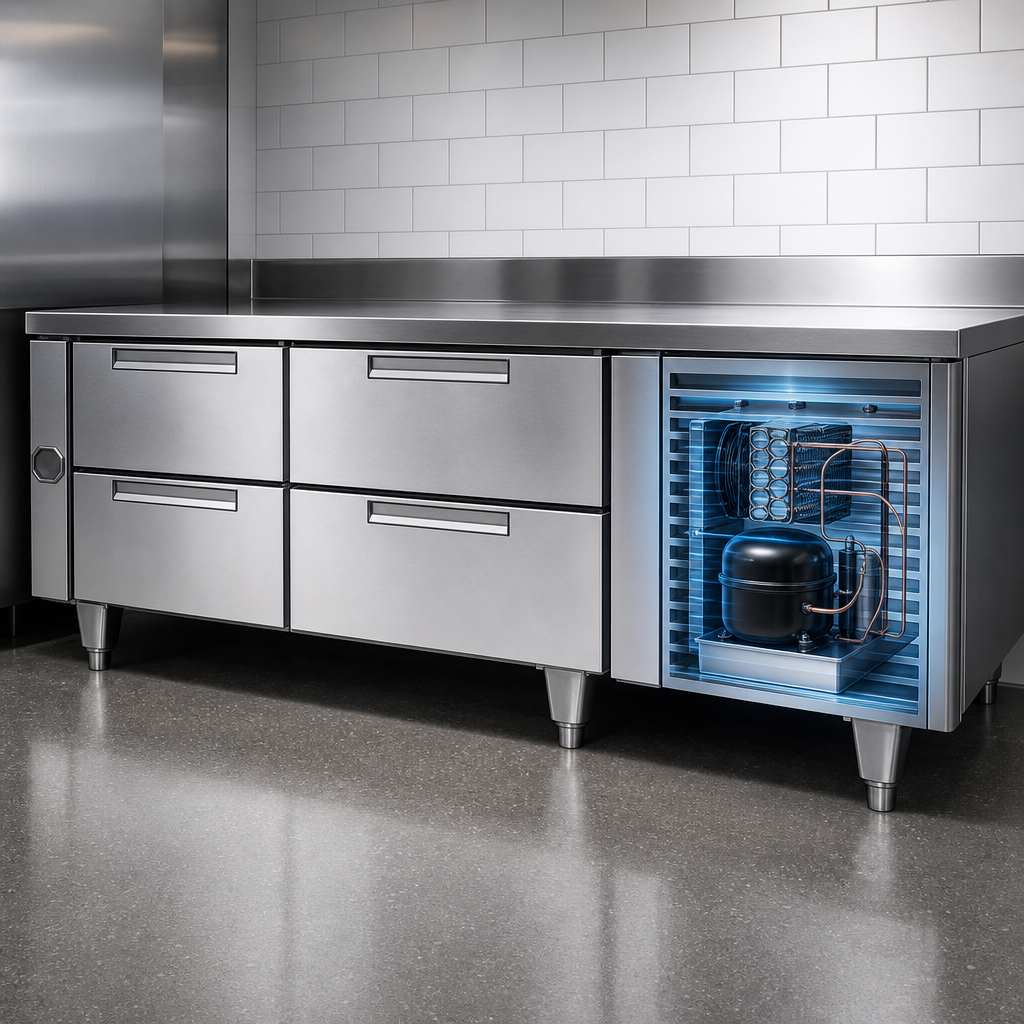

Self-Contained Refrigeration

Built-in refrigeration system with the compressor housing located on the right end of the unit as standard.

Four Drawer Storage

Two-section layout with four total 27-inch drawers for convenient cold storage.

Stainless Steel Exterior

Stainless steel exterior front and sides for durability and easy cleaning.

ABS And Stainless Interior Construction

ABS interior drawer fronts and cabinet sides with stainless steel interior top, rear, and bottom.

Digital Electronic Control

Electronic control with digital readout for straightforward temperature monitoring.

R-290 Refrigerant

Uses environmentally friendly R-290 refrigerant.

Heavy-Duty Drawer Slides

Stainless steel drawer slides with stainless steel bearings and removable track assembly drawers.

6-Inch Adjustable Legs

Standard 6-inch adjustable legs provide installation flexibility and clearance.

Hotel Pan Compatible

Standard drawers accommodate 12 x 20 x 4-inch deep hotel pans.

Modular Top Ready

Designed for use exclusively under Garland Cuisine Heavy-Duty Series modular tops.

Type Refrigerated Base
Style Drawer Base
Installation Type Undercounter
Refrigeration Type Self-Contained
Compartments 2
Pan Capacity 8 Full-Size Hotel Pans
Pan Size 12 x 20 x 4 Inches
Voltage 115 Volts
Amps 3.8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Material Stainless Steel
Interior Finish ABS And Stainless Steel
Finish Stainless Steel
Refrigerant Type R-290
Compressor Horsepower 1/5 HP
Controls Digital
Shipping Width 72 Inches
Shipping Depth 33 Inches
Shipping Height 27 Inches
Shipping Weight 476 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

5-year replacement parts compressor warranty; first year parts and labor.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download

Frequently Asked Questions

It has four 27-inch drawers arranged in two sections.
Standard drawers accommodate 12 x 20 x 4-inch deep hotel pans.
It uses self-contained refrigeration with R-290 refrigerant.
The unit is 115V, 60Hz, single-phase with a NEMA 5-15P plug for North American models.
The compressor has a 5-year replacement parts warranty, with the first year covering parts and labor. Drawer track assemblies carry a 10-year parts warranty.
It is intended for use exclusively under Garland Cuisine Heavy-Duty Series modular tops.
