Garland

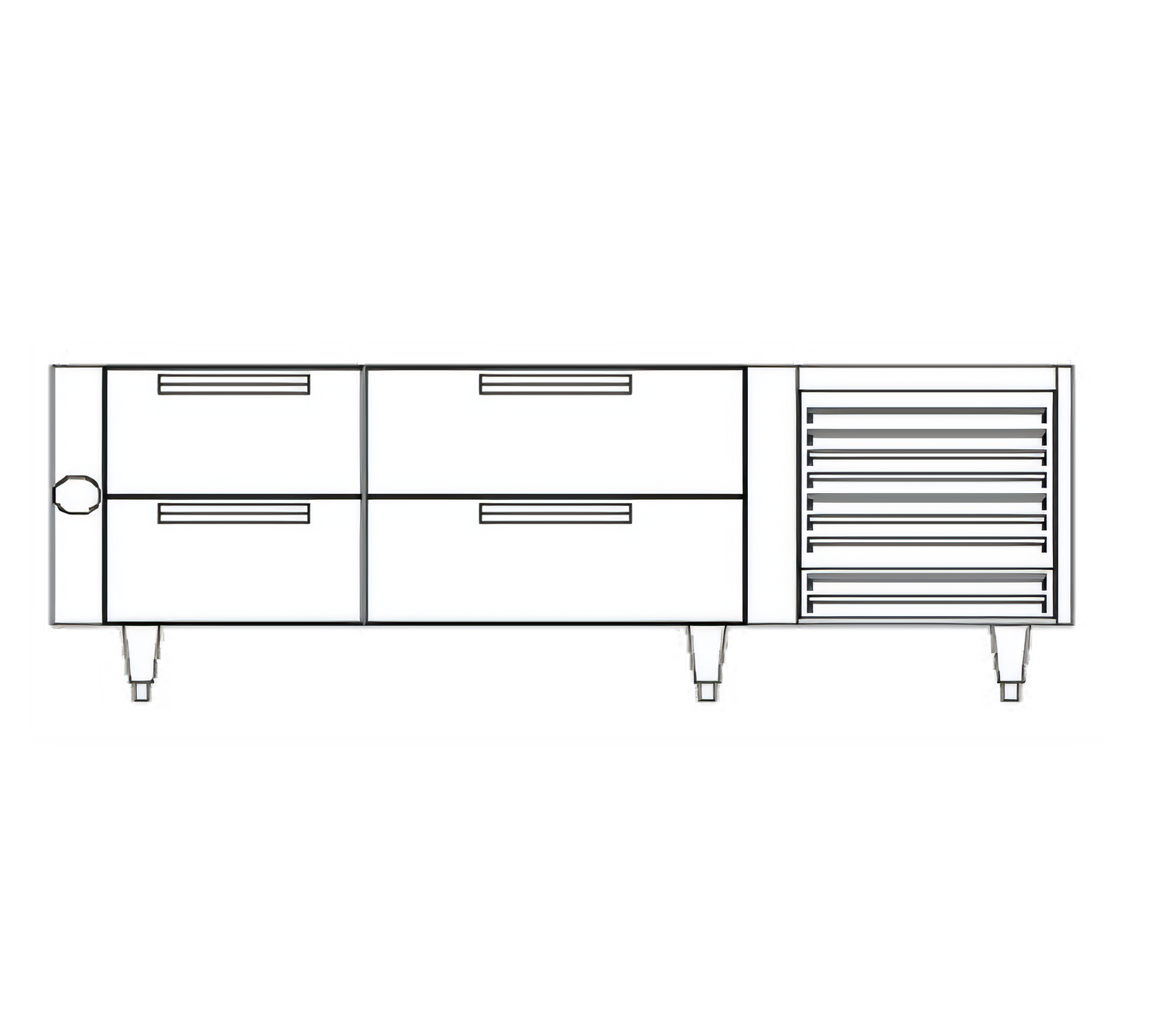

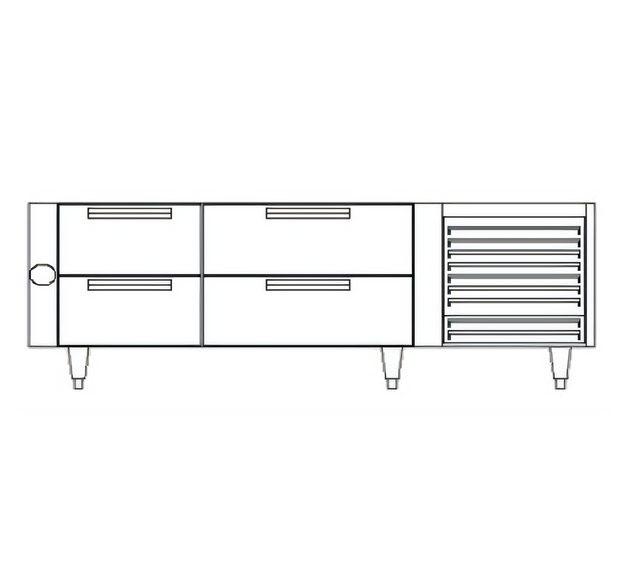

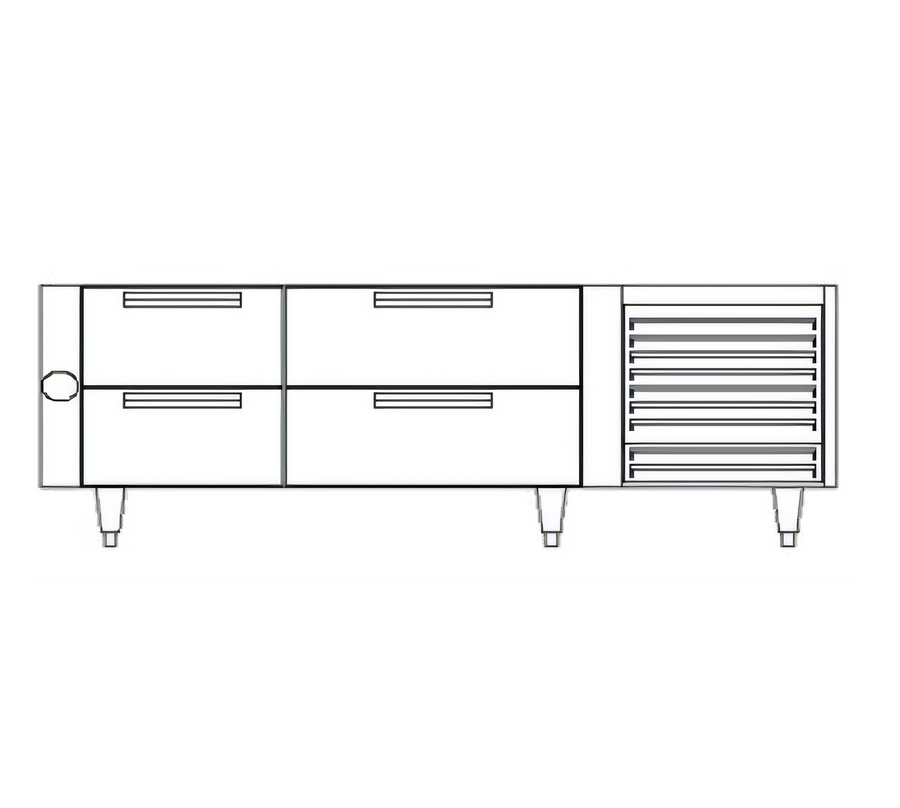

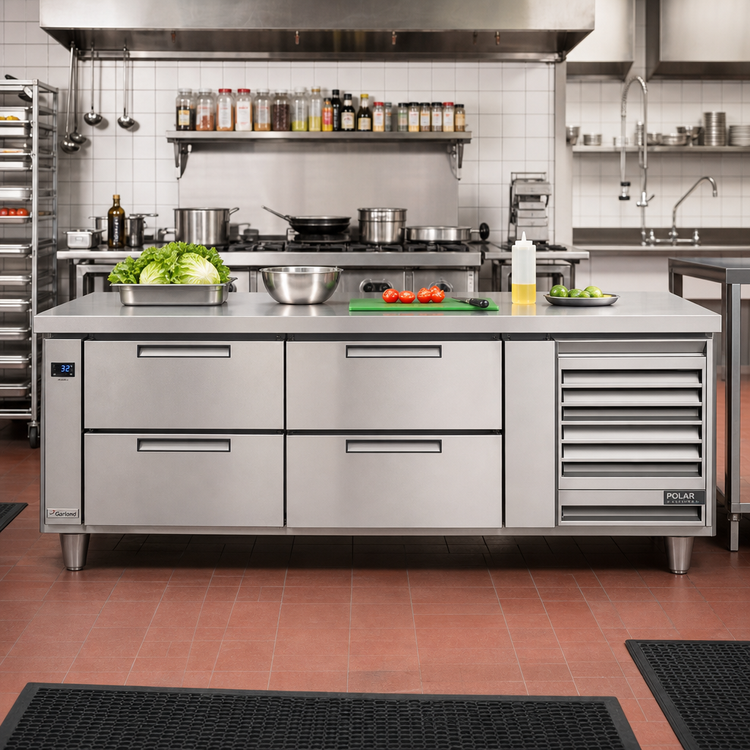

Garland Polar Cuisine 66-Inch Self-Contained Refrigerated Base with 4 Drawers

SKU: UN17C66
$15,618.15
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Garland Polar Cuisine 66-Inch Self-Contained Refrigerated Base with 4 Drawers

Stainless Steel, Low-Height, Designed for Modular Cooktops

Add refrigerated storage directly below your cook line with this durable 66-inch Polar Cuisine base built for Garland Cuisine Series modular tops.

  • 66-inch self-contained refrigerated base designed to keep chilled ingredients close at hand.
  • Four-drawer, two-section layout helps organize product on the line.
  • Stainless steel exterior with durable ABS and stainless steel interior construction.
  • Standard drawers accommodate 12" x 20" x 4" hotel pans and support a 6-pan capacity.
  • Digital electronic control with R-290 refrigerant and right-side compressor housing.
  • 6-inch adjustable legs are standard, with optional casters available.

Overall Dimensions:

66.0"W x 32.75"D x 26.19"H

Product Weight:

434.0 lb

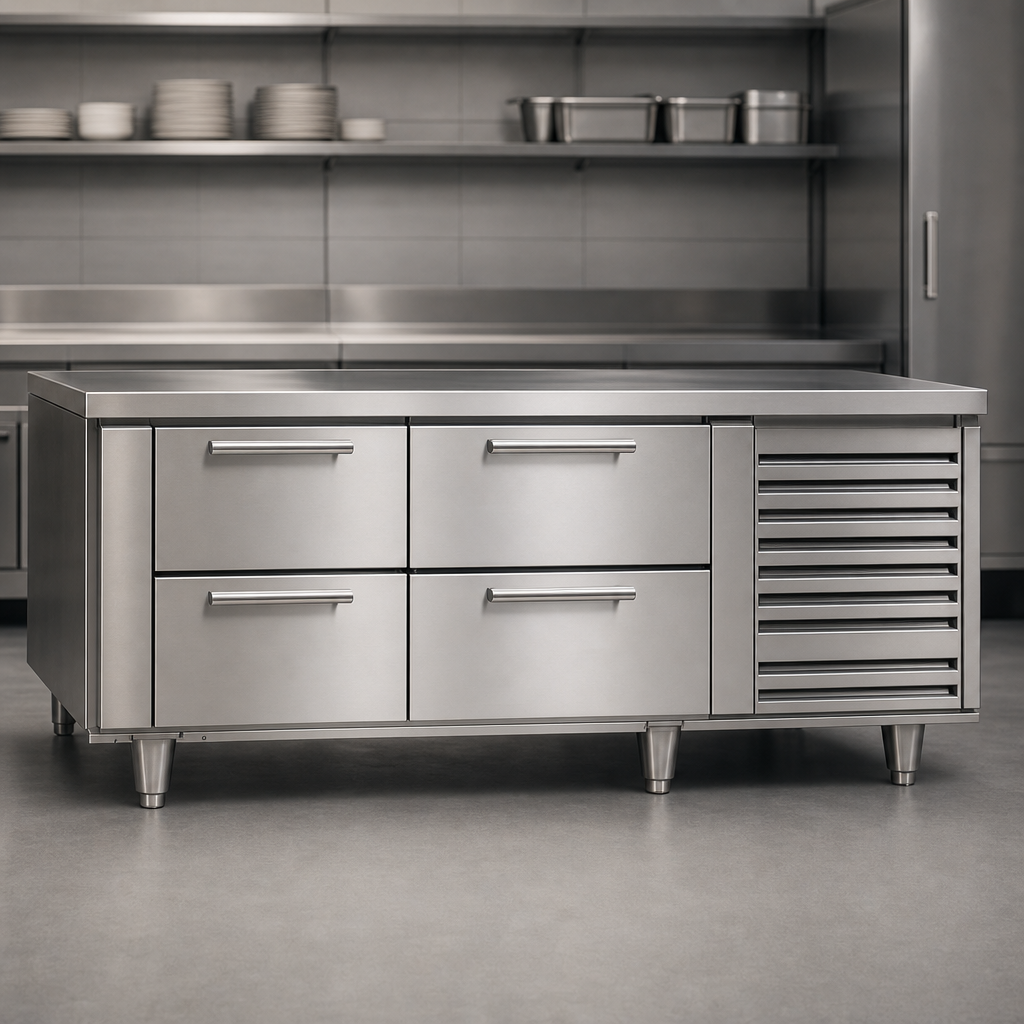

Self-Contained Refrigeration

Built-in refrigeration makes the base independent and ready for use under compatible modular tops.

Four-Drawer Layout

Two-section, four-drawer configuration provides organized refrigerated storage at the cook line.

Hotel Pan Compatibility

Standard drawers accommodate 12" x 20" x 4" deep hotel pans.

Stainless Steel Exterior

Stainless steel front and side construction offers durability and an easy-to-clean finish.

ABS and Stainless Interior

ABS interior door fronts and cabinet sides are paired with stainless steel interior top, rear, and bottom panels.

Electronic Digital Control

Digital readout and thermometer simplify temperature monitoring.

R-290 Refrigerant

Uses environmentally friendly R-290 refrigerant.

Adjustable Legs

6-inch adjustable legs are standard; a caster kit is available as an option.

Compressor Placement

Compressor housing is standard on the right end of the unit, with a left-side option available.

Warranty Coverage

Includes a 5-year replacement parts compressor warranty, first-year parts and labor, and a 10-year parts warranty on removable drawer assemblies.

Type Refrigerated Base
Style Low Height
Installation Type Floor Model
Horsepower 1/5 HP
Material Stainless Steel
Interior Finish ABS and Stainless Steel
Finish Stainless Steel
Refrigeration Type Self-Contained
Refrigerant Type R-290
Compartments 2
Pan Size 12 x 20 x 4 Inches
Pan Capacity 6 Full-Size Hotel Pans
Voltage 115 Volts
Amps 3.8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Shipping Width 66 Inches
Shipping Depth 33 Inches
Shipping Height 27 Inches
Shipping Weight 434 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

5-year compressor parts replacement; 1-year parts and labor; 10-year drawer assembly parts warranty.

Frequently Asked Questions

It is intended exclusively for Garland Cuisine Heavy-Duty Series modular tops, and bases must be ordered with compatible modular tops only.
Standard drawers accommodate 12" x 20" x 4" hotel pans, and the model is listed with a 6 full-size hotel pan capacity.
Yes. The refrigeration system is self-contained, with compressor housing standard on the right end and a left-side option available.
North American units use 115V, 60 Hz, single-phase power with an NEMA 5-15P plug and an 8-foot cord.
The unit includes a 5-year replacement parts compressor warranty, first-year parts and labor, and a 10-year parts warranty on the removable drawer assemblies.
