Garland UN17C48 Polar Cuisine Undercounter & Worktop Refrigeration
Description

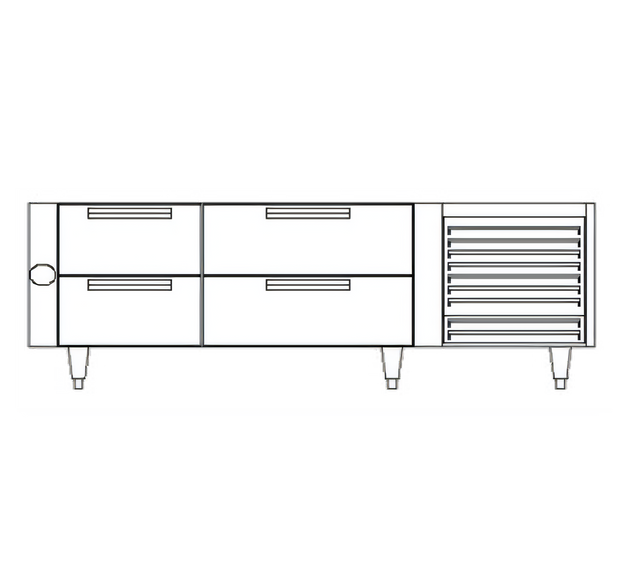

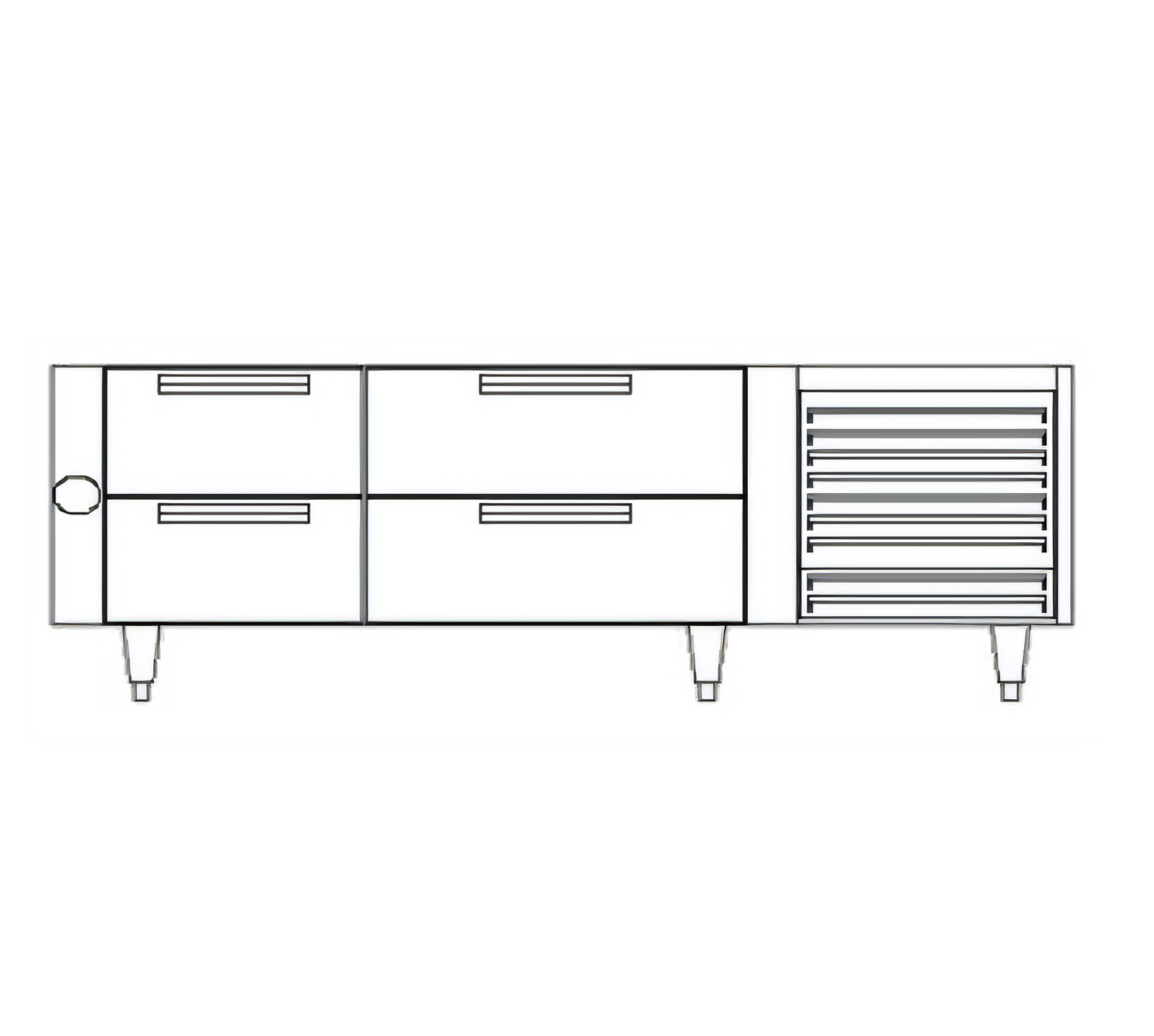

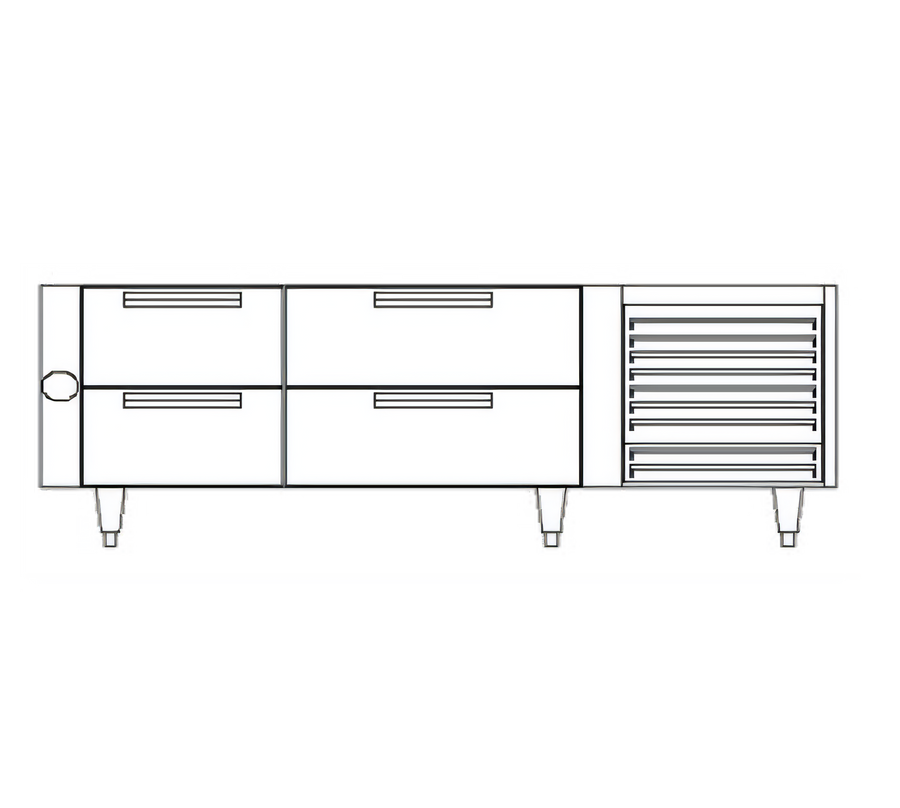

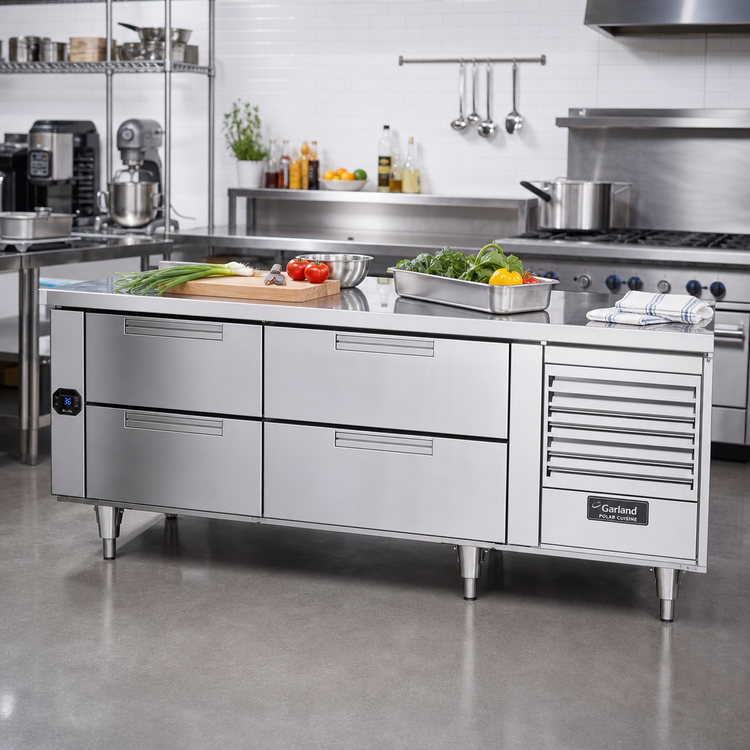

Polar Cuisine™ 48" Refrigerated Chef Base
Self-Contained • Two 27" Drawers • Model UN17C48-27DPurpose-built to sit beneath Garland Cuisine Series modular cooktops, the Polar Cuisine refrigerated base keeps fresh ingredients right where the chef needs them—ice-cold, organized and within arm’s reach. Its heavy-duty stainless construction, tropicalized refrigeration system and extra-smooth drawer slides make it the ideal foundation for high-volume commercial kitchens.
Why You’ll Love It
- 48" low-profile chassis fits any 48" Garland Cuisine modular top.
- (2) full-extension 27" drawers hold up to 4 full-size 12" × 20" × 4" hotel pans.
- All-stainless exterior and drawer fronts for unmatched durability and easy cleanup.

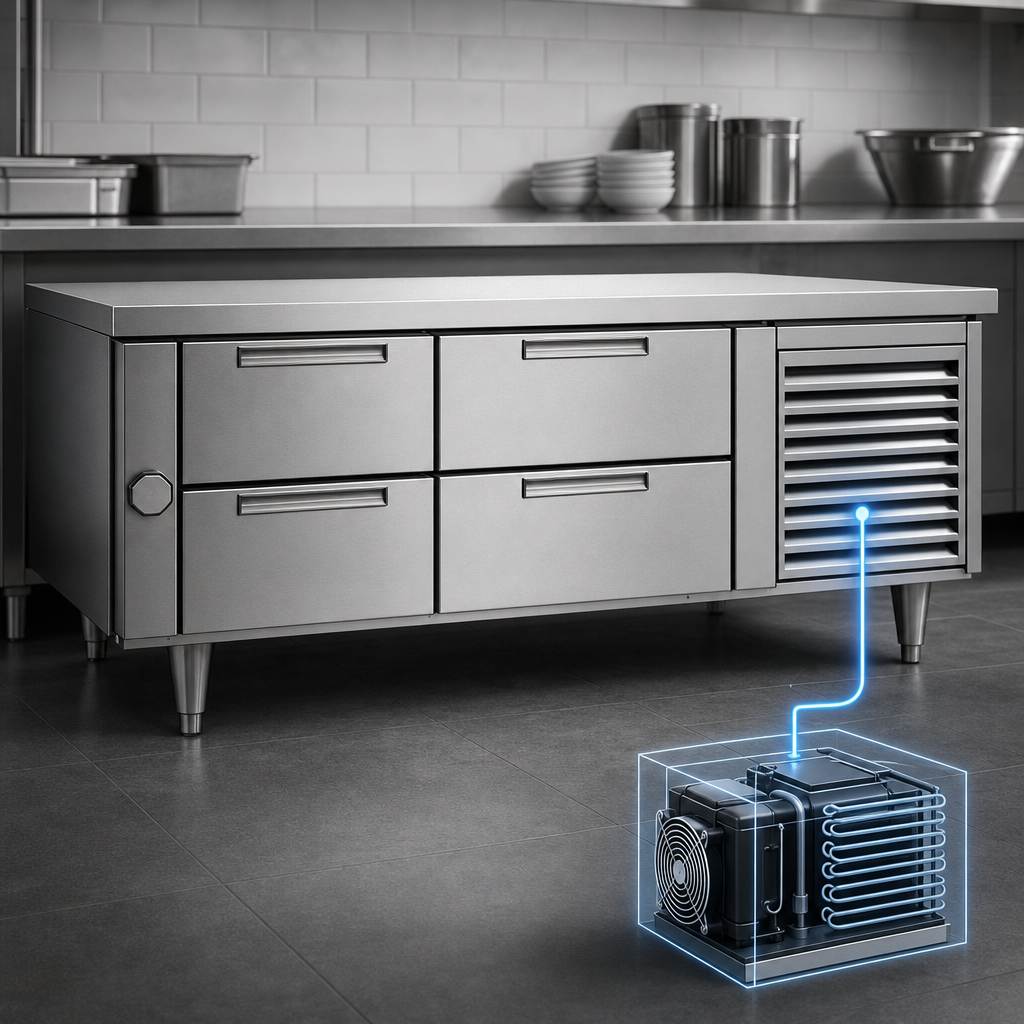

- Digitally controlled, R-290 self-contained refrigeration—eco-friendly and field-serviceable.
- Tropicalized compressor (rated to 100 °F / 38 °C) keeps contents safe on the hottest lines.
- 6" adjustable stainless steel legs standard; optional 6" casters available.
- Removable drawer track assemblies with 10-year parts warranty.
- Snap-in magnetic gaskets for a tight seal and tool-free replacement.
Perfect Partner for Cuisine Series Tops
Every Polar Cuisine base is engineered exclusively for use with Garland Cuisine heavy-duty modular cooktops—giving you a seamless, code-compliant cooking station that maximizes refrigerated storage without sacrificing valuable hood space.
Technical Specifications
| Exterior Width | 48" (1219 mm) |
|---|---|
| Depth | 32 3⁄4" (832 mm) |
| Overall Height | 26 3⁄16" (665 mm) including 6" legs |
| Drawer Configuration | (2) 27" drawers, stainless roller assemblies |
| Pan Capacity | Up to 4 × 12" × 20" × 4" hotel pans |
| Refrigerant | Hydrocarbon R-290 (environmentally friendly) |
| Compressor | 1/5 HP, right-side mounted, tropicalized to 100 °F |
| Electrical | 115 V / 60 Hz / 1-Ph, 8.2 A, 8' cord with NEMA 5-15P plug |
| Construction | Stainless exterior front & sides, galvanized bottom/back; CFC-free foamed-in-place insulation |
| Warranty | 1-year parts & labor; 5-year compressor (parts); 10-year drawer track (parts) |
• Base is supplied only when ordered together with Garland Cuisine Series cooktops.
• Units shipped on casters must be installed with an approved restraining device.
• Garland products are intended for commercial use and are not approved for residential applications.
