Description

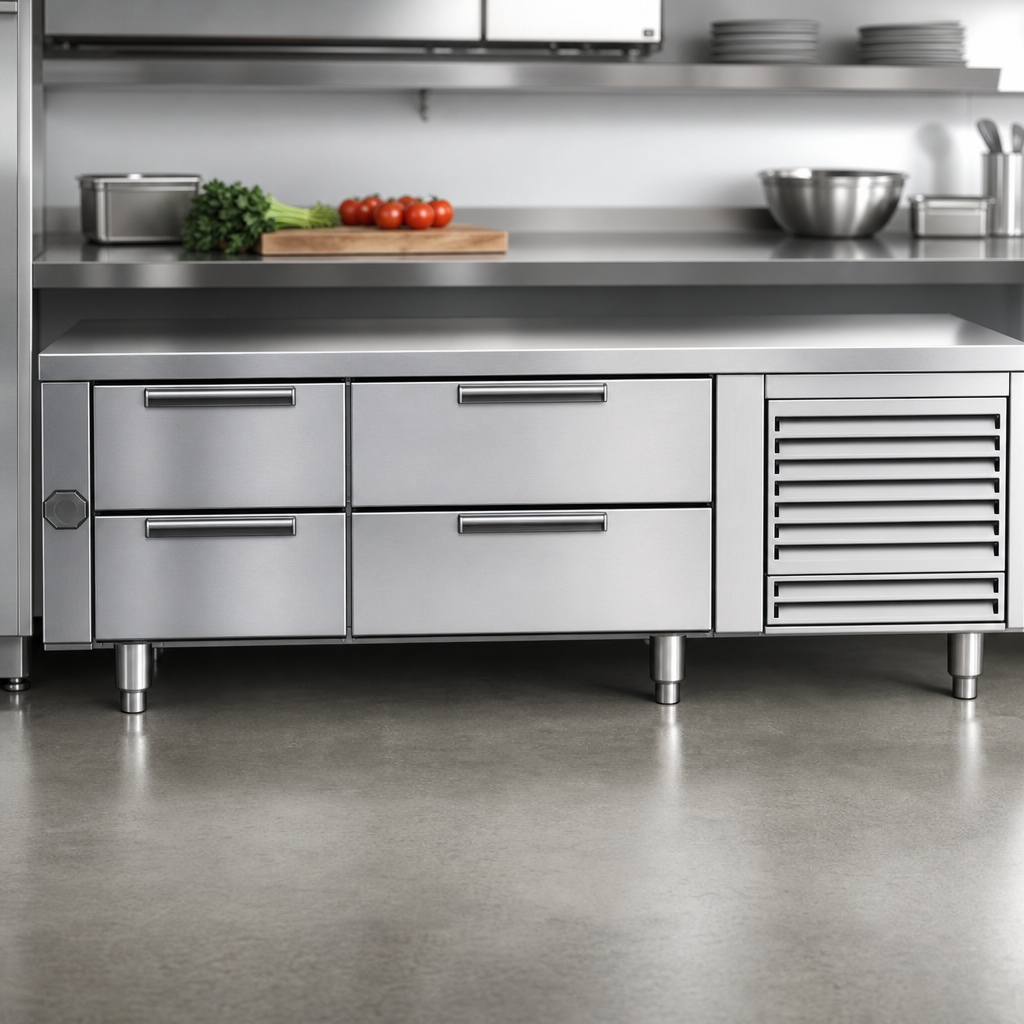

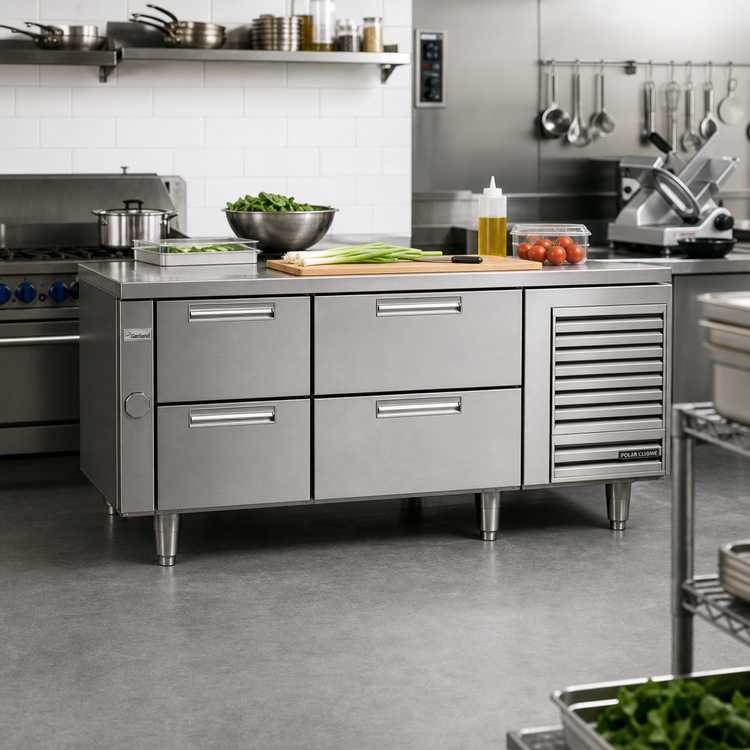

Garland Polar Cuisine 36" Self-Contained Refrigerated Base – Two 27" Drawers
Model: Polar Cuisine UN17C36-27D | Garland U.S. RangeKeep your mise en place right where you cook. The Polar Cuisine 36" refrigerated base tucks seamlessly beneath Garland Cuisine Series modular cook tops, giving chefs quick, ergonomic access to chilled ingredients without sacrificing valuable line space.
Key benefits
- Self-contained R-290 refrigeration system, factory-set for 33-40 °F (1-4 °C) holding.
- Two 27" heavy-duty drawers – each accepts 2 full-size 12" × 20" × 4" hotel pans (4 pans total).
- All-stainless exterior, stainless interior top/rear/bottom & ABS composite sidewalls for easy sanitation.
- 10-year parts warranty on the removable stainless steel drawer track assemblies.
- Digital micro-processor control with bright LED temperature read-out (°F/°C toggleable).
- Tropicalized 1/6 HP compressor operates in ambient temperatures up to 100 °F (38 °C).
- Snap-in magnetic gaskets—tool-free removal speeds daily cleaning.
- 6" (152 mm) adjustable stainless steel legs for code-compliant floor clearance; 6" caster kit optional.
- CFC-free, foamed-in-place insulation for maximum cold retention and energy savings.
- UL & NSF listed; ships with an 8' cord and NEMA 5-15P plug.
Specification overview
| Exterior width | 36" / 914 mm |
|---|---|
| Exterior depth | 32 3⁄4" / 832 mm |
| Exterior height (to work top) | 26 3⁄16" / 665 mm |
| Sections / drawers | 1 section | 2 × 27" drawers |
| Pan capacity | 4 × GN 1/1 (12" × 20" × 4") |
| Compressor | 1/6 HP, front-breathing, rear-mounted |
| Refrigerant | Eco-friendly R-290 |
| Electrical | 115 V / 60 Hz / 1-phase, 1.9 A |
| Cord & plug | 8 ft (2.4 m) | NEMA 5-15P |
| Ship weight | Approx. 320 lb / 145 kg |
| Warranty | 1-year parts & labor + 5-year compressor parts |
Ideal applications
- Cook-line protein or garnish storage
- Sauté, grill or fry stations using Garland modular tops
- Compact kitchens where under-counter refrigeration saves workflow steps
Important: Polar Cuisine bases are engineered exclusively for use beneath Garland Cuisine Series heavy-duty modular cook tops. This unit is not designed for stand-alone or residential use.
Need caster mobility, extra-deep 6" pan drawers or a left-hand compressor? Ask our team for factory-approved options that ship installed and warrantied by Garland.
Features & Specs
Features & Specs
Manufacturer
Garland
Brand_name
Polar Cuisine
Height
26.19in
Width
36.0in
Depth
32.75in
Refrigeration
self-contained, side mounted
Width
25" - 36" wide
Compressor HP
1/5 HP
Top Finish
stainless steel top
Exterior Finish
all stainless steel exterior
Drawer Qty
2 drawers
Specifications
Polar Cuisine Refrigerated Base, self-contained refrigeration, 36" W, one-section, (2) 27" drawers, stainless steel exterior, 6" stainless steel legs (available only when ordered with Cuisine Series modular cook tops) 115v/60/1-ph 1.9amps (U S Range)
