Description

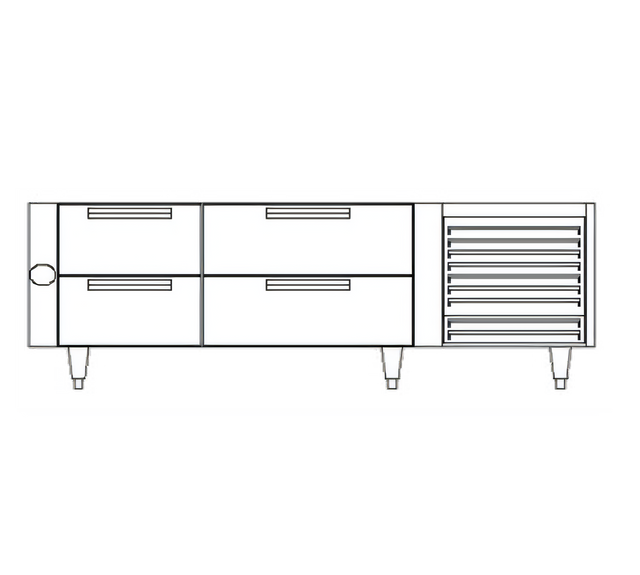

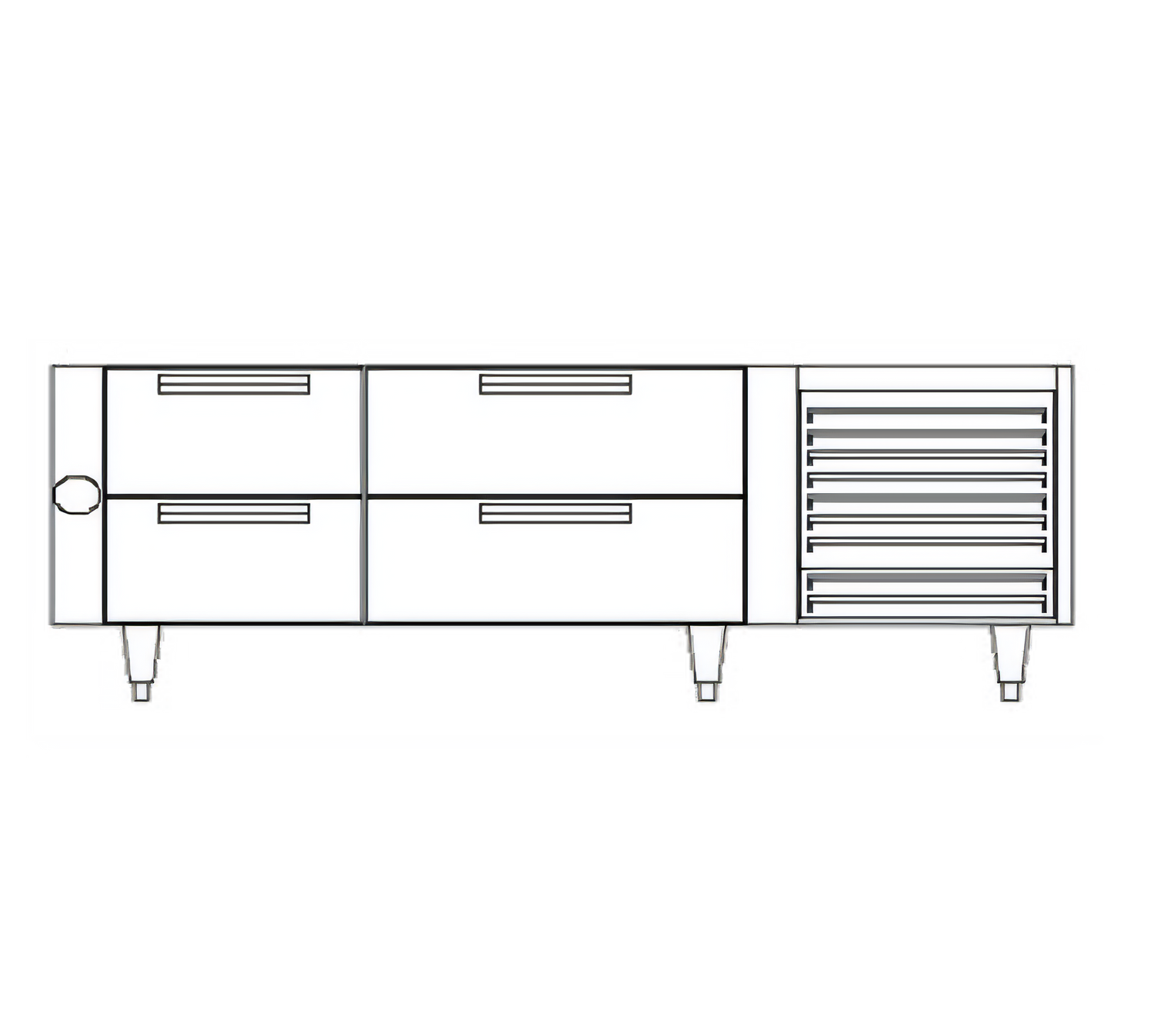

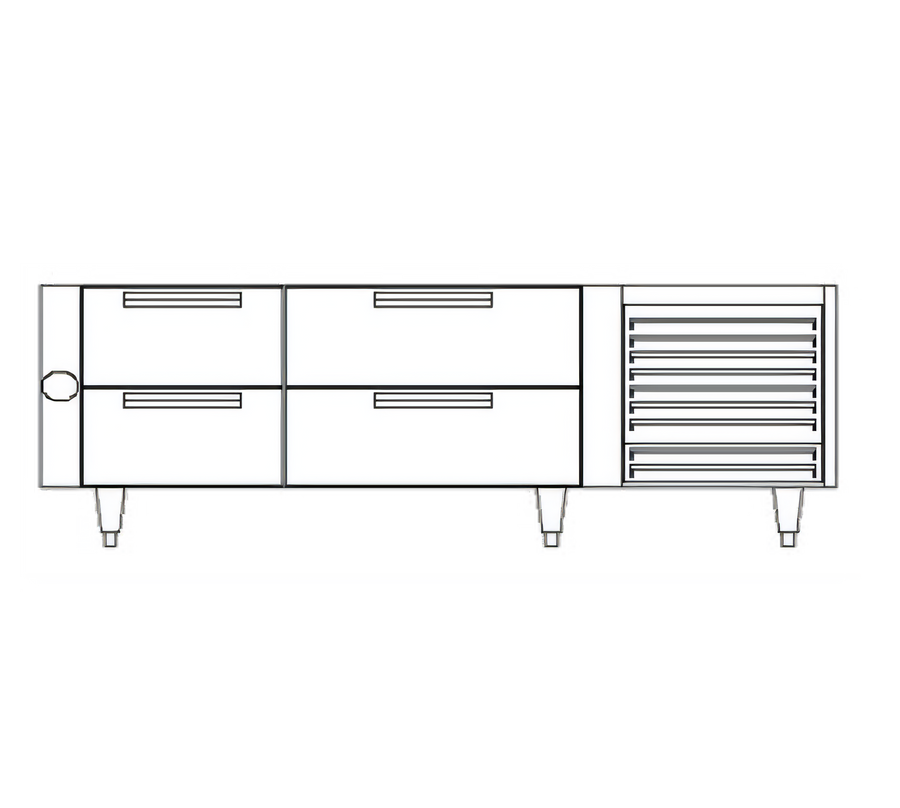

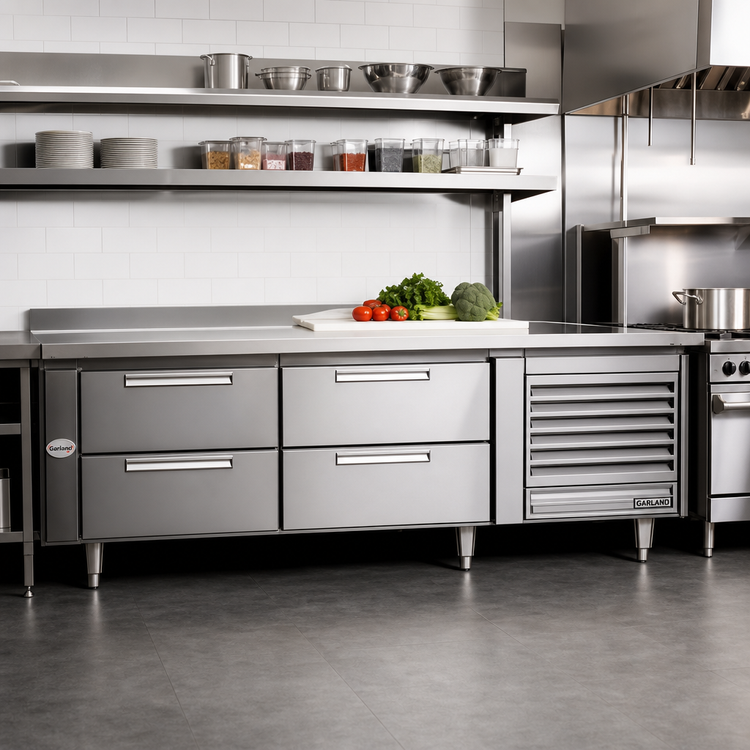

Polar Cuisine 120" Self-Contained Refrigerated Base
4-section • 8 × 27" drawers • 115 V / 9.3 ABuilt expressly for Garland’s Heavy-Duty Cuisine Series modular cook tops, this extra-long 120" Polar Cuisine base keeps up to 16 full-size hotel pans ice-cold right where the chef needs them. Eight smooth-gliding refrigerated drawers, a rugged all-stainless exterior, and an eco-friendly self-contained R-290 system give you the performance and reliability demanded on the hottest line.
Why you’ll love it
- Massive 120" footprint with four independent refrigerated sections.

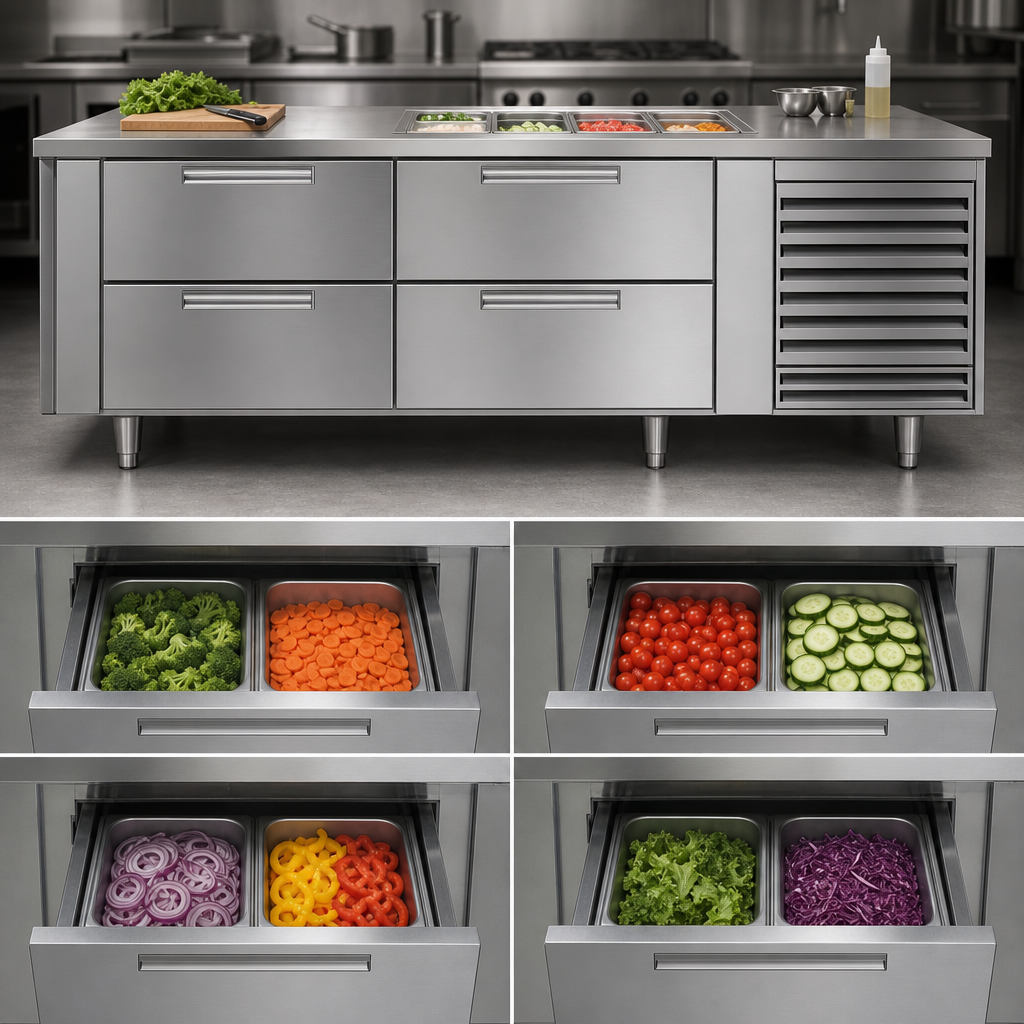

- Eight 27" drawers – each fits two 12" × 20" × 4" hotel pans (16 pans total).
- Self-contained refrigeration (R-290) tropicalized to 100 °F (38 °C) for flawless performance on a busy line.
- Factory-balanced compressor, 115 V / 60 Hz, only 9.3 A – just plug into a NEMA 5-15 outlet.
- Electronic control with bright digital temperature read-out and °C/°F toggle.
- Heavy-duty stainless drawer slides with sealed bearings – 10-year parts warranty.
- Snap-in Santoprene™ magnetic gaskets for a tight seal and tool-free replacement.
- All-stainless exterior front, sides & drawers for effortless cleanup and a professional look.
- 6" adjustable stainless steel legs standard; field-installed caster kit available.
- NSF, UL, cUL certified for commercial kitchens.
At-a-glance specs
| Overall width | 120" (3048 mm) |
|---|---|
| Depth | 32 3⁄4" (832 mm) |
| Height (with 6" legs) | ≈ 30 3⁄4" (781 mm) |
| Sections / drawers | 4 sections / 8 drawers (27" wide) |
| Pan capacity | 16 × 12" × 20" × 4" hotel pans |
| Refrigerant | R-290 (eco-friendly, zero ODP/GWP) |
| Compressor rating | 1⁄4 HP, self-contained, front-breathing |
| Electrical | 115 V / 60 Hz / 1-ph, 9.3 A, 8' cord & NEMA 5-15P |
| Construction | Stainless steel exterior; ABS door fronts & cabinet sides; stainless interior top, rear & bottom |
| Legs / mobility | 6" stainless adjustable legs (casters optional) |
| Warranty | 5-yr compressor parts (1-yr labor) • 10-yr drawer track parts |
Need alternative drawer sizes, pan depths, or a left-hand compressor? Ask our team about factory options & accessories.
