Polar Cuisine 108" Refrigerated Base – Self-Contained
Model UN17C108 · 4 Sections / 8 DrawersBuilt to sit directly beneath Garland Cuisine Series heavy-duty modular cooktops, the Polar Cuisine 108" Self-Contained Refrigerated Base keeps your mise en place ice-cold and right where you need it. With eight heavy-duty drawers and a tropicalized compressor, it’s the ultimate refrigerated foundation for high-volume line cooking.
Key Features
- Four-section base with (4) 27" and (4) 32" refrigerated drawers
- Each drawer holds full-size 12" × 20" × 4" hotel pans (GN 1/1)

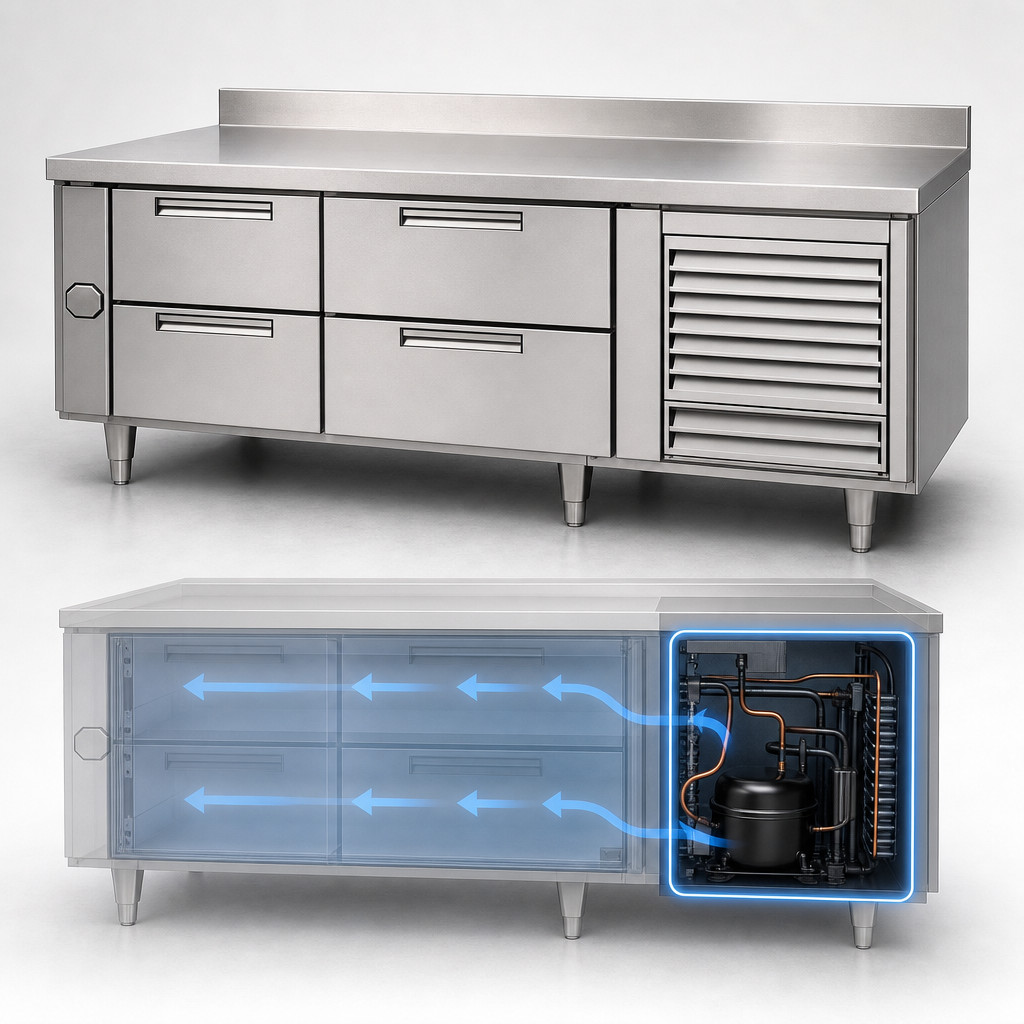

- Self-contained R-290 refrigeration, tropicalized to 100 °F (38 °C)
- Electronic temperature control with easy-read digital display
- Stainless steel exterior front & sides; stainless interior top, rear & bottom
- 6" (152 mm) stainless steel adjustable legs for rock-solid support
- Removable stainless drawer tracks with self-lubricating rollers – 10-year parts warranty
- Santoprene snap-in magnetic gaskets for a tight, energy-saving seal
- Galvanized bottom & back, CFC-free foamed-in-place insulation
- UL, cUL & NSF listed for commercial kitchens
Specifications
| Exterior width | 108 in (2743 mm) |
|---|---|
| Exterior depth | 32-3/4 in (832 mm) |
| Exterior height (to work surface) | 26-3/16 in (665 mm) |
| Sections / drawers | 4 sections | 8 drawers |
| Drawer layout | (2) 27" drawer sections & (2) 32" drawer sections |
| Pan capacity | Up to 12 full-size 4"-deep hotel pans |
| Refrigerant | R-290 (environmentally friendly) |
| Electrical | 115 V / 60 Hz / 1-phase, 9.3 A, NEMA 5-15P cord & plug |
| Compressor location | Right-hand (left-hand optional) |
| Legs / casters | 6" stainless legs standard | optional 6" casters |
| Certifications | UL, cUL, NSF |
Options & Accessories
- Extra-deep drawers (6" pan depth) without mullion
- Set of four 6" heavy-duty casters with restraining device
- Door & tray-rack conversion for 18" × 26" sheet pans (not available on 32" drawers)
- Left-side compressor housing
- Celsius temperature readout
Important: Polar Cuisine bases are engineered exclusively for use with Garland Cuisine
Series modular cooktops. Please specify refrigerated base mounting when ordering your top.
Need help configuring your line? Contact our equipment specialists or visit the Garland website for detailed drawings and combination recommendations.
$24,842.95
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Garland Polar Cuisine UN17C108 undercounter refrigerated base — 108" stainless steel, 4-section with 8 drawers, self-contained, durable commercial cooling.
Manufacturer
Garland
Brand name
Polar Cuisine
Height
26.19in
Width
108.0in
Depth
32.75in
Shipping Weight
730.0lbs
Compressor HP
1/4 HP
Top Finish
stainless steel top
Exterior Finish
all stainless steel exterior
Drawer Qty
8 drawers
Width
97" - 108" wide
Refrigeration
self-contained, side mounted
Specifications
Polar Cuisine Refrigerated Base, self-contained refrigeration, 108" W, four-section, (4) 27" & (4) 32" drawers, stainless steel exterior, 6" stainless steel legs (available only when ordered with Cuisine Series modular cook tops) 115v/60/1-ph, 9.3 amps, (U S Range)
