Garland UN17C102 Polar Cuisine Undercounter & Worktop Refrigeration
Garland UN17C102 Polar Cuisine Undercounter & Worktop Refrigeration is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Garland UN17C102 Polar Cuisine Undercounter & Worktop Refrigera...
Description

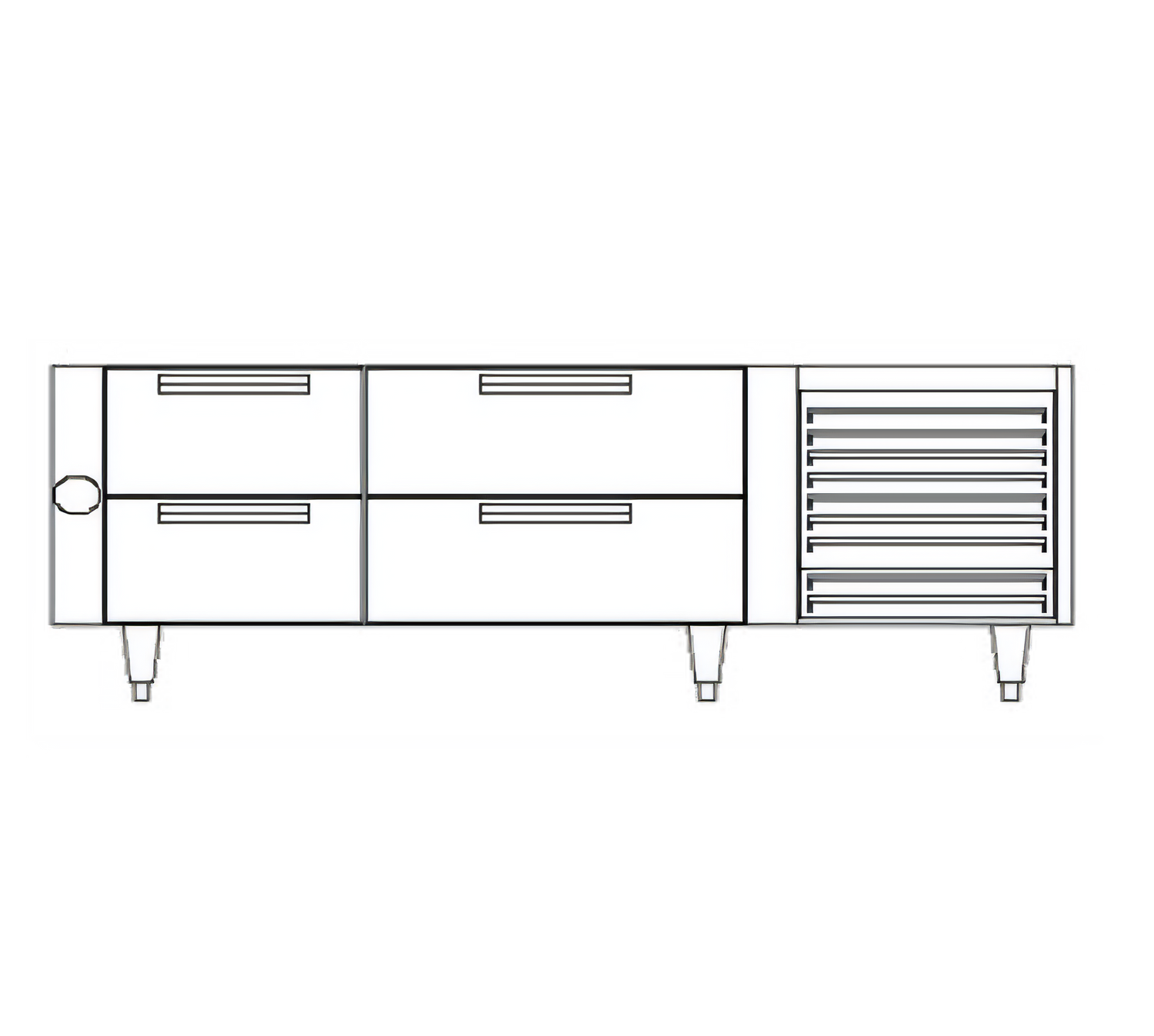

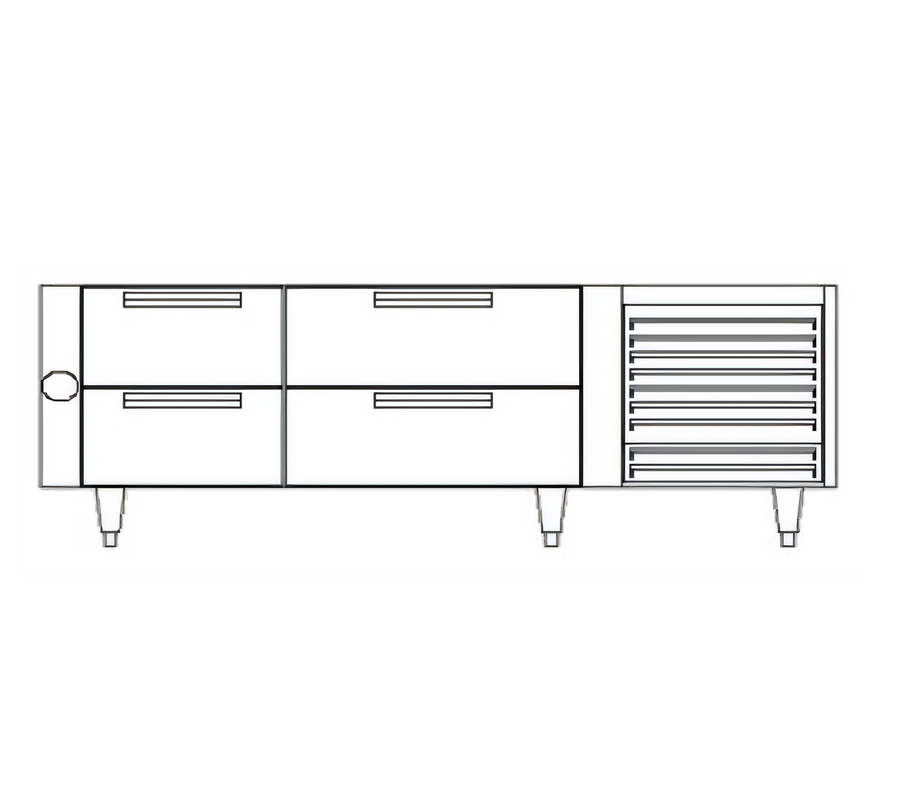

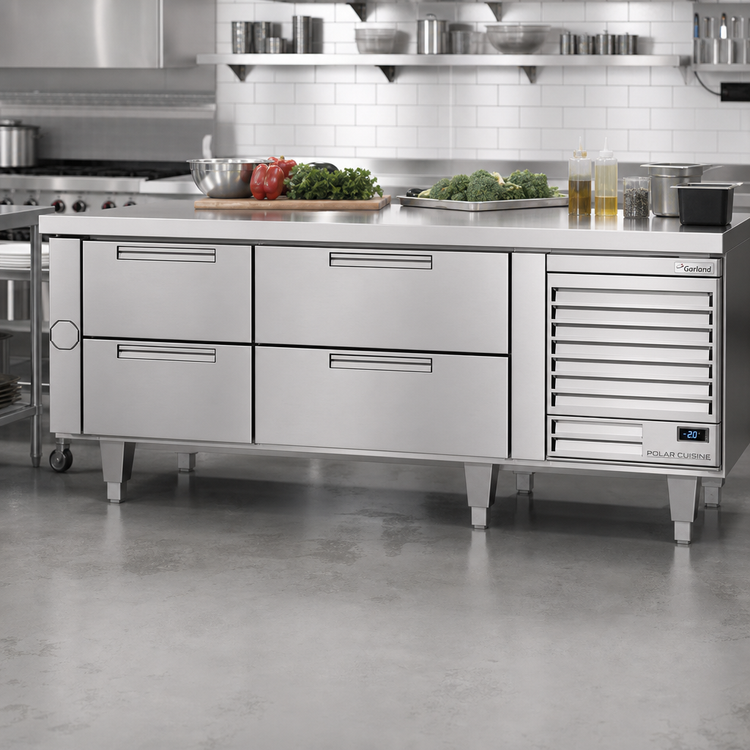

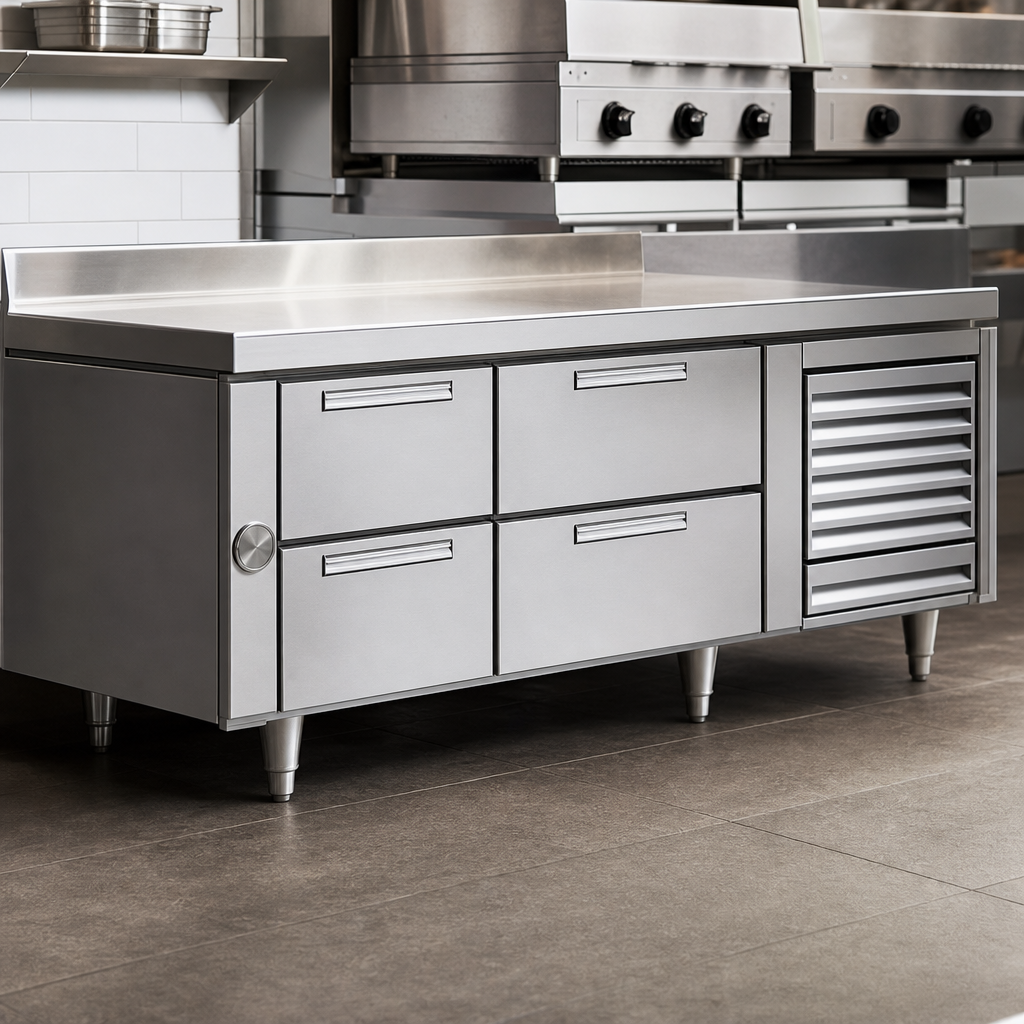

Garland Polar Cuisine 102" Self-Contained Refrigerated Base
Model UN17C102 | Three-Section • 6 × 32" Drawers • 115 V Plug-InKeep high-volume ingredients ice-cold and directly under your Garland Cuisine Series cook tops. The Polar Cuisine self-contained base delivers heavy-duty refrigeration in a low-profile cabinet that doubles as the perfect equipment stand.
Built for busy commercial kitchens
- Huge capacity: six full-extension 32" drawers hold up to 12 full-size 12 × 20 × 4" hotel pans.
- Self-contained R-290 system—no remote piping, just plug into a standard 115 V outlet and chill.
- Tropicalized compressor keeps product safely cold in ambient temperatures up to 100 °F (38 °C).
- All-stainless exterior front, sides, top and drawers stand up to the harshest kitchen environments.
- Heavy-duty drawer slides with stainless bearings; track assemblies carry a 10-year parts warranty.
- Digital micro-processor control with easy-read LED display for precise temperature management.
- 6" adjustable stainless legs standard; optional casters available for effortless mobility.
Standard features
- Three-section cabinet, each section fitted with two drawers (32" wide).
- ABS interior door fronts & cabinet sides; stainless interior top, rear & bottom.
- Santoprene snap-in magnetic gaskets for an airtight seal.
- Vertically mounted blower coil for even, front-to-back cold-air distribution.
- CFC-free, foamed-in-place polyurethane insulation.
- 8' cord with NEMA 5-15P plug (North American models).
- Compressor parts warranty: 5 years (first year parts & labour).
Technical specifications
| Model | UN17C102 (Polar Cuisine) |
|---|---|
| Exterior width | 102" (2591 mm) |
| Exterior depth | 32-3/4" (832 mm) |
| Exterior height | 26-3/16" (665 mm) on 6" legs |
| Sections / drawers | 3 sections / 6 drawers (32") |
| Pan capacity | 12 × 12" × 20" × 4" full-size hotel pans |
| Refrigerant | R-290 (eco-friendly, low GWP) |
| Electrical | 115 V • 60 Hz • 1-Ph • 9.3 A |
| Compressor location | Right-hand (standard) |
| Shipping weight | ≈ 680 lb (309 kg) |
| Certifications | UL • NSF |
Popular options & accessories
- 6" casters (set of four, includes restraining device).
- Extra-deep drawers (no mullion) for 6" deep hotel pans.
- Celsius temperature readout.
- Compressor located on left side (factory option).
- Doors & tray racks for sheet-pan storage (not available on 32" drawers).
This base is available only when ordered with Garland Cuisine Series modular cook tops and is intended for commercial applications.
