Description

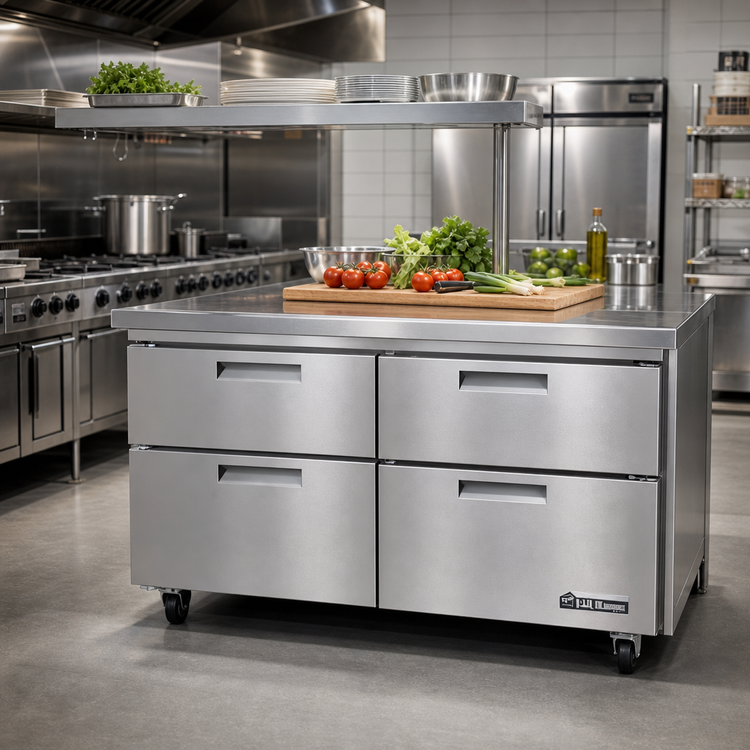

Polar Cuisine 72" Remote Refrigerated Base – 4-Drawer / 2-Section
Garland Model UN1732R72 • Fits beneath Garland Cuisine Series modular cooktopsPut your cold ingredients exactly where your cooks need them. The Polar Cuisine 72" refrigerated base tucks neatly under any 72" Garland Cuisine Series heavy-duty modular top, delivering reliable, low-profile refrigeration at the point of use. Four heavy-duty drawers glide open effortlessly to reveal pan-ready cold storage—no more running to the walk-in during peak service.
Why You’ll Love It
- Space-saving 26-⅜" (665 mm) low height keeps cooking surfaces at an ergonomic working level.
- (4) 32" self-closing drawers hold up to 8 full-size 12" × 20" × 4" hotel pans in total.
- Remote refrigeration keeps heat and noise out of the kitchen while ensuring faster recovery times.
- Vertically mounted blower coil with eco-friendly R452A refrigerant distributes cold air evenly to every drawer.
- Stainless steel exterior and drawer facings withstand daily commercial abuse and wipe clean in seconds.
- Removable stainless steel roller tracks with 10-year parts warranty—built for a decade of slam-shut drawer action.
- Electronic micro-processor control with bright digital temperature read-out for at-a-glance monitoring.
- Full perimeter Santoprene magnetic gaskets maintain a tight seal and are field-replaceable without tools.
- Non-ODP / non-GWP foamed-in-place polyurethane insulation locks in cold, cuts energy consumption.
- 6" (152 mm) stainless steel adjustable legs come standard; 6" locking casters available.
Technical Specifications
| Overall width | 72" / 1829 mm |
|---|---|
| Depth (front to back) | 32-¾" / 832 mm |
| Height (without cooktop) | 26-3/16" / 665 mm (add 6" for legs) |
| Sections / Drawers | 2 sections • 4 drawers (32" wide, 2 per section) |
| Pan capacity | 8 × 12" × 20" × 4" hotel pans (GN 1/1, 100 mm deep) |
| Refrigeration type | Remote, self-contained evaporator coil (compressor by others) |
| Refrigerant | R452A |
| Electrical | 115 V / 60 Hz / 1-Ph, 3 A (field hard-wired) |
| Remote line sizes | ¼" liquid line • 5⁄16" suction line |
| Construction | Stainless steel exterior front & sides; ABS interior sides; stainless top, rear & bottom |
| Approvals | UL, cUL, NSF (commercial use only) |
| Drawer track warranty | 10 years (parts) |
Popular Options & Accessories
- 6" locking casters with seismic restraint kit
- Extra-deep drawers (no mullion) for 6" deep pans
- Door & tray-rack kit for 18" × 26" sheet pans (not available on 32" drawers)
- °C temperature read-out
- Left-hand mechanical compartment
Garland products are intended for commercial use only and are not approved for residential installations.
