Garland  |  Polar Cuisine  |  SKU: UN171927R72

Garland UN171927R72 Polar Cuisine Undercounter & Worktop Refrigeration

$18,570.75
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet
Related Searches
Commercial Work Tables Equipment Stands Garland Kitchen Equipment Tables Restaurant Equipment Undercounter & Worktop Refrigeration

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Garland Polar Cuisine 72" Remote Refrigerated Base

Model UN171927R72  •  3-Section  •  4 × 19" & 2 × 27" Drawers

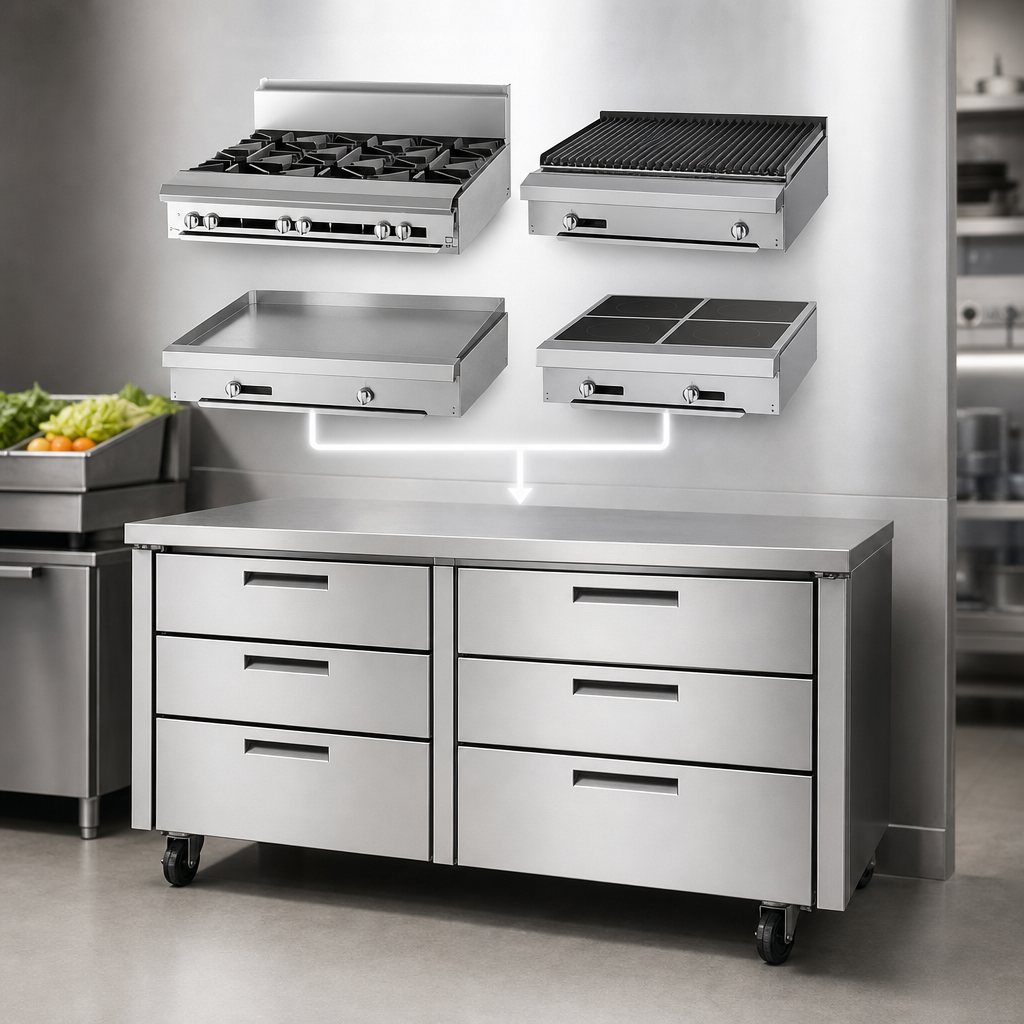

Keep high-volume lines moving with chef-side access to perfectly chilled ingredients. The Polar Cuisine remote refrigerated base is purpose-built to live directly under Garland Cuisine Series modular cooktops, giving you a rugged, low-profile cold well without adding heat or noise to the cookline.

Performance & Convenience

  • Remote refrigeration keeps compressors off the line for a cooler, quieter kitchen.
  • Six heavy-duty drawers on stainless roller assemblies (10-year parts warranty).
  • Drawer layout: 4 × 19" + 2 × 27"—each holds one 12" × 20" × 4" full-size hotel pan.
  • Fast-responding electronic control with easy-read digital thermometer.
  • Santoprene magnetic gaskets and CFC-free polyurethane insulation lock in the cold.
  • All-stainless exterior and interior contact surfaces for quick, sanitary wipe-downs.
  • Vertically mounted blower coil (R452A) delivers even, front-to-back airflow.
  • 6" adjustable stainless steel legs included; 6" casters available.

Specifications

Overall width 72" (1829 mm)
Depth 32-3/4" (832 mm)
Height (on legs) 26-3/16" (665 mm)
Sections / drawers 3 sections / 6 drawers
Pan capacity Holds up to eight 12" × 20" × 4" hotel pans
Evaporator BTU 2,850 BTU @ 23°F (-5 °C)
Refrigerant R452A (remote evaporator)
Electrical 115 V / 60 Hz / 1 ph, 1.5 A, hard-wired
Legs 6" stainless, adjustable
Certifications NSF, cULus

Options & Accessories

  • 6" swivel or rigid casters with front brakes
  • Extra-deep drawers for 6" hotel pans (no mullion)
  • Door & tray-rack kit for sheet pans (not for 32" drawers)
  • °C temperature display
  • Left-side mechanical housing
Important: This is a remote refrigerator base. Compressor/condensing unit is supplied by others. 1/4" liquid and 5/16" suction lines are required. Unit must be hard-wired on site and is available only when ordered with Garland Cuisine Series modular cooktops. Not for residential use.

Drawer track assemblies carry a 10-year parts warranty.

Features & Specs

Manufacturer

Garland

Brand_name

Polar Cuisine

Height

26.19in

Width

72.0in

Depth

32.75in

Shipping Weight

533.0lbs

Top Finish

stainless steel top

Refrigeration

remote (refrigeration not included)

Width

61" - 72" wide

Drawer Qty

6 drawers

Exterior Finish

all stainless steel exterior

Specifications

Polar Cuisine Refrigerated Base, remote refrigeration, 72" W, three-section, (4) 19" & (2) 27" drawers, stainless steel exterior, 6" stainless steel legs (available only when ordered with Cuisine Series modular cook tops) 115v/60/1-ph, 1.5 amps (U S Range)
