Garland  |  SKU: UIRCM60

Garland UIRCM60 Cheese Melters

$5,031.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet
Related Searches
Broilers Charbroilers & Grills Cheese Melters Cheesemelters Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

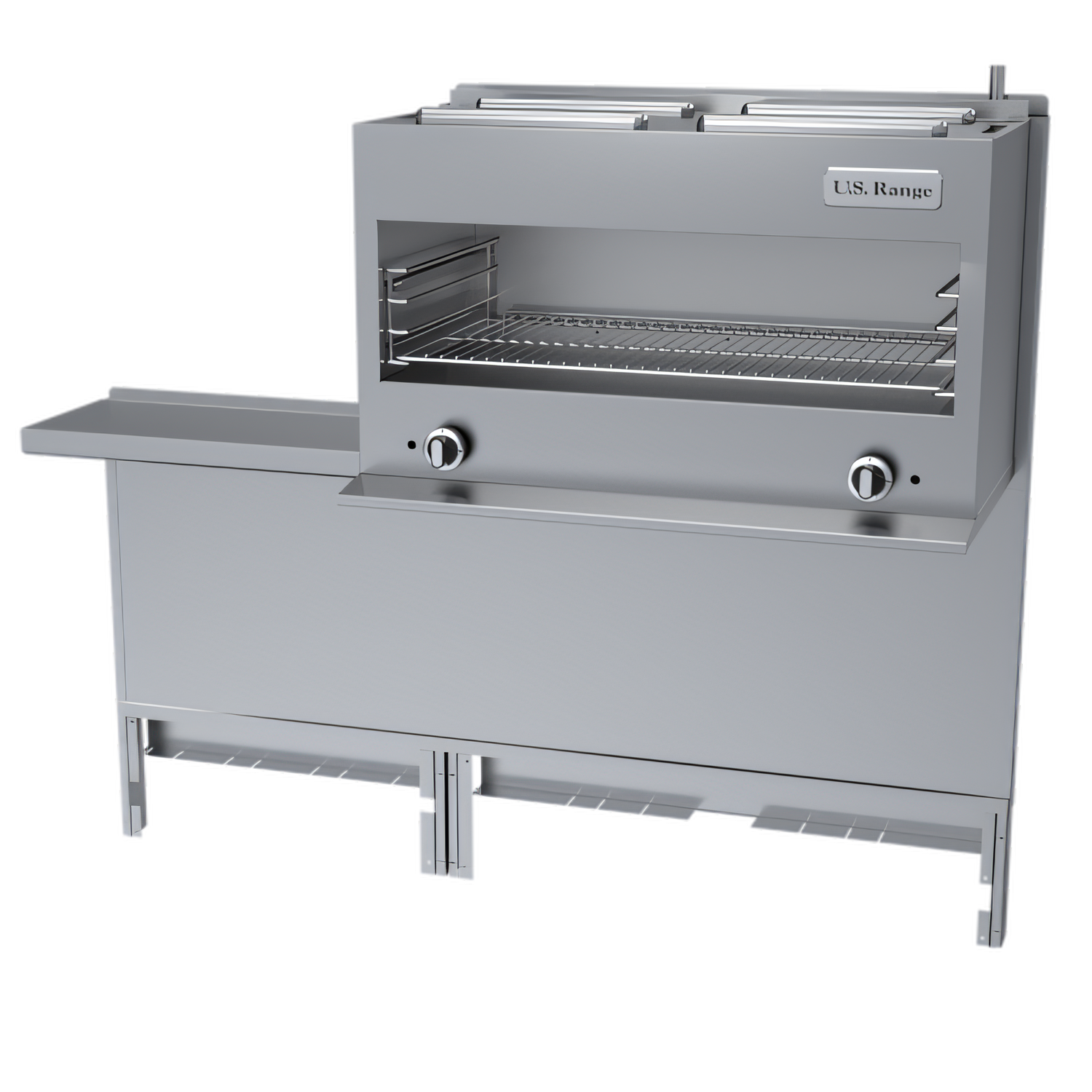

Garland U-Series Infra-Red Cheesemelter – Range-Mount, 35-7/16″

Model UIRCM60 • fits Garland U60 ranges • 30,000 BTU total output

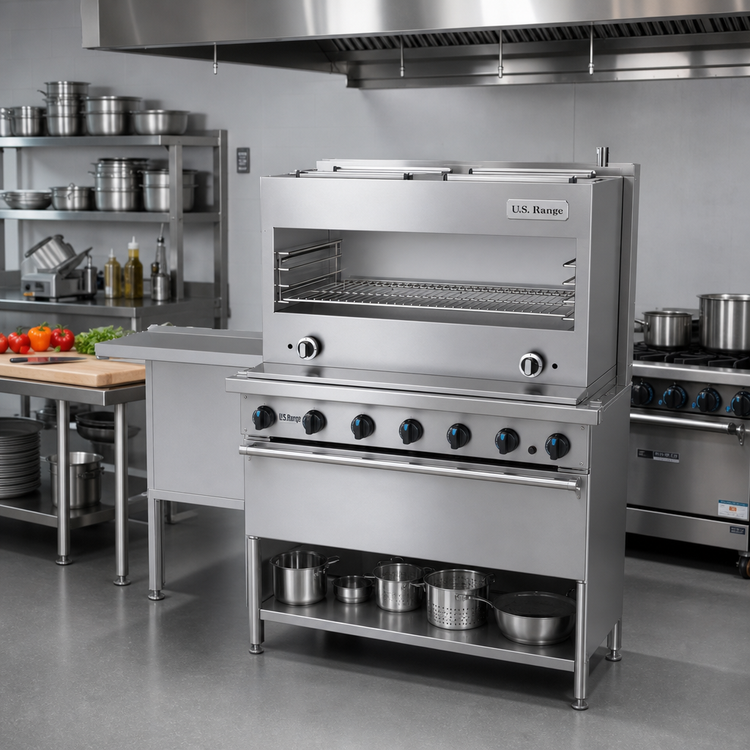

Give every plate the perfect finish in seconds. Designed expressly for the 60" Garland U-Series heavy-duty range, this range-mounted cheesemelter delivers intense, even infra-red heat for lightning-fast browning, melting and reheating – all from a compact 35-7/16″ body that mounts on a full-width 59-1/16″ flue riser/shelf.

Why you’ll love it

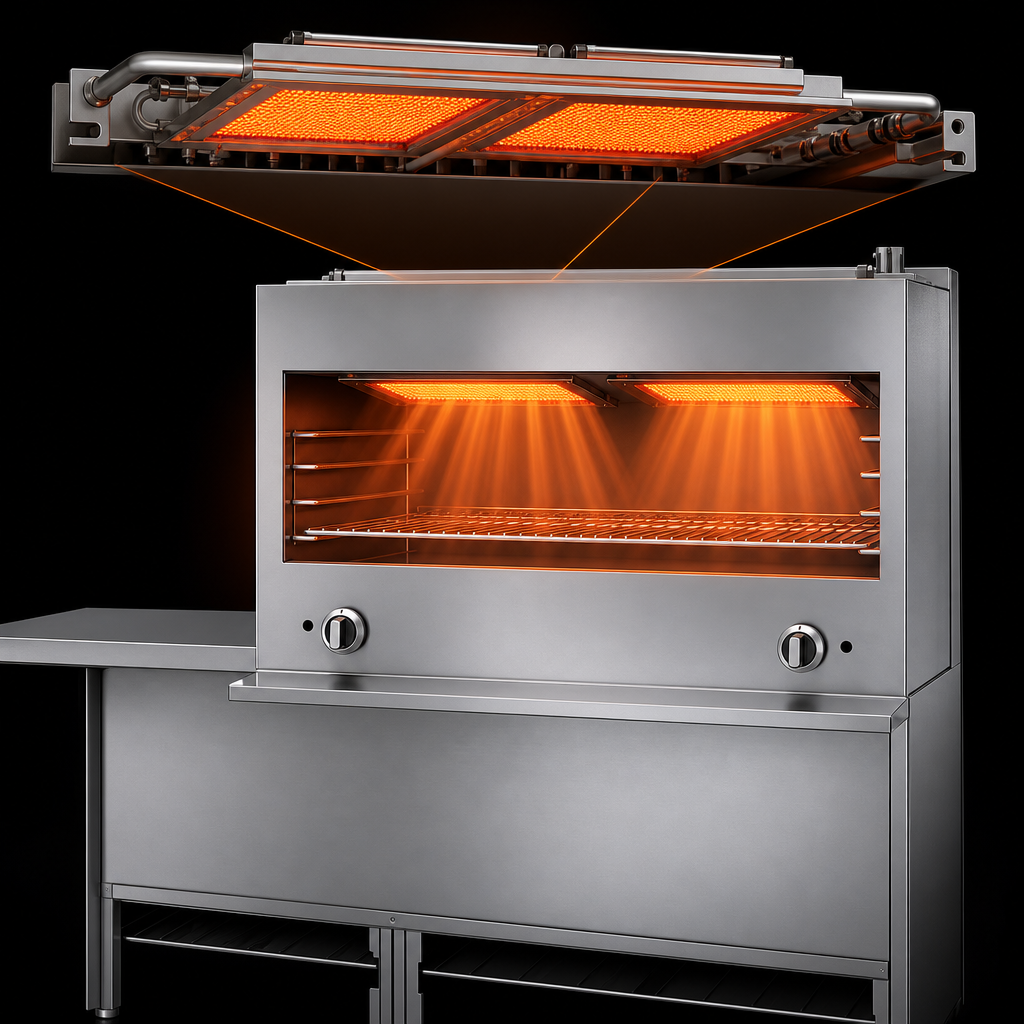

  • Two individually-controlled 15,000 BTU/h atmospheric infra-red burners (high/low) – instant response, no pre-heat delay, 30,000 BTU total.
  • Precision down-firing burner design concentrates heat on the product, not on the cook-line.
  • Chrome-plated rack with 4 height positions glides smoothly and removes completely for sink-side cleaning.
  • Full-width removable grease pan keeps the interior spotless and reduces flavour transfer.
  • Heavy-gauge stainless steel front, top, sides, backsplash & bottom heat shield stand up to the busiest kitchens.
  • Supplied with both a 35-7/16″ backguard/flue riser and an additional 24″ W × 21″ H flue riser with shelf – giving you a convenient plating shelf and a 59-1/16″ overall width that matches the U60 range.
  • Factory-installed gas pressure regulator and ½″ NPT top/rear connections simplify installation.
  • CSA Star, CSA Flame & NSF certified for gas safety and sanitation.

Perfect for

  • Finishing au gratin dishes, nachos, quesadillas & flatbreads
  • Melting cheese on burgers or open-face sandwiches
  • Browning meringues, gratins and casseroles
  • Flash-heating plates just before service

Technical specifications

Model UIRCM60 (U-Series)

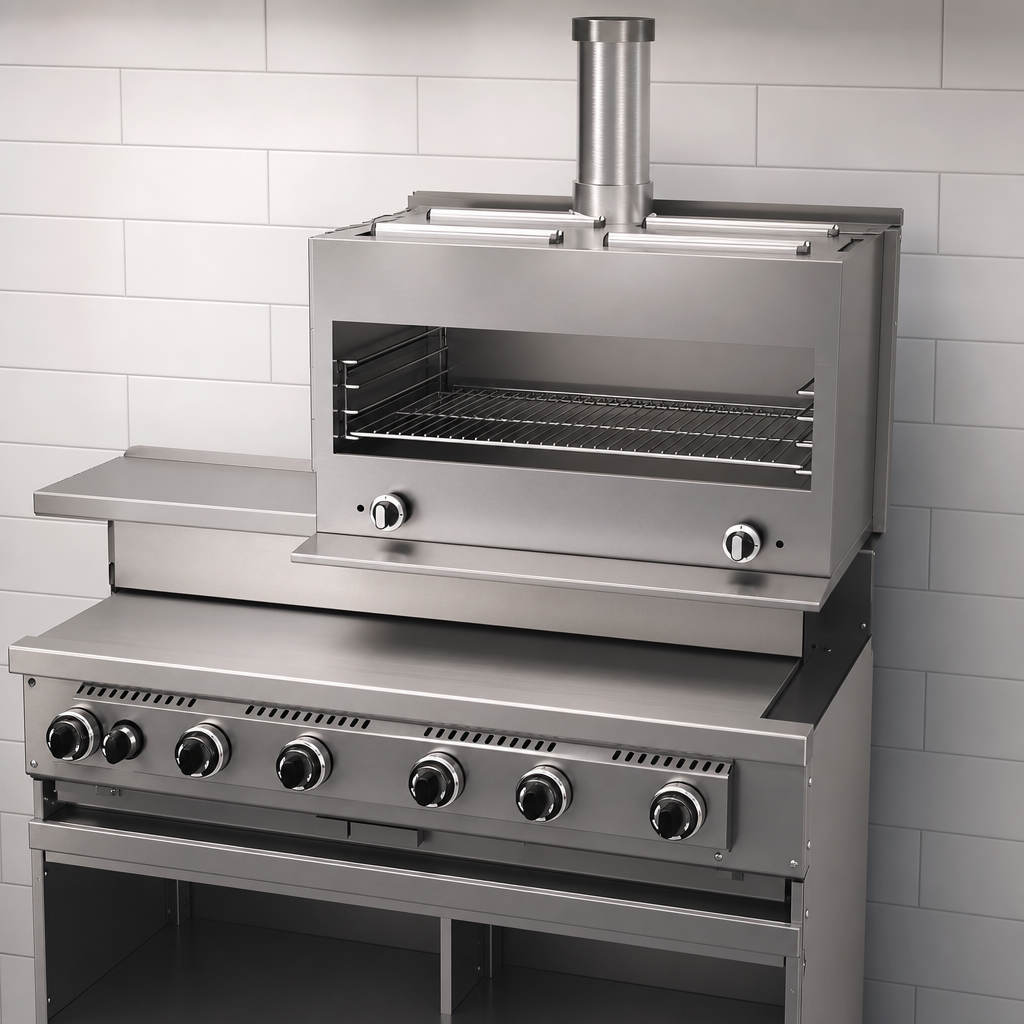

Mounting Range-mount – supplied brackets & flue risers fit Garland U60 heavy-duty range
Cheesemelter width 35-7/16″ / 900 mm
Overall assembly width* 59-1/16″ / 1500 mm
Gas type Natural or Propane (specify when ordering)
Burners (2) infra-red, 15,000 BTU/h each – independent high/low valves
Total input 30,000 BTU/h (8.79 kW)
Rack Chrome-plated, 4 positions, removable
Grease management Full-width removable pan
Gas connection ½″ NPT – top or rear
Manifold pressure Natural 6″ WC (15 mbar) / Propane 10″ WC (25 mbar)
Combustible clearances 6″ (152 mm) sides & back
Certifications CSA Star, CSA Flame, NSF

*Overall width includes the primary 35-7/16″ cheesemelter plus the 24″ supporting flue riser & shelf supplied for U60 ranges.

Commercial use only: Garland/U.S. Range products are designed and approved exclusively for professional, non-residential kitchens.

Features & Specs

Manufacturer

Garland

Height

24.0in

Width

59.06in

Depth

15.0in

Shipping Weight

260.0lbs

Rack Positions

3

Mounting

range mount

Heat type

infrared

Exterior Finish

stainless steel front & sides

Width (side - side)

25" - 36"

Specifications

U-Series Cheesemelter, gas, 35-7/16"W, range-mount, for U60 Range, mounted on 35-7/16"W backguard/flue riser & a 24"W x 21" H backguard/flue riser with shelf (total 59-1/16"W), (2) 15,000 BTU infrared burners with individual controls, chrome plated rack with (4) position glides, removable grease pan, stainless steel top, front, sides, backsplash & bottom with heat shield, 30,000 BTU, CSA Star, CSA Flame, NSF (U S Range)
