Key specifications

BTU
30,000 BTU
Dimensions
47.25"W × 15.0"D × 24.0"H
Type
Cheesemelter
Installation Type
Built-In
Material
Stainless Steel
Finish
Stainless Steel
Spec sheet
Garland SKU: UIRCM48

Garland UIRCM48 Range-Mount Infrared Cheesemelter

$4,993.20
/each
Estimated to ship in 36–39 business days
Gas typeRequired
Gas inlet
Gas Connector
Included: Garland warranty 1-year limited warranty on most products; 2-year warranty on select equipment

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $462/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Cheesemelter
Installation Type Built-In
Material Stainless Steel
Finish Stainless Steel
Heat Type Infrared
BTU 30,000 BTU
Burner Count 2
Burner Output 15,000 BTU Each
Controls Individual High/Low
Rack Finish Chrome Plated
Compatible Range U48 Range

Description

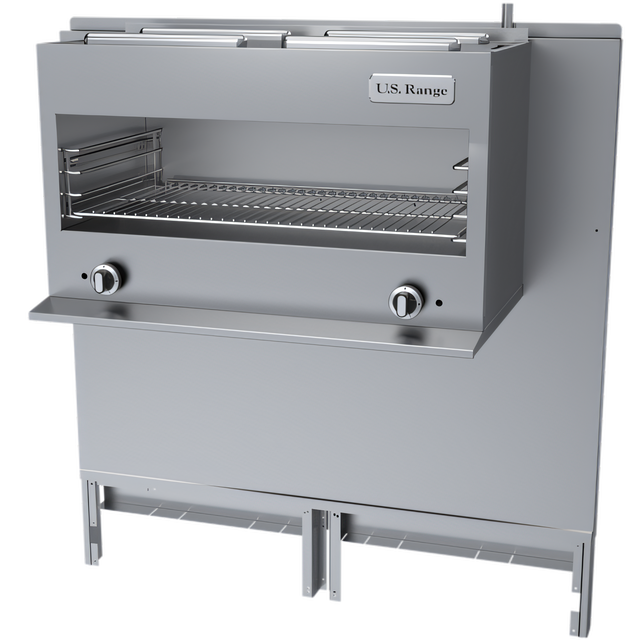

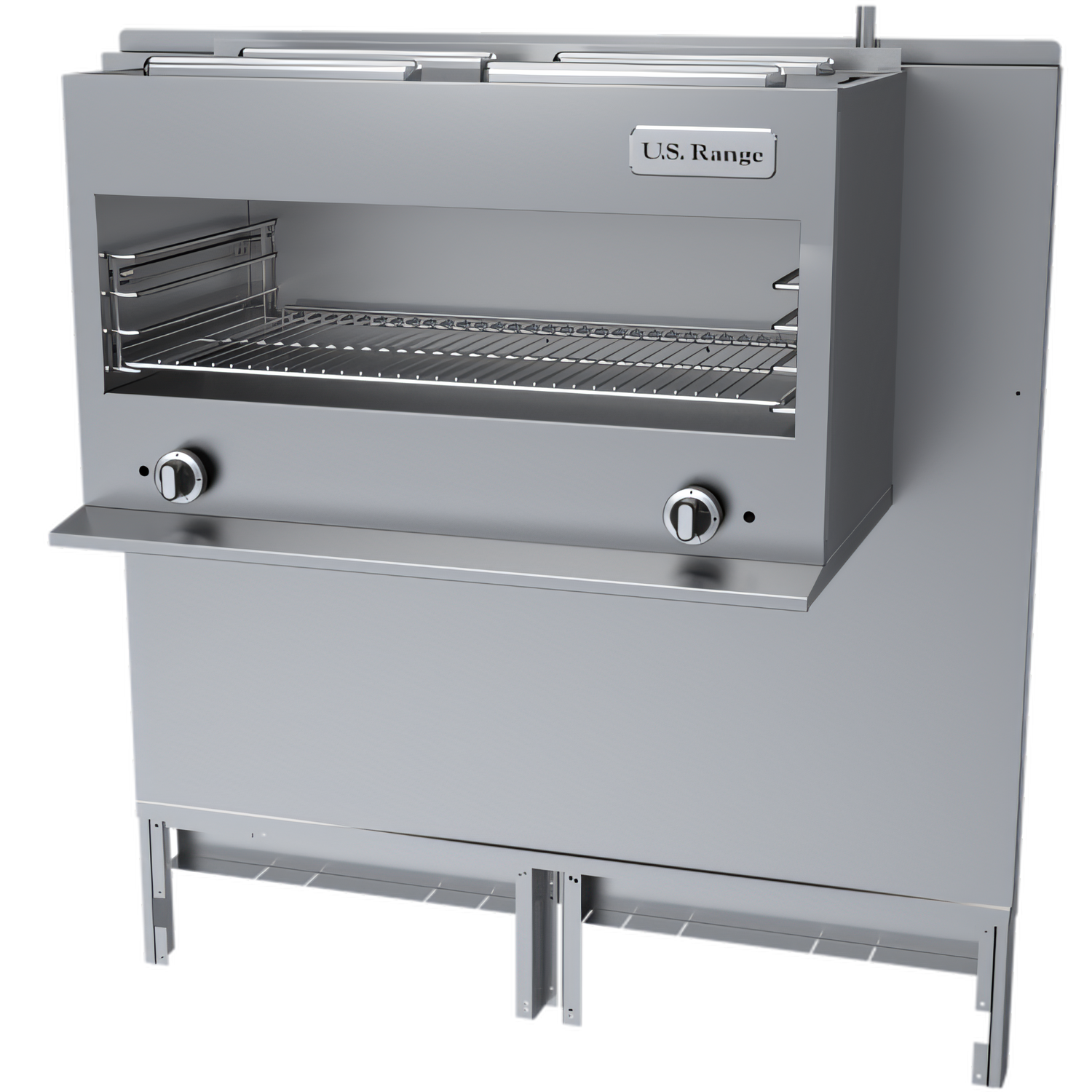

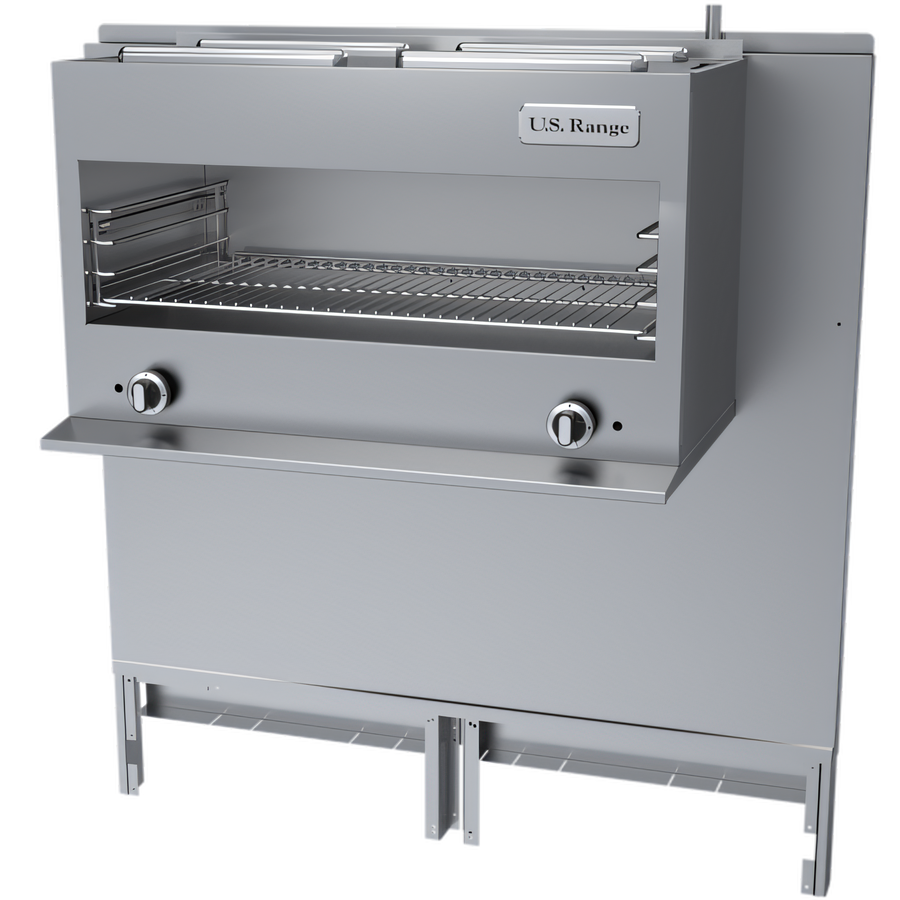

The Garland UIRCM48 is a gas range-mount cheesemelter for the U48 Range. It is center-mounted on the 47.25-inch backguard and flue riser and uses two individually controlled 15,000 BTU infrared burners.

  • Stainless steel front, top, sides, backsplash, and bottom heat shield
  • Chrome-plated rack with removable rack guides
  • Removable grease pan
  • 30,000 BTU total input

Overall Dimensions:

47.25"W x 15.0"D x 24.0"H

Product Weight:

230.0 lb

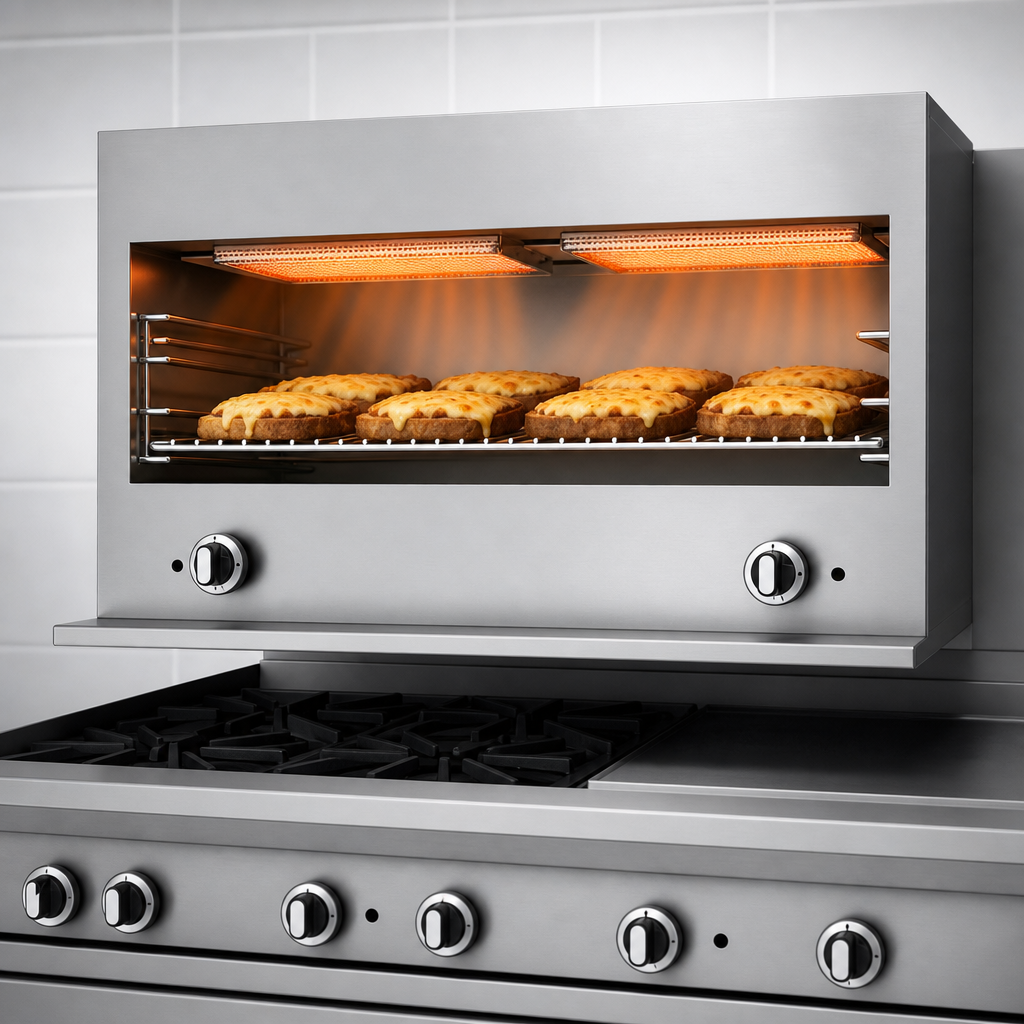

Gas Infrared Heating

Two atmospheric-type 15,000 BTU infrared burners provide 30,000 BTU total input.

Individual Controls

The burners have individual high/low valve controls.

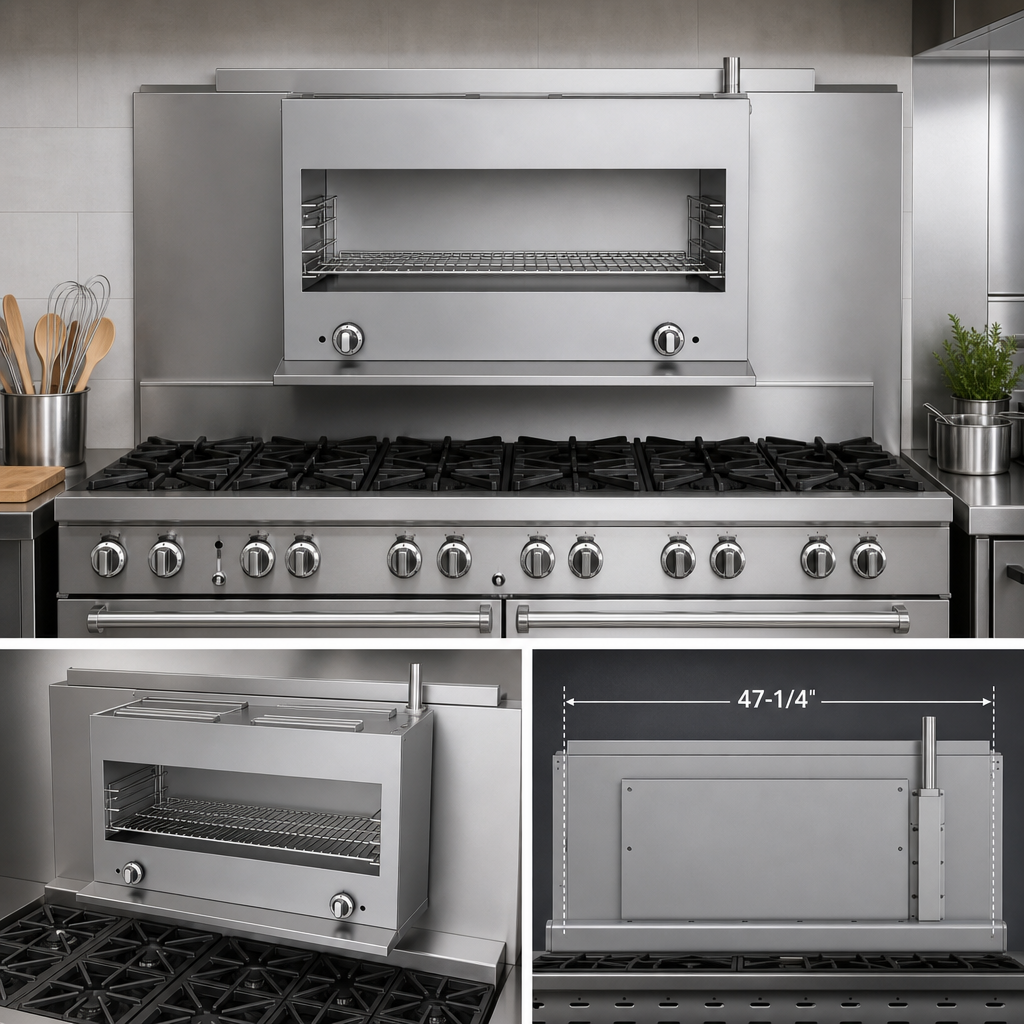

U48 Range Mounting

The cheesemelter is center-mounted on the 47.25-inch backguard and flue riser of a U48 Range.

Chrome-Plated Rack

The rack has removable rack guides and can be removed for cleaning.

Stainless Steel Construction

The front, top, sides, backsplash, and bottom heat shield are stainless steel.

Removable Grease Pan

The cheesemelter has a removable grease pan.

Frequently Asked Questions

The UIRCM48 is a range-mount cheesemelter for the U48 Range.
It uses gas infrared heat from two 15,000 BTU atmospheric-type burners.
The total input is 30,000 BTU.
Yes. The burners have individual high/low valve controls.
The dimensions are 47.25 inches wide, 15 inches deep, and 24 inches high.
It has a chrome-plated rack with removable rack guides.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
