Key specifications

BTU
40,000 BTU
Gas Type
Natural Gas or Propane
Dimensions
59.0"W × 18.0"D × 15.0"H
Type
Salamander Broiler
Style
Range Mount
Material
Stainless Steel
Spec sheet
Garland SKU: UIR60

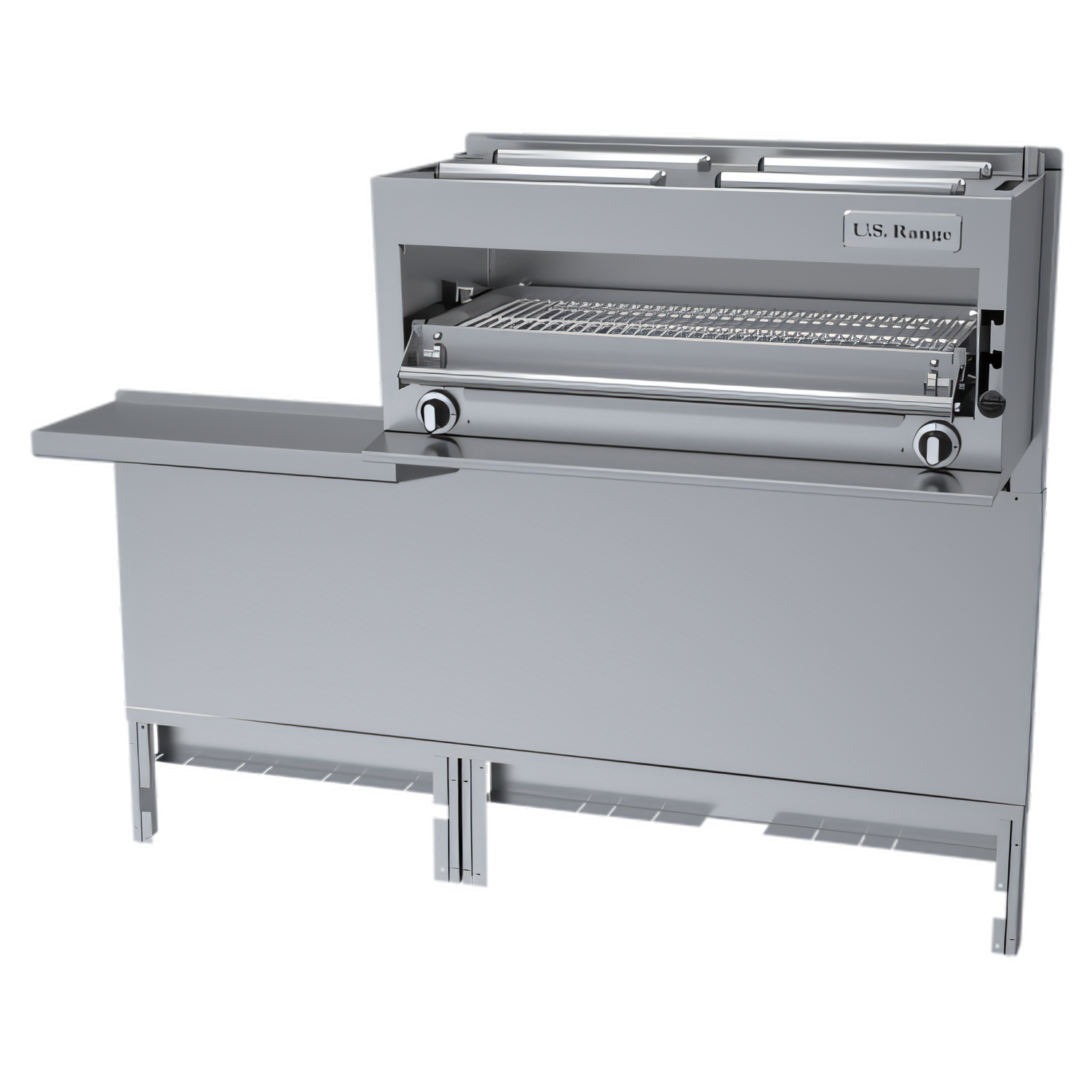

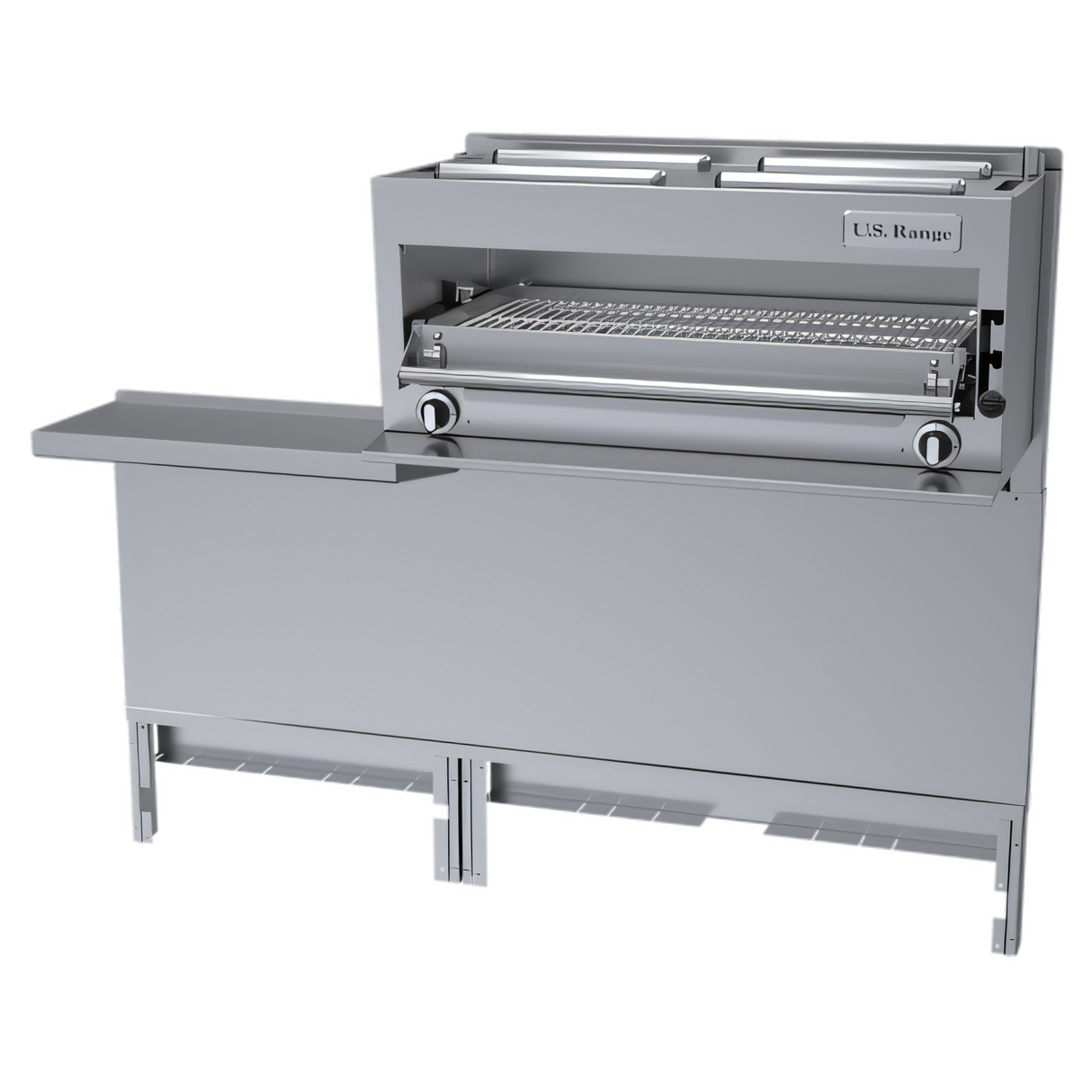

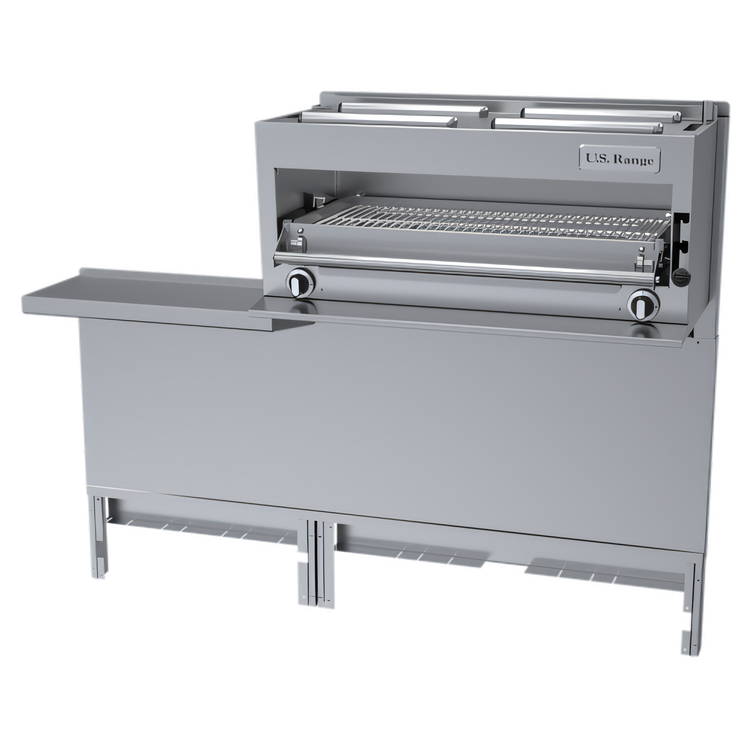

Garland UIR60 Range-Mount Infrared Salamander Broiler

$4,854.15
/each
Estimated to ship in 16–19 business days
Installation
Gas typeRequired
Gas inlet
Broiler position
Gas Connector
Included: Garland warranty One-year limited parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $449/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Salamander Broiler
Style Range Mount
Material Stainless Steel
Width 59 inches
Depth 18 inches
Height 15 inches
Weight 260 pounds
Gas Type Natural Gas or Propane
BTU 40,000 BTU
Burner Count 2
Burner Type Atmospheric Infrared
Burner Input 20,000 BTU Each
Controls Hi-Lo Valve
Rack Positions 3
Rack Type Spring-Balanced Adjustable
Grease Pan Removable
Broiler Position Left
Shelf Height 24 inches
Gas Inlet 1/2-Inch NPT Top
Natural Gas Pressure 6 inches WC
Propane Pressure 10 inches WC
Range Compatibility U-Series U60

Description

The Garland UIR60 is a range-mount gas infrared salamander broiler for the U.S. Range U-Series U60 restaurant range.

  • Two 20,000 BTU atmospheric infrared burners with individual Hi-Lo valve controls.
  • Three-position spring-balanced adjustable rack assembly.
  • Removable grease pan.
  • Stainless steel top, front, sides, backsplash, and bottom with heat shield.
  • Mounted on a 59-inch-wide flue riser with a 24-inch-high shelf; the broiler is standard on the left side.

Overall Dimensions:

59.0"W x 18.0"D x 15.0"H

Product Weight:

260.0 lb

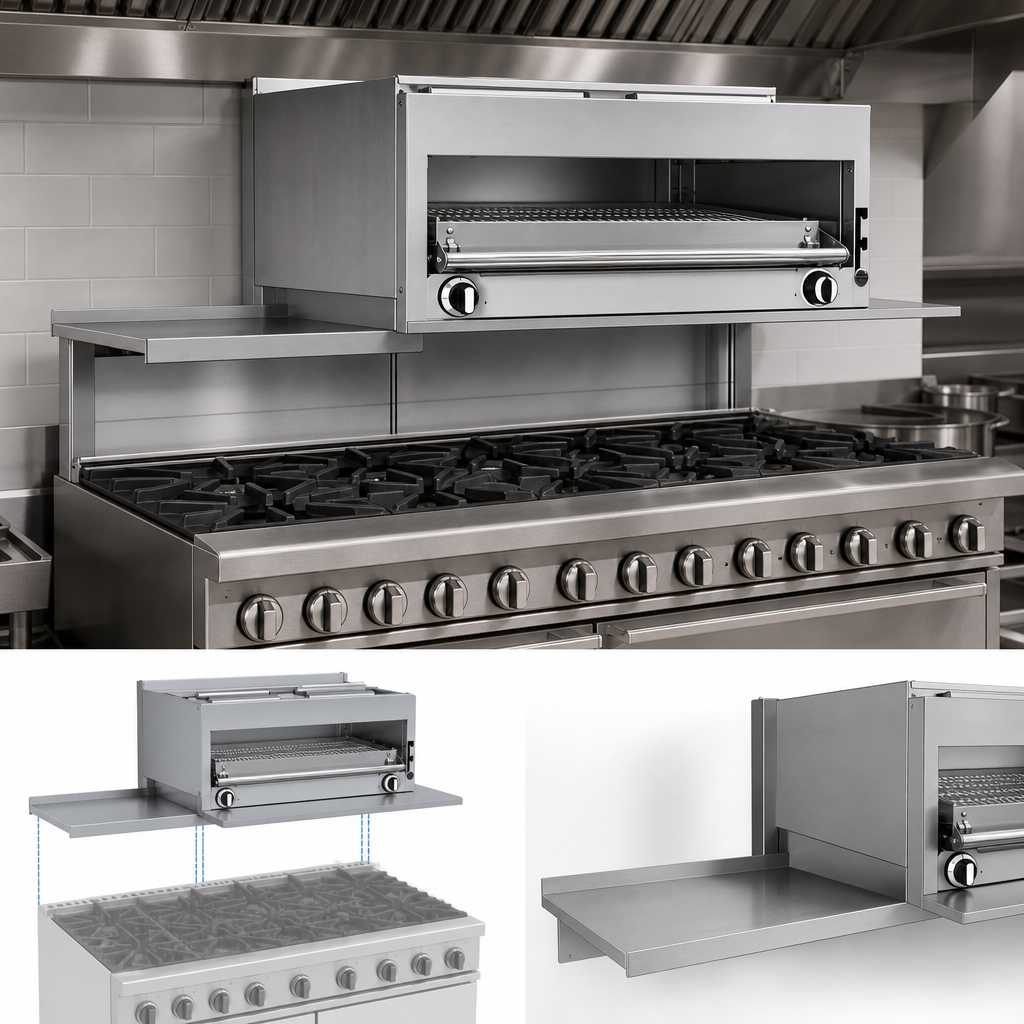

Range-Mount Design

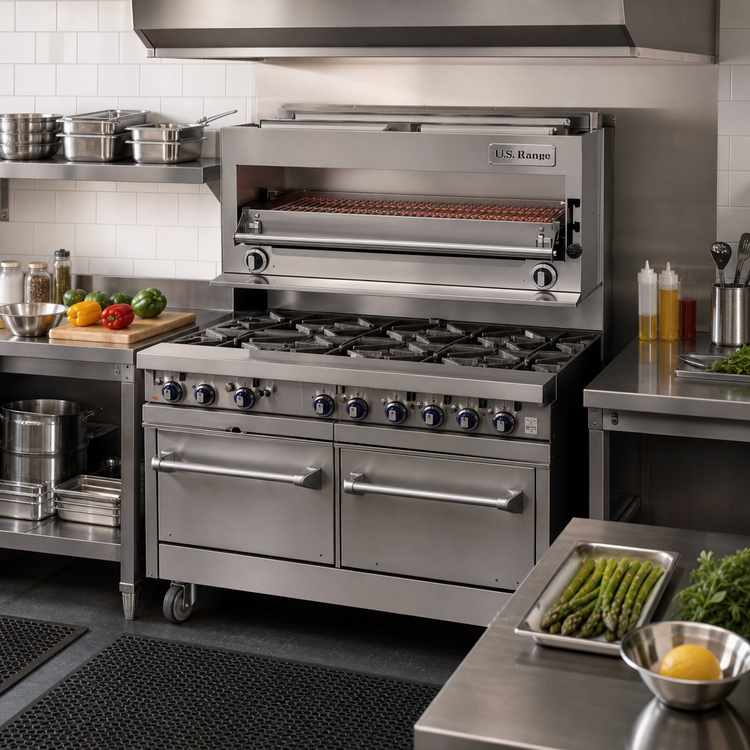

Mounts on the U.S. Range U-Series U60 restaurant range.

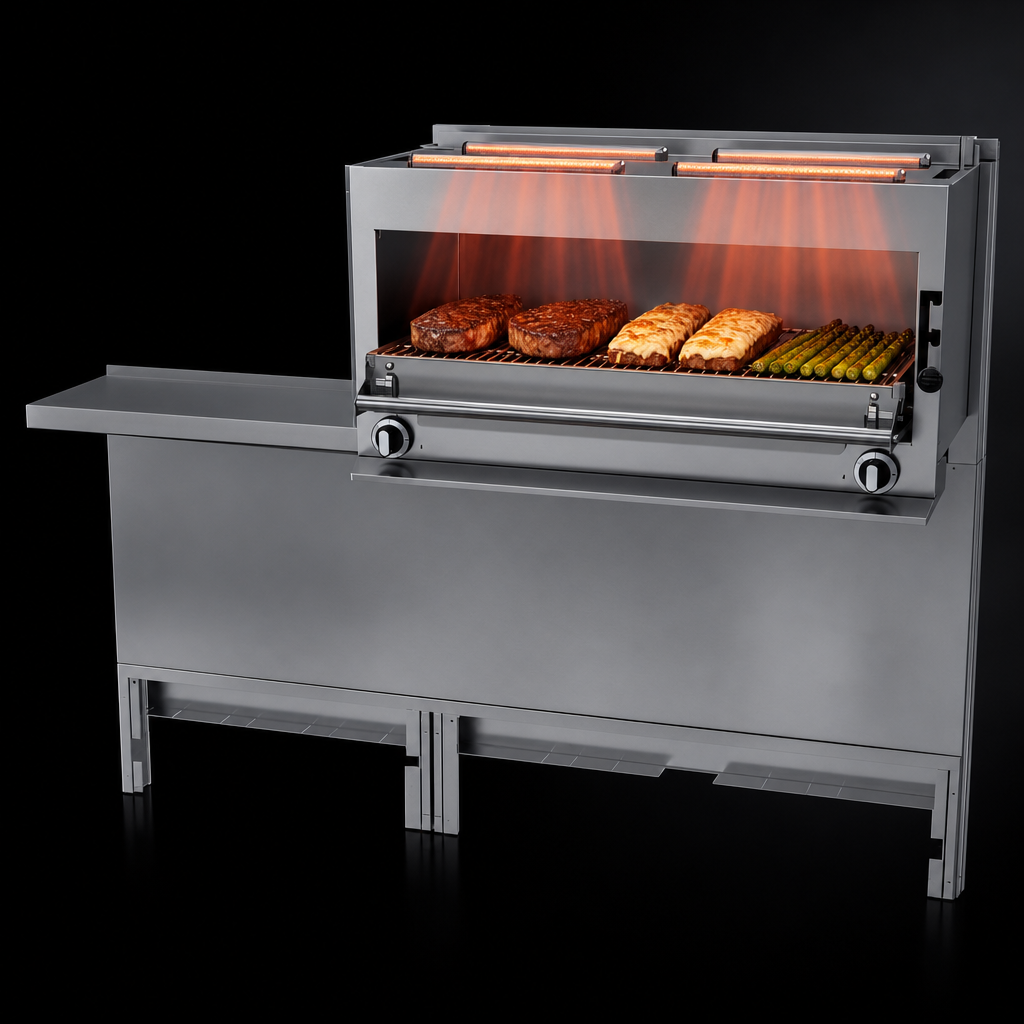

Infrared Burners

Two atmospheric infrared burners provide 20,000 BTU each.

Hi-Lo Valve Controls

Two individual Hi-Lo valve controls operate the burners.

Three-Position Rack

Spring-balanced adjustable rack assembly offers three positions.

Removable Grease Pan

The grease pan is removable for service and cleaning.

Stainless Steel Construction

The top, front, sides, backsplash, and bottom are stainless steel and include a heat shield.

Flue Riser and Shelf

The unit is mounted on a 59-inch-wide flue riser with a 24-inch-high shelf.

Left-Side Broiler Position

The broiler is standard on the left side.

Frequently Asked Questions

The UIR60 supports natural gas or propane, and the gas type must be specified when ordering.
It has two atmospheric infrared burners rated at 20,000 BTU each.
The spring-balanced adjustable rack has three positions.
It is a range-mount model for the U.S. Range U-Series U60 restaurant range.
Yes. The grease pan is removable.
The product measures 59 inches wide by 18 inches deep by 15 inches high and weighs 260 pounds.
No. The product document states that it is not approved for residential use.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
