Garland UIR36C@CUISINE Garland Cuisine Salamander Broilers
Description

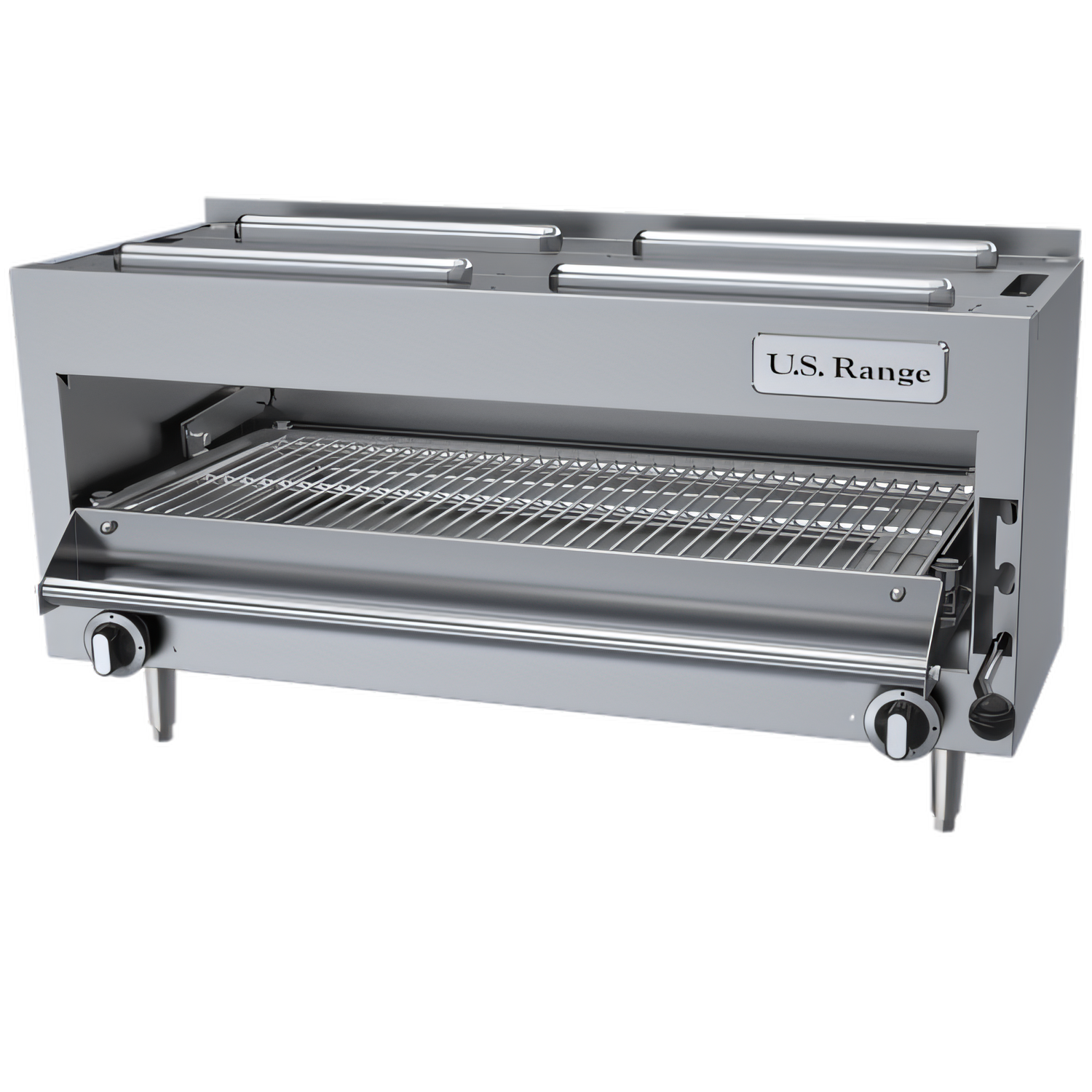

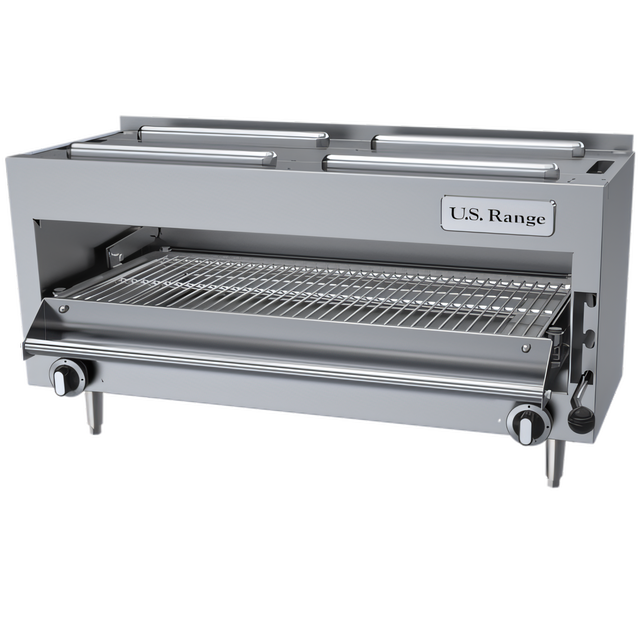

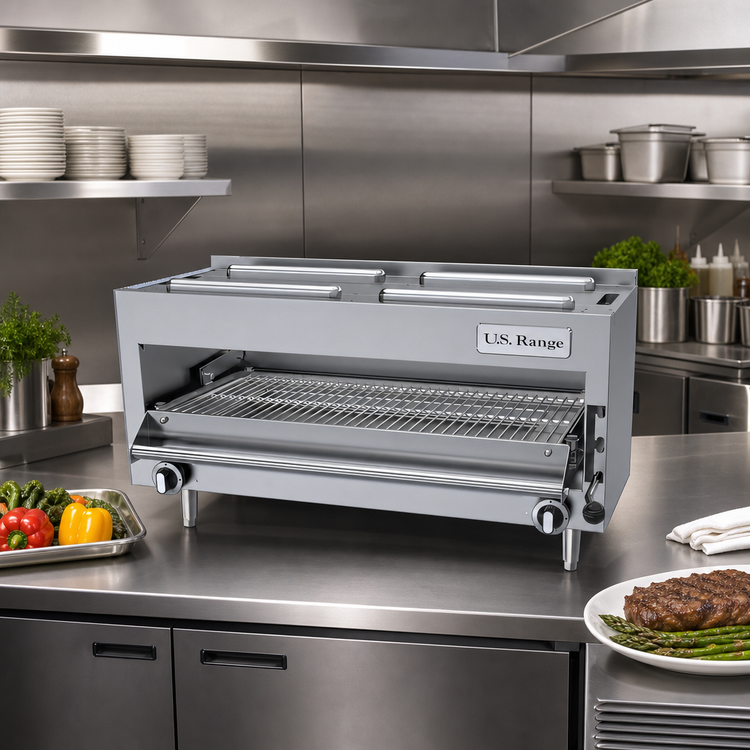

Garland Cuisine Series UIR36C Countertop Infra-Red Salamander Broiler – 34"
40,000 BTU • Natural or LP Gas • NSF-ListedGive every plate the perfect finish. With twin high-powered infrared burners and a spring-balanced rack system, the Garland UIR36C delivers rapid, even top heat for broiling, glazing, or melt-in-seconds cheese work—all from a compact, countertop footprint built for the busiest commercial kitchens.
Why You’ll Love It

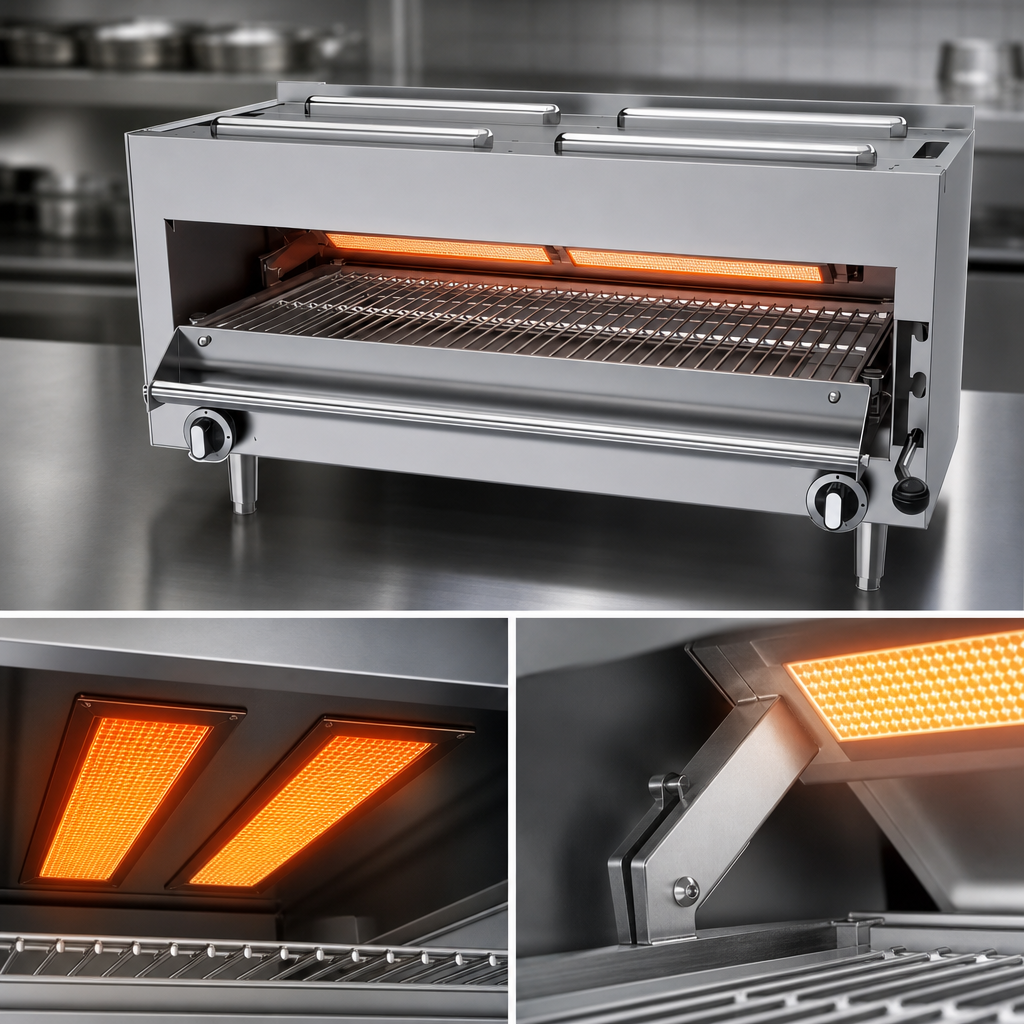

- 40,000 BTU total (two 20,000 BTU atmospheric infrared burners) for intense, instant heat.

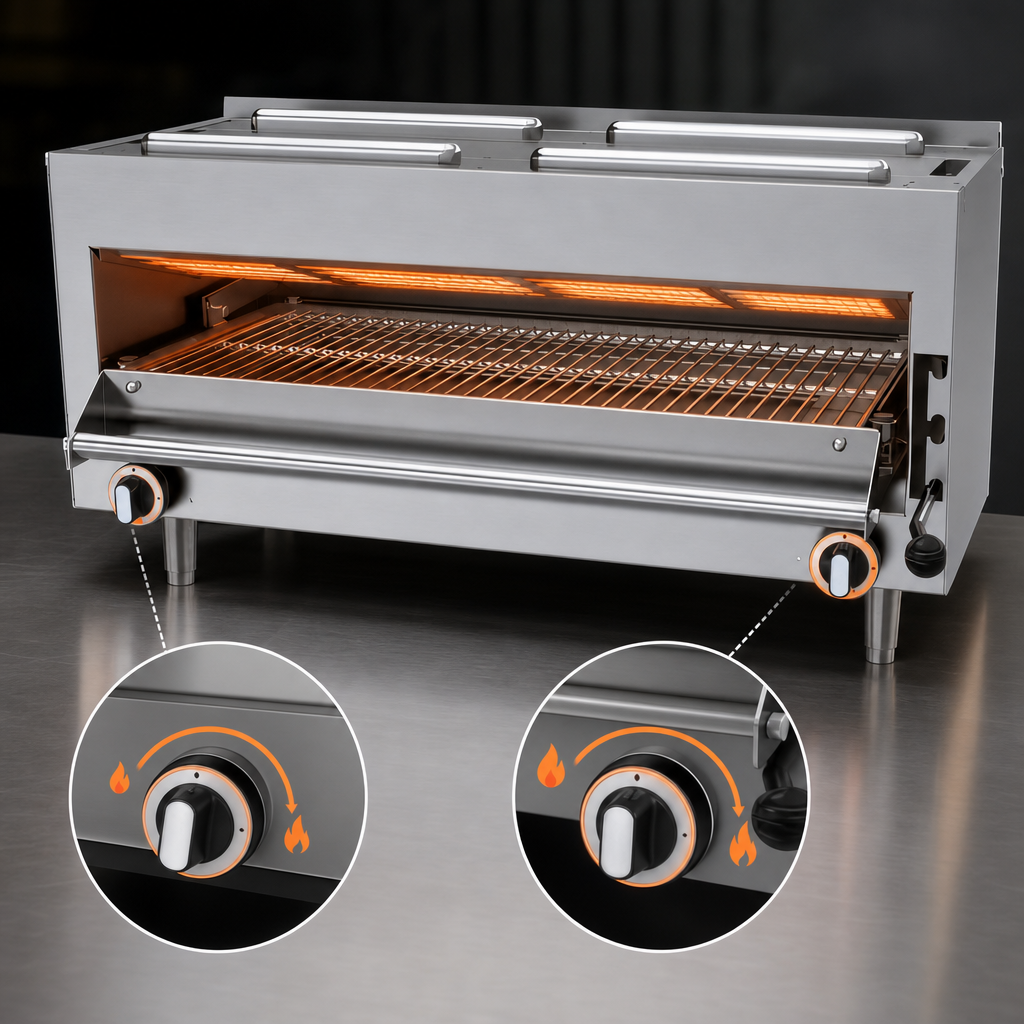

- Independent Hi-Lo valves on each burner let you dial in the perfect finish zone by zone.
- Three-position, spring-balanced rack glides effortlessly and stays where you set it—no tools, no strain.
- Stainless steel top, front & sides stand up to heavy, everyday use and wipe clean in seconds.
- 4" (102 mm) adjustable legs keep the broiler stable and provide clearance for countertop sanitation.
- Full-width, removable grease pan captures drips for quicker clean-up and reduced flare-ups.
- Ships ready for natural gas and includes a convertible regulator for easy LP change-over.
- Certified to U.S. and Canadian standards; NSF listed for food-service peace of mind.
Rack Clearance Guide
| Highest Position | 2-3/4" (70 mm) above cook surface |
|---|---|
| Middle Position | 3-1/2" (87 mm) above cook surface |
| Lowest Position | 4-3/8" (111 mm) above cook surface |
Technical Specs
| Model | UIR36C (Countertop) |
|---|---|
| Gas Input | 40,000 BTU/hr (11.7 kW) |
| Burners | 2 × Infra-Red (20,000 BTU each) |
| Controls | 2 × Hi-Lo manual valves |
| Dimensions (W × D × H) | 34" × 18" × 15" (864 × 457 × 381 mm) |
| Gas Connection | ½" NPT top inlet (rear inlet standard on this model) |
| Operating Pressure | Natural 6" WC | LP 10" WC |
| Clearances | 6" (152 mm) sides & rear |
| Shipping Weight | 170 lb (77 kg) |
| Certifications | NSF, CSA (Canada & USA) |
| Warranty | 1-year limited parts & labor (USA & Canada) |
Need a wall-mount kit or rear gas piping? Contact us before ordering—our team will ensure you receive the correct accessories for your layout.
