Garland UIR36@U US Range U Series Ranges Salamander Broilers
Description
Garland U Series Infra-Red Salamander Broiler — Model UIR36

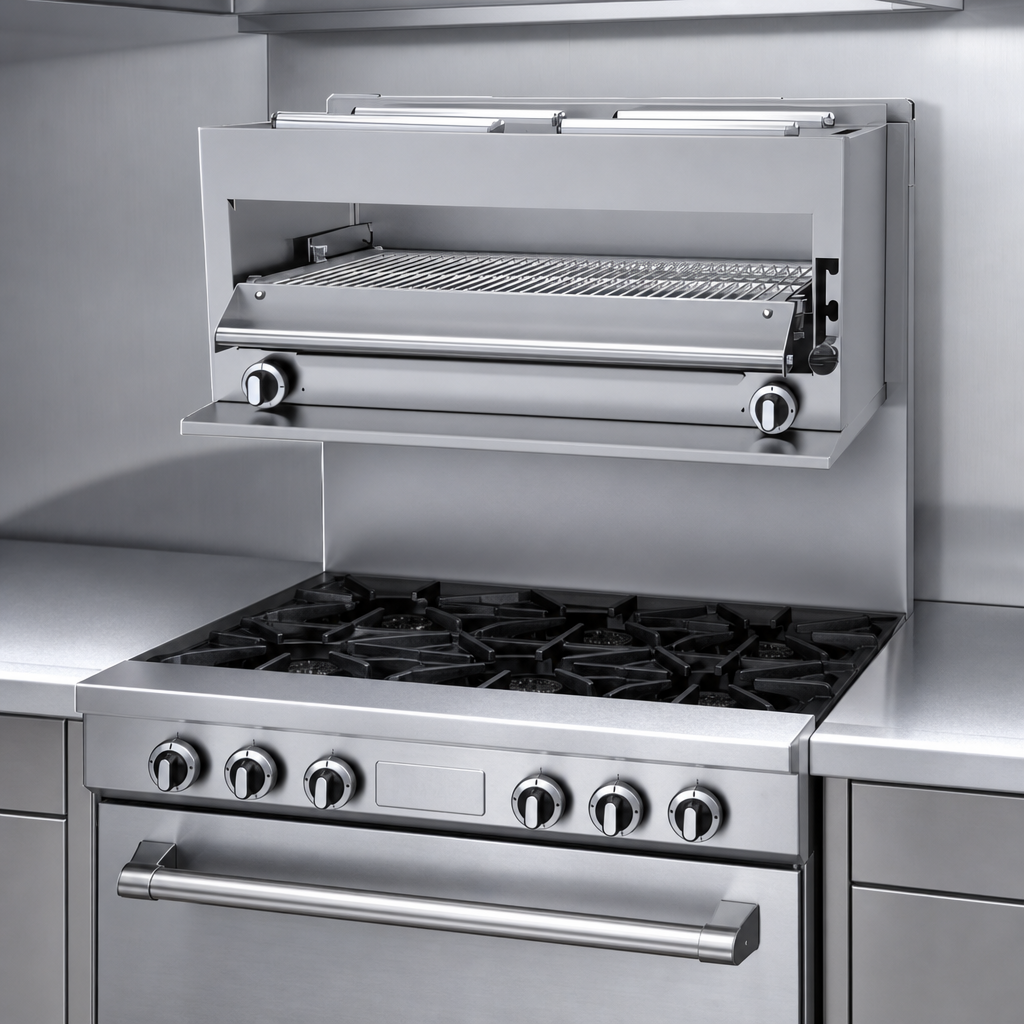

35-1/2" range-mounted broiler | 40,000 BTUFinish steaks, melt cheeses, or give dishes that final golden crust in seconds. The Garland UIR36 mounts directly above a 36" U Series restaurant range and delivers the searing, even heat only true infrared burners can provide.
Key Features

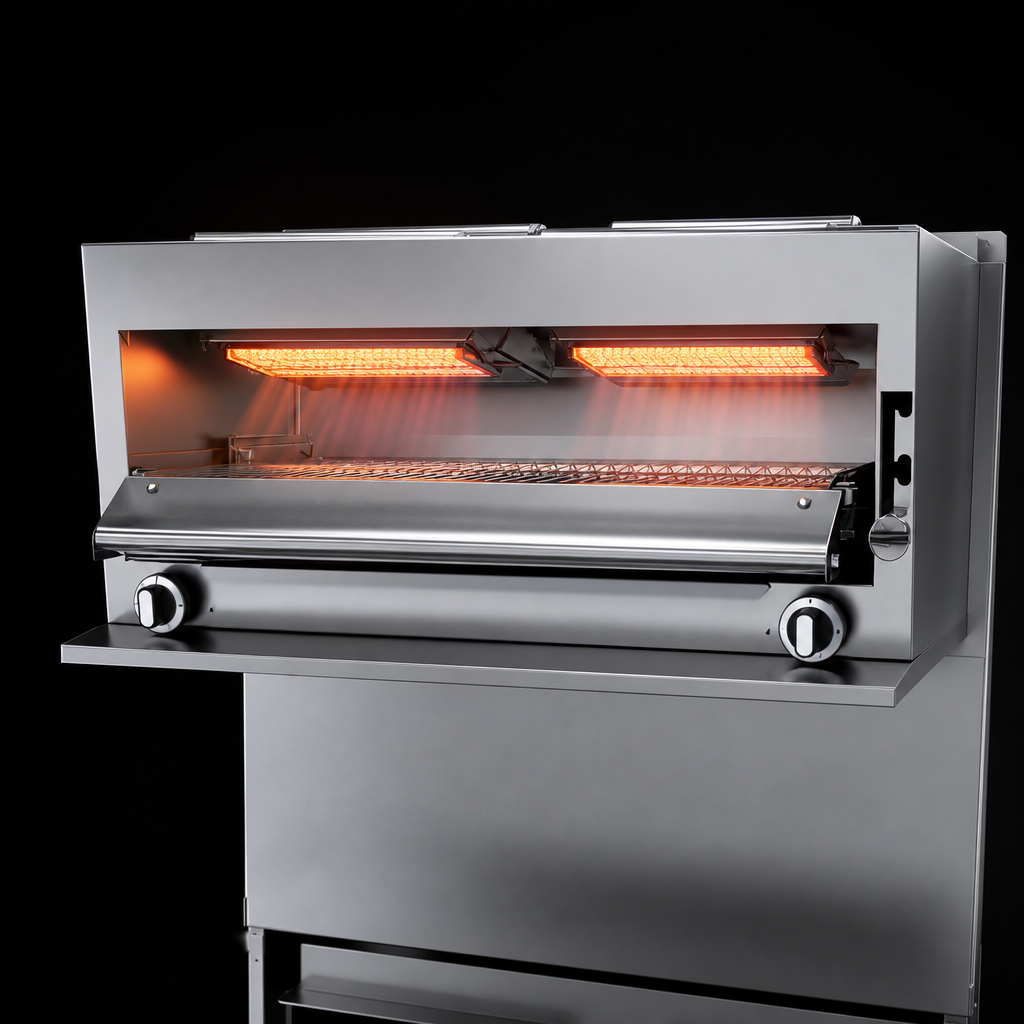

- Two atmospheric infrared burners — 20,000 BTU each (40,000 BTU total).
- Independent Hi-Lo valve controls for precise left/right heat management.
- Three-position, spring-balanced rack for effortless height adjustment.
- Full stainless steel top, front, sides, backsplash & bottom with integrated heat shield.
- Large-capacity removable grease pan keeps cleanup quick and simple.
- 1/2" NPT top gas inlet and factory-supplied regulator for fast installation.
- NSF listed & CSA certified for commercial kitchens in the USA and Canada.
- One-year limited parts & labor warranty (commercial use).
Why Infra-Red?
Garland’s atmospheric infrared burners emit intense, focused radiant heat that caramelizes proteins faster than conventional open burners, locking in juices and cutting ticket times. With independent burner control you can run a single side during slower periods to reduce energy costs.
Technical Specifications
| Model | UIR36 (range-mount) |
|---|---|
| Overall width | 35-1/2" / 900 mm |
| Depth | 18" / 457 mm |
| Front height | 30-11/16" / 779 mm (add 4" / 102 mm for top gas inlet) |
| Total input | 40,000 BTU/hr (11.7 kW) |
| Burners | (2) × 20,000 BTU atmospheric infrared |
| Gas type | Natural or Propane (specify when ordering) |
| Operating pressure | Natural 6" WC (15 mbar) | Propane 10" WC (25 mbar) |
| Rack positions | 3 (2-3/4", 3-1/2", 4-3/8" to cook surface) |
| Installation clearances | 6" / 152 mm sides & rear |
| Gas connection | 1/2" NPT (top inlet) |
| Certifications | NSF, CSA (US & Canada) |
| Warranty | 1-year parts & labor |
Optional accessories: interconnecting gas piping for 48" & 60" U Series ranges, wall-mount kit, rear gas inlet, and stainless steel back. Contact us to configure the ideal setup for your kitchen.
