Garland U60-4G36RR US Range U Series Ranges Gas Ranges
Description

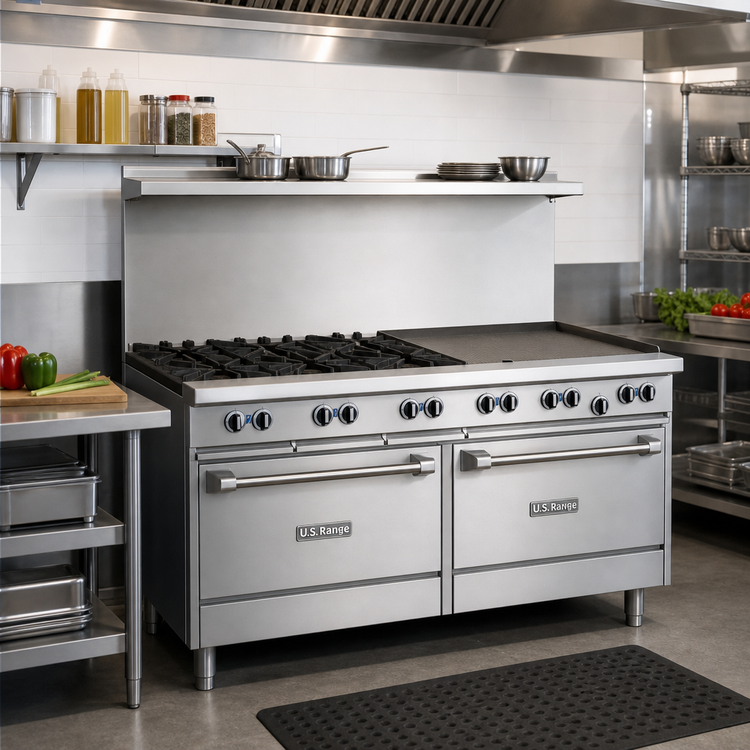

Garland U-Series 60" Gas Restaurant Range
Model U60-4G36RR | 4 Open Burners • 36" Griddle • 2 Standard OvensEngineered for high-volume kitchens that refuse to compromise on versatility, the Garland U-Series 60" range combines lightning-fast open–top cooking, an extra-wide griddle, and twin full-size ovens in one rock-solid appliance. With 258,000 BTU of total firing power and a fully stainless exterior, this U.S. Range workhorse is the dependable centerpiece your line has been waiting for.
Why It Belongs on Your Cook Line

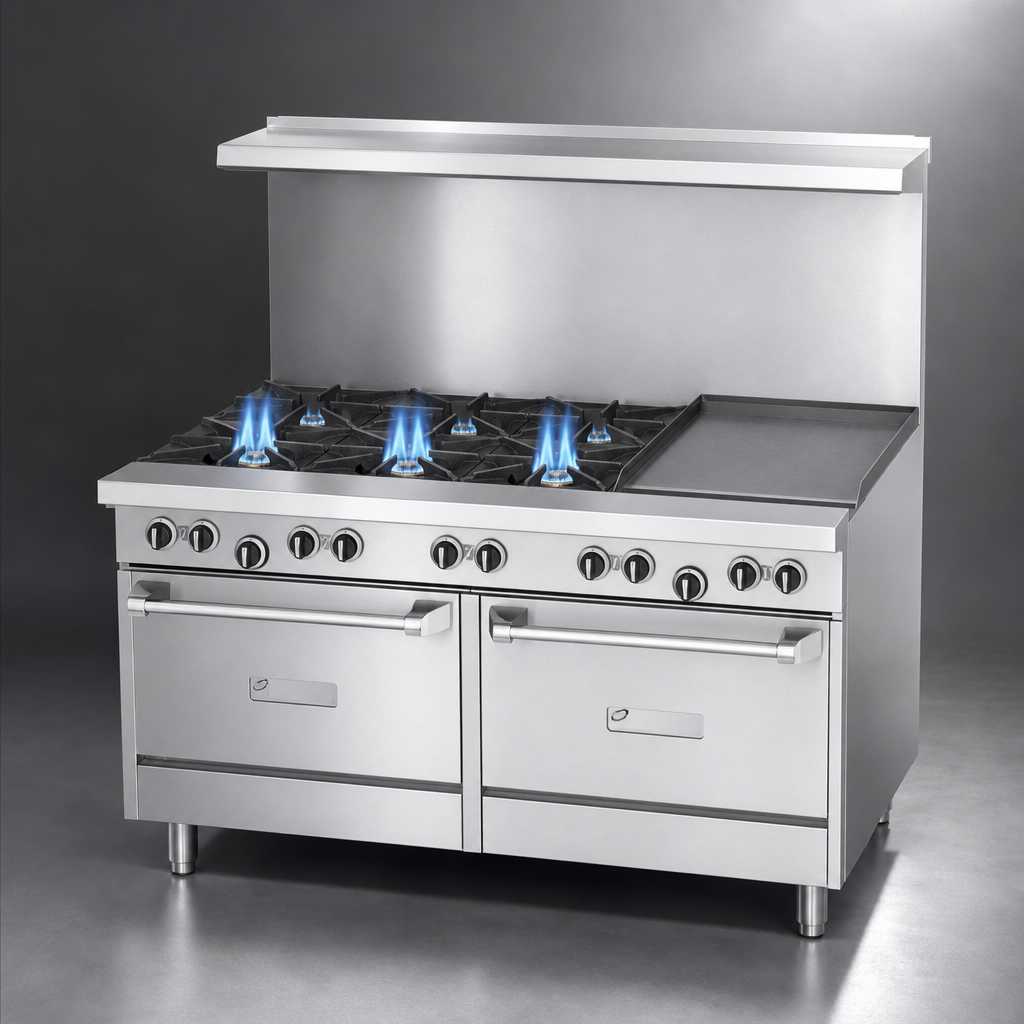

- Four 32,000 BTU open burners with two-piece cast-iron grates deliver instant, even heat for sautéing, boiling, or searing.

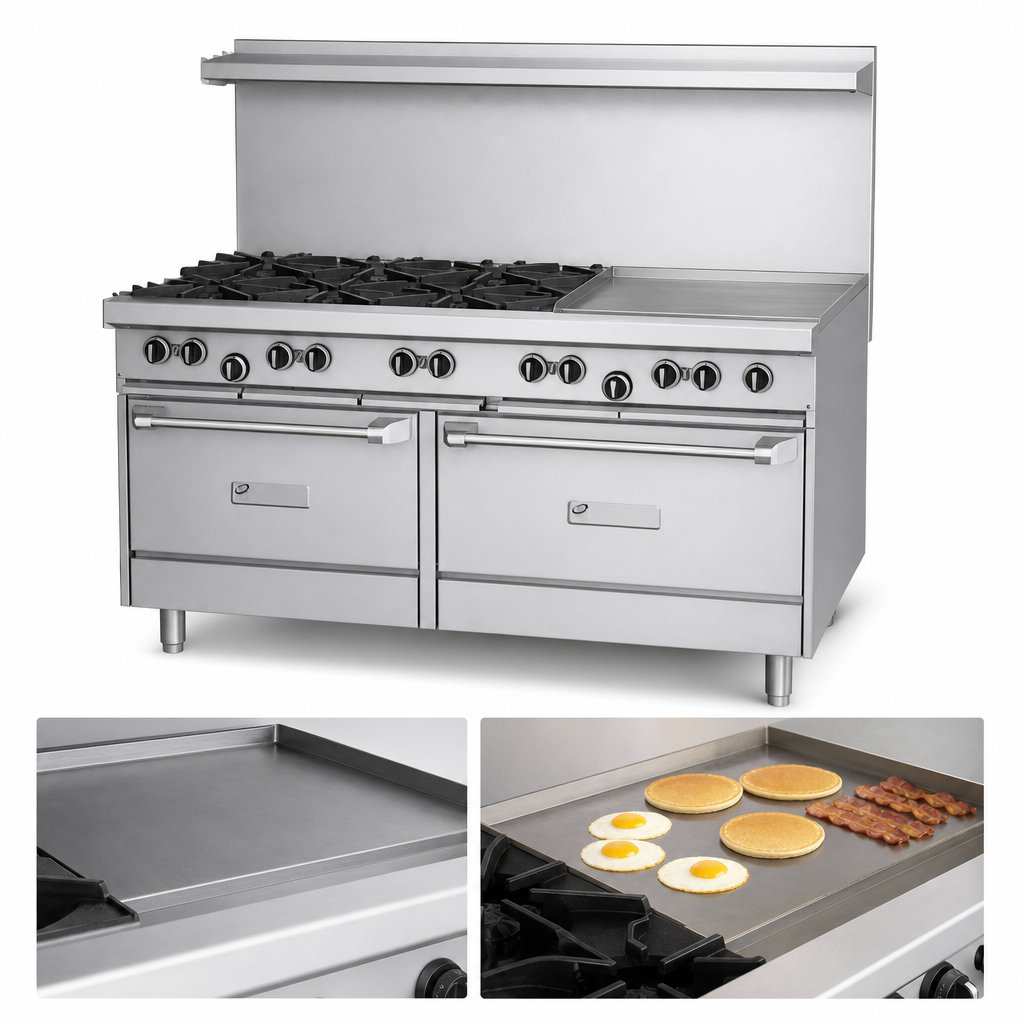

- 36" x 23" smooth steel griddle (5/8" thick) spreads over three 18,000 BTU “H” burners for unbeatable heat retention and coverage.
- Dual standard ovens (38,000 BTU each) fit standard sheet pans side-to-side or front-to-back and feature snap-action thermostats from low to 500 °F (260 °C).
- Rugged all-stainless construction – front, sides, 5" plate rail, 2-piece backguard, and shelf – stands up to daily commercial abuse and wipes down fast.
- 27" deep work top and stamped 12" drip trays keep your station spacious and clean.
- 6" adjustable stainless steel legs level the unit on uneven floors.
- Factory-installed gas regulator plus rear 3/4" NPT connection for quick hook-up.
- Fully certified: CSA Flame, CSA Star, cCSAus, NSF – ready for professional kitchens in the U.S. and Canada.
Performance Breakdown
| Overall width | 59-1/16" / 1500 mm |
|---|---|
| Overall depth | 34-1/2" / 876 mm |
| Work-top depth | 27" / 686 mm |
| Open burners | 4 × 32,000 BTU two-piece cast iron |
| Griddle plate | 36" W × 23" D × 5/8" thick smooth steel |
| Griddle burners | 3 × 18,000 BTU cast-iron “H” |
| Ovens | 2 standard, 38,000 BTU each; porcelain bottom & door, 3-position rack guides |
| Oven interior (per cavity) | 13" H × 26" D × 26-1/4" W |
| Total input | 258,000 BTU/h (Natural gas) |
| Gas connection | 3/4" NPT rear, regulator supplied |
| Shipping weight | 826 lb / 375 kg |
| Certifications | CSA Flame, CSA Star, cCSAus, NSF |
Built to Last Shift After Shift
- Ergonomic split cast-iron top grates for safe pot movement.
- Heavy-duty, “keep-cool” oven doors with nickel-plated racks.
- 4-1/4" wide front grease trough empties into an easy-pull drawer.
- Reinforced chassis corners and large, easy-grip control knobs.
- Removable stainless shelf on backguard keeps seasonings and utensils within reach.
