Garland U60-10RS US Range U Series Ranges Gas Ranges
$6,548.00
Unit price
/
Unavailable
Description

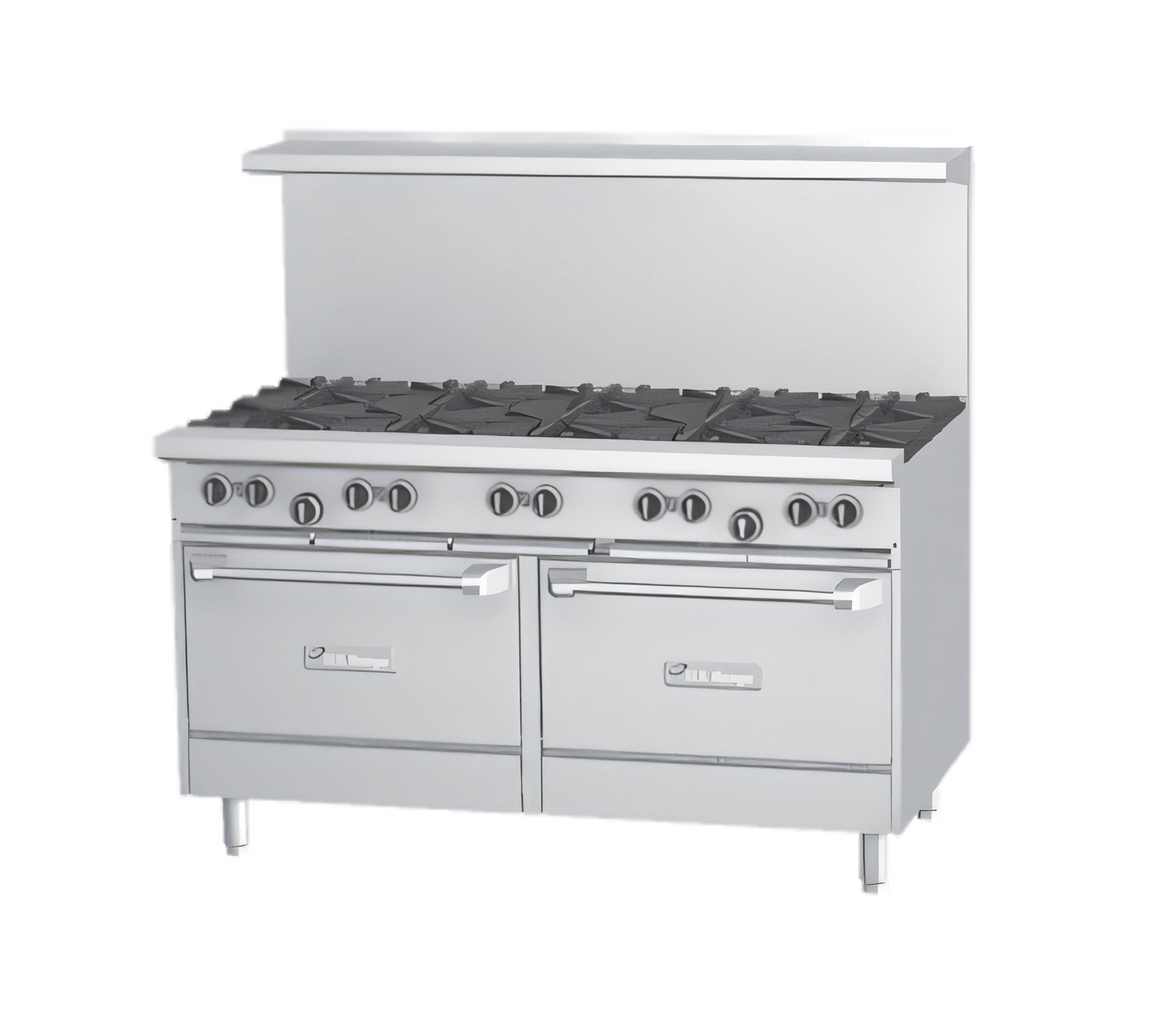

Garland / U.S. Range U-Series 60" Gas Restaurant Range
Model U60-10RS — 10 Open Burners | 1 Standard Oven | 1 Storage BaseBuilt for the busiest professional kitchens, the 60" Garland U-Series delivers uncompromising cooking power, rock-solid construction and the ergonomic touches chefs love—all in one dependable workhorse.
Why You’ll Love It

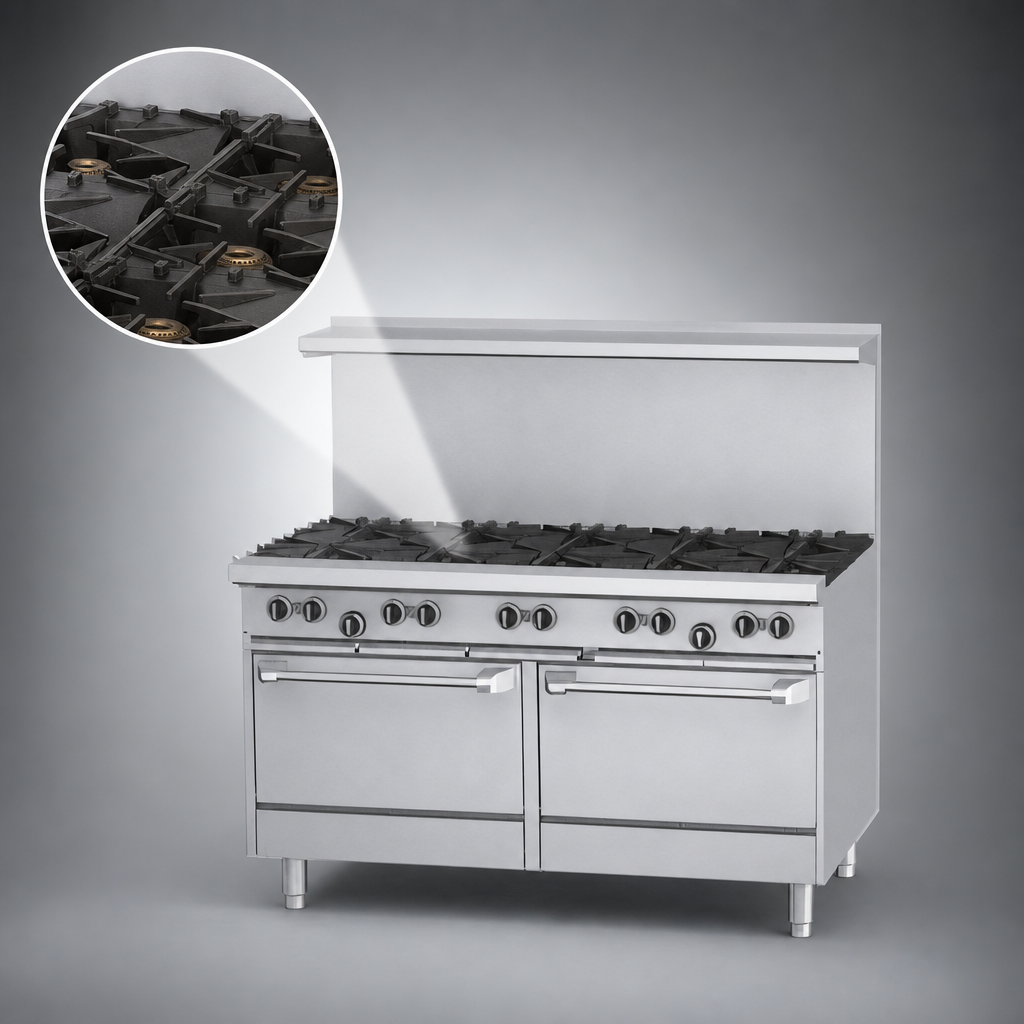

- Ten 32,000 BTU 2-piece cast-iron open burners for instant, even heat.
- Durable ergonomic split grates let you slide heavy stockpots with ease.
- Full-size standard oven (38,000 BTU) with porcelain-lined cavity, three rack positions and one nickel-plated rack included.
- Handy storage base (left section) keeps sheet pans, hotel pans or cookware within arm’s reach.
- Extra-deep 27" (686 mm) worktop offers generous plating or prep space in front of the burners.
- All-stainless exterior—front, sides, 5" plate rail and two-piece backguard with removable high-shelf—stands up to daily abuse and cleans fast.
- Oversized, stay-cool control knobs and easy-light pilots simplify daily operation.
- 6" (152 mm) stainless steel legs with adjustable feet level the range on uneven floors.
At-a-Glance Specifications
| Overall width | 59-1/16" / 1500 mm |
|---|---|
| Overall depth | 34-1/2" / 876 mm (worktop depth 27" / 686 mm) |
| Overall height | 57" / 1448 mm with standard backguard & shelf |
| Burners | 10 open top @ 32,000 BTU each (Natural gas) |
| Oven capacity | 26"W × 26-1/4"D × 13"H (fits full-size sheet pans front-to-back or left-to-right) |
| Oven burner | 38,000 BTU cast-iron “H” burner, snap-action thermostat 150 °F – 500 °F |
| Total input | 358,000 BTU/hr (Natural gas) |
| Gas connection | 3/4" NPT rear manifold Manifold pressure: 4.5" WC Natural / 10" WC LP |
| Shipping weight | ≈ 690 lb / 312 kg |
| Certifications | CSA Flame, CSA Star, cCSAus, NSF |
What’s Included
- (1) Nickel-plated oven rack with 3-position removable guides
- (2) 12" section stamped drip trays with dimple-bottom design
- Factory-installed gas pressure regulator
- User & installation manual
Important: This range is engineered for commercial applications only and is not approved for residential use.
If the unit is mounted on casters (optional), an approved restraining device must be installed per code.
Altitudes above 2,000 ft (610 m) may require orifice adjustment—please specify when ordering.
Features & Specs
Features & Specs
Manufacturer
Garland
Brand_name
US Range U Series Ranges
Certifications
NSF, cCSAus, CSA Star, CSA Flame
Height
57.0in
Width
59.1in
Depth
34.5in
Shipping Weight
690.0lbs
Top
(10) open burners
Exterior Finish
stainless steel front & sides
Vent
backriser with hi-shelf
Base
(1) standard oven, (1) cabinet
Specifications
U Series Restaurant Range, gas, 60", (10) 32,000 BTU open burners, with cast iron top & ring grates, (1) standard oven with 3 position rack guides with oven rack, (1) storage base, stainless steel front, sides, plate rail, 2-piece back guard and shelf, 6" stainless steel legs with adjustable feet, 358,000 BTU, CSA Flame, CSA Star, cCSAus, NSF (US Range)
