Garland U60-10RR US Range U Series Ranges Gas Ranges
Description

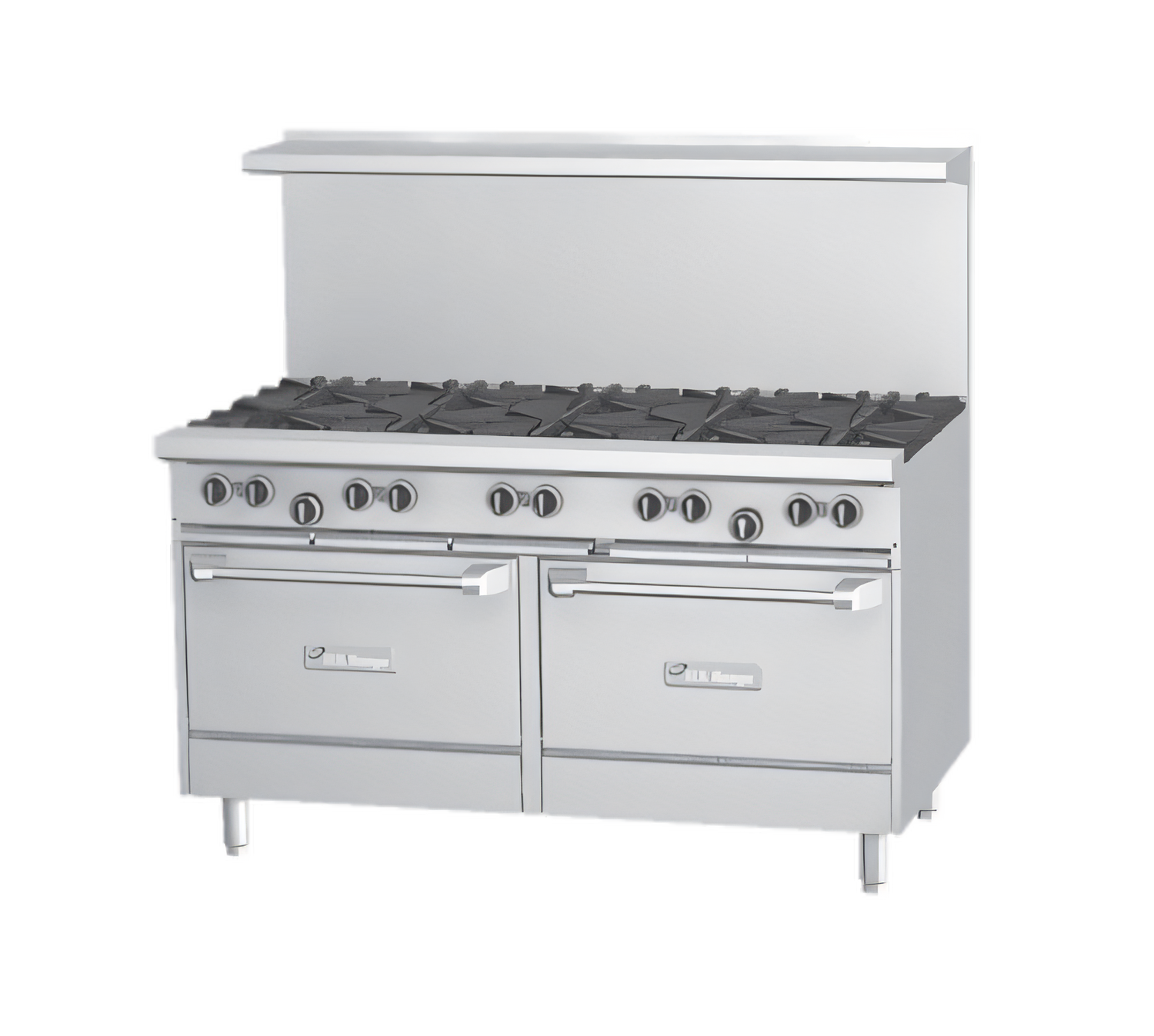

Garland U.S. Range U60-10RR 60" Gas Restaurant Range
10 Open Burners • 2 Standard Ovens • 396,000 BTUEngineered for high-volume kitchens that can’t slow down, the Garland U-Series 60" range delivers the fire-power, capacity and rugged build that professional chefs demand. Ten 32,000 BTU open burners sit on a spacious 27" deep work-top, while twin full-size ovens below keep entrées and sides moving at peak service speeds.
Top-Line Performance

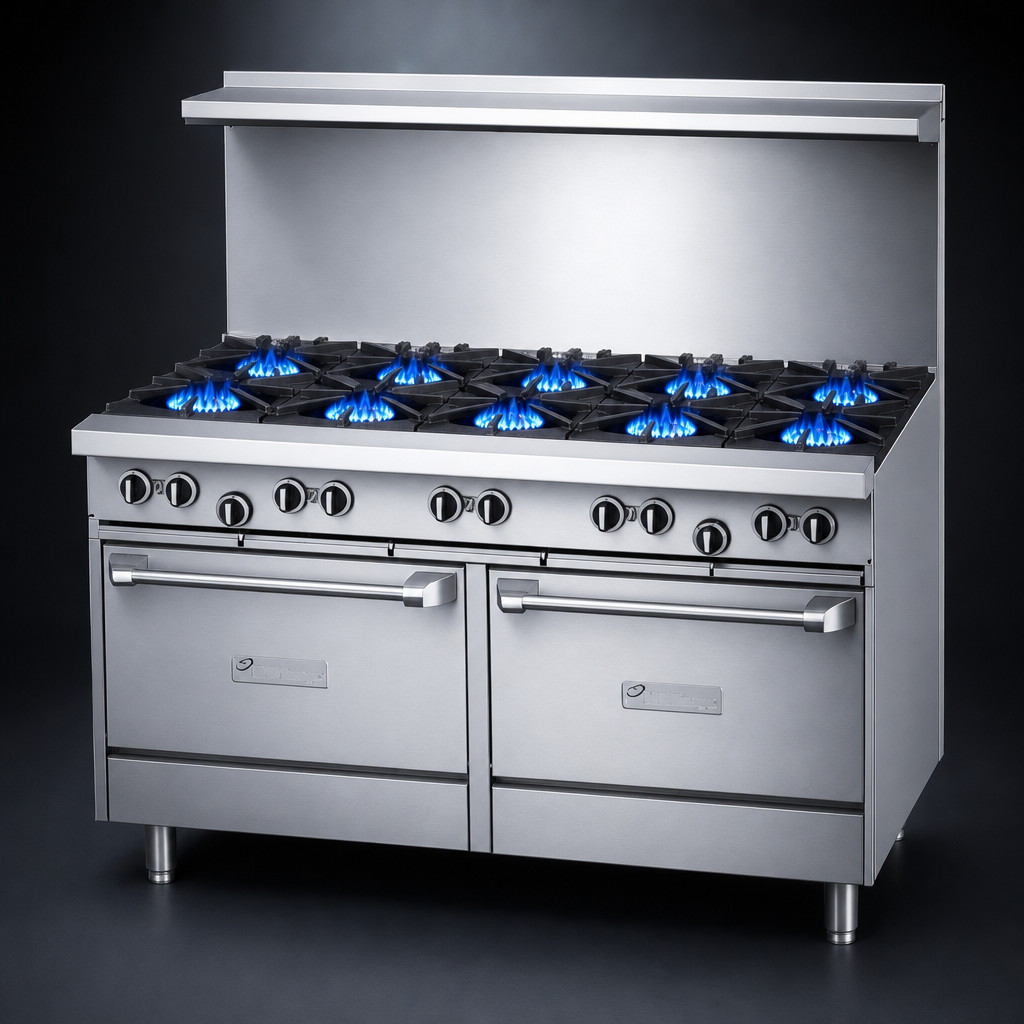

- Ten powerful 32,000 BTU (9.37 kW) two-piece cast-iron geometric open burners for rapid boil & precise simmer.

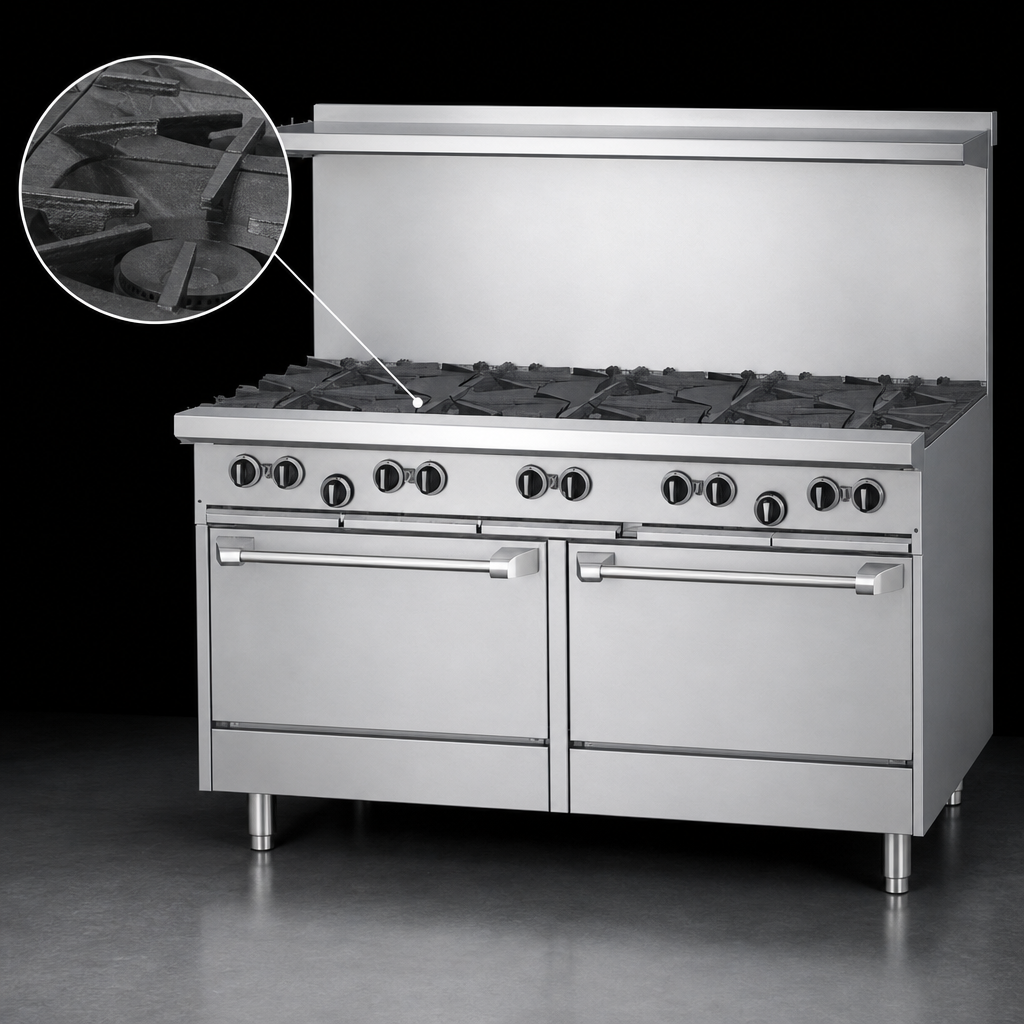

- Ergonomic split cast-iron top & ring grates lift out individually for fast cleaning.
- 12" stamped drip trays with dimpled bottoms catch spills for a cleaner cookline.
- Factory-installed 3/4" gas regulator ensures consistent burner pressure.
Twin Standard Ovens
- Two heavy-duty “H” style burners — 38,000 BTU (11.13 kW) each.
- Snap-action modulating thermostat from LOW to 500 °F (260 °C) for even bake and fast recovery.
- Porcelain-lined ribbed bottom & door plus aluminized steel sides/top/back for durability and easy wipe-down.
- Each cavity includes a nickel-plated rack with 3-position removable guides; fits 18" × 26" sheet pans front-to-back or left-to-right.
Built to Last
- Stainless steel front, sides, 5" plate rail, and two-piece backguard with removable shelf.
- 6" adjustable stainless steel legs for simple leveling and under-range cleaning.
- Large, easy-grip control knobs stand up to constant use.
- CSA Flame, CSA Star, cCSAus and NSF listed for North American code compliance.
Specifications
| Model | U60-10RR (Natural or Propane) |
|---|---|
| Total Input | 396,000 BTU/hr | 116 kW |
| Open Burners | 10 × 32,000 BTU cast-iron |
| Ovens | 2 standard; 38,000 BTU each |
| Work-Top Width × Depth | 59-1/16" × 34-1/2" (1500 × 876 mm) |
| Work-Top Depth (usable) | 27" (686 mm) |
| Overall Height (with std. backguard) | 57" (1448 mm) |
| Oven Interior (W × D × H) | 26-1/4" × 26" × 13" (667 × 660 × 330 mm) |
| Gas Connection | 3/4" NPT rear; manifold pressure – Natural 4.5" WC / Propane 10" WC |
| Clearances to Combustibles | Sides 14" (356 mm) • Rear 6" (152 mm) |
Shipped on 6" stainless legs; optional caster kits and other accessories sold separately.
Commercial use only: This appliance is not approved for residential installations.
