Garland

US Range U-Series 48-Inch Gas Restaurant Range with Full-Width Griddle, Convection Oven, and Storage Base

SKU: U48-G48CS
$10,949.85
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Garland Gas Ranges New Arrivals Ranges Restaurant Equipment

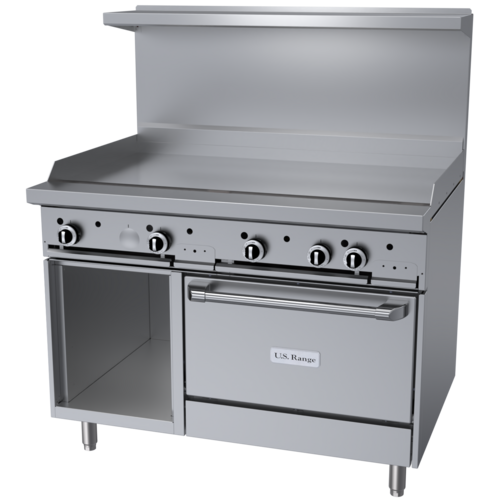

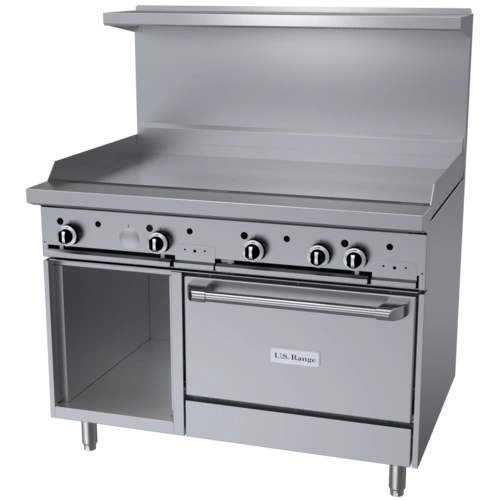

US Range U-Series 48-Inch Gas Restaurant Range with Full-Width Griddle, Convection Oven, and Storage Base

5/8-Inch Smooth Steel Plate, Stainless Steel Exterior, High-Shelf Backguard

Built for high-volume kitchens, this 48-inch gas range combines a full-width griddle, convection oven, and storage base in one rugged stainless steel unit.

  • 48-inch gas restaurant range with a full-width 5/8-inch smooth steel griddle plate.
  • One convection oven with 3-position rack guides and 3 included oven racks.
  • Built-in storage base adds useful under-range storage.
  • Stainless steel front, sides, plate rail, 2-piece back guard, and shelf for durability.
  • High-output design delivers 110,000 BTU for demanding commercial service.
  • 6-inch stainless steel legs with adjustable feet help simplify leveling and installation.

Overall Dimensions:

48.0"W x 34.5"D x 57.0"H

Product Weight:

659.0 lb

Full-Width Griddle

Includes one 48-inch griddle with a 5/8-inch thick smooth steel plate for flat-top cooking.

Convection Oven Included

Features one convection oven with 3 position rack guides and 3 racks for baking and roasting.

Storage Base

Built-in storage base provides extra storage under the cooking section.

Stainless Steel Exterior

Stainless steel front, sides, plate rail, 2-piece back guard, and shelf help resist wear in busy kitchens.

High Heat Output

Rated at 110,000 BTU for strong cooking performance.

Heavy-Duty Support

6-inch stainless steel legs with adjustable feet provide a stable floor installation.

Oven Convenience Features

Includes a gas regulator, easy-access oven pilot, reinforced chassis, and porcelain oven bottom and door liner.

Convection Fan Motor

Standard 1/3 HP fan motor operates on 120V, 60 Hz, single-phase power; a 240V motor option is also offered.

Type Gas Restaurant Range
Style Range With Convection Oven
Installation Type Floor Model
Cooking Surface Width 47-1/4 Inches
Cooking Surface Depth 27 Inches
Material Stainless Steel
Interior Finish Porcelain
Finish Stainless Steel
BTU 110,000 BTU/Hr
Voltage 120 Volts
Amps 3.4 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Gas Connection Size 3/4 Inch
Shipping Width 48 Inches
Shipping Depth 35 Inches
Shipping Height 57 Inches
Shipping Weight 659 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It includes one full-width griddle, one convection oven with 3 position rack guides and 3 racks, and a storage base.
The griddle uses a 5/8-inch thick smooth steel plate.
The standard convection oven motor is 120V, 60 Hz, single-phase, 3.4 amps, and is supplied with a 6-foot cord and NEMA 5-15P plug. A 240V motor option is also available and requires direct connect.
The U48-G48CS is rated at 110,000 BTU/Hr.
The rear gas input is 3/4 inch.
No. The documentation states that this product is not approved for residential use.
