Garland U48-8RS US Range U Series Ranges Gas Ranges
Description

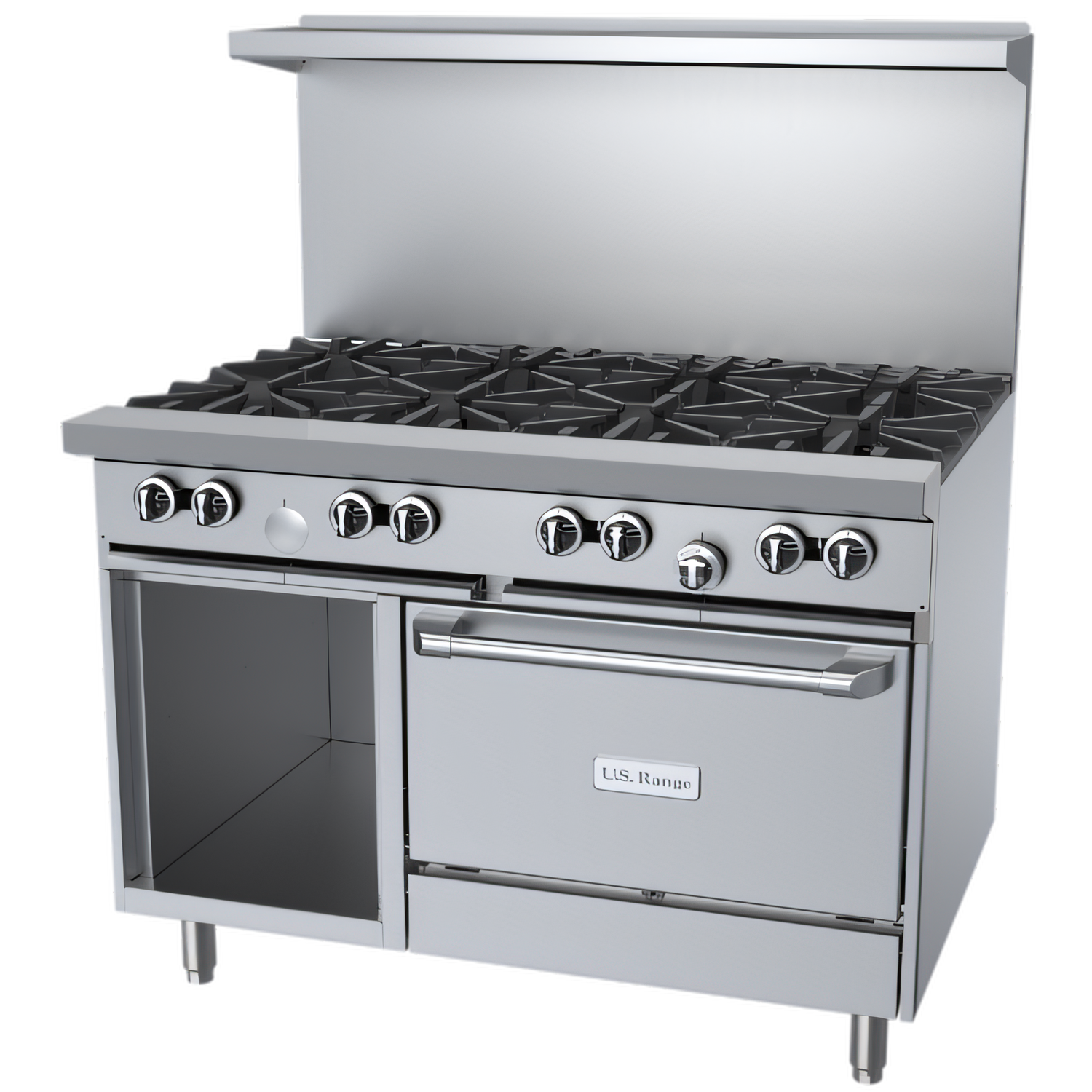

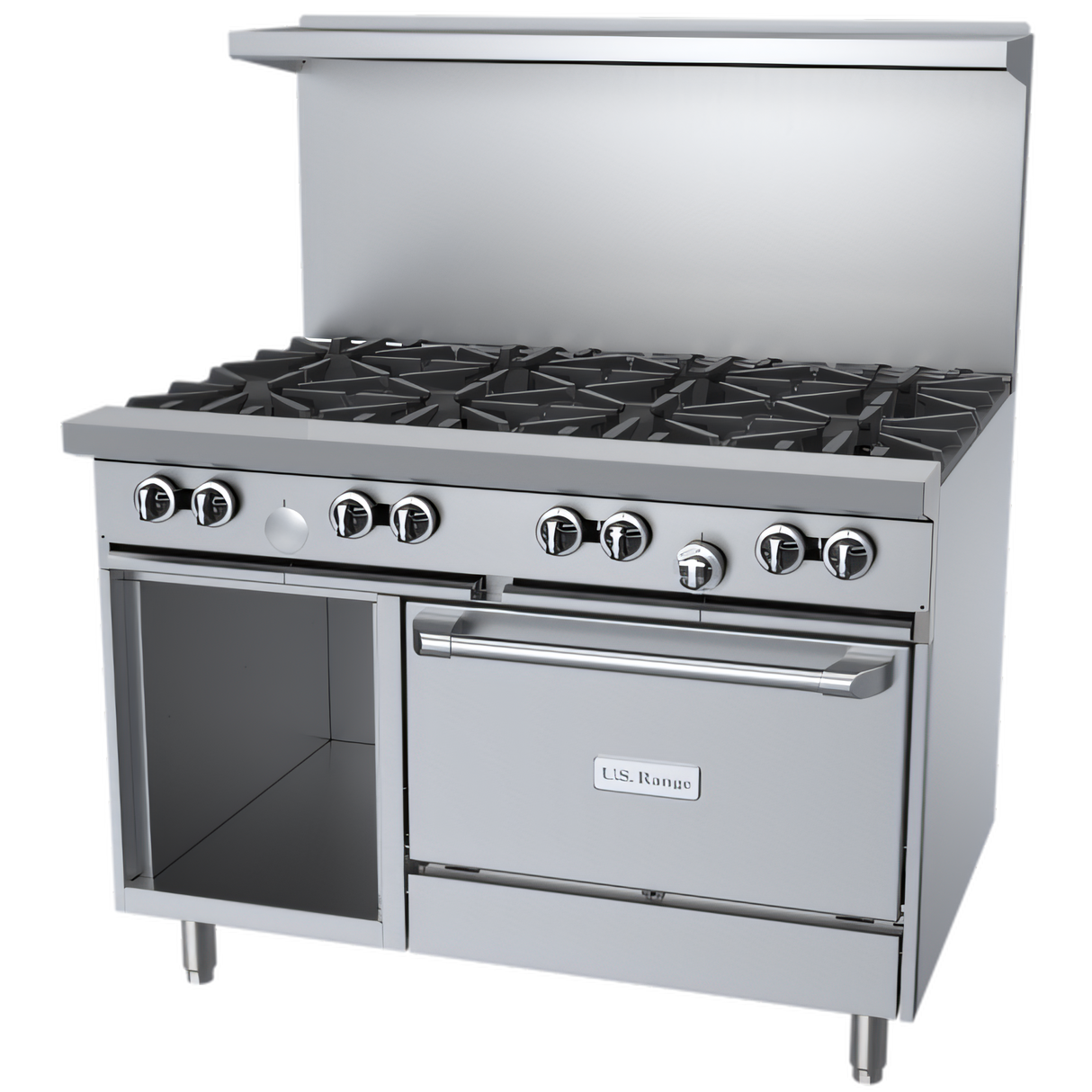

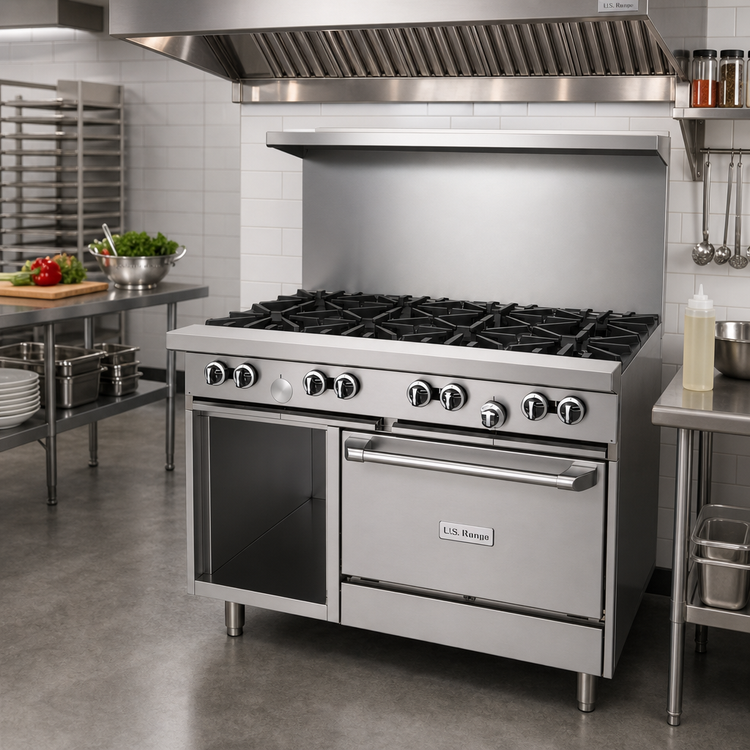

U.S. Range U-Series 48" Gas Restaurant Range – 8 Burners / 1 Oven + Storage
Model U48-8RS | 294,000 BTU Natural GasBuilt for high-volume kitchens, the Garland U-Series 48" range combines blistering burner power, a full-size oven, and convenient under-range storage in one rock-solid, stainless-steel platform.
Performance Highlights

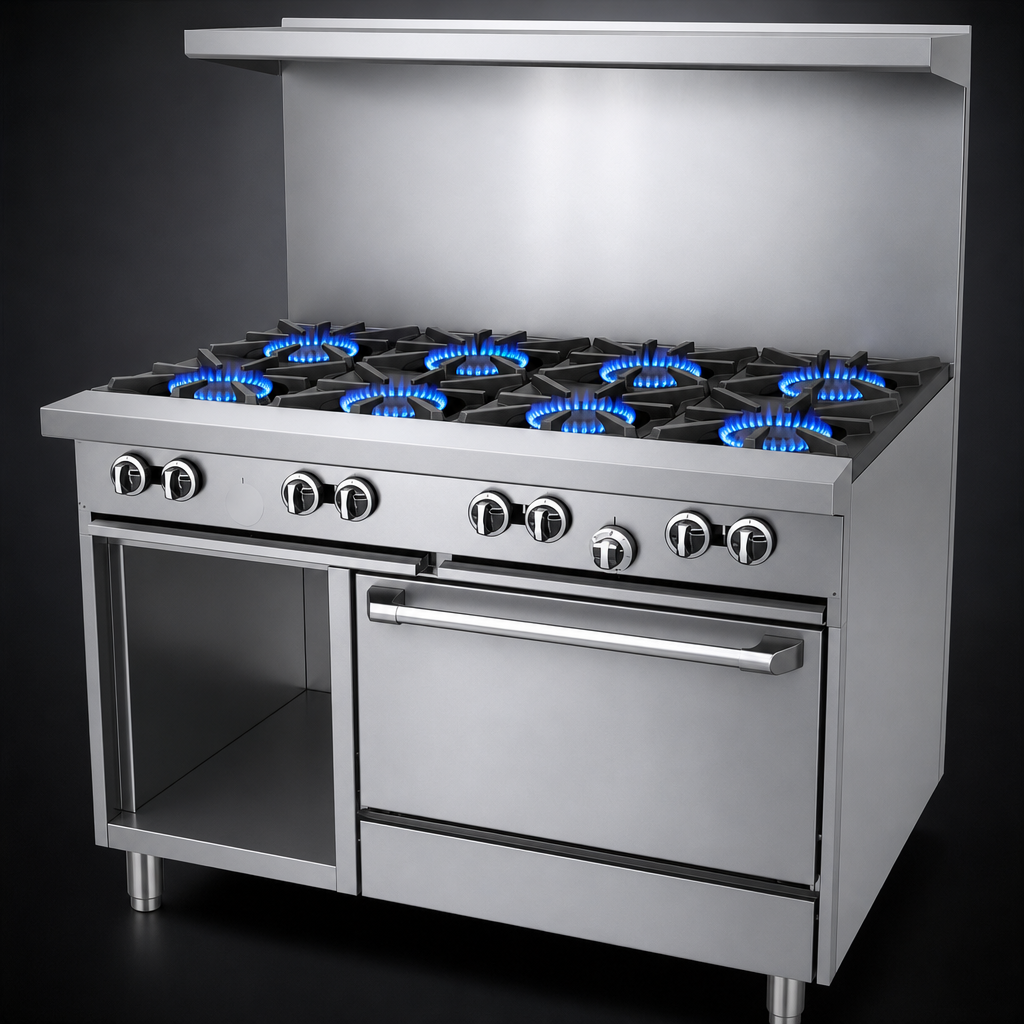

- Eight 32,000 BTU two-piece cast-iron open burners – instant, even heat with lightning-fast recovery.
- Ergonomic split cast-iron top & ring grates let you slide heavy stock pots without lifting.

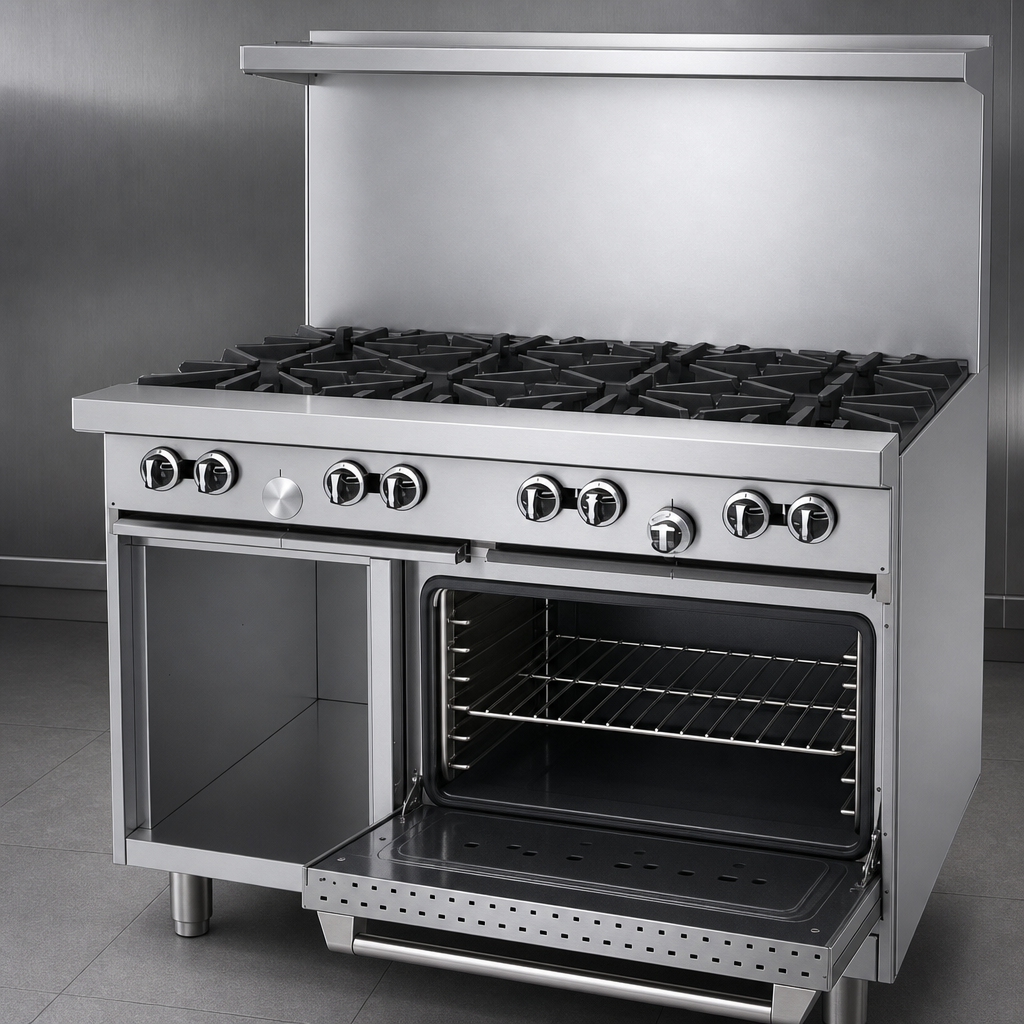

- Full-size 26-¼" standard oven (38,000 BTU “H” burner) with snap-action thermostat from “low” to 500 °F.
- Porcelain-enamel oven bottom & door liner for easy spray-and-wipe cleanup.
- Three-position rack guide; 1 × nickel-plated rack included — fits 18 × 26" sheet pans both directions.
- 20" built-in storage base keeps hotel pans, lids & smallwares close at hand.
- Generous 27" deep work top and 5" plate rail for prep, plating & pass-through.
- Two-piece stainless backguard with removable shelf – simple daily wash-down.
- 6" stainless-steel legs with adjustable feet ensure rock-solid leveling.
- Factory-installed gas regulator; certified CSA Flame, CSA Star, cCSAus & NSF.
Why It Belongs on Your Line
- 256,000 BTU of open-top capacity slashes boil times and keeps sauté stations firing.
- Single oven + storage saves space without sacrificing cooking power.
- All-stainless exterior stands up to chemicals, bumps and daily abuse.
- Front-serviceable components minimize downtime and service cost.
Technical Specifications
| Model | U48-8RS (Natural Gas) |
|---|---|
| Overall Width | 47-1/4" (1200 mm) |
| Overall Depth | 34-1/2" (876 mm) | Work-top depth 27" (686 mm) |
| Overall Height | 57" (1448 mm) with standard backguard |
| Cooking Height | 36" (914 mm) |
| Open Burners | 8 × 32,000 BTU (9.37 kW) cast-iron |
| Oven Burner | 38,000 BTU (11.13 kW) cast-iron “H” |
| Total Input | 294,000 BTU/hr (86.1 kW) |
| Oven Interior (W × D × H) | 26-1/4" × 26" × 14" (667 × 660 × 356 mm) |
| Gas Connection | 3/4" NPT (rear) |
| Manifold Pressure | Natural 4.5" WC | Propane 10" WC |
| Net / Shipping Weight | ≈ 539 lb / 244 kg |
| Safety & Sanitation | CSA Flame, CSA Star, cCSAus, NSF |
Ratings shown for installations up to 2,000 ft (610 m) above sea level. Specify altitude and gas type when ordering. For commercial use only.
Factory Options & Accessories
- Convection oven base (suffix CS) in lieu of standard oven.
- 12", 24" or 36" griddle or hot-top sections instead of open burners.
- Low-profile 9-⅜" backguard.
- 6" locking swivel casters or flanged deck legs.
- Extra oven racks, Celsius dial plates, piezo pilot ignition & more.
Power, capacity and durability — all in a compact 48" footprint. Put the Garland U-Series Range to work and keep the heat on service after service.
