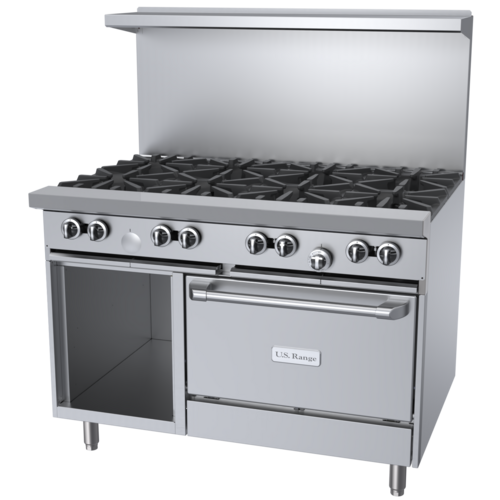

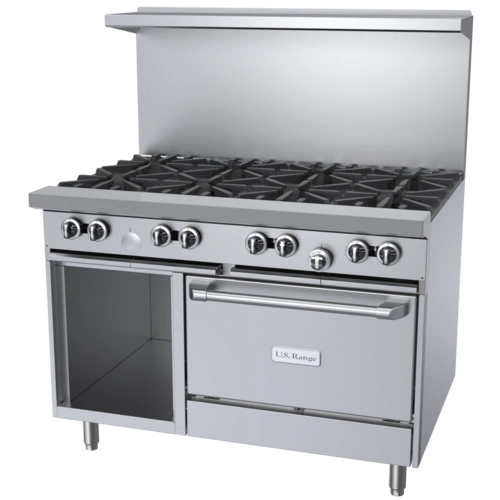

Garland US Range U-Series 48-Inch Gas Restaurant Range with 8 Open Burners, Convection Oven, and Storage Base

SKU: U48-8CS
$9,086.40
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Garland Gas Ranges New Arrivals Ranges Restaurant Equipment

Garland US Range U-Series 48-Inch Gas Restaurant Range with 8 Open Burners, Convection Oven, and Storage Base

Natural Gas, Stainless Steel Front and Sides, Hi-Shelf Backguard

Built for high-volume kitchens, this 48-inch gas range combines eight high-output open burners with a convection oven in a durable stainless steel floor model.

  • 48-inch gas restaurant range with 8 open burners and 1 convection oven.
  • 294,000 BTU/hr natural gas input for demanding line-service cooking.
  • Convection oven includes 3 racks, removable rack guides, and a snap-action thermostat up to 500°F.
  • Stainless steel front, sides, plate rail, backguard, and shelf for durability and easy cleaning.
  • Storage base plus 6-inch adjustable stainless steel legs for added utility and stability.

Overall Dimensions:

48.0"W x 34.5"D x 57.0"H

Product Weight:

539.0 lb

Eight High-Output Open Burners

Eight cast-iron open burners are rated at 32,000 BTU each for strong heat output across the top.

Built-In Convection Oven

One convection oven includes three nickel-plated racks and removable rack guides for baking and roasting flexibility.

Snap-Action Oven Thermostat

Modulating thermostat provides oven temperature control from low to 500°F.

Stainless Steel Construction

Stainless steel front, sides, plate rail, backguard, and shelf help improve durability and simplify cleanup.

120V Convection Fan Motor

The convection oven uses a 1/3 HP, 120V, 60 Hz, single-phase fan motor for even heat circulation.

Storage Base

Built-in storage base adds utility beneath the cooking surface.

Stable Adjustable Legs

6-inch stainless steel legs with adjustable feet help with leveling and support.

Heavy-Duty Service Design

Includes a gas regulator, easy-access oven pilot, reinforced chassis, and stamped drip trays with dimpled bottoms.

Type Restaurant Range
Style Open Burner
Installation Type Floor Model
Capacity 1 Convection Oven
Material Stainless Steel
BTU 294,000 BTU/Hr
Gas Type Natural Gas
Gas Connection Size 3/4 Inch
Gas Inlet Pressure 4.5 Inches W.C.
Voltage 120 Volts
Amps 3.4 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Cooking Surface Width 47.25 Inches
Cooking Surface Depth 27 Inches
Shipping Width 48 Inches
Shipping Depth 35 Inches
Shipping Height 57 Inches
Shipping Weight 539 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It has eight 32,000 BTU cast-iron open burners.
Yes. It includes one convection oven with three racks and removable rack guides.
The convection oven uses a 120V, 60 Hz, 1-phase, 3.4 amp motor and is supplied with a 6-foot cord and NEMA 5-15P plug.
The listed total input is 294,000 BTU/hr on natural gas.
The documentation lists 4.5 inches W.C. manifold pressure for natural gas and 10 inches W.C. for propane.
Yes. Options include additional oven racks, a 240V convection oven motor, casters, flanged deck mount legs, Celsius temperature dials, and a low-profile backguard.
