Garland

US Range U-Series 48-Inch Gas Restaurant Range with 6 Open Burners, 12-Inch Griddle, and Dual Space-Saver Ovens

SKU: U48-6G12LL
$8,406.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Garland Gas Ranges New Arrivals Ranges Restaurant Equipment

US Range U-Series 48-Inch Gas Restaurant Range with 6 Open Burners, 12-Inch Griddle, and Dual Space-Saver Ovens

274,000 BTU Total Output, Stainless Steel Floor Model

Built for busy kitchens, this 48-inch gas range combines six open burners, a 12-inch griddle, and two space-saver ovens in one rugged stainless steel platform.

  • Six 32,000 BTU open burners provide high-output cooking power for demanding line production.
  • 12-inch griddle with a 5/8-inch thick steel plate adds versatile flat-top cooking space.
  • Two space-saver ovens include 3-position rack guides and an oven rack for flexible baking.
  • Stainless steel front, sides, plate rail, backguard, and shelf help stand up to commercial use.
  • 6-inch stainless steel legs with adjustable feet support stable floor installation.
  • 274,000 BTU total output delivers the heat needed for high-volume cooking.

Overall Dimensions:

48.0"W x 34.5"D x 57.0"H

Product Weight:

602.0 lb

Six 32,000 BTU Open Burners

High-output cast open burners are set in split ergonomic grates for fast, even cooking.

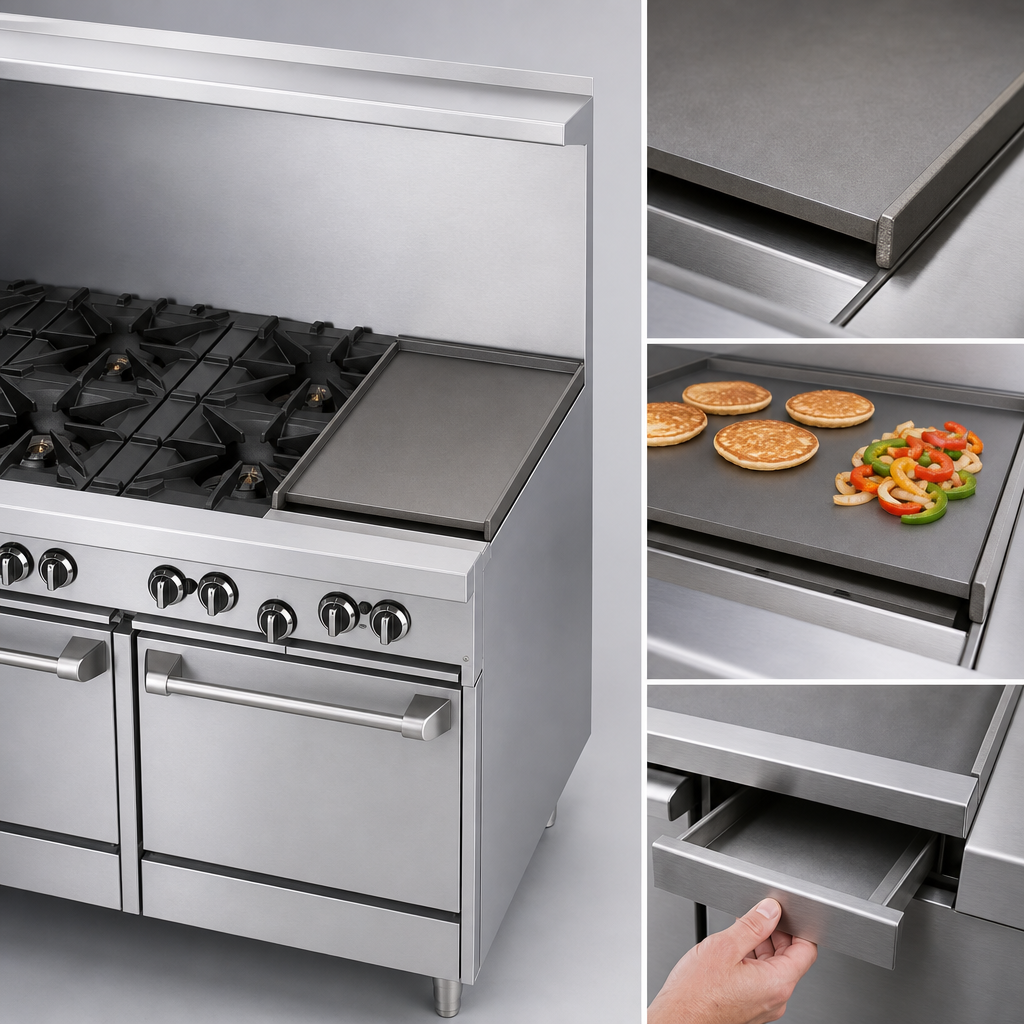

12-Inch Steel Griddle

The griddle features a 5/8-inch thick steel plate and a front-serviceable design for easier maintenance.

Dual Space-Saver Ovens

Two ovens include a snap-action modulating thermostat, 3-position removable rack guides, and an oven rack.

Stainless Steel Exterior

Stainless steel front, sides, plate rail, backguard, and shelf provide a durable commercial finish.

Heavy-Duty Oven Construction

Porcelain oven bottoms and door liners pair with keep-cool oven door handles for daily use.

Adjustable Floor Support

6-inch stainless steel legs with adjustable feet help level the range during installation.

Type Restaurant Range
Style Open Burner / Griddle
Installation Type Floor Model
Material Stainless Steel
BTU 274,000 BTU
Compartments 2
Cooking Surface Width 47-1/4 Inches
Cooking Surface Depth 27 Inches
Shipping Width 48 Inches
Shipping Depth 35 Inches
Shipping Height 57 Inches
Shipping Weight 602 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It has six open burners, each rated at 32,000 BTU.
Yes. It includes one 12-inch griddle with a 5/8-inch thick steel plate.
This model includes two space-saver ovens with 3-position rack guides and an oven rack.
The range is rated at 274,000 BTU total.
The document lists manifold operating pressure at 4.5 inches W.C. for natural gas and 10 inches W.C. for propane.
No. The document states that it is not approved for residential use.
