Garland U48-2G36CS

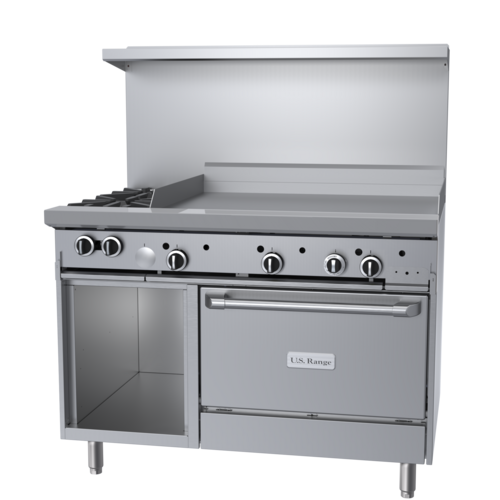

Garland US Range U Series Ranges U48-2G36CS 48-Inch Stainless Steel Gas Range with 2 Open Burners, 36-Inch Griddle, Convection Oven & Storage Base

$10,831.05
/each
Ships in 36–39 business days
BTU
156,000 BTU/Hr
Amps
3.4 Amps
Phase
1-Phase
Dimensions
48.0"W × 34.5"D × 57.0"H
Type
Gas Restaurant Range
Style
Open Burner / Griddle / Convection Oven

Questions before you buy?

Talk to an equipment specialist — usually within 1 hour, 9am–6pm EST.

Specifications

Type Gas Restaurant Range
Style Open Burner / Griddle / Convection Oven
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
BTU 156,000 BTU/Hr
Voltage 120 Volts
Amps 3.4 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Gas Connection Size 3/4 Inch
Gas Inlet Pressure 4.5 Inches W.C. (Natural Gas); 10 Inches W.C. (Propane)
Width 48 Inches
Depth 35 Inches
Height 57 Inches
Weight 639 lb.
Selling Unit Each
Units Per Case 1

Description

Garland US Range U-Series 48-Inch Stainless Steel Gas Restaurant Range with 2 Open Burners, 36-Inch Griddle, Convection Oven and Storage Base

156,000 BTU, Floor Model, 120V Convection Fan

This high-output 48-inch gas range combines two open burners, a 36-inch griddle, and a convection oven in one durable stainless-steel platform.

  • Combines two 32,000 BTU open burners, a 36-inch griddle, and a convection oven in one 48-inch cooking station.
  • 5/8-inch steel griddle plate supports durable, even griddle performance.
  • Convection oven includes three rack guides and three racks for baking and roasting.
  • Built-in storage base adds convenient underrange storage.
  • Stainless steel front, sides, plate rail, backguard, and shelf simplify cleanup and resist wear.
  • 6-inch stainless steel legs with adjustable feet and 156,000 BTU total input support busy service.

Overall Dimensions:

48.0"W x 34.5"D x 57.0"H

Product Weight:

639.0 lb

Two Open Burners

Two 32,000 BTU cast-iron open burners provide high-output cooking flexibility.

36-Inch Griddle Section

The griddle section uses a 5/8-inch thick steel plate with manual hi/lo valve control.

Convection Oven

One convection oven includes three rack guides, three racks, and a 120V, 60 Hz single-phase fan motor.

Built-In Storage Base

Integrated storage base adds convenient underrange storage beneath the oven section.

Stainless Steel Construction

Stainless steel front, sides, plate rail, backguard, and shelf help improve durability and cleanup.

Adjustable Legs

6-inch stainless steel legs with adjustable feet help level the range during installation.

High BTU Output

156,000 BTU total input is built for demanding commercial kitchen service.

Service-Friendly Design

Gas regulator and easy-access oven pilot help simplify installation and maintenance.

Documentation

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Frequently Asked Questions

It includes two open burners, a 36-inch griddle, one convection oven, and a storage base.
Yes. The convection oven includes three rack guides, three racks, and a 120V, 60 Hz, single-phase fan motor.
The standard convection motor uses 120 Volts, 60 Hz, 1-phase power, 3.4 amps, a 6-foot cord, and a NEMA 5-15P plug. A 240V motor is also listed as an option.
The rear gas input is 3/4 inch. The documentation lists manifold operating pressure at 4.5 Inches W.C. for natural gas and 10 Inches W.C. for propane.
Available options include a 240V convection oven motor, additional oven racks, a hot top section, a low-profile backguard, casters, flanged deck mount legs, Celsius temperature dials, snap-action modulating griddle control, and piezo spark ignition for griddles.
