Garland U36-6S US Range U Series Ranges Gas Ranges
Description

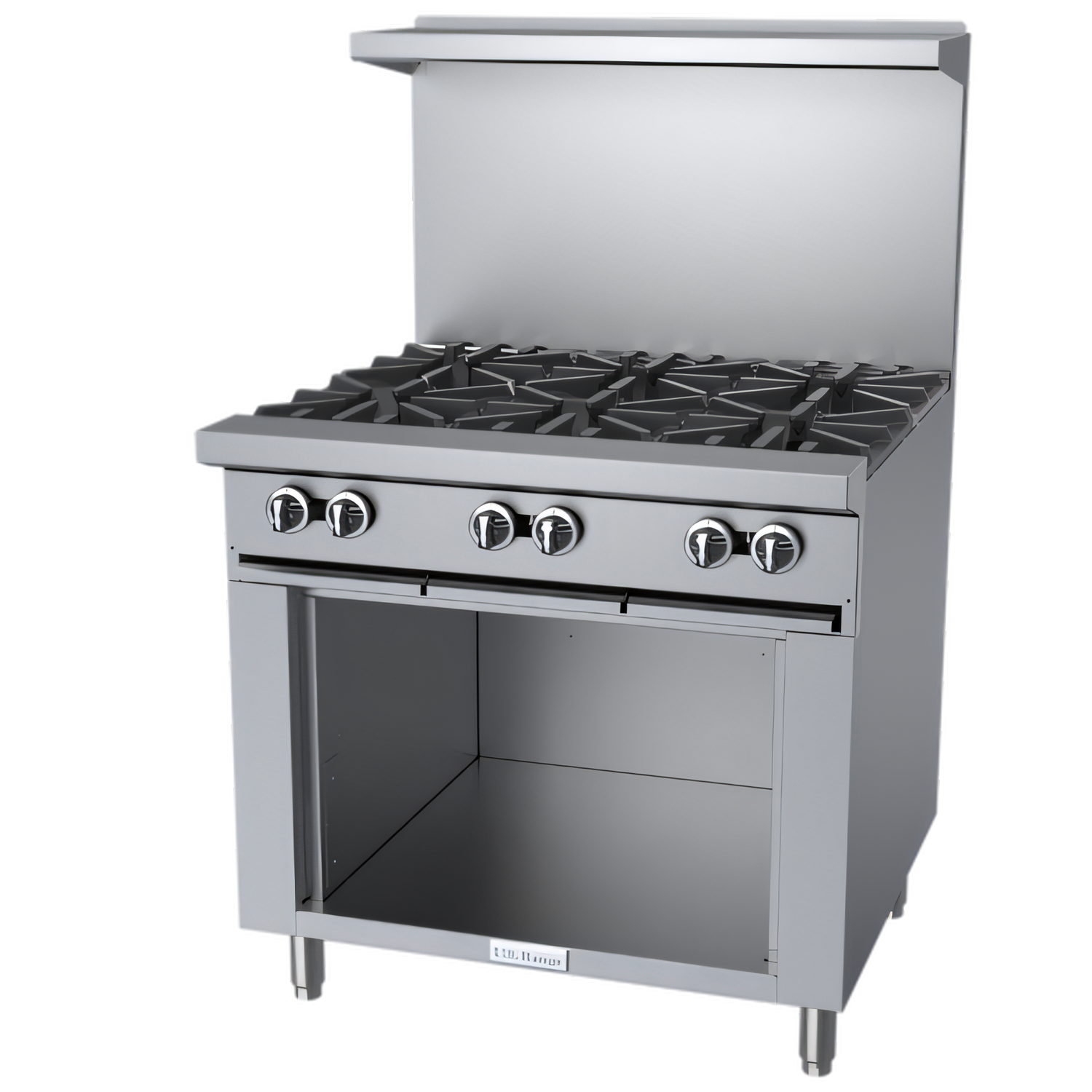

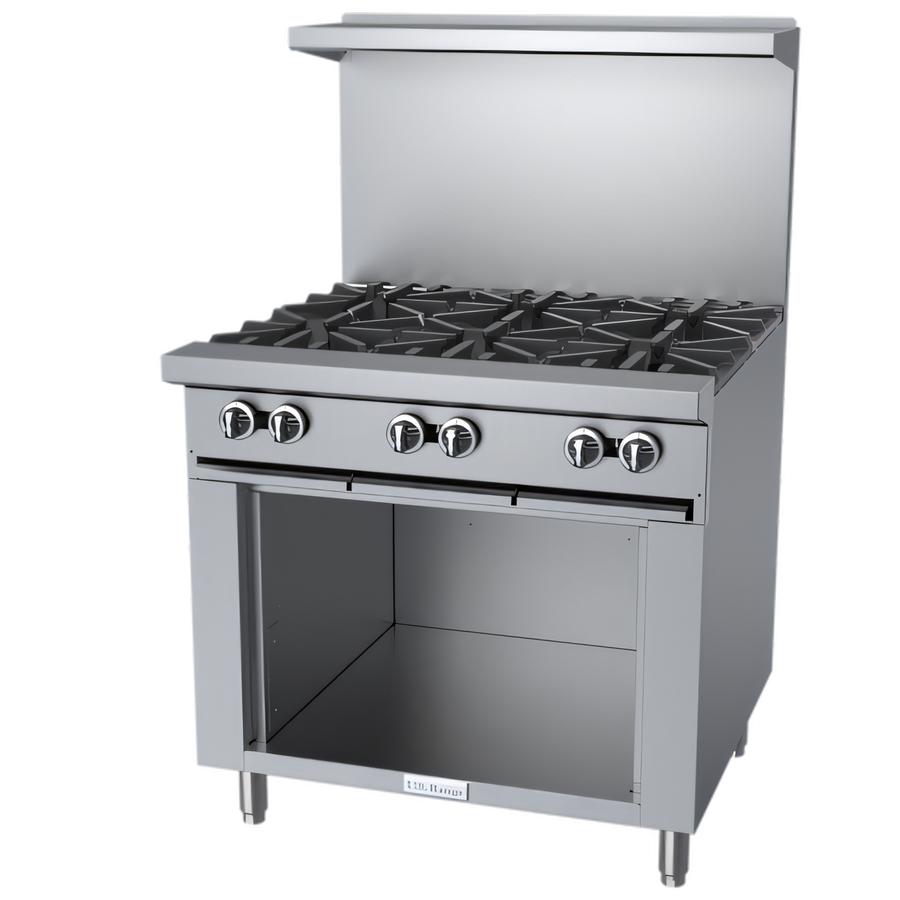

Garland U Series 36" Gas Restaurant Range – 6-Burner w/ Storage Base
Model U36-6S | 192,000 BTU Natural GasBuilt for high-volume kitchens that refuse to compromise, the Garland U36-6S packs six 32,000 BTU open burners, rugged stainless steel construction and a roomy storage base into a compact 36-inch footprint—giving chefs the power and flexibility they need service after service.
Why You’ll Love It

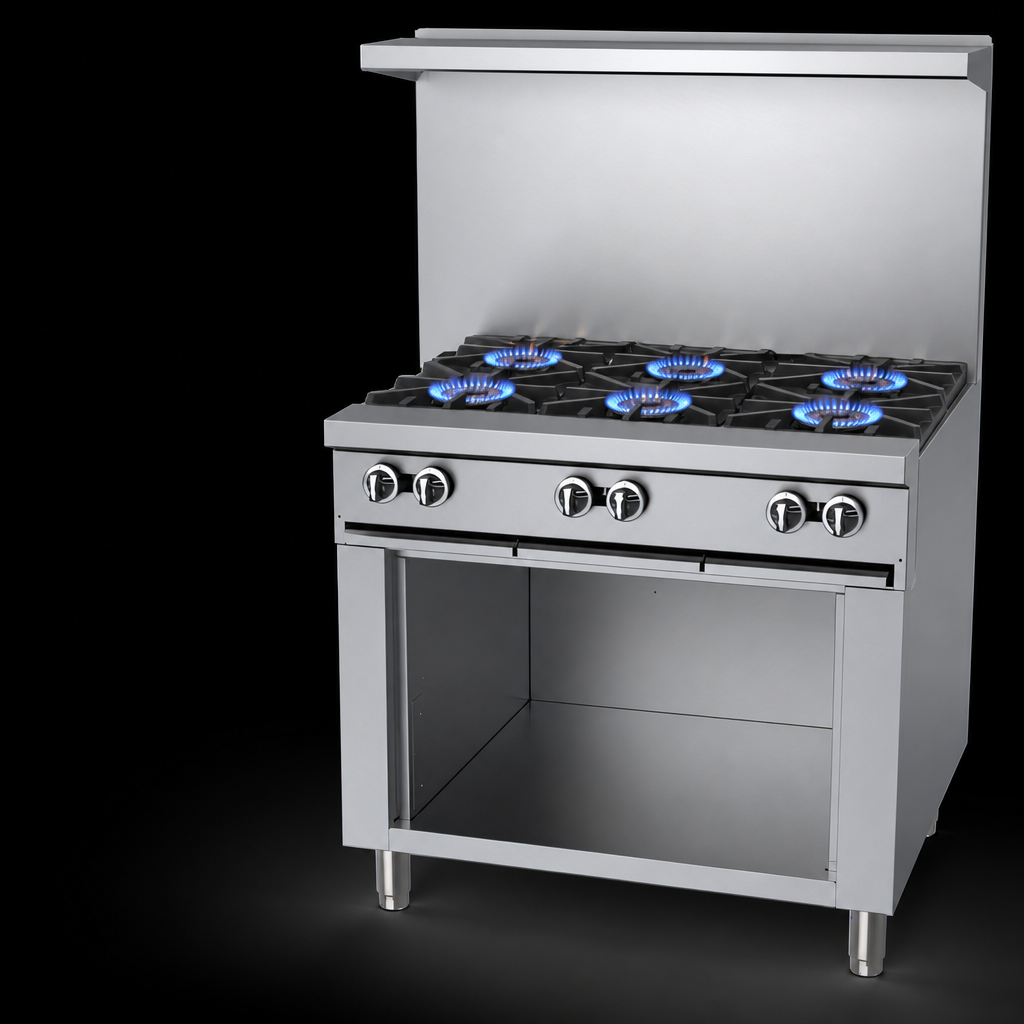

- Six high-performance open burners (32,000 BTU each) deliver instant heat and lightning-fast recovery.
- Two-piece cast-iron geometric burner design spreads flame evenly and lifts off for quick cleaning.

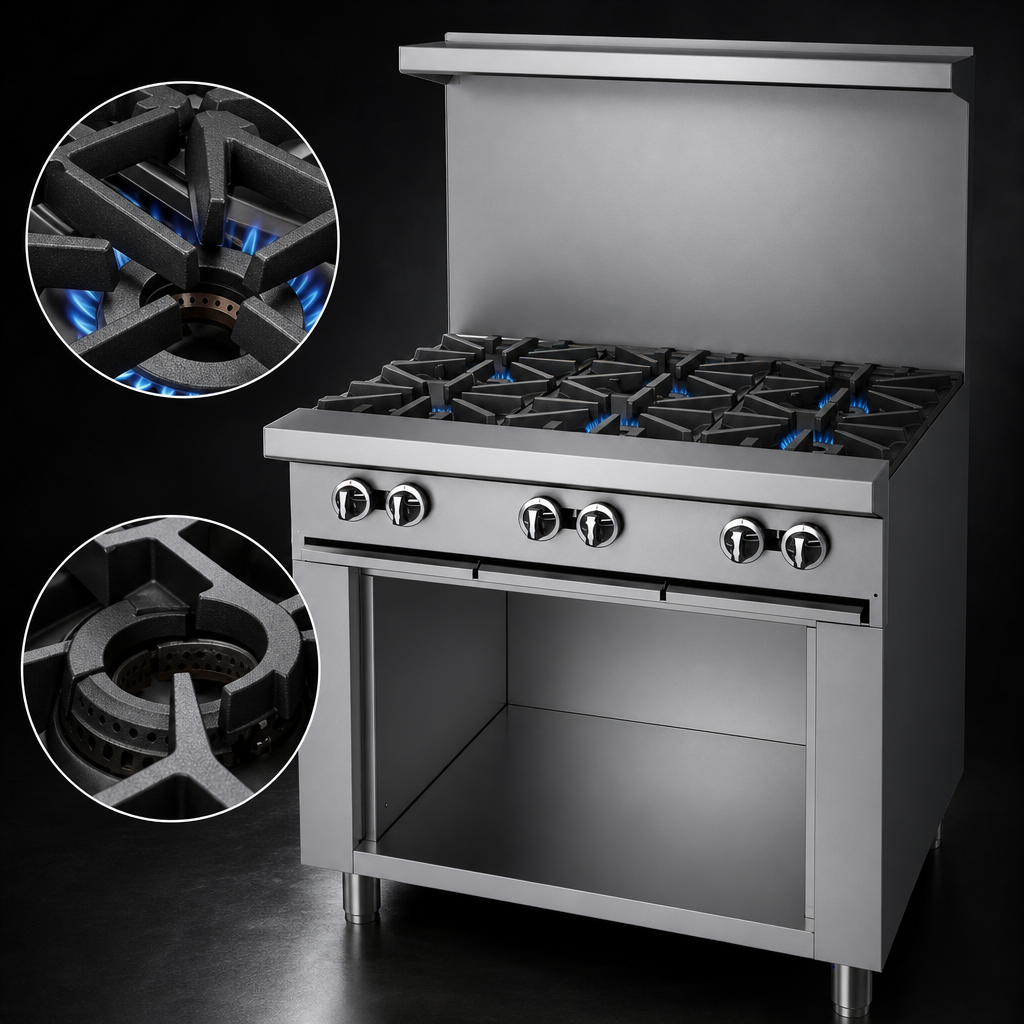

- Ergonomic split cast-iron top ring grates let you slide heavy stock-pots across the 27" deep surface with ease.
- Full stainless steel front, sides, 5" plate rail and two-piece backguard with removable shelf stand up to busy lines.
- 12" stamped drip trays with dimpled bottoms under every two burners keep spills contained.
- Open storage base in lieu of an oven keeps sheet pans, pots and small-wares at arm’s reach.
- 6" adjustable stainless steel legs level the unit on uneven floors for rock-solid stability.
- Large stay-cool control knobs and factory-installed gas regulator simplify daily operation and installation.
Performance & Efficiency
Delivering a combined 192,000 BTU, the U36-6S tackles searing, sautéing and rapid reductions without breaking a sweat. The geometric burner head concentrates heat at the vessel’s center while shielding the grate frame—reducing ambient heat loss and fuel consumption.
Technical Specs
| Overall width | 35-7/16" (900 mm) |
|---|---|
| Overall depth (front rail) | 34-1/2" (876 mm) |
| Work-top depth | 27" (686 mm) |
| Height w/ std. backguard & shelf | 57" (1,448 mm) |
| Open burners | 6 × 32,000 BTU cast-iron open top |
| Total input (natural gas) | 192,000 BTU/hr (56.3 kW) |
| Gas connection | ¾" NPT (rear) – includes regulator; 4.5" WC manifold pressure |
| Base configuration | Open storage (no oven) |
| Exterior material | Stainless steel front, sides, plate rail, backguard & shelf |
| Top grates | Split cast-iron top & ring grates |
| Legs | 6" (152 mm) stainless steel, adjustable |
| Certifications | CSA Flame, CSA Star, cCSAus, NSF |
Optional Accessories
- 6" levelling swivel casters (locking front)
- Flanged deck-mount legs
- Low-profile 9-3/8" backguard
- Celsius temperature dial kit
This appliance is intended for commercial use only. Units supplied with casters must be installed with an approved restraining device in accordance with local codes.
