Garland U36-6R US Range U Series Ranges Gas Ranges
Description

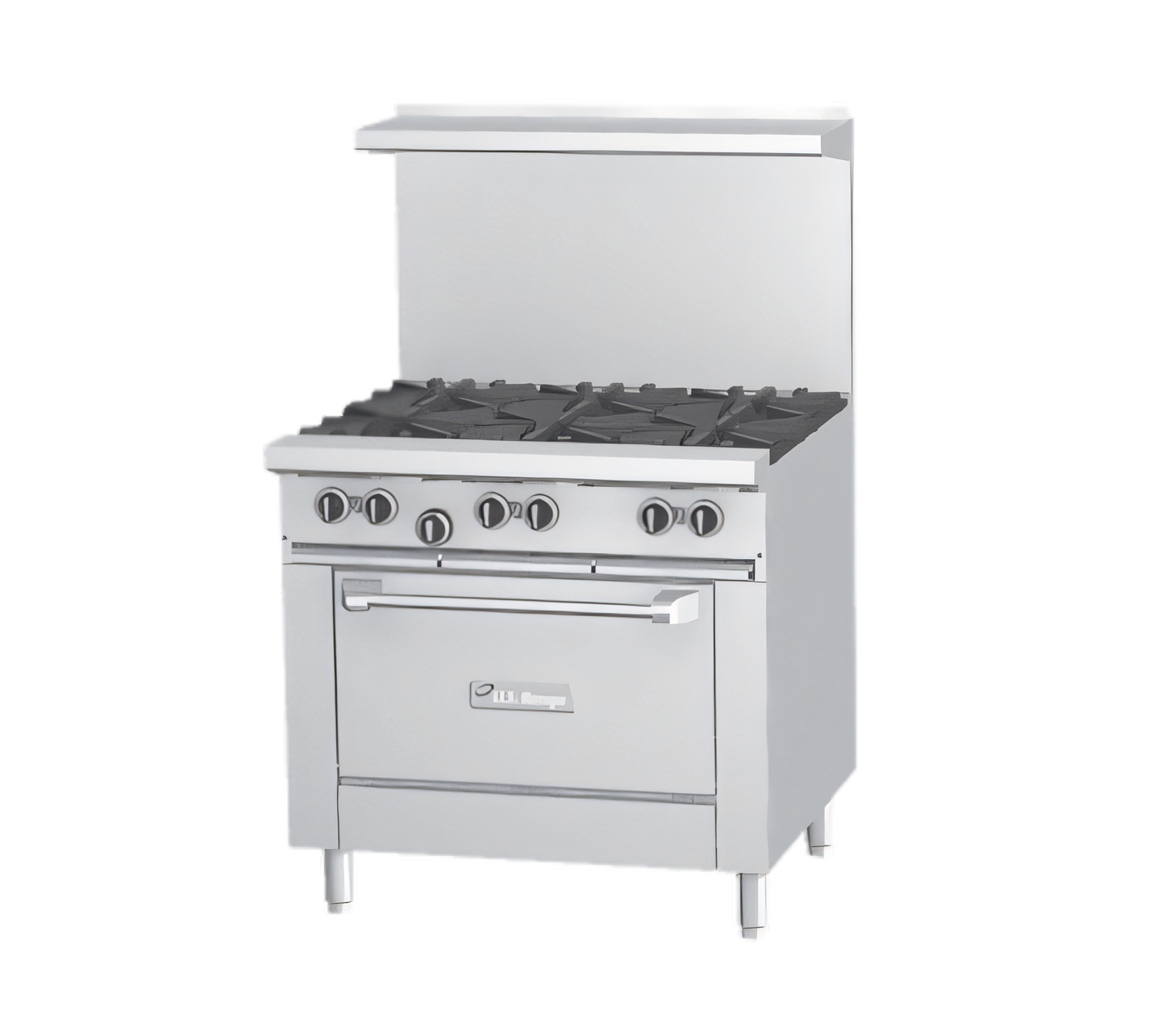

U-Series 36" Gas Restaurant Range – 6 Open Burners & Standard Oven
Model U36-6R | Garland / U.S. RangeEngineered for demanding line-ups, the U-Series 36" range delivers relentless heat, generous cook-top real estate, and a full-size oven that accepts sheet pans in either direction. Heavy-duty stainless construction, powerful cast-iron burners, and operator-friendly controls make it the dependable workhorse every busy kitchen needs.
Performance & Construction

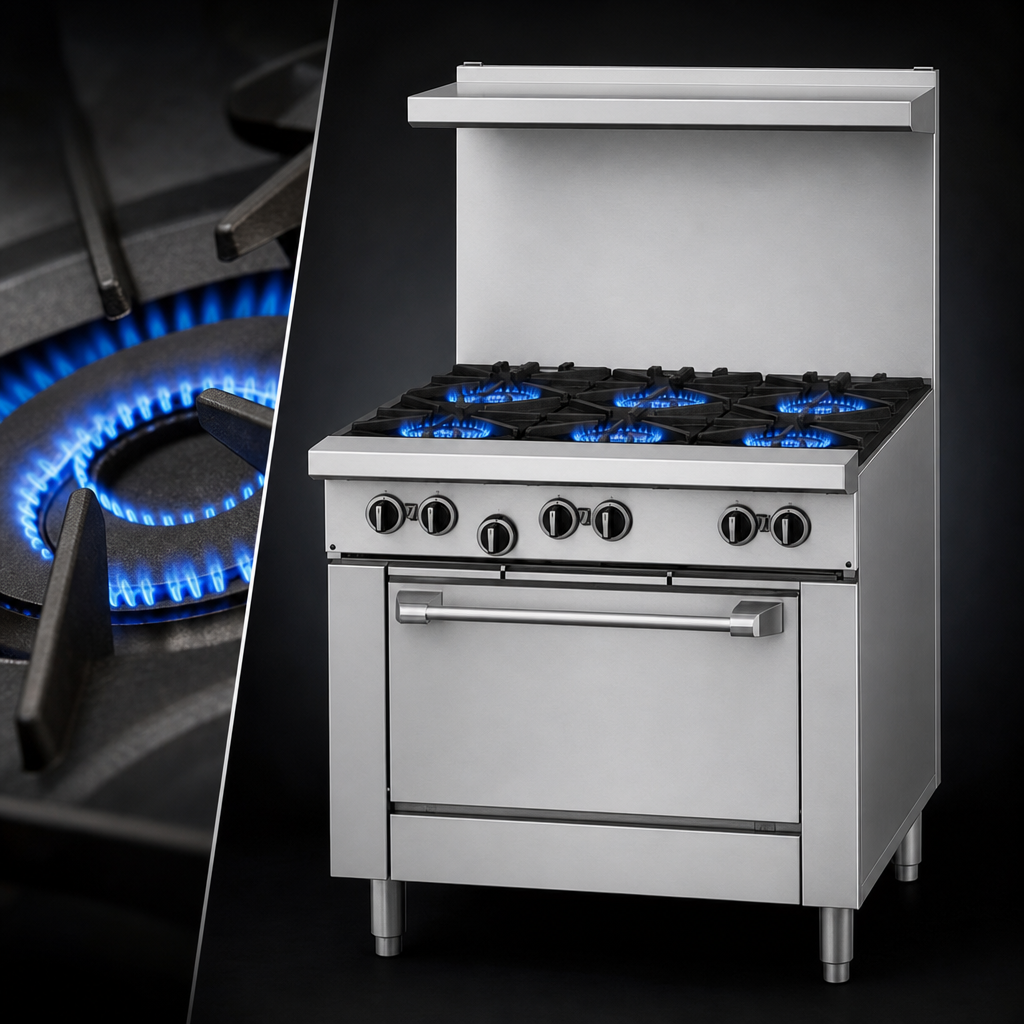

- Six 32,000 BTU two-piece cast-iron open burners (total 192,000 BTU)
- Ergonomic split cast-iron top ring grates for easy pot movement & cleaning
- Spacious 27" (686 mm) work-top depth for maximum pan capacity
- Full stainless steel front, sides, 5" plate rail, and reinforced chassis corners
- Two-piece stainless steel backguard with removable high shelf for convenient plating & warming
- Stamped 12" (305 mm) drip trays with dimpled bottoms below each burner section
- 6" (152 mm) adjustable stainless legs—level, clean, and service with ease
- Factory-supplied gas regulator included

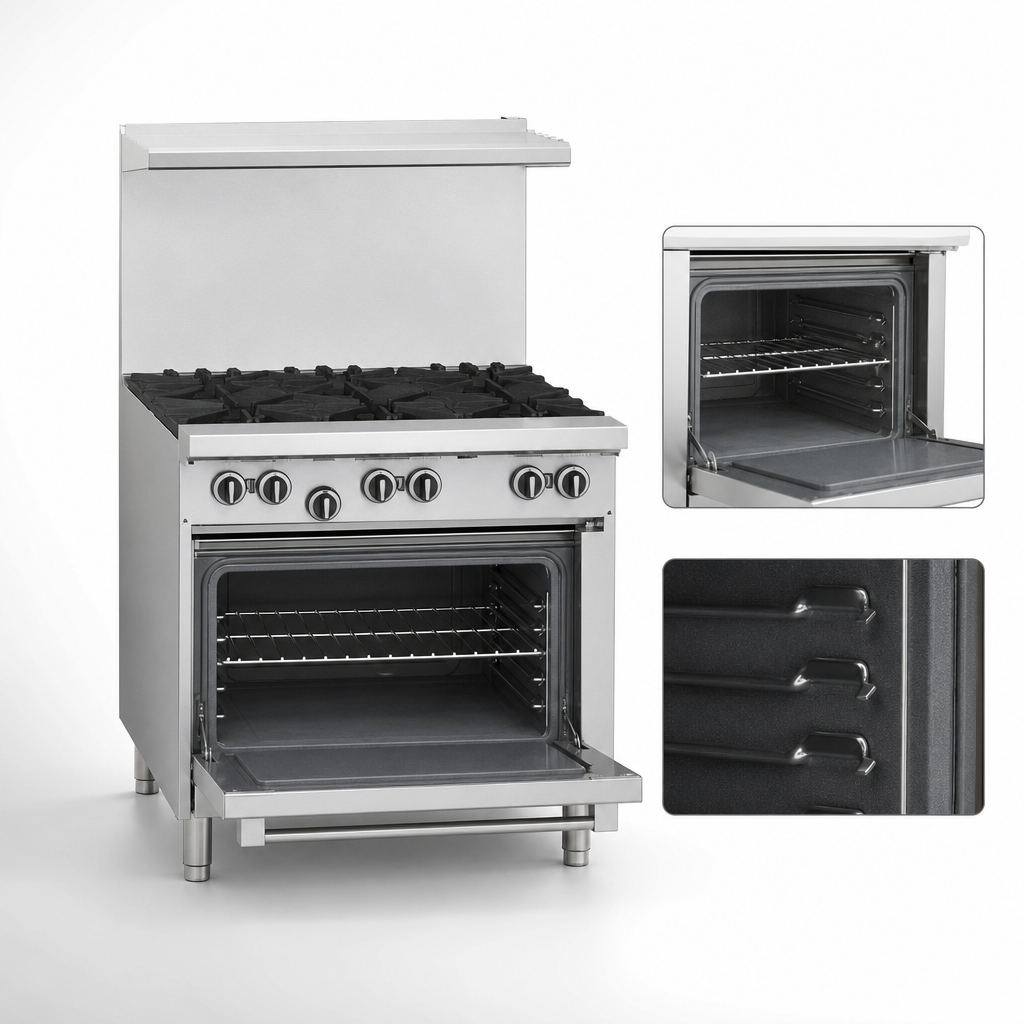

Standard Oven
- Heavy cast-iron 38,000 BTU “H”-style oven burner
- Snap-action modulating thermostat: Low to 500 °F for fast recovery & even bake
- One nickel-plated rack with 3-position removable rack guides
- Porcelain-coated ribbed oven bottom & door liner for quick wipe-downs
- “Keep-cool” door handle with durable square-door design
- Fits full-size 18" × 26" sheet pans sideways or front-to-back
Technical Specifications
| Model | U36-6R |
|---|---|
| Overall Width | 35-7/16" (900 mm) |
| Overall Depth (plate rail to rear) | 34-1/2" (876 mm) |
| Overall Height (w/ backguard & shelf) | 57" (1448 mm) |
| Work-Top Depth | 27" (686 mm) |
| Open Burners | 6 × 32,000 BTU cast-iron (192,000 BTU) |
| Oven Burner | 38,000 BTU cast-iron “H” style |
| Total Input | 230,000 BTU/hr |
| Oven Interior (W × D × H) | 26" × 26-1/4" × 14" (660 × 667 × 356 mm) |
| Gas Connection | ¾" NPT rear, manifold pressure 4.5" WC (Nat) / 10" WC (LP) |
| Clearances (combustible) | Sides 14" (356 mm) | Rear 6" (152 mm) |
| Certifications | CSA Flame, CSA Star, cCSAus, NSF |
| Shipping Weight | 430 lb (195 kg) | 40 ft³ |
Popular Options & Accessories
- 6" swivel locking casters (set of 4) in lieu of adjustable legs*
- Additional nickel-plated oven racks
- Flanged deck-mount legs for curb installations
- Celsius temperature dial kit
*Ranges supplied with casters must be secured with an approved restraining device.
