Garland U36-2G24R US Range U Series Ranges Gas Ranges
Description

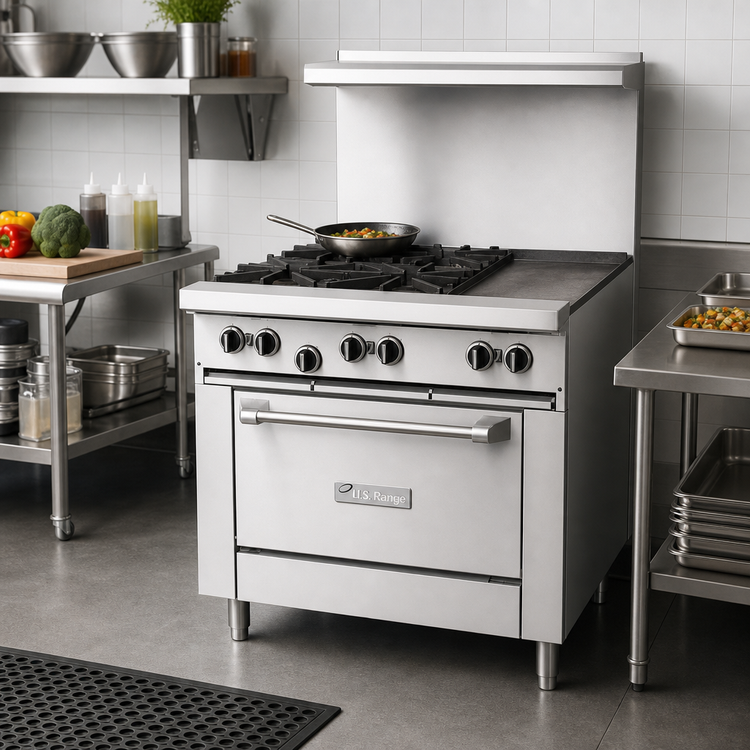

Garland U Series 36" Gas Restaurant Range – 2 Burners & 24" Griddle
Model U36-2G24R | 138,000 BTU | Natural/Propane GasEngineered for the busiest commercial kitchens, the Garland/US Range U Series packs two powerful open burners, a full 24″ griddle and a fast-recovering standard oven into a rugged 36-inch footprint—giving chefs the versatility they need without sacrificing line space.
Key Performance Features

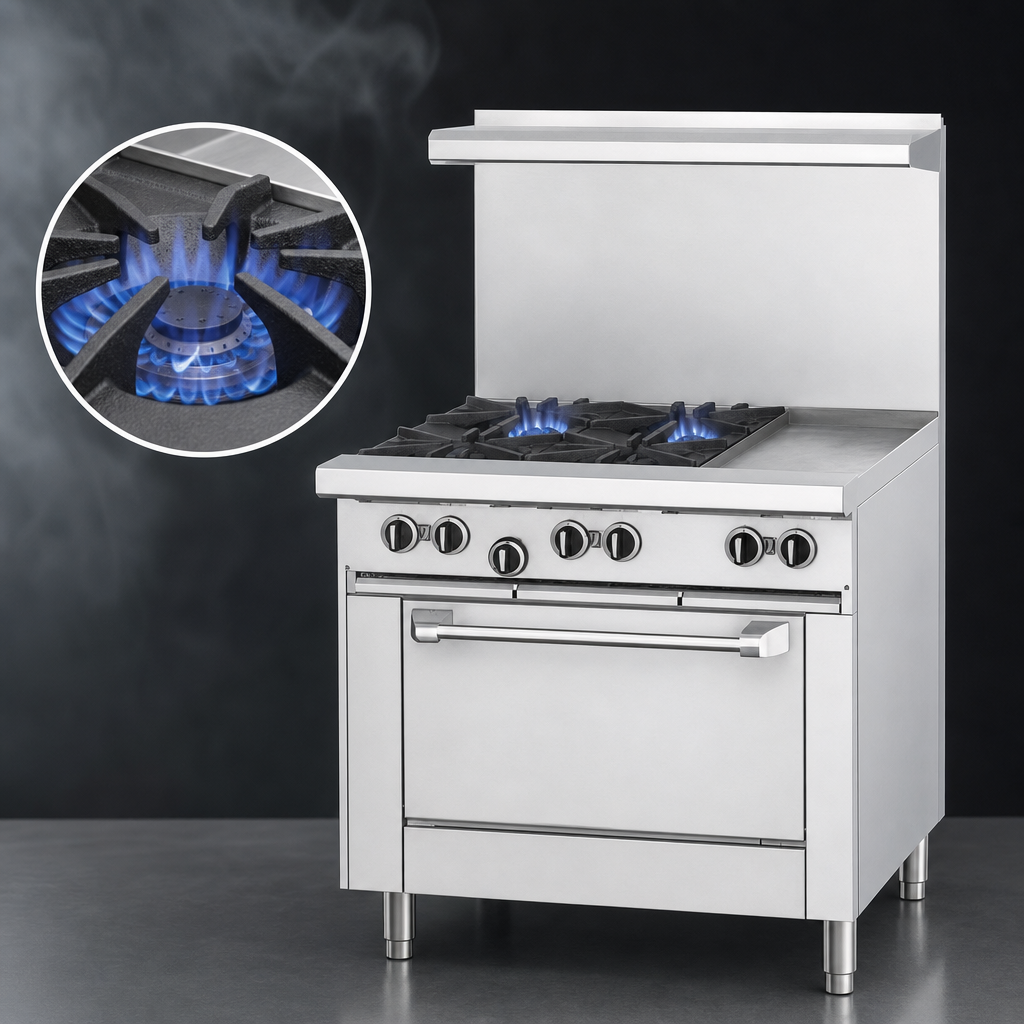

- Two 32,000 BTU cast-iron open top burners with split ergonomic grates for rapid boil-to-simmer control.

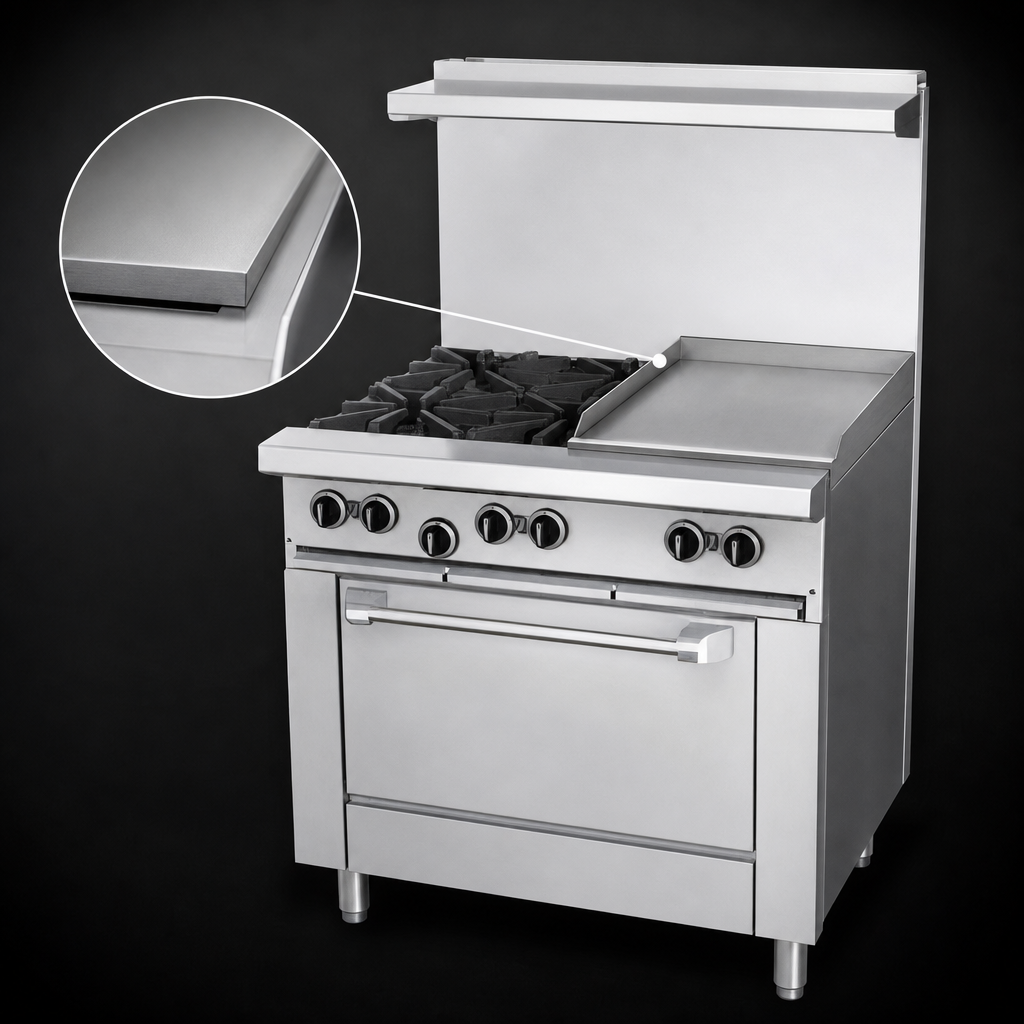

- 24″ (610 mm) smooth steel griddle, 5/8″ (15 mm) thick, with manual hi/lo valves and a 4-1/4″ (108 mm) grease trough.
- 38,000 BTU cast-iron “H” style oven burner; snap-action thermostat from low to 500 °F (260 °C).
- Spacious 27″ (686 mm) deep work-top for prep and plating.
- Total input: 138,000 BTU/hr for dependable, even heat across every cooking zone.
Built for the Line
- Durable stainless-steel front, sides, 5″ plate rail and two-piece backguard with removable shelf.
- Stamped 12″ drip trays with dimpled bottoms keep the cook-top clean.
- Porcelain-enameled oven bottom & door liner wipe clean in seconds.
- “Keep-cool” oven door handle and oversized control knobs stand up to continuous use.
- 6″ (152 mm) adjustable stainless-steel legs for easy leveling (locking casters optional).
Operational Essentials
- One nickel-plated oven rack on three-position removable guides (extra racks available).
- Factory-installed gas regulator; 3/4″ NPT rear gas connection.
- Field convertible from natural gas to propane (conversion kit required).
Certifications & Warranty
- CSA Flame & CSA Star, cCSAus and NSF listed for commercial safety & sanitation.
- 1-year limited parts & labor warranty (USA & Canada).
Technical Specifications
| Overall width | 35-7/16″ (900 mm) |
|---|---|
| Overall depth | 34-1/2″ (876 mm) |
| Work-top depth | 27″ (686 mm) |
| Overall height (to shelf) | 57″ (1448 mm) |
| Cooking height | 36″ (915 mm) |
| Open burners | 2 × 32,000 BTU (9.37 kW each) |
| Griddle burners | 2 × 18,000 BTU (5.27 kW each) |
| Oven burner | 38,000 BTU (11.13 kW) |
| Total input | 138,000 BTU/hr (40.46 kW) |
| Gas connection | 3/4″ NPT (rear), 4.5″ WC Nat / 10″ WC LP |
| Oven interior (W×D×H) | 26″ × 26-1/4″ × 14″ (660 × 667 × 356 mm) |
| Rack positions | 3 (1 rack supplied) |
| Shipping weight | Approx. 495 lb (225 kg) |
Need additional oven racks, casters or an LP conversion kit? Contact our team and we’ll make sure your U Series range arrives line-ready.
