Garland U24-4S US Range U Series Ranges Gas Ranges
Description

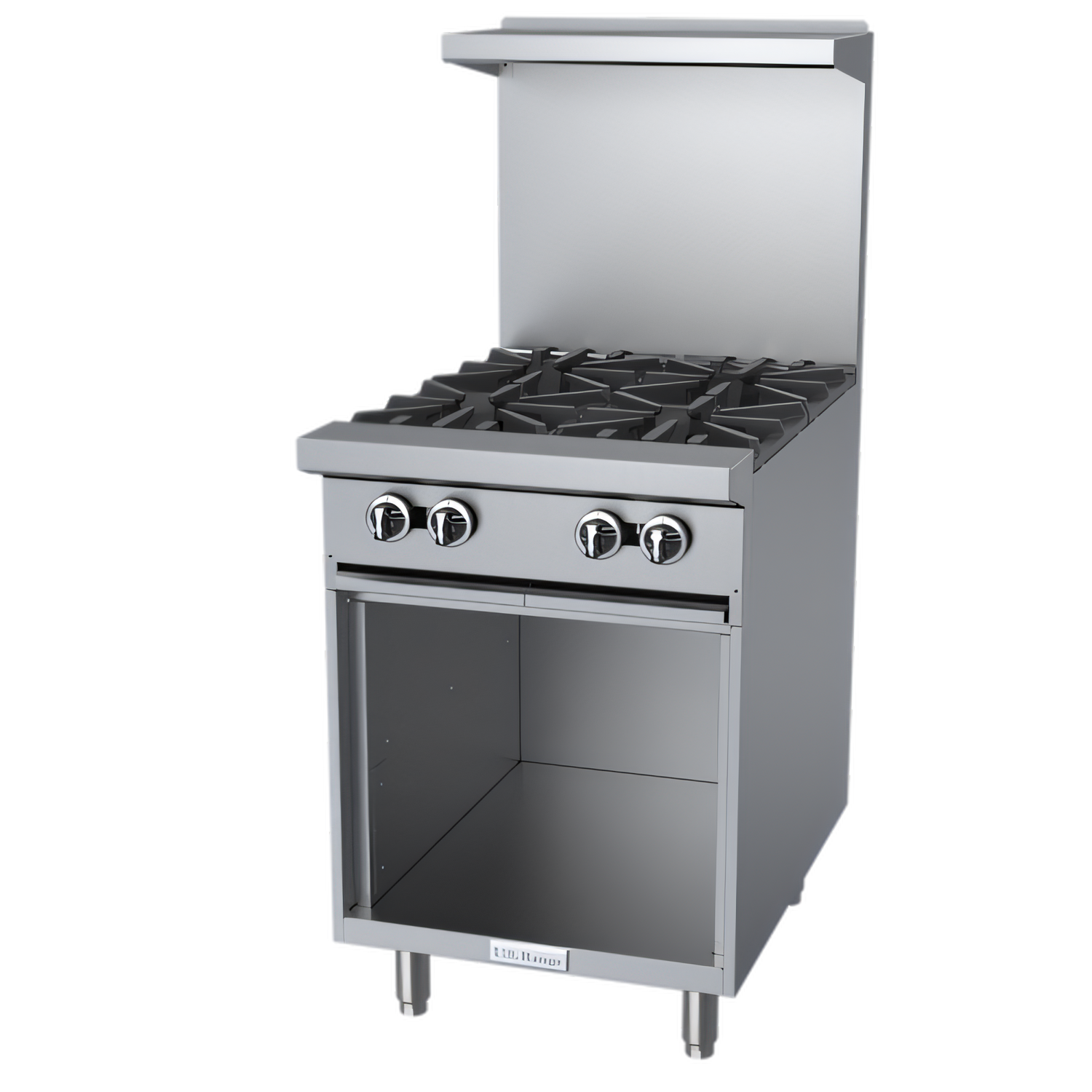

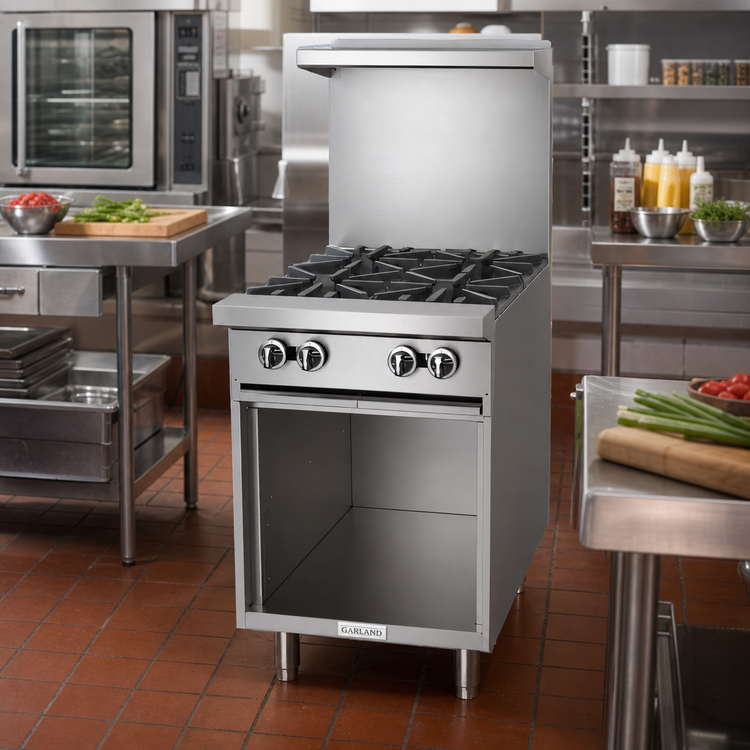

U-Series 24" Gas Restaurant Range – 4 Open Burners, Storage Base (Model U24-4S)
128,000 BTU of concentrated cooking power in just 24" of line spaceBuilt for bustling commercial kitchens that need maximum performance in a minimum footprint, the Garland U-Series 24" Gas Restaurant Range with storage base delivers powerful open-top cooking, rugged stainless construction and the convenience of built-in dry storage — all in one compact, NSF-listed package.
Key Features

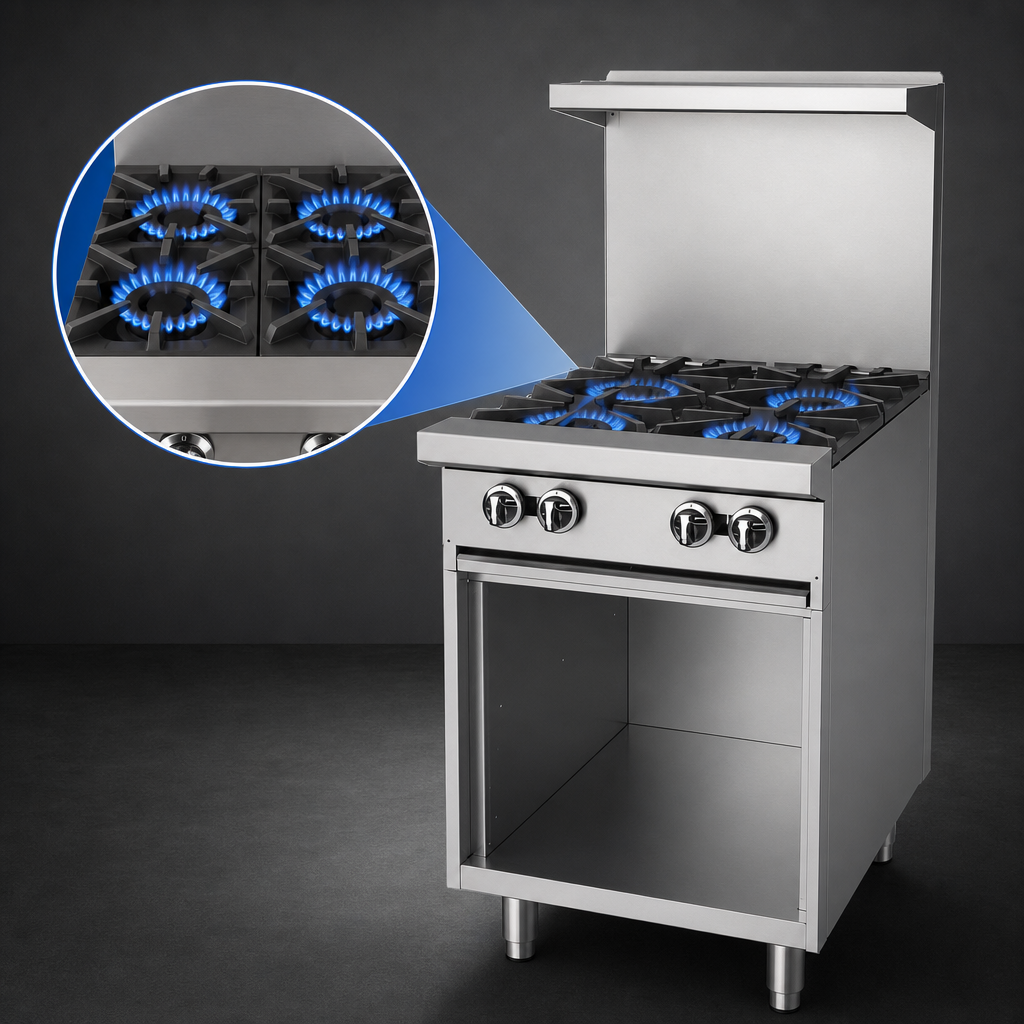

- Four high-performance, two-piece cast-iron open burners – 32,000 BTU each (Natural) / 26,000 BTU each (Propane).
- Large 27" (686 mm) deep work top provides extra plating & prep space.
- Ergonomic split cast-iron top & ring grates lift off easily for cleaning.
- Durable stainless steel front, sides, 5" (127 mm) plate rail, plus a two-piece backguard with removable shelf.
- Full-width, 12" (305 mm) stamped drip trays with dimpled bottoms keep the cookline tidy.

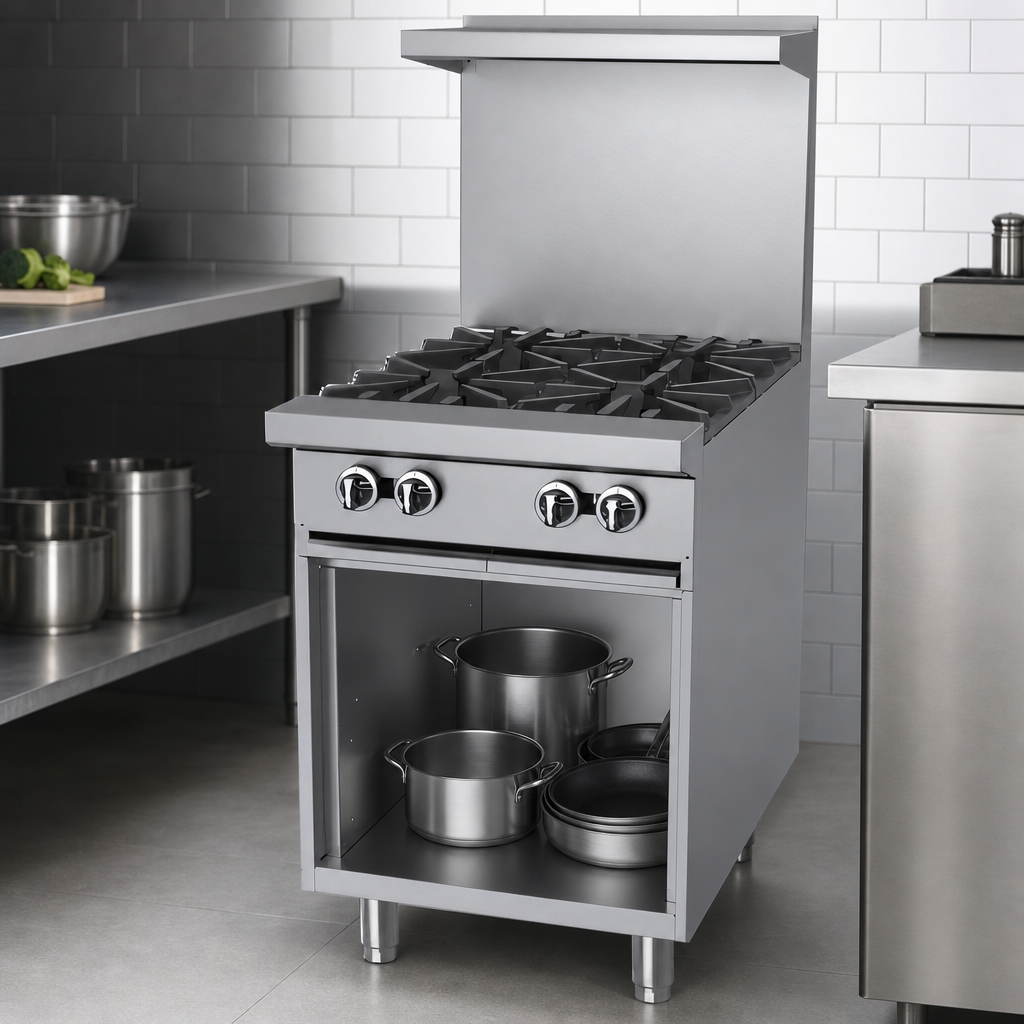

- Open storage base in lieu of an oven – perfect for pans, pots and smallwares.
- 6" (152 mm) stainless steel legs with adjustable feet allow quick, secure leveling.
- Large, easy-grip control knobs and factory-supplied gas pressure regulator for precise burner control.
- Field convertible for Natural or Propane gas.
- Certified: CSA Flame, CSA Star, cCSAus & NSF.
Technical Specifications
| Model | U24-4S |
|---|---|
| Range type | 24" (600 mm) gas restaurant range with storage base |
| Overall width | 23-5/8" / 600 mm |
| Overall depth (incl. rail) | 34-1/2" / 876 mm |
| Work top depth | 27" / 686 mm |
| Overall height (to high shelf) | 57" / 1 448 mm |
| Cooking surface height | 38" / 965 mm |
| Open burners | 4 × 32,000 BTU (Natural) / 26,000 BTU (Propane) |
| Total input | 128,000 BTU/h (Natural) – 104,000 BTU/h (Propane) |
| Gas connection | 3/4" NPT rear, supplied with regulator |
| Manifold pressure | 4.5" WC Natural | 10" WC Propane |
| Clearance to combustibles | Sides 14" / 356 mm | Rear 6" / 152 mm |
| Shipping weight | 221 lb / 100 kg |
| Shipping volume | 29 cu ft |
| Certifications | CSA Flame, CSA Star, cCSAus, NSF |
Need a different configuration? U-Series models are also available with ovens, griddle sections, hot tops, low-profile backguards and caster kits.
