Garland U24-4L US Range U Series Ranges Gas Ranges
Description

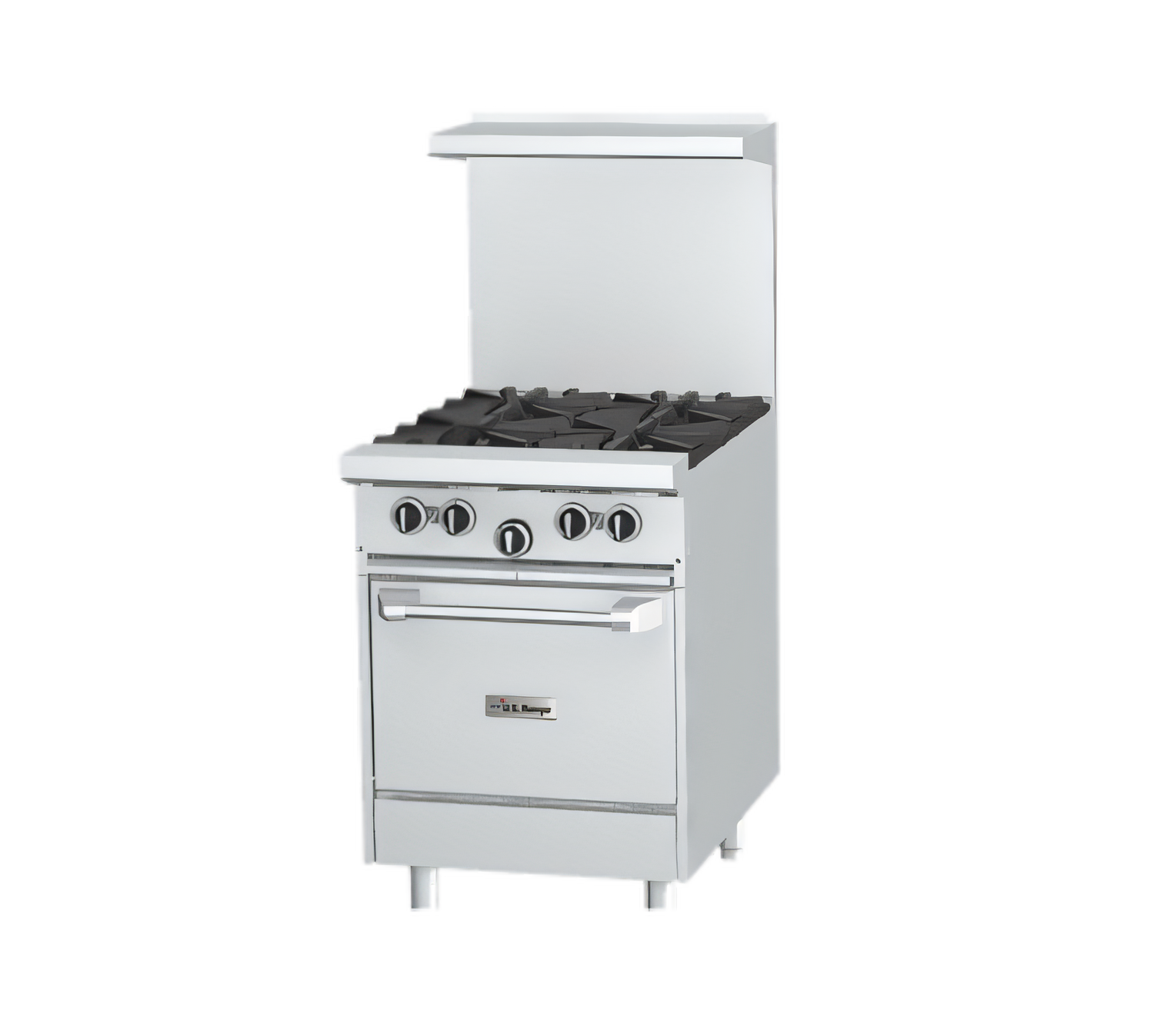

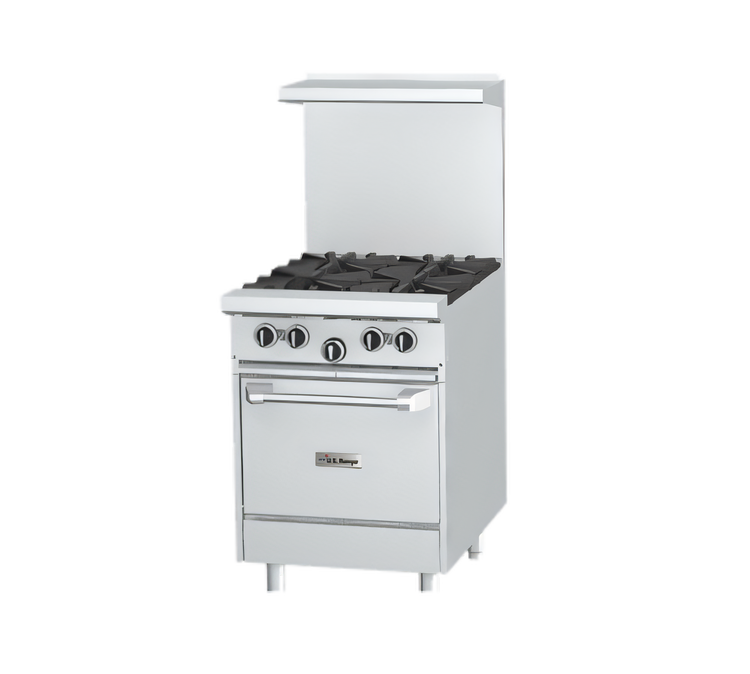

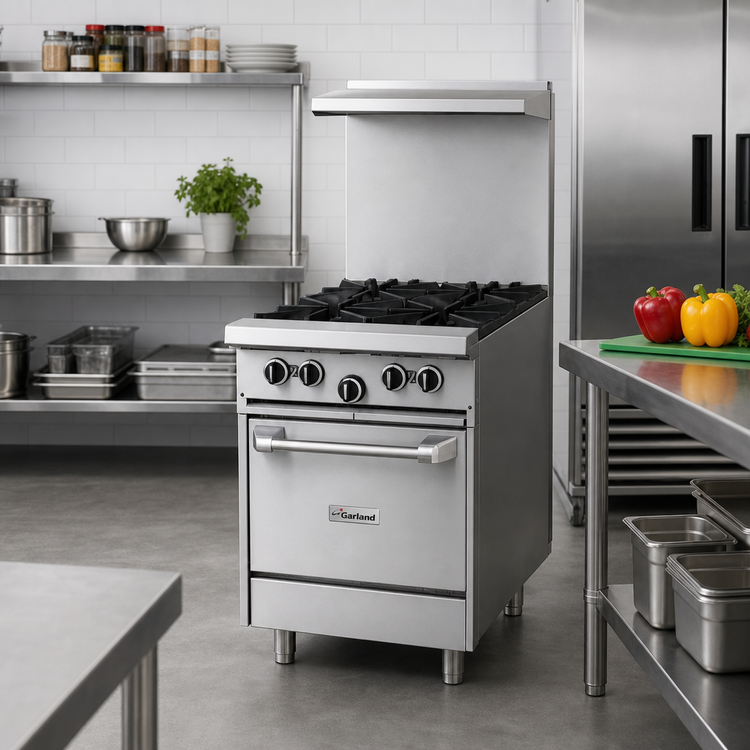

Garland U Series 24" Gas Restaurant Range – Model U24-4L
4 Open Burners • Space-Saver Oven • 160,000 BTU/h Total InputPack powerhouse performance into just 24 inches of line space. The Garland U Series U24-4L combines four high-output open burners with a fast-recovery space-saver oven, giving chefs the versatility to sauté, sear, simmer and bake from a single, stainless-steel workhorse.
Built for High-Volume Kitchens

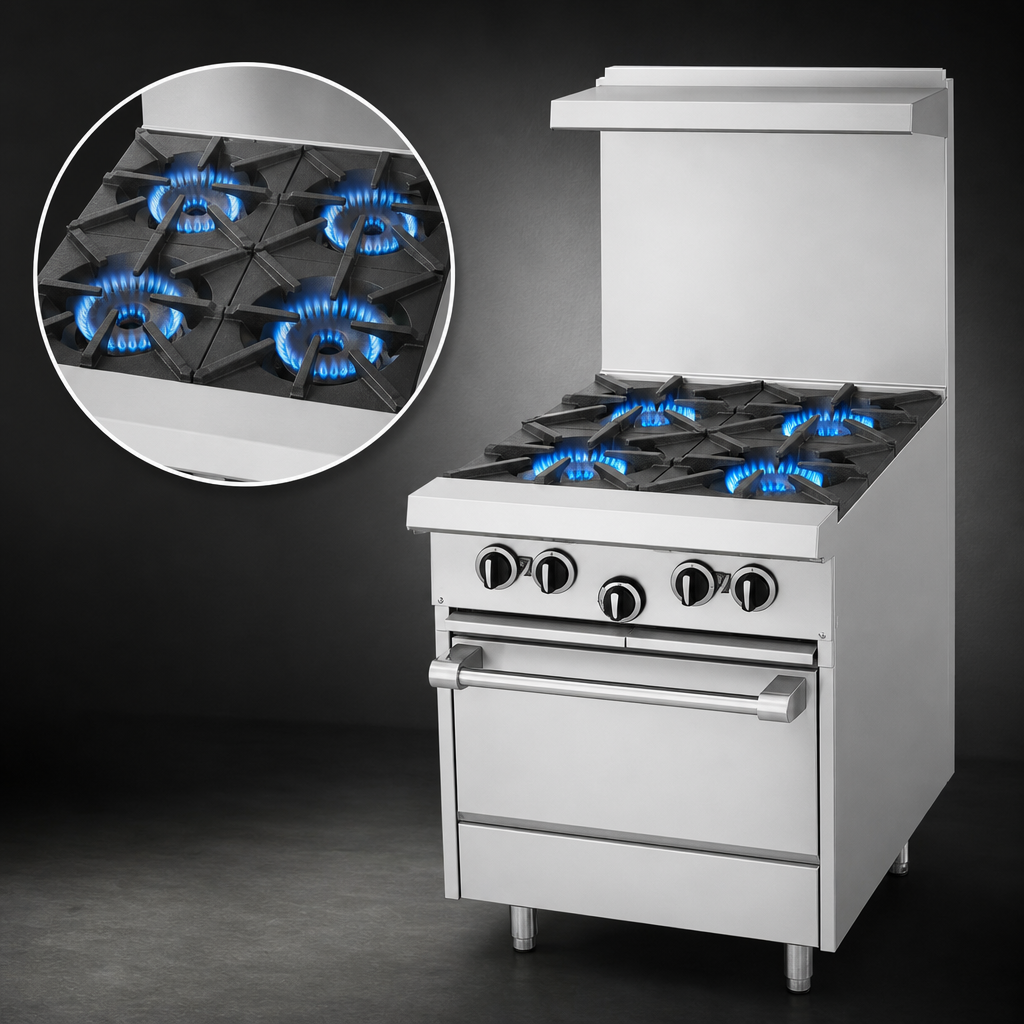

- Four 32,000 BTU two-piece cast-iron open burners for rapid heat and pinpoint control.
- Ergonomic split cast-iron top & ring grates lift out individually for easy cleaning.
- Extra-deep 27" (686 mm) work top maximizes usable cooking surface.

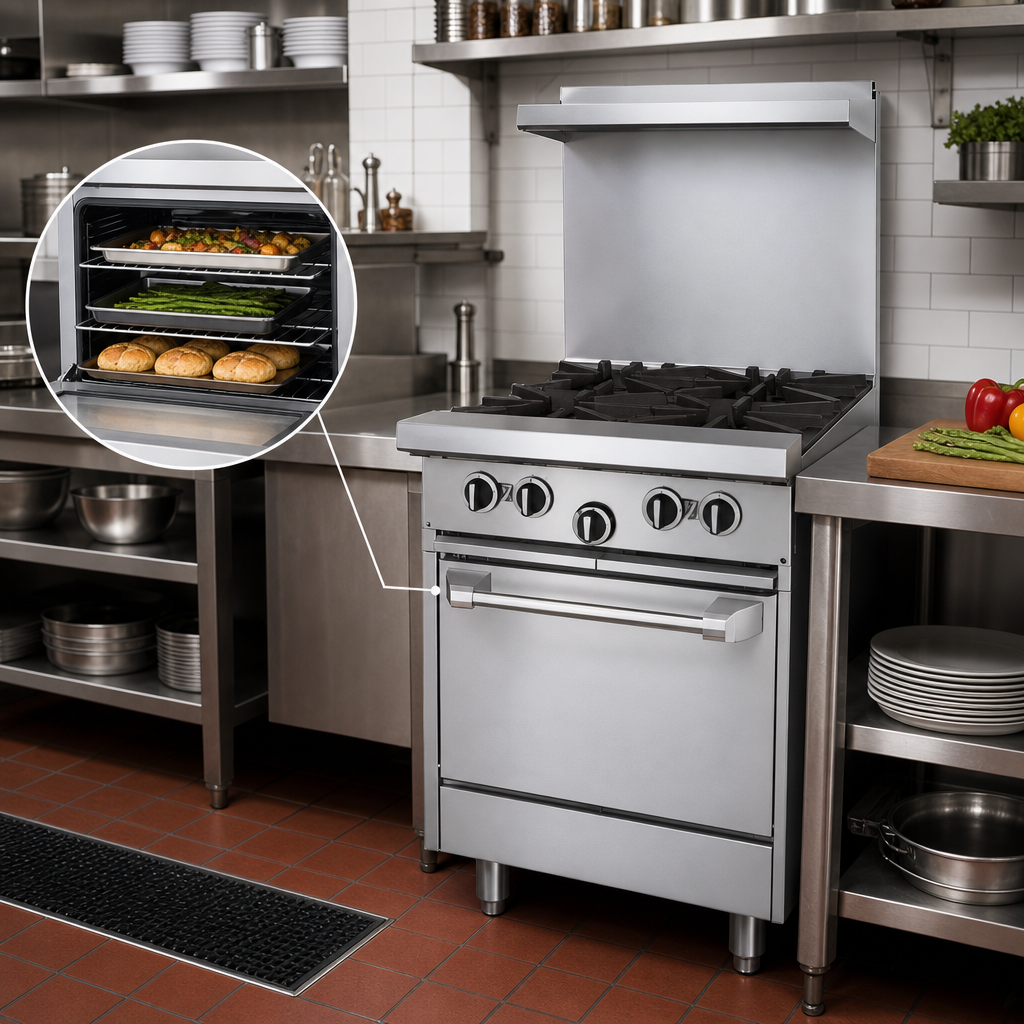

- Space-saver oven with porcelain-enameled bottom & door interior for superior cleanability.
- Snap-action oven thermostat, low to 500 °F (260 °C) for even bake and quick recovery.
- Nickel-plated rack on 3-position removable guides—perfect for sheet pans, hotel pans or skillets.
- Heavy-duty stainless-steel front, sides, 5" plate rail, and two-piece backguard with removable shelf.
- 6" (152 mm) adjustable stainless-steel legs allow easy leveling and under-range cleaning.
Performance at a Glance
- Total input: 160,000 BTU/h
- Open burners: 4 × 32,000 BTU cast-iron geometric burners
- Oven burner: 32,000 BTU cast-iron “H” style
- Gas type: Natural or Propane (factory configured)
- Manifold pressure: 4.5" WC Natural / 10" WC Propane
- Heavy-duty gas regulator and 3/4" NPT rear connection included
Technical Specifications
| Model | U24-4L |
|---|---|
| Cooking surface width | 23-5/8" (600 mm) |
| Overall depth / Work-top depth | 34-1/2" (876 mm) / 27" (686 mm) |
| Height with back-shelf | 57" (1,448 mm) |
| Oven interior (W × D × H) | 20" × 26" × 13" (508 × 660 × 330 mm) |
| Oven racks supplied / positions | 1 rack / 3 positions |
| Total input | 160,000 BTU/h (46.9 kW) |
| Shipping weight | 302 lb (137 kg) |
| Clearances – combustible | 14" (356 mm) sides • 6" (152 mm) rear |
| Certifications | CSA Flame • CSA Star • cCSAus • NSF |
Included with Your Range
- Garland U24-4L range (factory-assembled)
- One nickel-plated oven rack
- 3/4" NPT combination pressure regulator
- Removable stainless-steel backguard shelf
- Operator’s manual & warranty (1-year parts & labor)
Popular Options & Accessories
- Additional oven racks
- 6" levelling swivel casters with front locks
- Flanged deck-mount legs
- Low-profile 9-3/8" backguard
- Celsius temperature dial
- Gas flex hose with quick-disconnect & restraining device
Garland/US Range reserves the right to modify design or specifications without notice. Gas input ratings shown are for installations up to 2,000 ft (610 m) above sea level; please specify higher altitudes at time of order.
